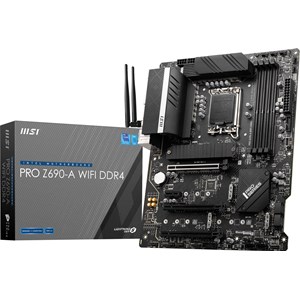

Name: MSI PRO Z690-A WIFI DDR4 ATX Motherboard for Intel LGA1700 CPUs
Brand: MSI
SKU: MBD3138
Price: 205.14 GBP
Availability: InStock
Rating: 4.6 (5 reviews)

MSI PRO Z690-A WIFI DDR4 ATX Motherboard for Intel LGA1700 CPUs

Compare

Was £250.80

SAVE £45

Now only

£205.14 inc VAT

Available for Free Priority Delivery from Tomorrow

8 In Stock Now

Order within

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

Socket 1700
Intel Z690 Chipset
6 x SATA & 8 x USB Ports
DDR4 (max 128GB, 4 slots)
HDMI and Display Port
ATX Form Factor

Grab an open-box bargain at only £119.27 - save £85.87!

CCL Code: MBD3138

Overview

PRO Z690-A WIFI DDR4

Exclusive features

Core Boost Technology

Combining 2x 8 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

6 layer PCB with 2oz Thickened Copper

6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

Digital PWM

Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

PCIe Steel Armor

Protecting VGA cards against bending and EMI for better performance, stability and strength.

PRO Z690-A WIFI DDR4

premium thermal solutions

Extended Heatsink

MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

M.2 Shield Frozr

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Pump Fan Support

Control watercooling pump speeds for best flow and noise control.

PRO Z690-A WIFI DDR4

HIGH-SPEED TRANSMISSION

2.5G Network Solution

Featuring premium 2.5G LAN with LAN manager delivers better network experience.

Lightning USB 20G

Built-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

Intel Wi-Fi 6

The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

Memory Boost

The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

Lightning Gen 5 Solution

The latest Gen 5 PCI-E solution with up to 128GB/s bandwidth for maximum transfer speed.

MSI PRO Z690-A WIFI DDR4 & MAG VAMPIRIC 300R & MAG CORELIQUID 240R & MPG A750GF

LIGHTNING GEN 5 PCI-E

MSI Lightning Gen 5 PCI-E represents the bandwidth of a x16 interface to 128GB/s, which is double of the speed of the previous generation. The advanced SMT(Surface Mount Technology) PCI-E slot diminishes the interference and electrical noise, fully supporting higher bandwidth and faster transfer speeds of PCI-E 5.0 signal.

CORE BOOST

Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.

6-LAYER SERVER GRADE PCB WITH 2OZ THICKENED COPPER

An enhanced PCB design with 2oz thickened copper and multilayer server grade solution increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

EXTENDED HEATSINK

Metal extended heatsink enlarge the surface of heat dissipation, ensures even high-end processors to run in full speed.

USB Type-C ready in both Front case panel & Rear IO

Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.

LIGHTNING GEN 4 M.2 WITH M.2 SHIELD FROZR

Cooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection.

FASTER LIGHTNING USB 20G

The transmission speed of the latest USB 3.2 Gen 2x2 reaches up to 20Gbps, which is four times faster than USB 3.2 Gen 1 solution. PRO Z690-A WIFI DDR4 offers stable high speed transmission by reversible Type-C as well as read and write your files over USB faster than ever.

WI-FI 6 & BLUETOOTH

Use your LAN port for online gaming while using WiFi for other online applications. The Wi-Fi 6 adopts latest OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps.

14 + 1 + 1 DUET RAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design with concurrent stable power delivery. Combining 2x 8 pin power connectors and exclusive Core Boost technology, PRO Z690-A WIFI DDR4 motherboard is ready to sustain heavy daily work.

2x 8 Pin CPU Power connectors
14 Duet Rail CPU PowerSystem
1 phase GT Power
1 phase AUX Power
Digital PWM IC

UNMATCHED MEMORY PERFORMANCE

MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

MAXIMIUM DATA TRANSFER WITH 2.5G LAN

PRO Z690-A WIFI DDR4 features high-bandwidth and low-latency dual Ethernet networks for demanding creators and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

EASY TO ARRANGE YOUR CABLES

Not clever at cable arrangement? MSI Atypical PCB design not only the identity of stylish but also makes SATA and USB cable routing easier. Arranges cable neatly even you are not familiar with system build.

MULTIPLE GPU SUPPORTS AND STEEL ARMOR

PRO Z690-A WIFI DDR4 supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD CrossFire™ setup. Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

Main Features

Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR4 Memory, up to 5200+(OC) MHz
Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
Audio Boost: Reward your ears with studio grade sound quality
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire

Specifications

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	12th Gen Intel Core Processors
64-bit Support	Yes
Socket	LGA1700

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.2 1 x USB 3.1 2 x USB 3.0 4 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
Keyboard/Mouse Combo Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	4 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x Antenna

Internal I/O Connectors

SATA Connectors	6 x SATA III
USB Connectors	1 x USB-C 3.1 header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Water Pump fan header 6 x System fan headers
Thunderbolt Port(s)	1 x Thunderbolt header (supports RTD3)
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS
Other Connectors	1 x M.2, Type 2242/2260/2280/22110 (PCIe Gen4) 1 x M.2, Type 2242/2260/2280 (PCIe Gen4) 1 x M.2, Type 2242/2260/2280 (PCIe Gen3 or SATA) 1 x M.2, Type 2242/2260/2280 (PCIe Gen4 or SATA) 1 x Tuning Controller header 2 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header

Memory

Memory Bus Speed	Up to 5200+ MHz (OC)
Memory Type	DDR4
Maximum RAM	128 GB
Memory Slot	4 x DIMM

Motherboard

Chipset Manufacturer	Intel
Northbridge	Z690
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
2 x PCI Express 3.0 x16 slots (@ x4, x1)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC897

Warranty

3 Years

Network

Integrated Network	Intel I225V
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 6)
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.2

System Requirements

Operating Systems Supported

Microsoft Windows 11 / 10 64-bit

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes
SLi/Crossfire Features	Supports AMD CrossFire Technology

Physical

Form Factor	ATX Motherboard
In The Box	MSI PRO Z690-A WIFI DDR4 Motherboard Quick Installation Guide M.2 Screw / Standoff Set 2 x M.2 Clips 2 x SATA Cables Product Registration Card Wi-Fi Antenna I/O Shield Driver DVD
Width	305 mm
Length	244 mm

Key Features

Firewire	No
Wireless Network	Yes
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	6 port(s)
Number of USB Ports	8 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	ATi CrossFire
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard Power Connectors	8 + 8-Pin
Motherboard Chipset	Intel Z690
Thunderbolt	No
Motherboard Model	MSI PRO Z690-A WIFI DDR4
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
Memory Speed	5200 MHz
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	3200 MHz
Max Memory Speed Supported (overclocked)	5200 MHz
CPU Power Pins (female)	16
Total M.2 Slots	4
Maximum NVMe M.2 ports	4
Maximum SATA M.2 ports	2
SATA ports	6
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	4
No. of front USB-C ports supported	1

Item Details

Manufacturer	MSI
Manufacturer Code	PRO Z690-A WIFI DDR4
EAN	4719072888633
Condition	New

Warranty

Warranty Information

Warranty

3 Years

Manufacturer Information

Manufacturer	MSI
Manufacturer Code	PRO Z690-A WIFI DDR4

Q&A

Do you have you a question about the MSI PRO Z690-A WIFI DDR4 Motherboard, ATX, Intel Socket 1700, Z690 Chipset?

Reviews

4.6 / 5 5 reviews

Matthew Edge

9 months ago

Solid purchase, the exact professional experience you'd expect.

David M

10 months ago

Love this, exactly what I wanted. Perfect for my upgrade system.

joseph

11 months ago

Brilliant product, delivery on time and cheaper than competitors

Erikas

11 months ago

I bought this motherboard to house my Intel core i5 12600k this was very easy to install on my PC case and everything else was plug and play. The build is sturdy. The wifi is phantastic. Will buy my future product from MSI using ccl. Best company ever. +1 very good and very well.

Sab

February 2022

It's a good board and I'd buy it again, but the PCI-E GPU disconnect switch broke off THE FIRST TIME I used it. Just snapped right in half and doesn't secure the GPU in anymore. It is still adequately secure but it might not be if I ever move/tilt it. I also got this board as it's got WiFi 6E. I previously used a PCI-E card to connect to a 5Ghz WiFi network but the signal this board gets is just as good, no need to spend 60 on a separate card. A BIOS default "problem". The power limits set for my i7 12700k was up at 250W (125W TDP CPU, and I use a 200W Dark Rock 4 cooler), so no surprise, during a stress test CPU temps went above 100C. Lowered short duration power limit to 200W and long duration PL to 125W, temps are good now. I also added 1mm nylon spacers under the ILM screws as advised by Igors lab. CPU runs cooler now and there is no chance of CPU bending now. Easy fix.
