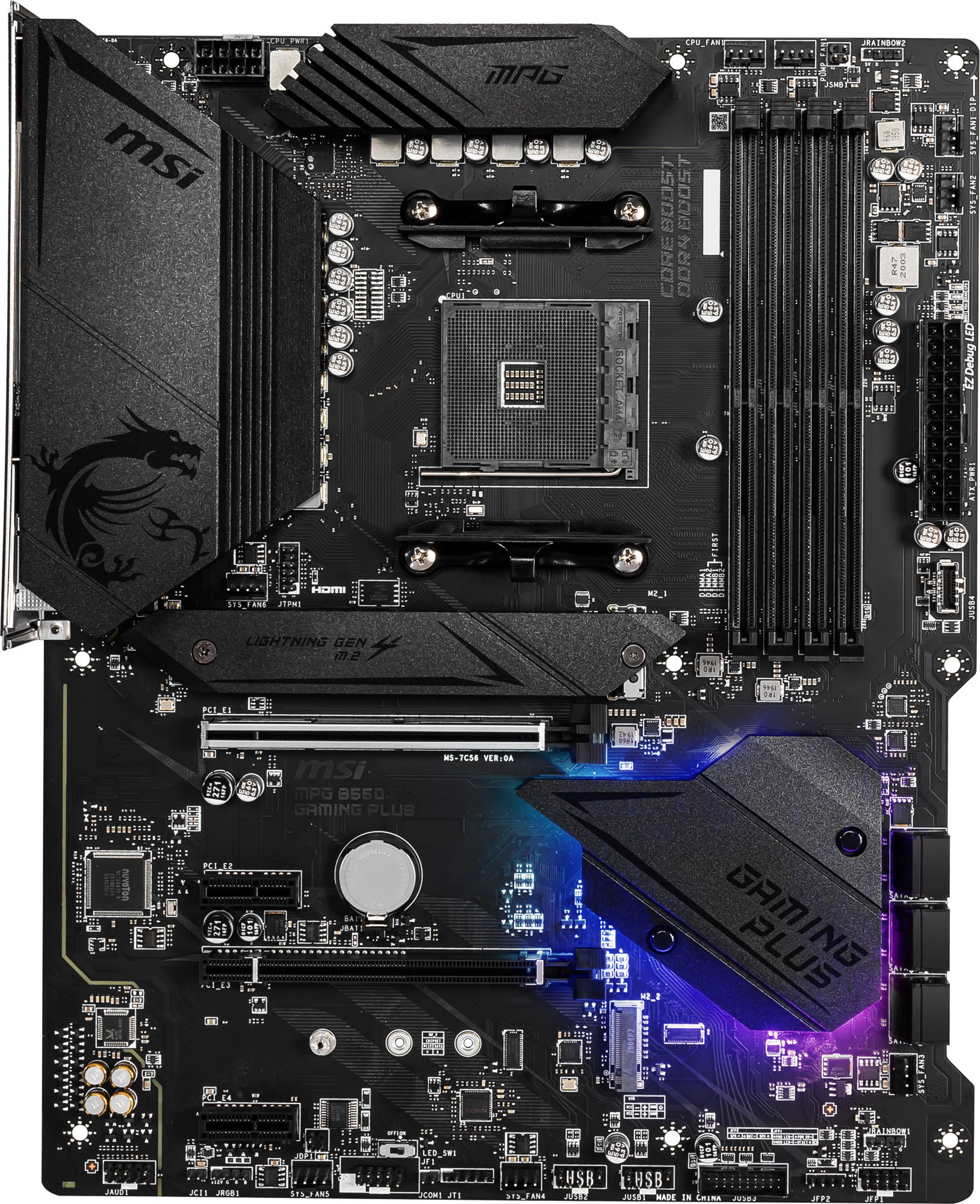

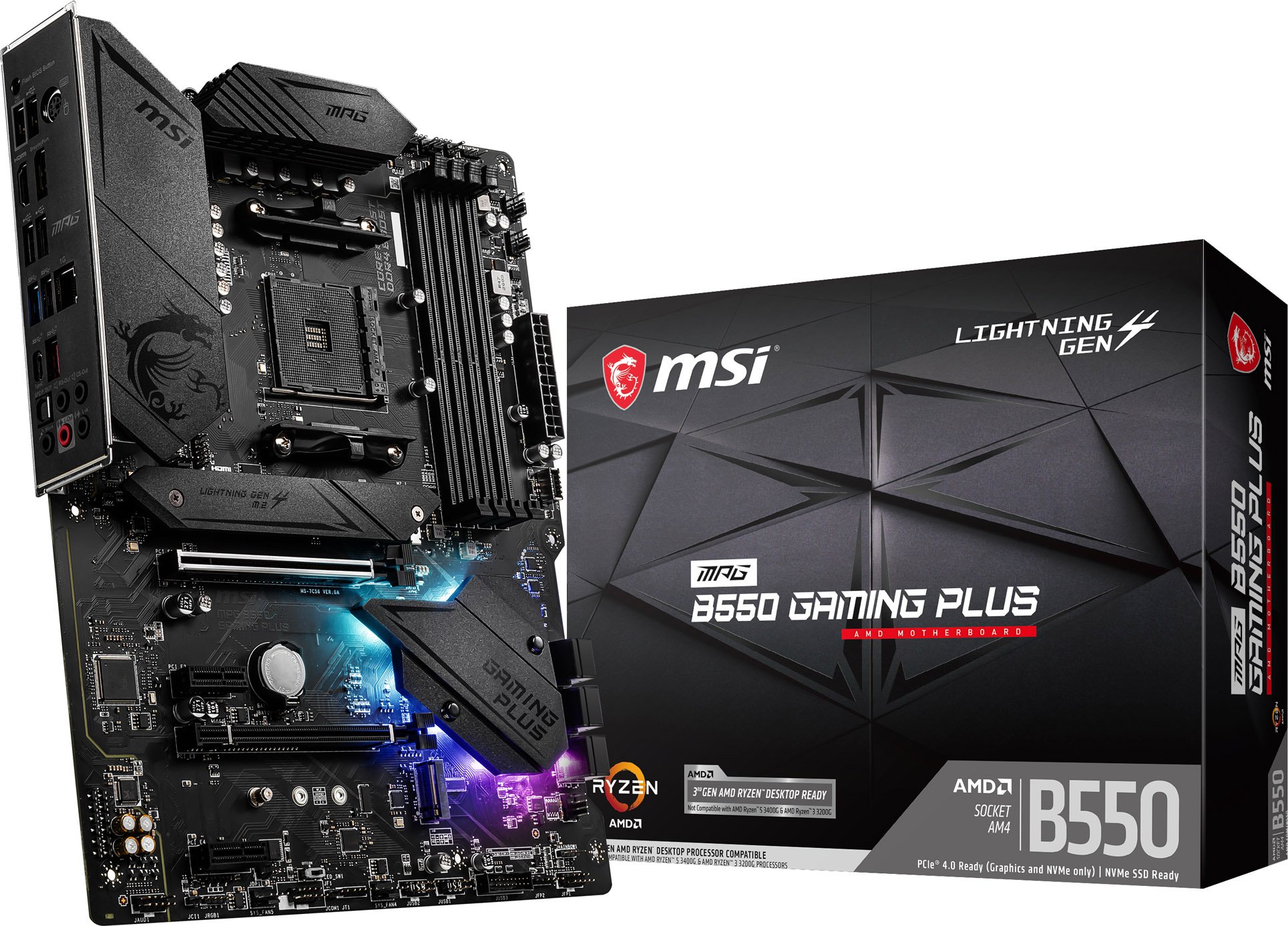

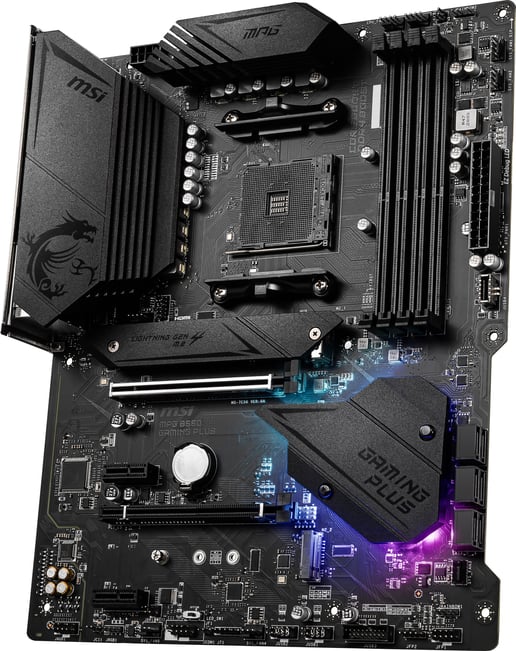

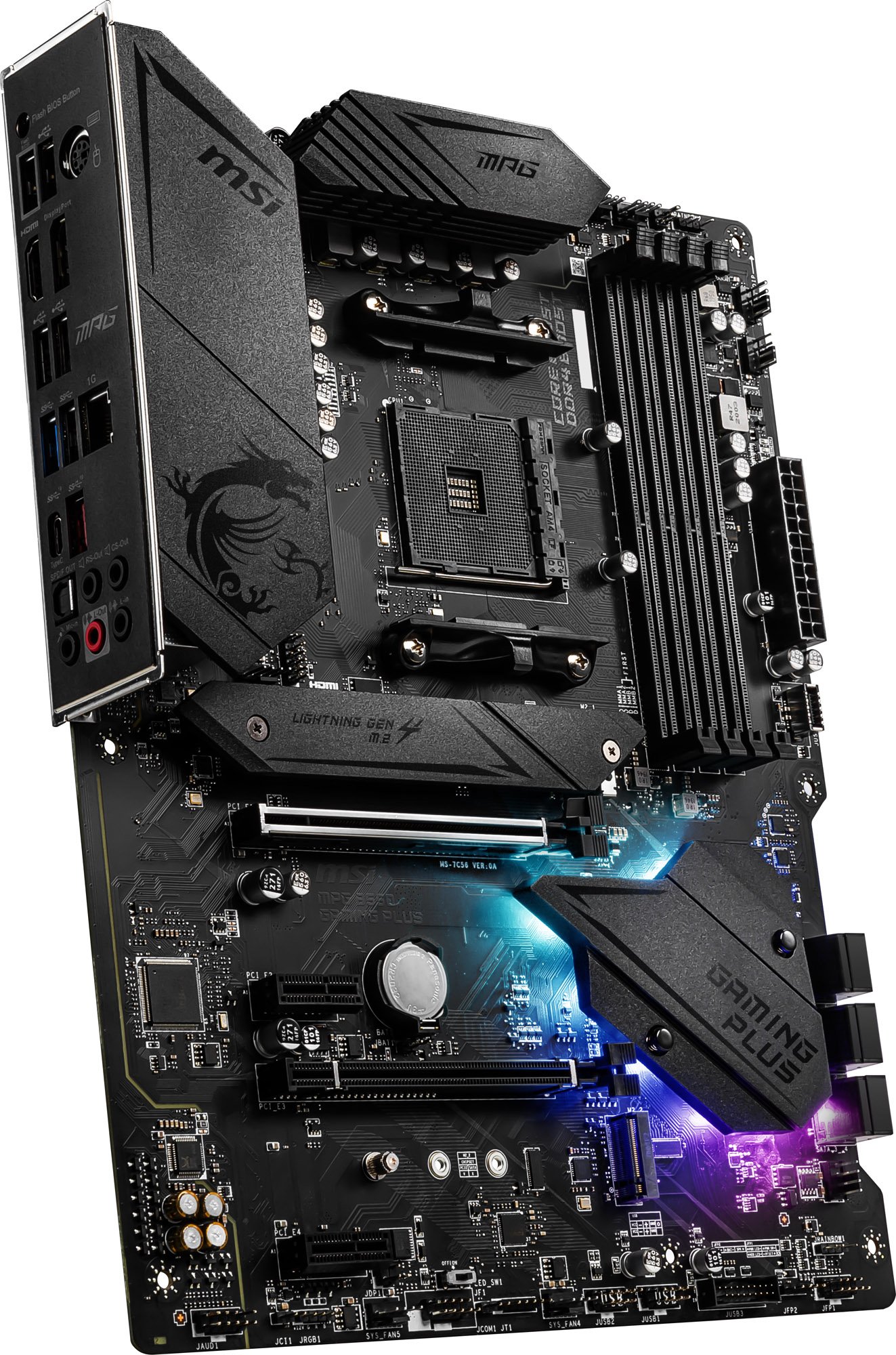

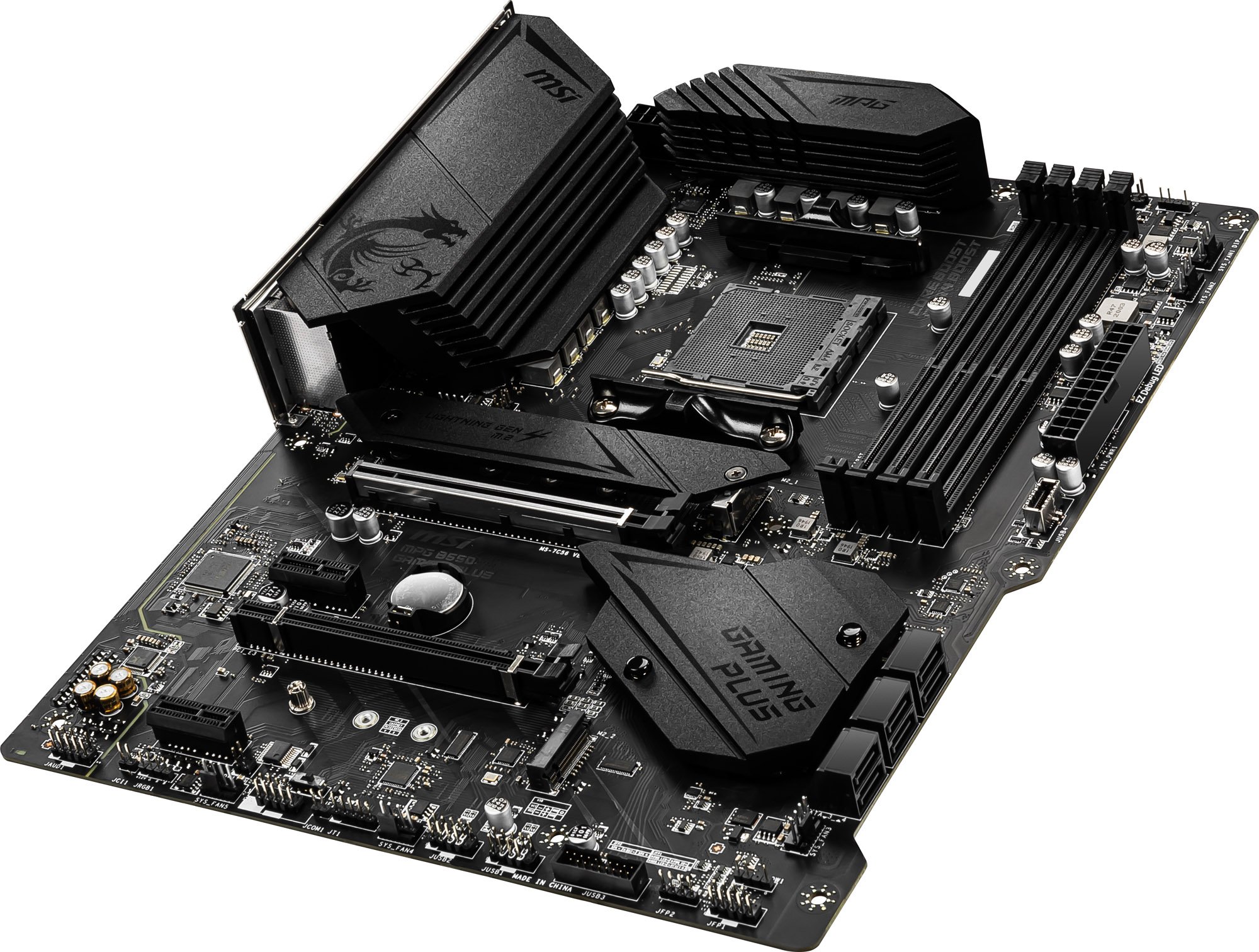

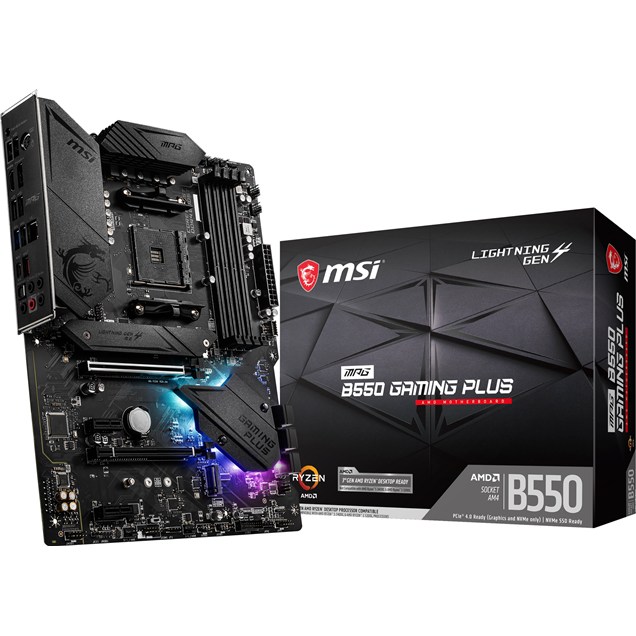

MSI MPG B550 GAMING PLUS ATX Motherboard for AMD AM4 CPUs

MSI MPG B550 GAMING PLUS ATX Motherboard for AMD AM4 CPUs

CCL Code: MBD2856

Was £119.99

SAVE £10

Now only

£109.99 inc VAT

MSI MPG B550 GAMING PLUS ATX Motherboard for AMD AM4 CPUs

MPG B550 GAMING PLUS

Was £119.99

SAVE £10

Now only

£109.99 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Monday 14th October

Hurry, only 3 left!

Order within

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • AMD B550 Chipset
  • Socket AM4
  • DDR4 (Max: 128GB / 4 slots)
  • 2 x M.2 & 8 x USB & 6 x SATA
  • HDMI and Display Port
CCL Code: MBD2856
Overview

MPG B550 GAMING PLUS
EXCLUSIVE FEATURE
MSI MPG B550 GAMING PLUS CORNERSTONE overview
MSI Core Boost Technology Core Boost Technology
Premium layout design with MSI exclusive Core Boost technology is ready for unleashing the maximum performance.
MSI PCB with 2oz Thieckened Copper PCB with 2oz Thieckened Copper
2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
MSI Digital PWM Digital PWM
High quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
MSI PCIe Steel Armor PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

MPG B550 GAMING PLUS
PREMIUM THERMAL SOLUTION
MSI MPG B550 GAMING PLUS THERMAL overview
MSI Extended Heatsink Design Extended Heatsink Design
MSI extended heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
MSI M.2 Shield Frozr M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
MSI Pump Fan Support Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
MSI Heatsinks with 7W/mK Thermal & Choke Pad Heatsinks with 7W/mK Thermal & Choke Pad
7W/mK thermal pad provides better heat transfer to the heatsink.

MPG B550 GAMING PLUS
HIGH-SPEED TRANSMISSION
MSI MPG B550 GAMING PLUS LIGHTNING overview
MSI Flash BIOS Button Flash BIOS Button
Simply use a USB to flash any BIOS within seconds, without installing CPU, memory and graphics card.
MSI Turbo USB Turbo USB
Featuring the TURBO USB 3.2 Gen 2 10Gbps with reversible Type-C connector.
MSI Intel Wi-Fi 6 Intel Wi-Fi 6
The latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
MSI DDR4 Boost DDR4 Boost
The Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.
MSI Lightning Gen 4 Solution Lightning Gen 4 Solution
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

ESL PRO LEAGUE PARTNERSHIP

MSI MPG B550 GAMING PLUS & MPG GUNGNIR 110

MSI MPG B550 GAMING PLUS LIGHTNING GEN 4
LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

MSI MPG B550 GAMING PLUS 10 + 2 + 1 DUET RAIL POWER SYSTEM
10 + 2 + 1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 10 Duet Rail Power System(DRPS). Combining exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.
  • 10 Duet Rail CPU Power System
  • 2 phases SOC Power
  • 1 phase APU Power
  • Digital PWM IC

MSI MPG B550 GAMING PLUS PCB WITH 2OZ THICKENED COPPER
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

MSI MPG B550 GAMING PLUS GAMING RIG
CUSTOMIZE YOUR GAMING RIG
Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.
  • Customize colors
  • Customize effects

MSI MPG B550 GAMING PLUS PRE-INSTALLED IO SHIELDING
PRE-INSTALLED IO SHIELDING
Featuring the pre-installed IO shielding, makes your installation process easier and safer. The patent-pending design protect your IO ports also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.

MSI MPG B550 GAMING PLUS LIGHTNING GEN 4 M.2 WITH SHIELD FROZR
LIGHTNING GEN 4 M.2 WITH SHIELD FROZR
Higher performance generates more heat for the latest Gen4 bandwidth. MPG B550 GAMING PLUS features M.2 Shield Frozr to provide best performance for enthusiast gamers and prosumers.

MSI MPG B550 GAMING PLUS CORE BOOST
Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while doing.

MSI MPG B550 GAMING PLUS DDR4 BOOST
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

MSI MPG B550 GAMING PLUS MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MPG B550 GAMING PLUS supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

MSI MPG B550 GAMING PLUS AMPLIFY YOUR GAME WITH AUDIO BOOST
AMPLIFY YOUR GAME WITH AUDIO BOOST
Like a dedicated sound card, Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

MSI MPG B550 GAMING PLUS USB Type-C ready in both Front case panel & Rear IO
USB Type-C ready in both Front case panel & Rear IO
Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.

MSI MPG B550 GAMING PLUS EZ LED CONTROL
EZ LED CONTROL FOR RGB CUSTOMIZATION
A built-in LED button on the motherboard to control your light effect in a second. Use EZ LED CONTROL to show million of colors or turn off lights right away.


Main Features

  • Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
  • Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
  • Audio Boost: Reward your ears with studio grade sound quality
Specifications

CPU

CPU Socket Socket AM4
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
64-bit Support Yes
Socket AM4

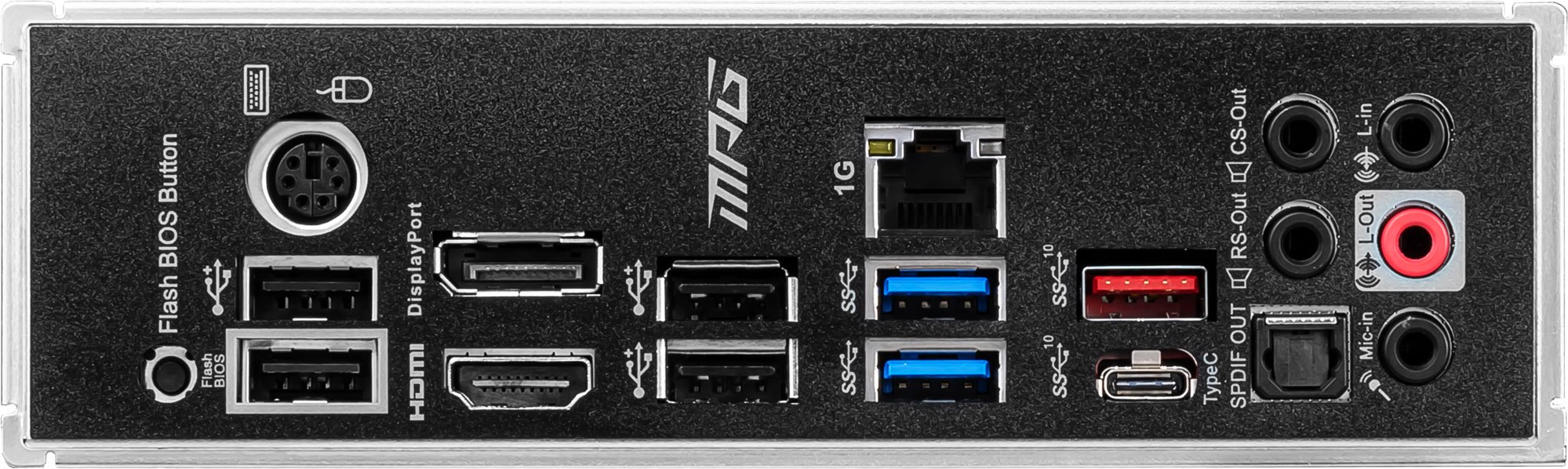

Rear Panel I/O Ports

USB Ports 1 x USB 3.1 Type-C
1 x USB 3.1 Type-A
2 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort
HDMI Port 1 x HDMI
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out

Internal I/O Connectors

SATA Connectors 6 x SATA III
USB Connectors 1 x USB 3.0 Type-C header
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Water Pump fan header
6 x System fan headers
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 20+4-pin ATX
1 x 4+4-pin EPS
Other Connectors 1 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110)
1 x M.2, Socket 3, M Key (Type 2242/2260/2280)
1 x RGB LED header
2 x Addressable LED headers

Memory

Memory Bus Speed 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Chipset Manufacturer AMD
Northbridge B550
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16
1 x PCI Express 3.0 x16 (@ x4)
2 x PCI Express 3.0 x1

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Raltek ALC892

Network

Integrated Network Realtek 8111H
Network Speeds Supported 10/100/1000 Mbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 10 64-bit

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes
SLi/Crossfire Features Supports 2-Way AMD CrossFire Technology

Physical

Form Factor ATX Motherboard

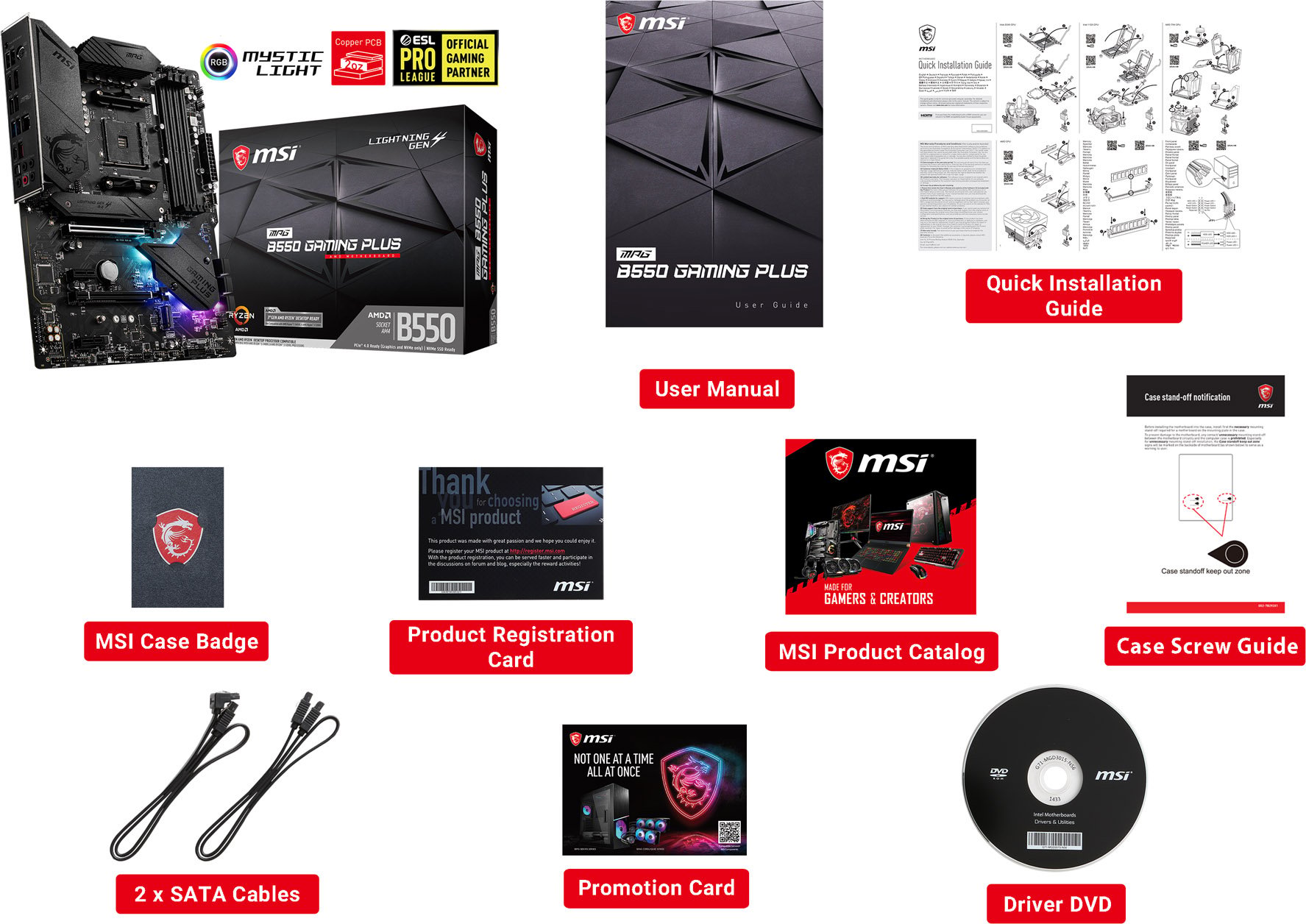

In The Box MPG B550 GAMING PLUS Motherboard
User Manual
Quick Installation Guide
MSI Case Badge
Product Registration Card
MSI Product Catalog
Case Screw Guide
2 x SATA Cables
Promotion Card
Driver DVD
Width 305 mm
Length 244 mm

Key Features

Firewire No
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 6 port(s)
Number of USB Ports 8 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support ATi CrossFire
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset AMD B550
Thunderbolt No
Motherboard Model MSI MPG B550 GAMING PLUS
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
Memory Speed 4400 MT/s
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 3200 MT/s
Max Memory Speed Supported (overclocked) 4400 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
Maximum SATA M.2 ports 1
SATA ports 6
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1

Item Details

Manufacturer MSI
Manufacturer Code MPG B550 GAMING PLUS
EAN 4719072731885
UPC 824142218600
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code MPG B550 GAMING PLUS
