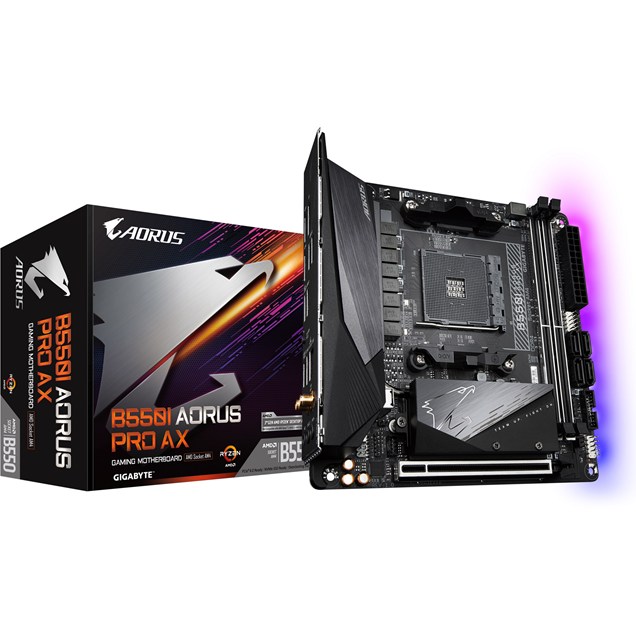

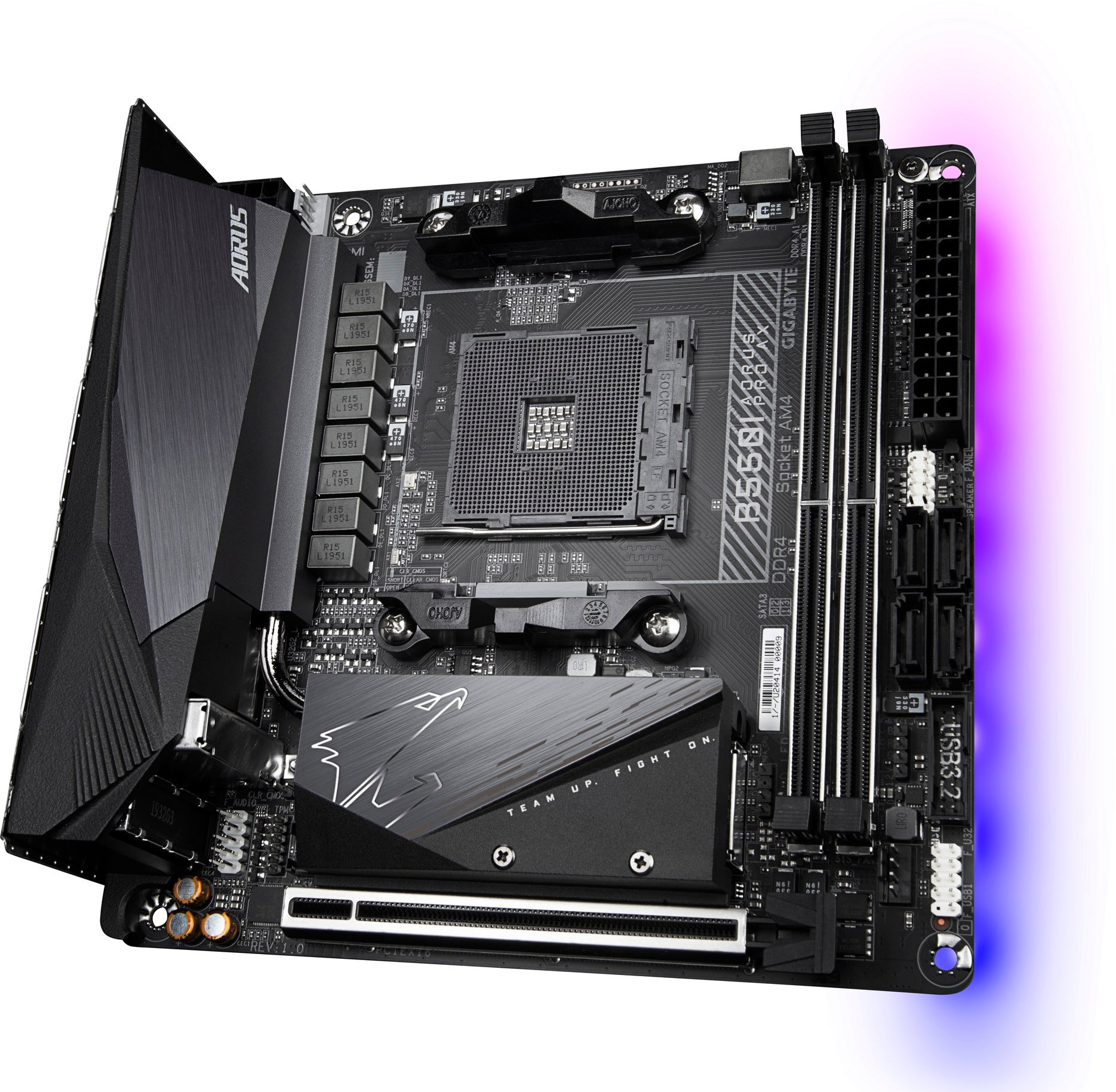

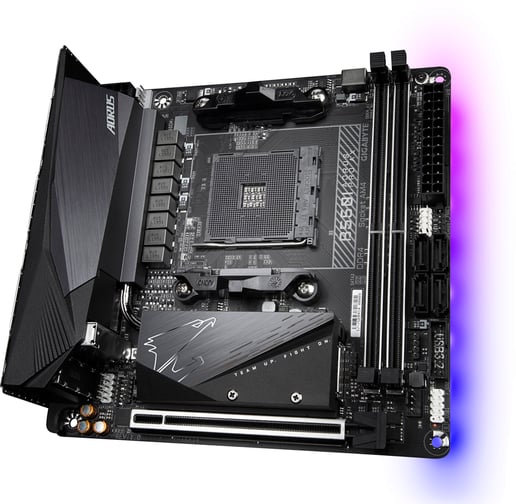

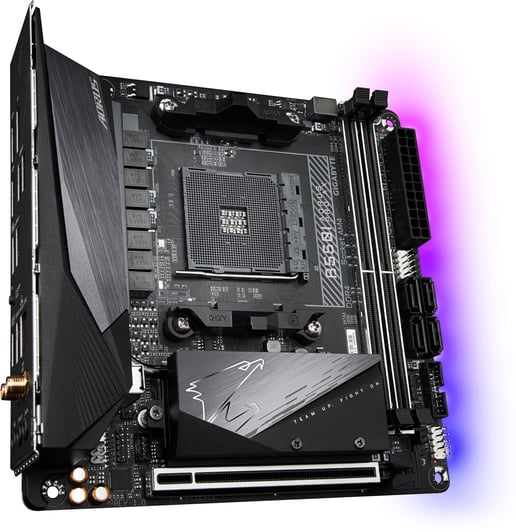

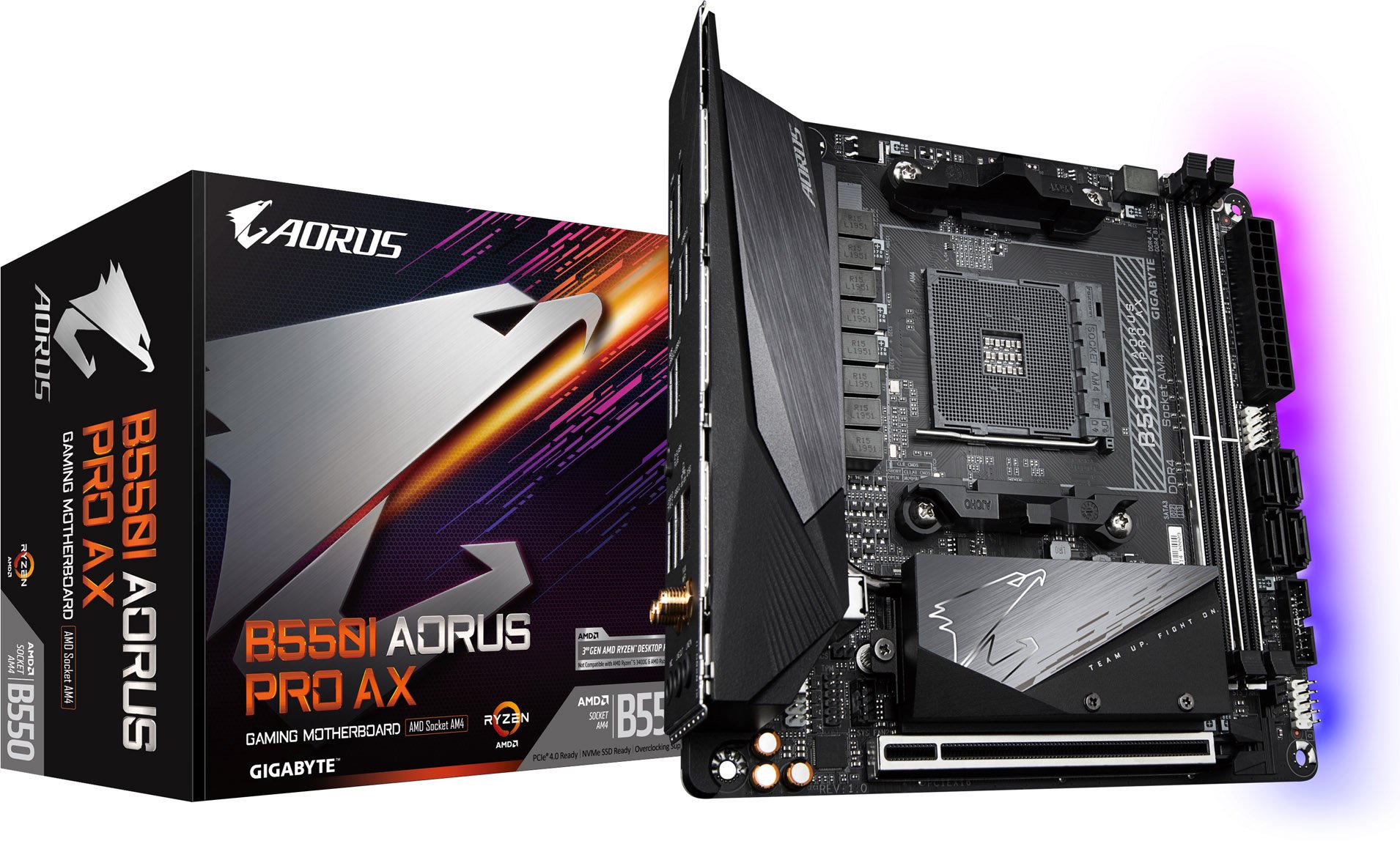

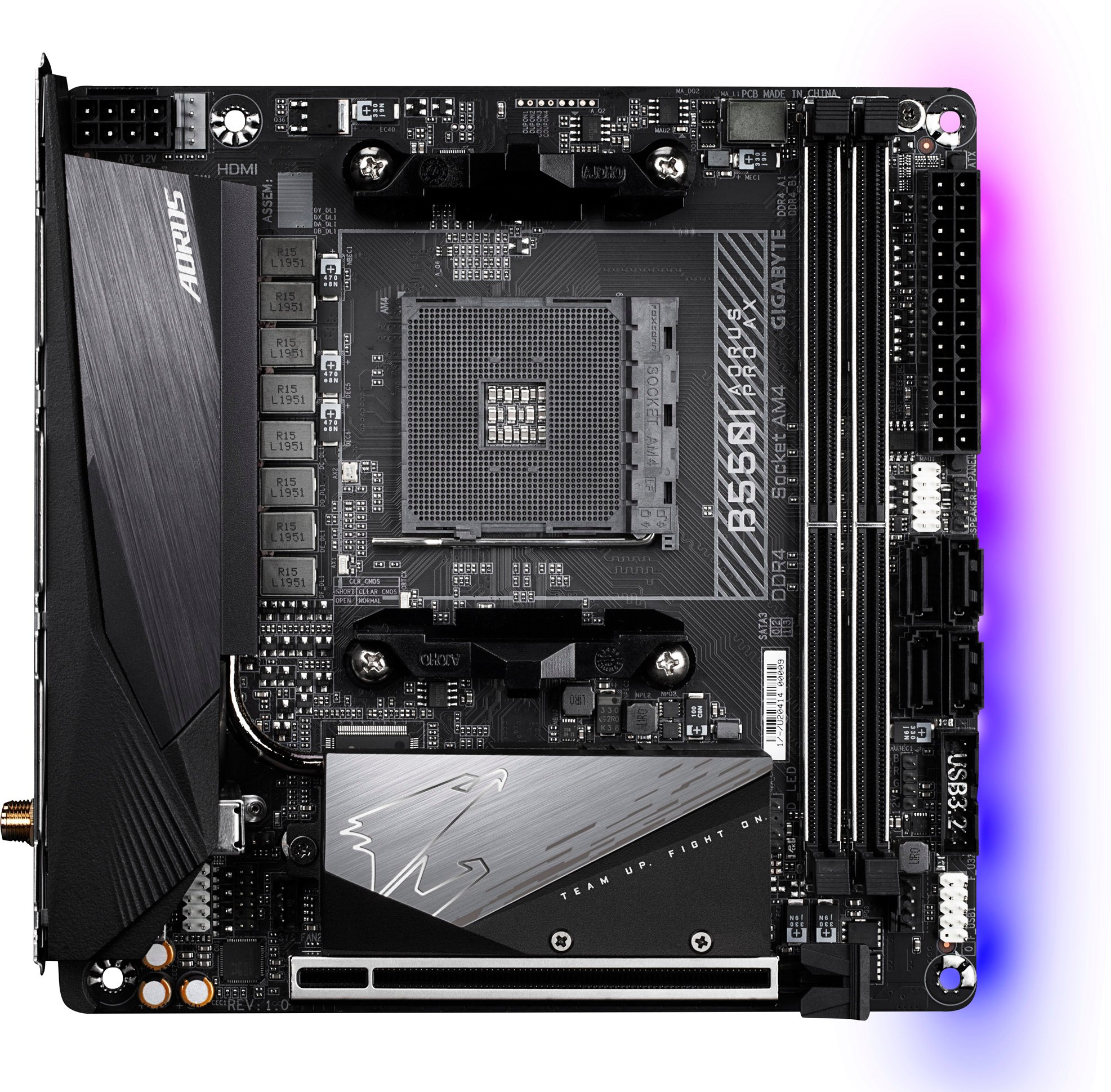

Gigabyte B550I AORUS PRO AX ITX Motherboard for AMD AM4 CPUs

Gigabyte B550I AORUS PRO AX ITX Motherboard for AMD AM4 CPUs

CCL Code: MBD2896

Was £186.60

SAVE £16

Now only

£169.99 inc VAT

  • Gigabyte B550I AORUS PRO AX ITX Motherboard for AMD AM4 CPUs
  • Gigabyte B550I AORUS PRO AX ITX Motherboard for AMD AM4 CPUs
  • Gigabyte B550I AORUS PRO AX ITX Motherboard for AMD AM4 CPUs
  • Gigabyte B550I AORUS PRO AX ITX Motherboard for AMD AM4 CPUs
  • Gigabyte B550I AORUS PRO AX ITX Motherboard for AMD AM4 CPUs

Save 5% when you buy 3 or more eligible different items*

AMD B550 Mini-ITX AORUS Motherboard with Direct 8 Phases Digital VRM, Advanced Thermal Design with Extended VRM Heatsink, Thermal Baseplate, Dual PCIe 4.0/3.0 M.2 with Thermal Guard, Intel® WiFi 6 802.11ax, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus

Gigabyte B550I AORUS PRO AX ITX Motherboard for AMD AM4 CPUs

B550I AORUS PRO AX

AMD B550 Mini-ITX AORUS Motherboard with Direct 8 Phases Digital VRM, Advanced Thermal Design with Extended VRM Heatsink, Thermal Baseplate, Dual PCIe 4.0/3.0 M.2 with Thermal Guard, Intel® WiFi 6 802.11ax, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus

Was £186.60

SAVE £16

Now only

£169.99 inc VAT

Available for delivery from Wednesday 19th June

Buying in bulk? Contact our business team.

Key Features:

  • ITX Form Factor
  • AMD B550 Chipset
  • Socket AM4
  • DDR4 (Max: 64GB / 2 slots)
  • 2 x M.2 & 6 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD2896
Overview

Best Choice for Small but Powerful PC

B550I AORUS PRO AX is a mini-ITX motherboard perfect for building a small form factor PC for people who demands higher performance but also cares about aesthetics. The compact yet powerful pc delivers amazing performance with the latest CPU, graphic card and blazing fast connectivity. It also equips with comprehensive thermal solution to keep it cool under heavy workload. Performance is not compromised by its size.

Ultimate power Design

To fully support the latest 3rd Gen AMD Ryzen™ processors, B550 motherboards equip with the ultimate power solution which is true direct, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 motherboards for enthusiast. No Compromise and never stop to achieve higher.

Unparalleled Performance

GIGABYTE realize that customer won't stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.

Advanced Thermal Solution

Unthrottled performance is guaranteed by the advanced thermal solution which including Extended VRM Heatsink, Heatpipe, Thermal Guards, and Baseplate. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for enthusiasts and professional gamers.

Next Generation Connectivity

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to speed.

HI-FI AUDIO SYSTEM

For enthusiasts, sound quality is just as essential to the gaming experience. B550 motherboards are equipped with high quality audio components such as Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

Definitive Aesthetics

B550 motherboards feature RGB FUSION 2.0 and offer the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make your PC unique and stylish.

Ultra Durable

GIGABYTE is reputable for its product durability and high standard of manufactured process. Needless to say, we use the best, high quality components on B550 motherboards and reinforce each part of components to be solid and durable.

GIGABYTE BIOS & APP CENTER

Good software goes hand in hand with perfect hardware. B550 motherboards bundled several useful and intuitive software to help users to control every aspect of motherboard.

Main Features

  • Supports 3rd Gen AMD Ryzen Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)
  • Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate
  • Ultra Durable PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
  • Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • USB 3.2 Gen2 Type-C & DisplayPort + Dual HDMI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation
Promotions

Get 5% off PC Components, Peripherals and selected Monitors when you buy three or more*

USE CODE: UPGRADE5 at checkout

For a limited time only, buy at least three different PC components or Peripherals from different qualifying categories and get 5% off those items when you use code UPGRADE5 at checkout. *Terms & Conditions apply.

Qualifying categories are Processors, Motherboards, Desktop Memory, Solid State Drives, Hard Disk Drives, Power SuppliesCPU CoolersCases, MonitorsKeyboards, Mice, HeadsetsLaptop Cases and Bags.


Promotional Period: From 3rd June 2024 till 16th June 2024.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one processor, one motherboard and one keyboard). It will not apply to multiples from categories (e.g. three graphics cards).

Discount will be applied to the items in your basket when you enter the promo code UPGRADE5 at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: until till June 16th 2024.

Specifications

CPU

CPU Socket Socket AM4
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors 3rd Generation AMD Ryzen processors/ New Generation AMD Ryzen with RadeonT Graphics processors
64-bit Support Yes
Socket AM4

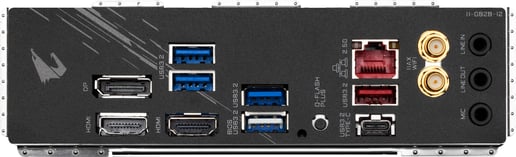

Rear Panel I/O Ports

USB Ports 1 x USB 3.1 Type-C
1 x USB 3.1 Type-A
4 x USB 3.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 2 x HDMI 2.1
Antenna Connectors 2 x SMA Antennas
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
2 x System fan headers
TPM Header 1 x TPM header
Power Connector Port 1 x 20+4-pin ATX
1 x 4+4-pin EPS
Other Connectors 2 x M.2, Socket 3, M Key (Type 2260/2280)
1 x Addressable LED header
1 x RGB LED header

Memory

Memory Bus Speed 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz
Memory Type DDR4
Maximum RAM 64 GB
Memory Slot 2 x DIMM

Motherboard

Chipset Manufacturer AMD
Northbridge B550
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek ALC1220-VB

Network

Integrated Network Realtek 2.5GbE
Network Speeds Supported 10/100/1000/2500 Mbps
Wireless LAN Yes
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.0

System Requirements

Operating Systems Supported Microsoft Windows 10 64-bit

System

BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor Mini-ITX Motherboard
Width 170 mm
Length 170 mm

Key Features

Firewire No
Wireless Network Yes
Motherboard Width 170 mm
Motherboard Height 170 mm
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ITX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset AMD B550
Thunderbolt No
Motherboard Model Gigabyte B550I AORUS PRO AX
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
Memory Speed 5300 MT/s
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Power Requirement (auto) 30 W
Max Memory Speed Supported (Non-overclocked) 3200 MT/s
Max Memory Speed Supported (overclocked) 5300 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
Maximum SATA M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 2
No. of front USB3.0 ports supported 2

Item Details

Manufacturer Gigabyte
Manufacturer Code B550I AORUS PRO AX
EAN 4719331809508
UPC 889523022986
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code B550I AORUS PRO AX
Reviews
4.9 / 5 25 reviews

Adam

December 2022

Board arrived in good condition and quickly, it is performing well in my build.

Daniel R

July 2021

Great motherboard from Gigabyte. Plenty of power for budget build or premium. Excellent customer service! Totally recommended.

J S

June 2021

good motherboard, works as intended, no Bios issues thus far. As with all itx motherboards it isn't the most cost effective unless you want an itx size build.

dan

January 2021

Ccl computers had the cheapest price by far really fast delivery not used the motherboard yet so carnt comment but had gigabyte boards before with no issues so hopefully the same

Gareth simpson

January 2021

Pay the premium for an ITX board however it's really well made, has good features and compatibility is good.

Matt M

January 2021

Great board! Really happy with the small form factor and features.

Matt M

January 2021

Really solid board, sleek design, tiny size and great features.Great that it comes with an antenna too! Will go well in my smaller build.

Andy

January 2021

Really happy with this motherboard. In my opinion it's better value for money than the X570 variant, with little compromise on features. High quality audio and PCIE gen 4 compatible. I believe the USB header is more up-to-date too! Full marks to Gigabyte.

max paterson

January 2021

great ITX motherboard for a compact AMD based pc build love the black aesthetic make for a great clean looking build

Simon Bowie-Britton

January 2021

Got the Gigabyte B550I AORUS PRO AX ITX Motherboard and AMD Ryzen 5 5600X for gaming build - What a class piece of work the motherboard is - I like the clean lines + ease of build. The layout is excellent + shielding makes it all easy to install and setup.

Juan-Philip Marx

January 2021

Great small form factor motherboard packed full of features, ideal for my upcoming small form factor workstation! Additionally, the bios flashback feature is ideal for first time and ryzen builds

Mr I Jones

December 2020

.not had chance to use it yet No psu in stock

Grace Lin

December 2020

Small form factor, compact but still packed with features, perfect for my small build

Christopher Andrew

December 2020

Fantastic motherboard with great features. Fits my pc build perfectly, easy to setup I would recommend this product to anybody looking to build a small compact pc build. Well done cconline your service was on point.

Shay Miah

December 2020

Got the Gigabyte B550I AORUS PRO AX ITX Motherboard and AMD Ryzen 5 3600XT for gaming build. Didn't even realise there was a promo which is a bonus! However the Gigabyte B550I AORUS PRO AX ITX Motherboard looks beautiful. Premium quality and the design is great. Works perfectly without any problems. Supports Q-Flash which allows BIOS update via USB port. Great for using latest Ryzen processors without the need of purchasing previous Ryzen processor. Motherboard is great for overclocking and the BIOS interface is nice and clean. Would highly recommend Gigabyte Motherboard or any Gigabyte products!

Angus McCormack

December 2020

Perfect motherboard for small mini-itx cases. Fits perfectly for the NZXT H210 Mini ITX Tower case with all the necessary ports. Only lacking a front USB-C header.

James Wood

November 2020

Very nice looking board, would highly recommend especially with the two m.2 SSD slots with one on the back, very useful!

James Wood

November 2020

Very nice looking board, would highly recommend especially with the two m.2 SSD slots with one on the back, very useful!

Miss Deborah McCormack

November 2020

It's Pretty Good not going to lie

alan west

November 2020

Ordered this item as part of a bundle to take advantage of a special offer. The parts were delivered ahead of the specified delivery date and are all exactly as expected. All for excellent value when accounting for the special offer. Brilliant!

Mitchell D Farquhar

November 2020

Great product, read all the reviews and they were all right, this is a fantastic little board, does everything you need with ease and was a cracking price to boot! If you're looking for a motherboard for your new Ryzen CPU look no further.

Mitchell D Farquhar

November 2020

Superb motherboard, read plenty of reviews advising how good it was and I can definitely agree. Whether it's for overclocking, gaming or a bit of everything, this motherboard can handle whetever you throw at it. A great price for a superb piece of kit.

Rodney McConnell

October 2020

Really easy to setup and install, although very small all connectors are well placed for easy access.

Isaac Mills

October 2020

Great motherboard with excellent compatibility, only slight drawback is the lack of a USB C header though this isn't an issue for me as my case does not feature USB C. Great value for money

Manjurul Alam

October 2020

Fantastic motherboard with great features. Very compact, solid, and also looks very good. In my opinion this is one of the best ITX motherboards for AMD on the market right now.
