MSI PRO B650-S WIFI ATX Motherboard for AMD AM5 CPUs

MSI PRO B650-S WIFI ATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3544

Discontinued

  • MSI PRO B650-S WIFI ATX Motherboard for AMD AM5 CPUs
  • MSI PRO B650-S WIFI ATX Motherboard for AMD AM5 CPUs
  • MSI PRO B650-S WIFI ATX Motherboard for AMD AM5 CPUs
  • MSI PRO B650-S WIFI ATX Motherboard for AMD AM5 CPUs
  • MSI PRO B650-S WIFI ATX Motherboard for AMD AM5 CPUs
  • MSI PRO B650-S WIFI ATX Motherboard for AMD AM5 CPUs

PRO B650-S WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.

MSI PRO B650-S WIFI ATX Motherboard for AMD AM5 CPUs

PRO B650-S WIFI

PRO B650-S WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.

Key Features:

  • ATX Form Factor
  • AMD B650 Chipset
  • Socket AM5
  • DDR5 (Max: 192GB / 4 slots)
  • 2 x M.2 & 8 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3544

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

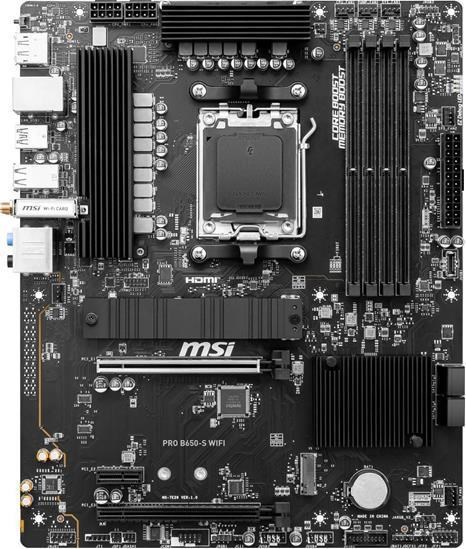

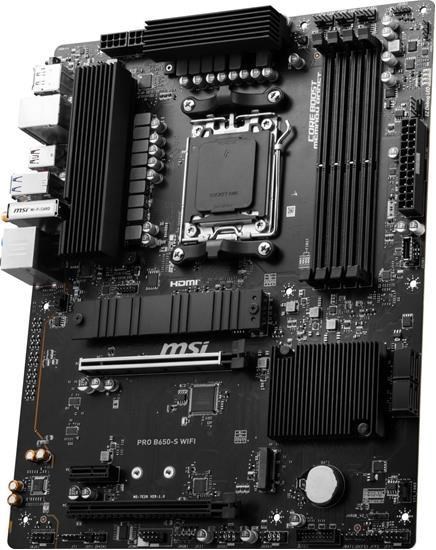

MSI PRO B650-S WIFI ATX AMD SOCKET AM5 MOTHERBOARD

Bring your system a memory capacity of 192GB, premium thermal solutions and exceptional performance. Built with MSI Steel Armor components can be installed with reinforced, heavy soldered connections. Experience DDR5 memory solutions, premium materials and lightning fast connectivity, you can be sure that performance is always delivered. Enhance your system even further with intergrated RGB lighting.

INTEGRATED COOLING

Equipped with a range of cooling features will ensure your system is cooled enough to maintain high performance. Experience Frozr AI Cooling to adjust fan settings and system temperatures. This enhanced MSI motherbaord is optimised and designed to support water cooling, whilst offering full fan control to aid with CPU temperatures.

CONNECTIVITY

Be connected in more ways than one, featuring DisplayPort, HDMI and USB connectivity available. For lighting fast connections there is a USB Type C port so you can connect, charge and even share data. Benefit from a 2.5G LAN for an upgraded network solution, delivering a secure, safe and stable network connection.

Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 8000/ 7000 Series Desktop Processors
64-bit Support Yes
Socket AM5

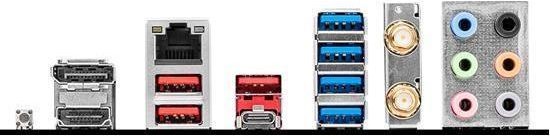

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
3 x USB 3.1
4 x USB 3.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 4 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Pump fan header
4 x System fan headers
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Type 2280/22110 (PCIe Gen4)
1 x M.2 slot, Type 2260/2280 (PCIe Gen4)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus Speed Up to 7200 MHz
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD B650
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 2 x PCI Express 4.0 x16 slots (@ x16/x4)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC897

Warranty

Warranty 3 Years

Network

Integrated Network Realtek 8125BG
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes - Wi-Fi 6E
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.3

System Requirements

Operating Systems Supported Microsoft Windows 11

Physical

Form Factor ATX Motherboard
In The Box Motherboard
EU Regulatory Notice
Quick Installation Guide
EZ M.2 Cip
Wi-Fi Antenna
SATA Cable
I/O Shield
Width 244 mm
Length 305 mm

Key Features

Max Memory Speed Supported (Non-overclocked) 4800 MT/s
Max Memory Speed Supported (overclocked) 7200 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 2 x 4+4-Pin
Motherboard Chipset AMD B650
Thunderbolt No
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W

Item Details

Manufacturer MSI
Manufacturer Code PRO B650-S WIFI
EAN 4711377132862
UPC 824142336267
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code PRO B650-S WIFI
