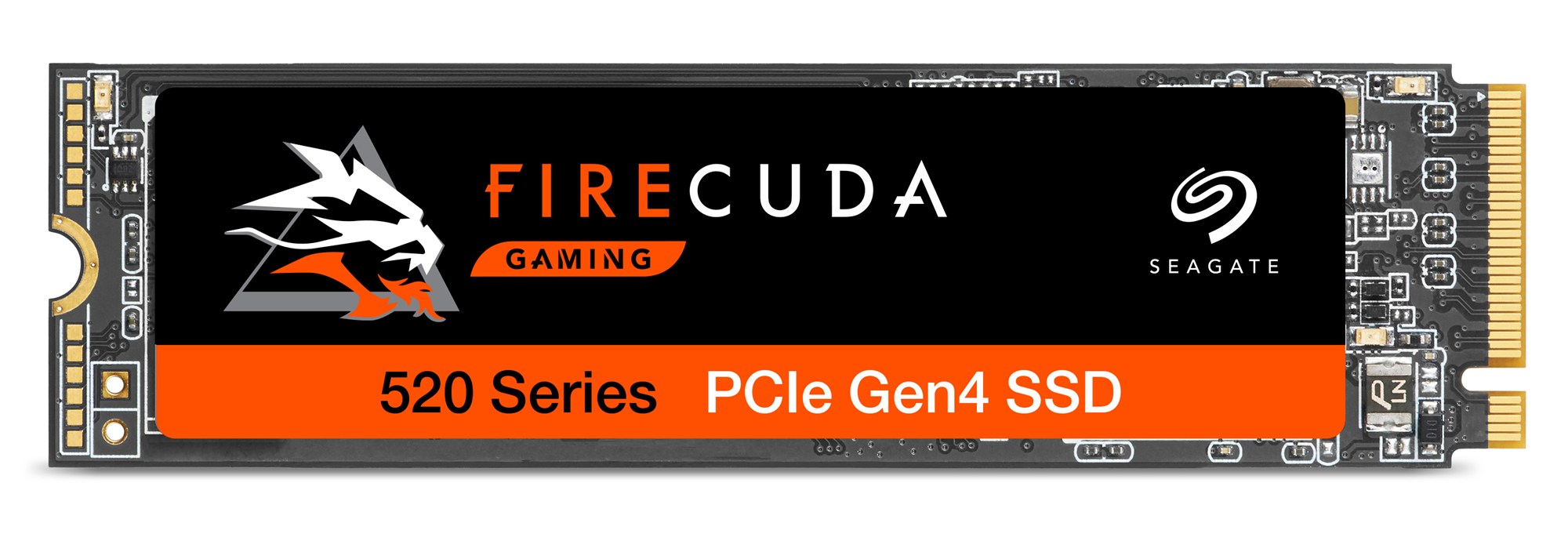

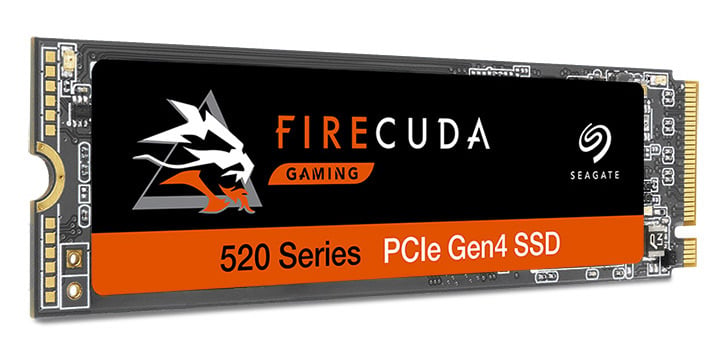

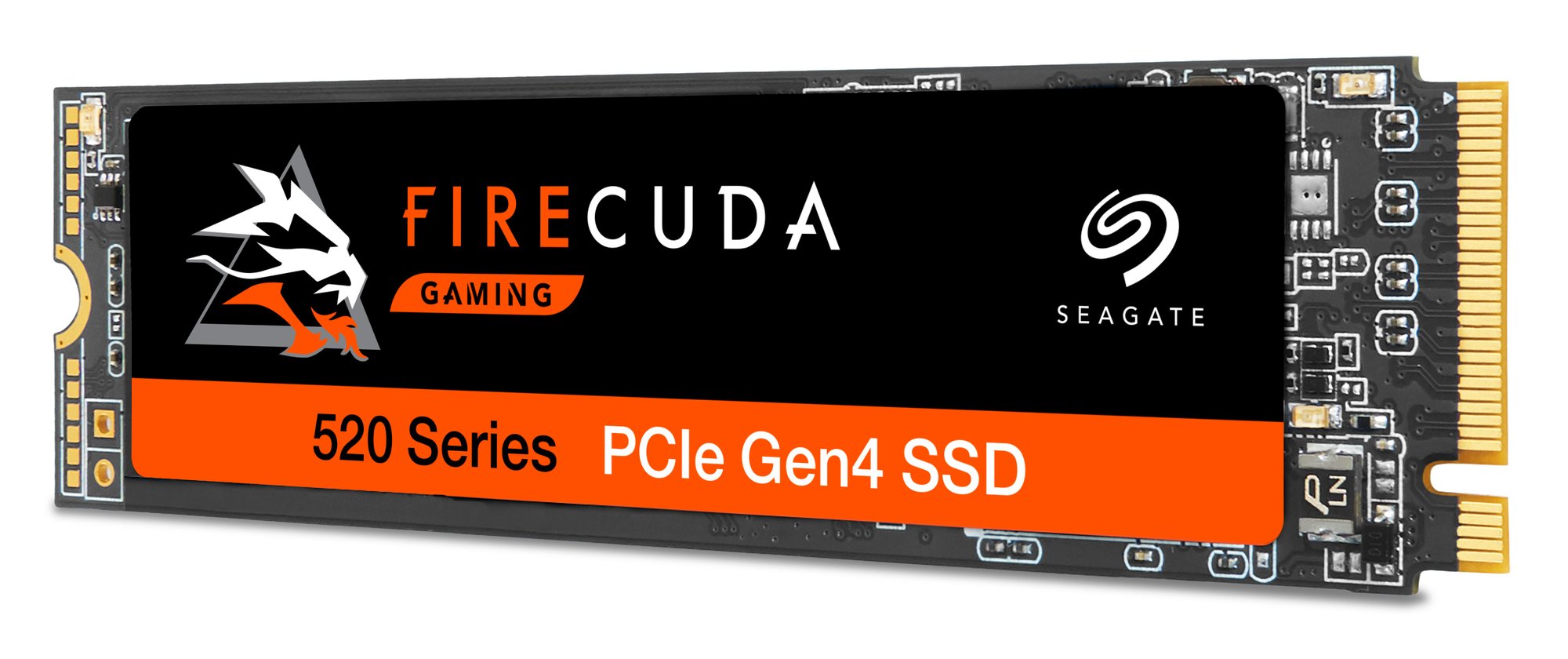

Seagate FireCuda 520 500GB M.2-2280 SSD

CCL Code: SSD1096
|
Manufacturer Code: ZP500GM3A002
| Manufacturer: Seagate
|
  • Seagate FireCuda 520 500GB M.2-2280 SSD
  • Seagate FireCuda 520 500GB M.2-2280 SSD
  • Seagate FireCuda 520 500GB M.2-2280 SSD

Dominate with Ferocious Speed

Key Features:

PCI Express 4.0 x4 NVMe
Up to 5000MB/s Read, 2500MB/s Write
4K IOPS Write: 630000
M.2 2280 Form Factor
4K IOPS Read: 430000
5 Year Warranty

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Related Products

Overview

FireCuda 520 M.2 Gen4 PCIe NVMe SSD

The slim, fast Seagate® FireCuda® 520 PCIe Gen4 SSD is nearly 45% faster than PCIe Gen3 NVMe SSD. It provides plug-and-play compatibility with the latest generation of powerful AMD Ryzen™ processors as well as PCIe Gen4 motherboards, and delivers an extreme boost in performance with the latest 3D TLC NAND technology. Backwards compatible with PCIe 3.0 platforms. Perfect for pro-level gamers.

Advanced Speed

Faster Gaming with PCIe Gen4

Unleash the speed of PCIe 4.0 with the FireCuda 520 PCIe Gen4 SSD, our newest M.2 SSD built for pro-level gaming and nearly 45% faster than previous PCIe Gen3 M.2 NVMe solid-state drives.
  • Up to 5,000/4,400MB/s sequential read/writes
  • Up to 9x faster sequential reads than SATA SSD
  • Compatible with all AMD X570 chipset motherboards

NAND Acceleration

Upgrade to PCIe Gen4 x4 on next-gen 3D TLC NAND in a M.2 2280 form factor, with sequential read/write speeds up to 5,000/4,400MB/s.

Dominate with the Best

Proven Reliability

Leading Performance

Dominate with plug-and-play gaming storage that is compatible with the AMD X570 chipset and all PCIe 4.0 motherboards and is backwards compatible with PCIe 3.0 platforms.

Drive Health Monitoring

SeaTools™ SSD is a free software package that tests and analyzes the health of your Seagate SSD. It is completely data safe and easily installs on system.

Features include:

  • Drive health monitoring
  • Drive performance monitoring
  • Firmware and software updates

Drive Health Monitoring

Main Features

  • Performance internal solid state drive: 2TB, 1TB, 500GB
  • Maximum sequential read and write speeds up to 5000MB/s and 4400MB/s
  • MTBF of 1.8M hours and TBW of up to 2800TB
  • Ideal for high-performance gaming PCs and creative pro workstations
  • Seagate validated E16 can hit up to 5/4.4Gbps read/write speeds
Specifications

Storage

Solid State Capacity 500 GB
Drive Size M.2-2280
Memory Type SSD
Memory Package 3D TLC
Memory Size 500 GB

Performance

Read Speed Up to 5,000 MB/s
Write Speed Up to 2,500 MB/s
4K Random Read (AS SSD) Up to 430,000 IOPS
4K Random Write (AS SSD) Up to 630,000 IOPS
Data Storage Life 700 TBW
Mean Time Between Failure (MTBF) 1,800,000 hours

Interfaces/Ports

Interface Type PCIe Gen4 x4 NVMe

Electrical

Electrical Power Consumption 4.6 W
Electrical Power Consumption Standby 12 mW

Environmental

Operating Temperature 0 ~ 70 °C
Storage Temperature -40 ~ +85 °
Shock (Non Operating) 1500G/0.5ms

Physical

Form Factor Solid State Drive
Enclosure type Internal
Width 22.15 mm
Depth 80.15 mm
Height 3.58 mm
Weight 8 g

Warranty

Warranty 5 Years

Key Features

Disk Capacity 500 GB
Solid State Drive Yes
Disk Form Factor M.2 2280
Read IOPS (4K) 430000
Write IOPS (4K) 630000

Item Details

Manufacturer Seagate
Manufacturer Code ZP500GM3A002
EAN 8719706019989
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Seagate
Manufacturer Code ZP500GM3A002
Questions and Answers

Do you have you a question about the Seagate FireCuda 520 500GB M.2-2280 PCIe Gen4 x4 NVMe Internal Solid State Drive?

Reviews
4.4 / 5 5 reviews

Martin

6 months ago

works fine

Chris

May 2021

Does excatly what is meant to do.

customer

January 2021

An absolutely brilliant drive, packaging was amazing, price is brilliant, works great, looks great. Highly recommended.

Richard

May 2020

Have used this as the main drive in a new build. Its quick, but the PCI 4 interface premium (30% extra) over its 510 sibling probably isn't worth it. If you've got the latest X570 board and money to burn, go for it. Otherwise save your pennies and still get a very quick drive in the 510.

Paul

January 2020

Overall score is down because none of Seagates tools used to update the firmware actually work or recognize this drive.
