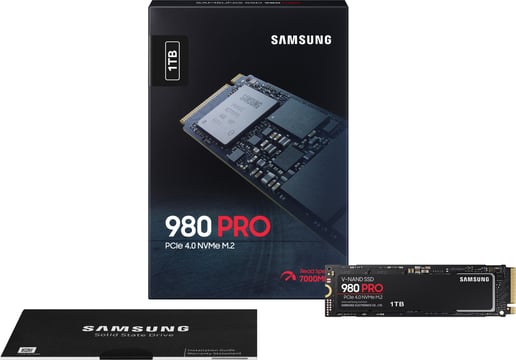

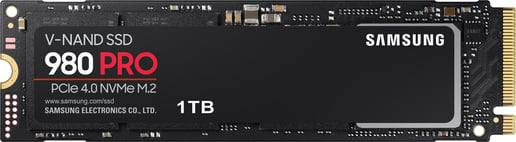

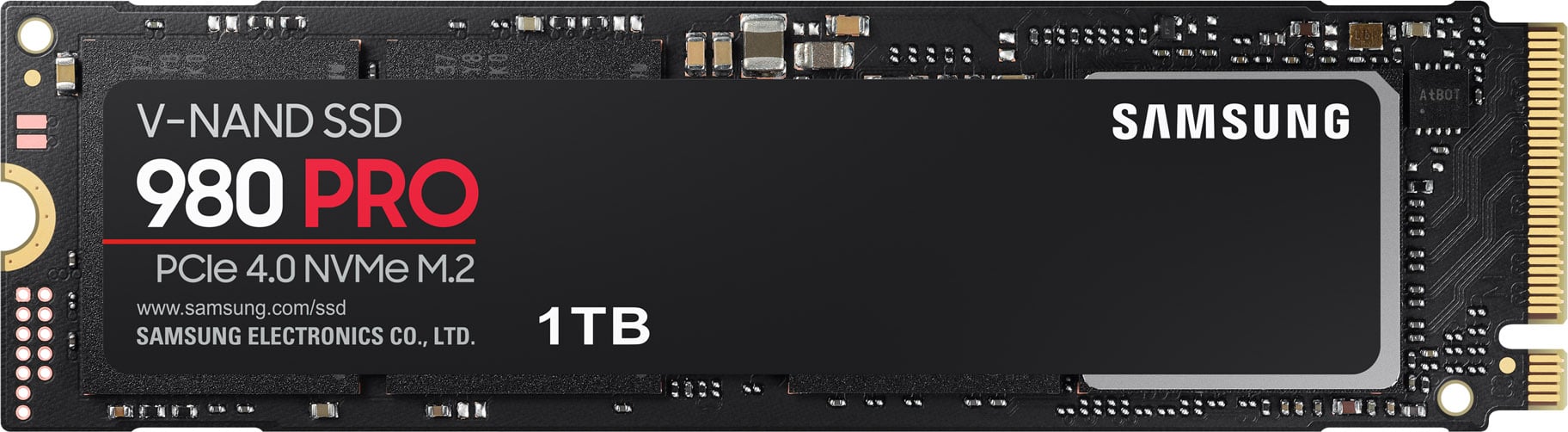

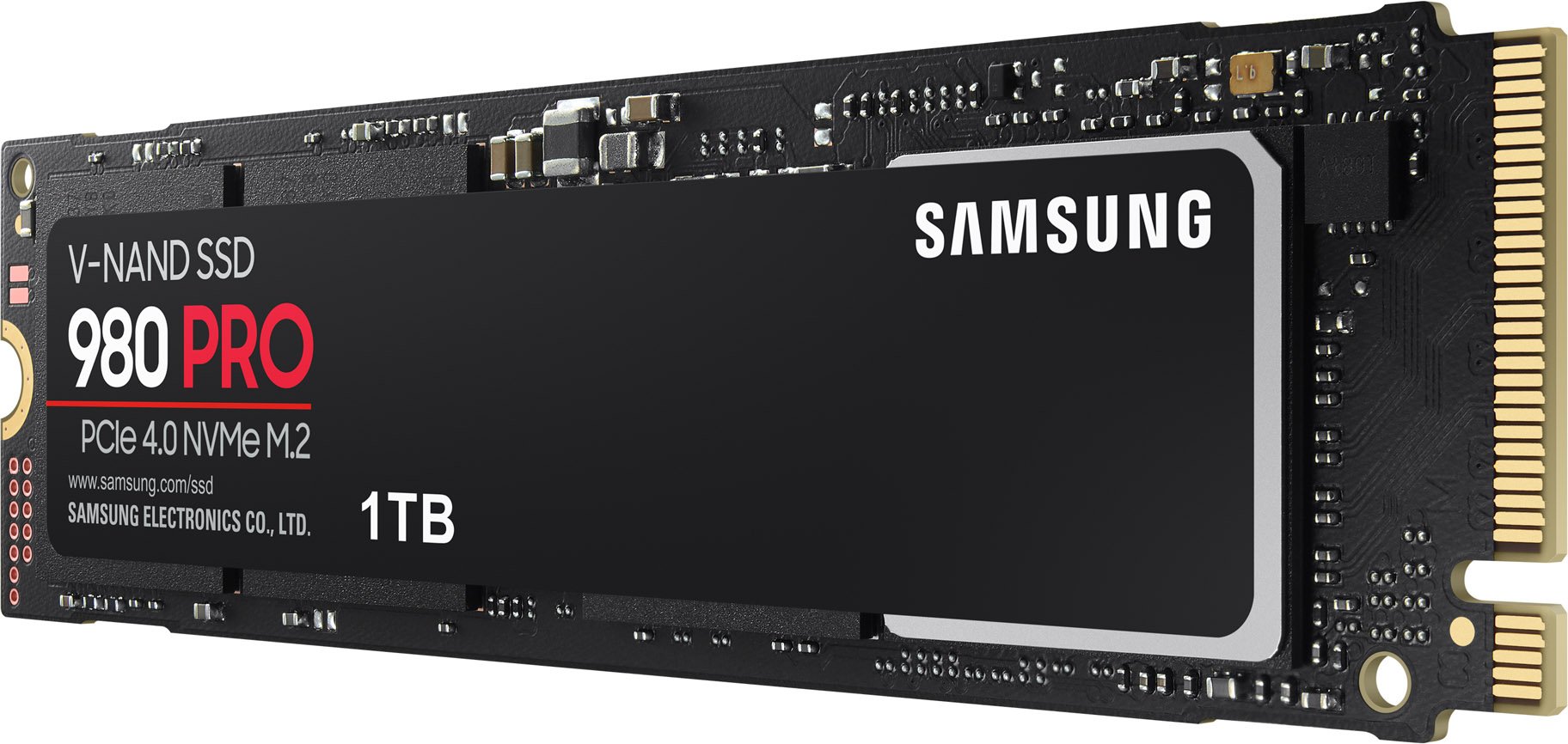

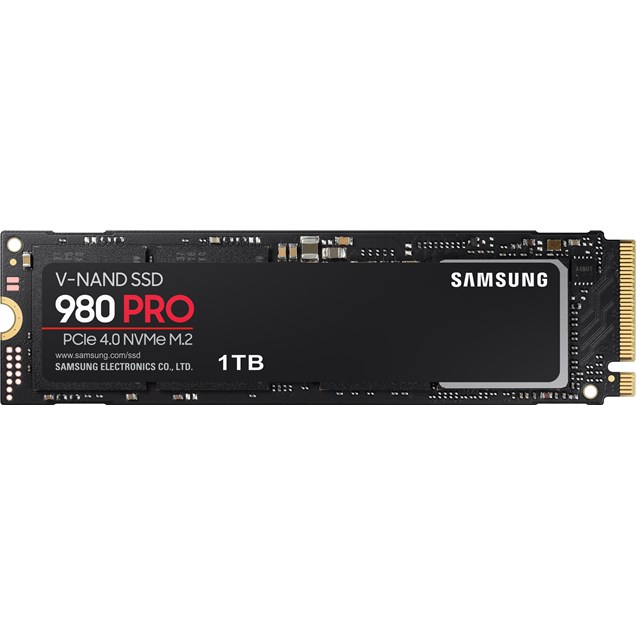

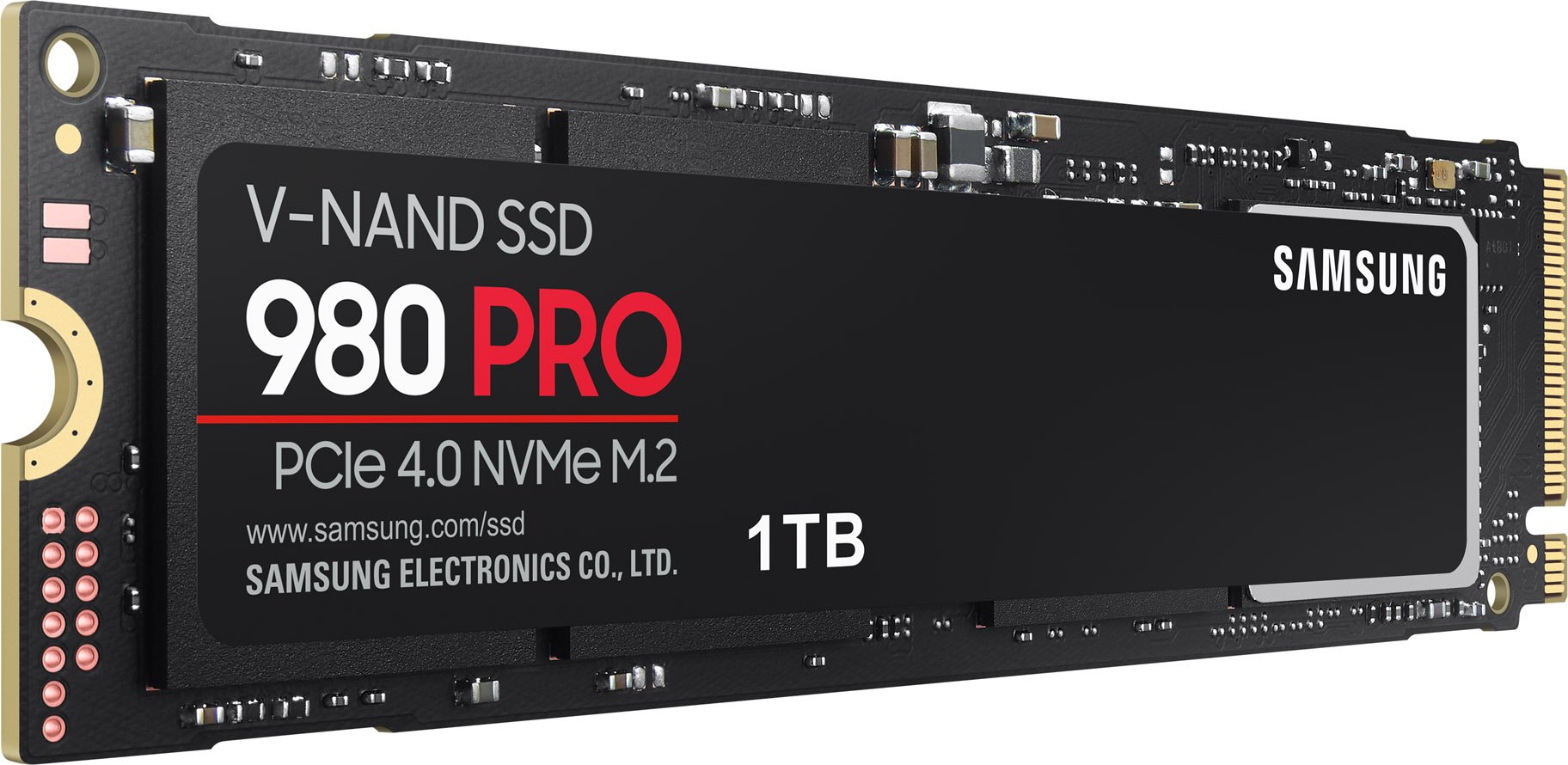

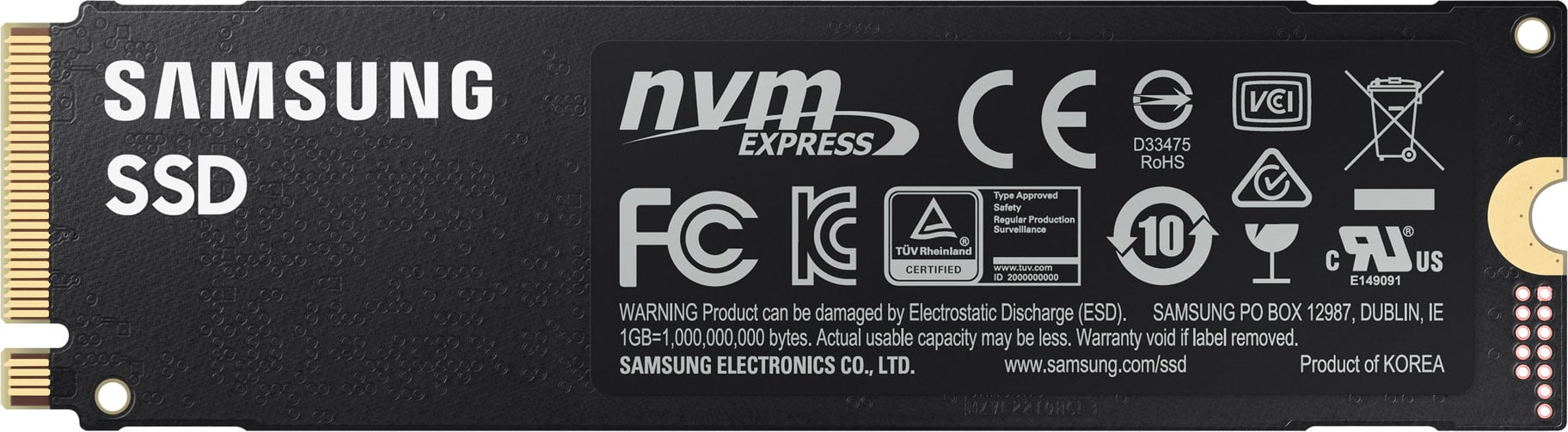

Samsung 980 PRO M.2-2280 1TB PCI Express 4.0 x4 NVMe Solid State Drive

Samsung 980 PRO M.2-2280 1TB PCI Express 4.0 x4 NVMe Solid State Drive

CCL Code: SSD1304

Sold out

Notify Me

Samsung 980 PRO M.2-2280 1TB PCI Express 4.0 x4 NVMe Solid State Drive

MZ-V8P1T0BW

Key Features:

  • PCIe 4.0 x4 NVMe Interface
  • M.2 2280 Form Factor
  • Up to 7000MB/s Read
  • Up to 5000MB/s Write
  • 4K IOPS Read: 999
  • 4K IOPS Write: 999
CCL Code: SSD1304

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Capacity:

Overview

Unleash the power of the Samsung SSD 980 PRO, Samsung's first consumer PCIe 4.0 NVMe SSD, for next-level computing experiences. Designed for graphics-intensive games and heavy-duty applications, the 980 PRO leverages Samsung's custom controller and PCIe 4.0 to deliver double the data transfer rate of PCIe 3.0, while backward compatibility and its compact M.2 form factor provide versatility and flexibility for diverse high-performance computing solutions.

Next-level NVMe SSD performance

Powered by Samsung's custom Elpis controller for PCIe 4.0 SSDs and the latest V-NAND and DRAM technology, all components and firmware of the 980 PRO are designed and manufacturer in-house by Samsung to maximise performance and speed. Together with the impressive power of PCIe 4.0, which offers a bandwidth of around 16GT/s per lane, the 980 PRO delivers sequential read and write speeds of up to 7,000MB/s and 5,000MB/s resepctively as well as random read and write speeds of up to 1,000K IOPS. Compared to previous generation SSDs, the 980 PRO is about 2 times faster than PCIe 3.0 SSDs and 12.7 times faster than SATA SSDs.

A winning combination

Designed with hardcore gamers, creative professionals, and tech-savvy users in mind, the 980 PRO offers high-performance bandwidth and throughput for heavy-duty applications in gaming, data analytics, and more. It's fast at loading games for both PCs and consoles, allowing to play more and wait less, while its performance is also optimised to deliver seamless 4K and 8K content processing. The 980 PRO comes in a compact M.2 2280 form factor, which can be easily plugged in to desktops and laptops for maximum board design flexibility. The drive's optimised power efficiency makes it ideal for high-performance computing systems.

Smart, reliable thermal control

The 980 PRO's next-level performance is supported by exceptional thermal control. The SSD uses nickel coating instead of an external copper casing to help manage the controller's temperature and employs a heat spreader label to provide effective thermal control for the NAND chip. Embedded with Samsung's cutting-edge Dynamic Thermal Guard technology, the 980 PRO manages heat on its own automatically to ensure durable and reliable performance. To minimise performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology monitors the 980 PRO's temperature continuosly and keeps it at the optimal level.

Specifications

Storage

Solid State Capacity 1 TB
Storage Type SSD
Drive Size M.2 2280
Memory Type SSD
Memory Package V-NAND 3bit MLC
Cache Memory 1 GB LPDDR4
Memory Size 1 TB

Performance

Read Speed Up to 7,000 MB/s
Write Speed Up to 5,000 MB/s
4K Random Read (AS SSD) Up to 1,000,000 IOPS
4K Random Write (AS SSD) Up to 1,000,000 IOPS
Data Storage Life 600 TBW
Mean Time Between Failure (MTBF) 1,500,000 hours

Security

Protection Features TRIM (Required OS support), Garbage Collection, S.M.A.R.T
Encryption AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)

Interfaces/Ports

Interface Type PCI Express 4.0 x4 NVMe

System Requirements

System Requirements 1 x PCI Express 4.0 x4 M.2-2280 slot

Electrical

Electrical Power Consumption Up to 6.2 W
Electrical Power Consumption Standby 35 mW

Environmental

Operating Temperature 0 ~ 70 °C
Storage Temperature -40 ~ +85 °C
Operating Humidity 5 ~ 95 %
Vibration (Non-Operating) 20 ~ 2,000Hz, 20G
Shock (Non Operating) 1,500G, 0.5ms

Physical

Form Factor Solid State Drive
Enclosure type Internal
Case Colour Black

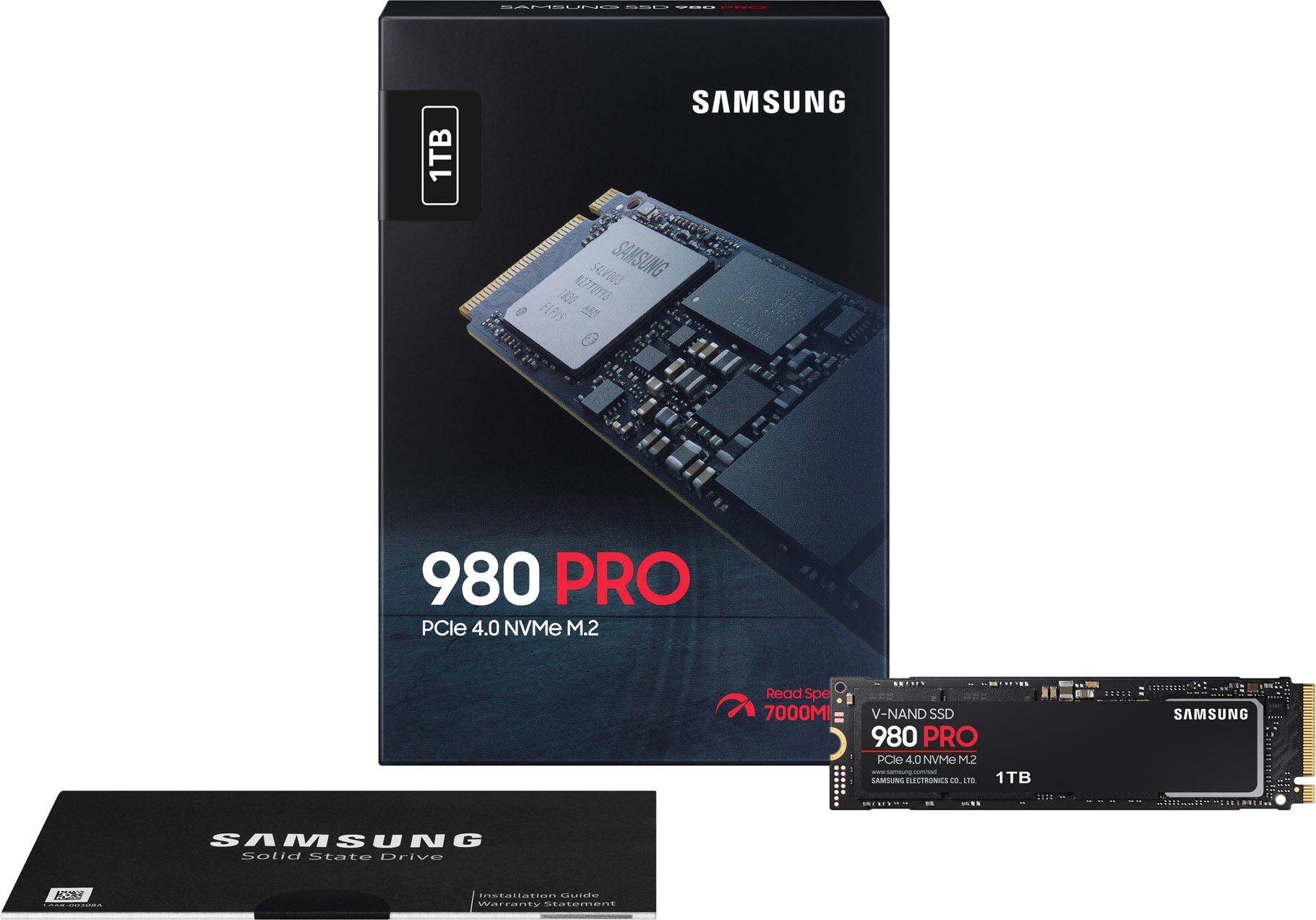

In The Box Samsung 980 PRO 1TB SSD
Warranty Statement
Width 22 mm
Depth 80 mm
Height 2.38 mm
Weight 9 g

Warranty

Warranty 5 Years

Key Features

Disk Capacity 1 TB
Solid State Drive Yes
Disk Form Factor M.2 2280
Read IOPS (4K) 999 k IOPS
Write IOPS (4K) 999 k IOPS
Intended Use Desktop
Power Requirement (auto) 5 W
PS5 Compatible No

Item Details

Manufacturer Samsung
Manufacturer Code MZ-V8P1T0BW
EAN 8806090295546
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Samsung
Manufacturer Code MZ-V8P1T0BW
Q&A

Do you have you a question about the Samsung 980 PRO 1TB M.2 PCIe Gen4 x4 NVMe Internal Solid State Drive?

Q: Is this compatible with Gigabyte Z390 AORUS PRO WIFI Intel Motherboard? Thanks, Dmitry.
Answer by Tawk on 30th August 2022
Yes, though it'll only run at PCIe Gen 3 speeds
0 customers found this answer helpful.
Post Answer
Q: Will this work with Gigabyte B550 AORUS ELITE V2 AMD Motherboard?
Answer by Website User on 9th March 2022
Yes any motherboard with an m,2 slot.
0 customers found this answer helpful.
Post Answer
Q: What NVMe spec is this i.e. Is it the lates 3.0 version?
Answer by Website User on 13th October 2021
This is a Gen 4 drive. - Kristian N
0 customers found this answer helpful.
Post Answer
Q: Is this compatible with Ps5 and do you have a ps5 compatible heatsink?
Answer by Website User on 20th September 2021
I cannot guarantee support for consoles. - Kristian N
0 customers found this answer helpful.
Post Answer
Q: Is this compatible with MAG X570S TOMAHAWK MAX WIFI motherboard
Answer by Website User on 31st August 2021
This will work fine with that motherboard. - Kristian N
0 customers found this answer helpful.
Post Answer
Q: Is this compatible with an ASUS Prime X299-A motherboard?
Answer by Website User on 14th July 2021
This is not fully compatible. - Kristian N
0 customers found this answer helpful.
Post Answer
Q: Hello ! I bought a similar model but 500 Gb and in a few days its performance fell to half that of the Seagate 2 Terra, purchased at the same time and used in the same system. The question is was it an isolated case or is it happening with all of the Samsung brand the same. thanks
Answer by Tomasz on 10th January 2022
What is your motherboard? Which slot is your disk installed? M_1, M_2 or M_3? Samsung does not lose 50% performance, even at 90% full.
0 customers found this answer helpful.
Post Answer
