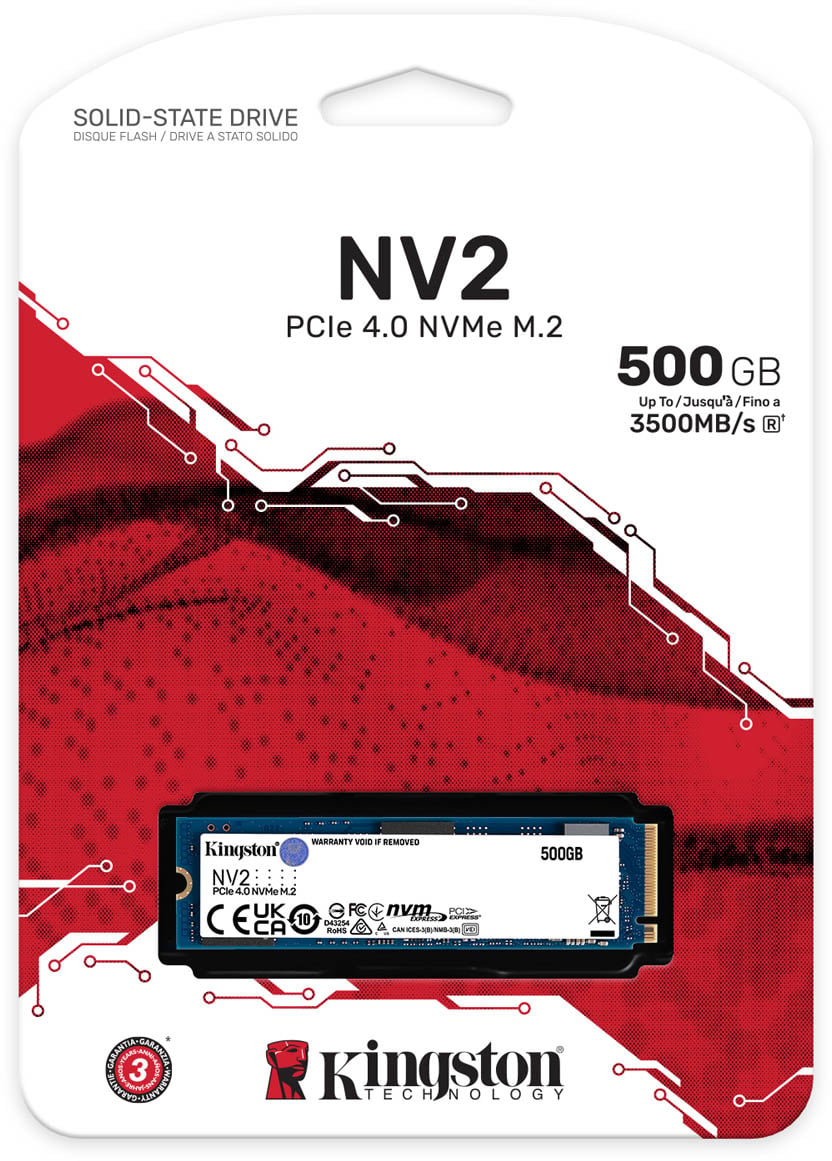

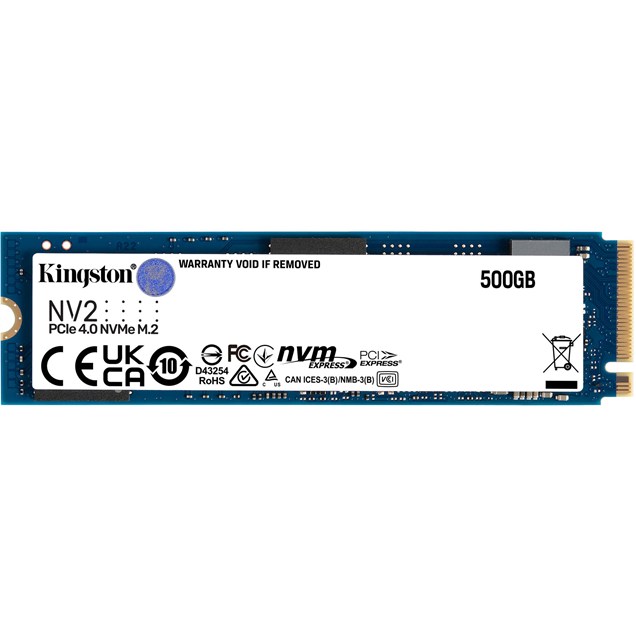

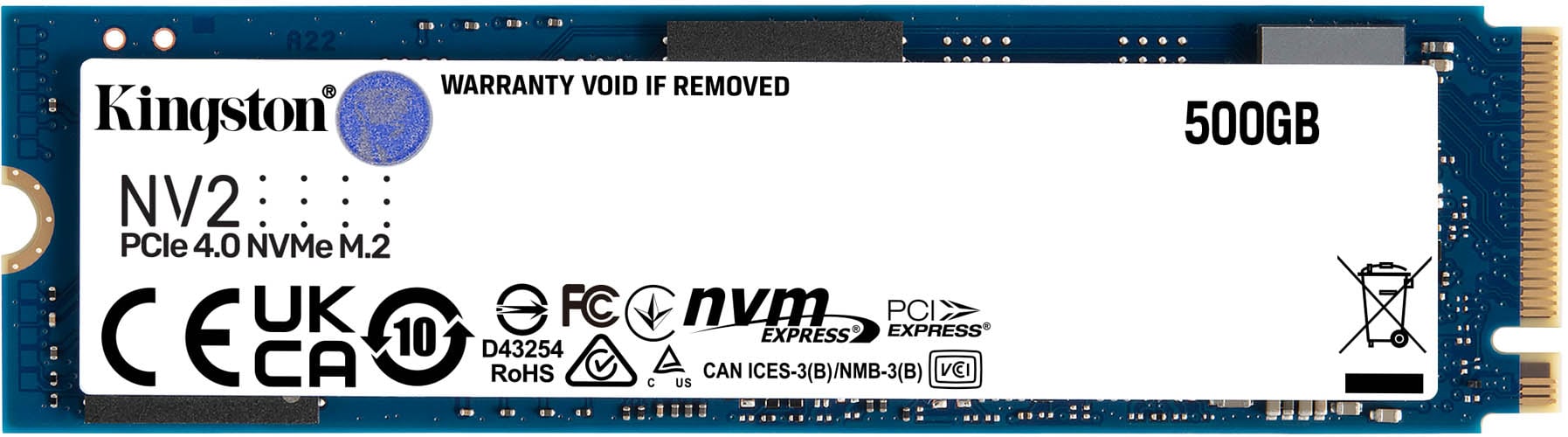

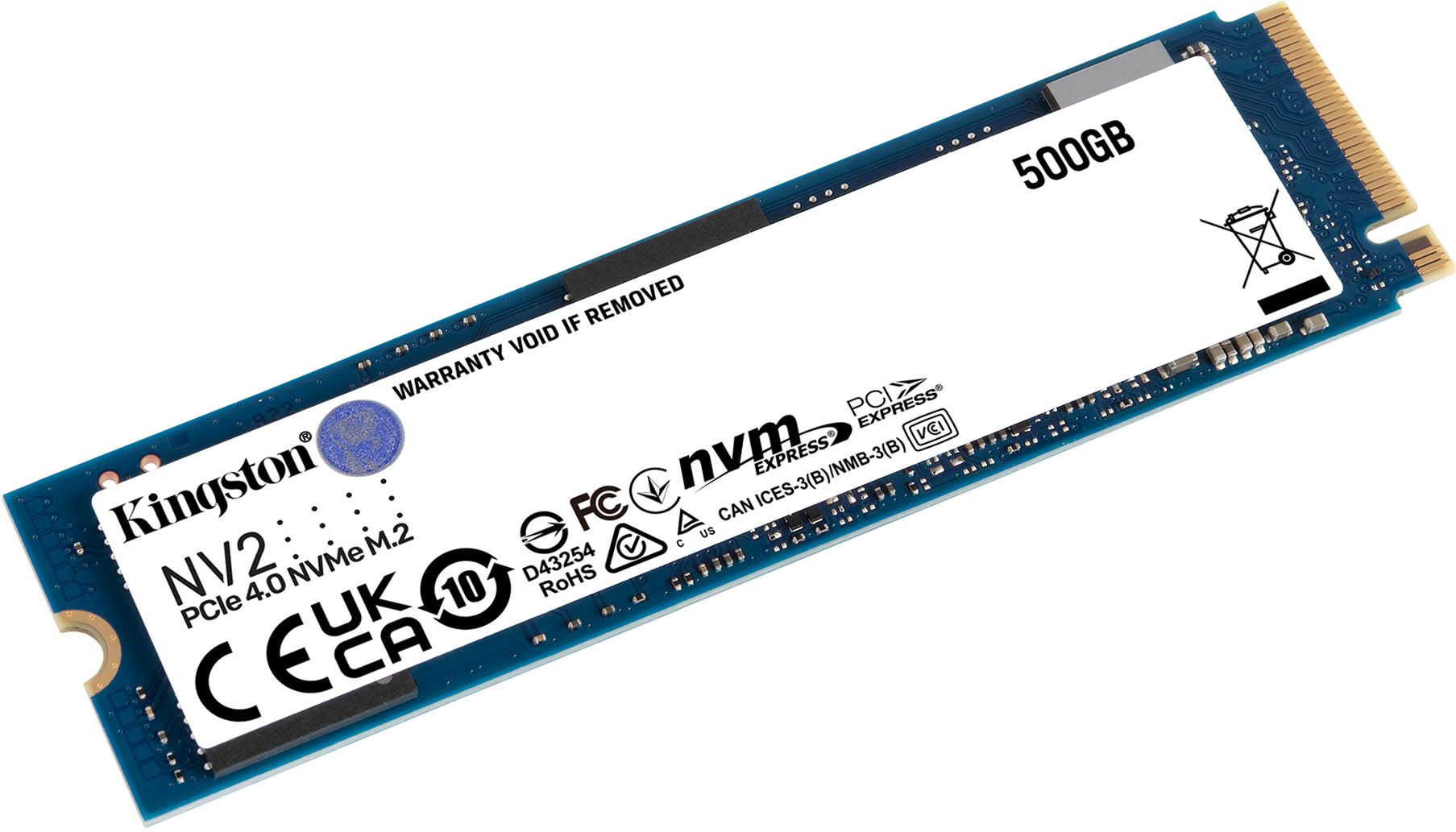

Kingston NV2 M.2-2280 500GB PCI Express 4.0 x4 NVMe Solid State Drive

Kingston NV2 M.2-2280 500GB PCI Express 4.0 x4 NVMe Solid State Drive

CCL Code: SSD1568

£32.84 inc VAT

  • Kingston NV2 M.2-2280 500GB PCI Express 4.0 x4 NVMe Solid State Drive
  • Kingston NV2 M.2-2280 500GB PCI Express 4.0 x4 NVMe Solid State Drive
  • Kingston NV2 M.2-2280 500GB PCI Express 4.0 x4 NVMe Solid State Drive
  • Kingston NV2 M.2-2280 500GB PCI Express 4.0 x4 NVMe Solid State Drive
  • Kingston NV2 M.2-2280 500GB PCI Express 4.0 x4 NVMe Solid State Drive

Upgraded performance for thinner notebooks and systems

Kingston NV2 M.2-2280 500GB PCI Express 4.0 x4 NVMe Solid State Drive

SNV2S/500G

Upgraded performance for thinner notebooks and systems

£32.84 inc VAT

Available for delivery from Friday 31st March

Buying in bulk? Contact our business team.

Key Features:

  • PCIe 4.0 x4 NVMe Interface
  • M.2 2280 Form Factor
  • Up to 3500MB/s Read
  • Up to 2100MB/s Write
  • 4K IOPS Read:
  • 4K IOPS Write:
CCL Code: SSD1568

Capacity:

Overview
Substantial performance upgrade in high capacity

Substantial performance upgrade in high capacity




NV2 PCIe 4.0 NVMe SSD
View larger

NV2 PCIe 4.0 NVMe SSD

Upgraded performance for thinner notebooks and systems

Kingston’s NV2 PCIe 4.0 NVMe SSD is a substantial next-gen storage solution powered by a Gen 4x4 NVMe controller. NV2 delivers read/write speeds up to 3,500/2,800MB/s1 with lower power requirements and lower heat to help optimize your system’s performance and deliver value without sacrifice. The compact single-sided M.2 2280 (22x80mm) design expands storage up to 2TB2 while saving space for other components, making NV2 ideal for thinner notebooks, small form factor (SFF) systems, and DIY motherboards.

Available in capacities from 250GB – 2TB2 to give you all the space you need for applications, documents, photos, videos, and more.

  • Gen 4x4 NVMe PCIe Performance
  • Ideal for Laptops & Small Form Factor PCs
  • Capacities up to 2TB2

Gen 4x4 NVMe PCIe Performance

Delivers read/write speeds up to 3,500/2,800MB/s1 for an overall faster system.

Ideal for Systems with Limited Space

Easily integrate into designs with M.2 connectors. Perfect for thin laptops and small form factor PCs.

Extended Capacities

Available in a range of high capacities up to 2TB2 to meet your data storage requirements.
  1. Based on “out-of-box performance” using a PCIe 4.0 motherboard. Speed may vary due to host hardware, software and usage.
  2. Some of the listed capacity on a Flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston's Flash Memory Guide.
Specifications

Storage

Solid State Capacity 500 GB
Drive Size Inches
Memory Type SSD
Memory Size MB

Performance

Read Speed Up to 3,500 MB/s
Write Speed Up to 2,100 MB/s
Data Storage Life 160 TBW
Mean Time Between Failure (MTBF) 1,500,000 hours

Interfaces/Ports

Interface PCIe Gen4 x4 NVMe

System Requirements

System Requirements 1 x M.2 slot, Key M, Type 2280, supporting PCIe Gen4 x4 NVMe

Environmental

Operating Temperature 0 ~ 70 °C
Storage Temperature -40 ~ +85 °C
Vibration (Operating) 2.17 G
Vibration (Non-Operating) 20 G

Physical

Form Factor Solid State Drive
Enclosure type Internal
Case Colour Blue
In The Box 1 x 500GB SSD
Width 22 mm
Depth 80 mm
Height 3.5 mm
Weight 7 g

Warranty

Warranty 3 Years

Key Features

Disk Capacity 500 GB
Interface Type PCI Express 4.0 x4 NVMe
Main Colour
Storage Capacity GB
Solid State Drive Yes
Disk Form Factor M.2 2280
Low Profile
Read IOPS (4K)
Interface Type PCIe 4.0 x4 NVMe
Condition
Write IOPS (4K)
HDD Purpose
Card Width
Power Requirement (auto) 5 W
PCIe Physical Slot required

Item Details

Manufacturer Kingston
Manufacturer Code SNV2S/500G
EAN 0740617329858
UPC 740617329858
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Kingston
Manufacturer Code SNV2S/500G
