Kingston UV500 960GB 2.5" SATA III SSD

CCL Code: SSD0833
Manufacturer Code: SUV500/960G
Manufacturer: Kingston
Kingston UV500 960GB 2.5" SATA III SSD

Key Features:

  • SATA III Interface
  • 2.5 Form Factor
  • Up to 520MB/s Read, 500MB/s Write
  • 4K IOPS Read: 79000
  • 4K IOPS Write: 45000
  • 5 Year Warranty

Delivery Options

Wednesday 18th September via Priority Delivery

Free Delivery by Tuesday 24th September

Collection Options

Thursday 19th September from CCL (BD11 2PS)

Thursday 19th September from Local Collection Point

Buy now, spread the cost with PayPal Credit. Click for details...

Was £177.24

SAVE £36


inc VAT

10+ Available Online

Buying in bulk or need help? Call us on 01274 471 200.

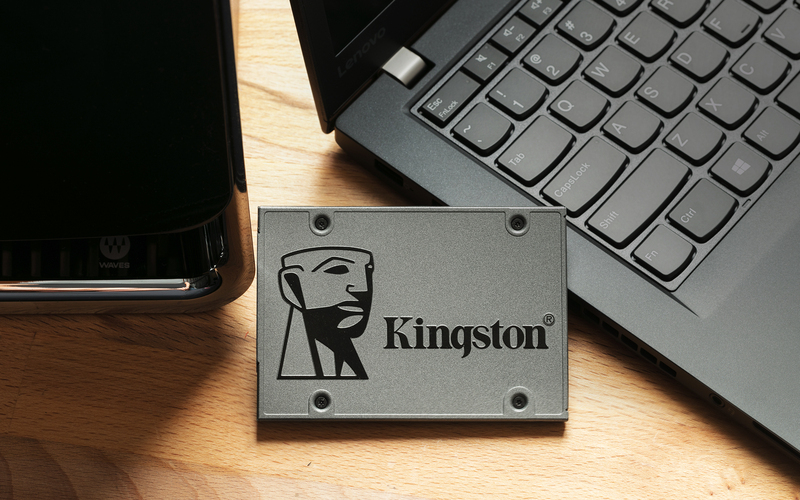

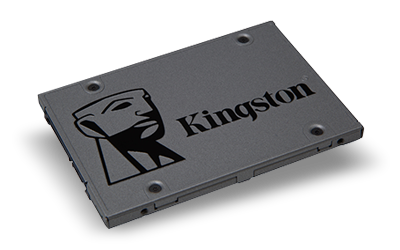

Kingston UV500 960GB (2.5") SATA III Solid State Drive

SSD technology has been redefined by Kingston's brilliance over the years and the new UV500 is no different, coming in at a massive 10x faster than a standard 7200RPM mechanical hard drive. The UV500 boasts a read speed up to 520 MB/s and write speed of up to 500MB/s, meaning overall performance of your PC is drastically improved. The 3D NAND Flash technology combined with a Marvel Dean 88SS1074 controller allows extremely quick data transfer rates and OS loading to boost your productivity, creating an environment that will let you flourish and never slow you down.


960GB 520MB/s 500MB/s 79,000 45,000
Total Capacity Read Write 4K IOPS Read 4K IOPS Write


By definition flash storage is much more reliable than a hard drive and less likely to fail or report errors, mainly due to the fact there is no physical disk in the casing that is needed to spin in order to read data. Because of this the drive is essentially shock proof, making this the perfect solution for all laptops and notebooks, as well as desktop builds. The drive stays naturally cooler and is easier to keep that way and runs a lot quieter than traditional 3.5” storage.



Multiple Capacities

UV500 SSDs are available in a range of capacities up to 960GB to meet any storage requirements.

Encrypted Protection

Your sensitive data is protected with support for 256-bit AES hardware-based encryption and TCG Opal 2.0.

10x Faster Than a HDD

Revive old and slow systems with incredibly fast read/write speeds of the UV500 ssd.


Encryption Software

Keeping your data as safe as it is fast has always been a priority for Kingston, and they have pushed the boundaries once again with the new TCG Opal 2.0 encryption software. This fantastic management software allows complete control over your drives protection and it’s ability to work with independent vendors like McAfee to promote great security that is easy to manage. The 256-Bit AES encryption complies with industry standards and global regulations such as GDPR.


5 Year Warranty

Have complete peace of mind knowing Kingston backs their UV500 SSDs with a 5 year warranty.


Main Features

  • Ideal for desktops and notebooks - Comes in multiple form factors (2.5"/M.2/mSATA) to fit in a wider array of systems. It is ideal for slimmer notebooks and systems with limited space.
  • Multiple capacities - Available in a range of capacities up to 960GB** to meet your data storage requirements.
  • Encrypted protection - Protect sensitive data with support for 256-bit AES hardware-based encryption and TCG Opal 2.0.
  • 10X faster than a hard drive* - With incredible read/write speeds, the UV500 will not only increase performance, but can also breathe new life into older systems.


Solid State Capacity 960 GB
Drive Size Inches
Memory Type SSD
Memory Package 3D TLC
Memory Size 960 GB


Read Speed 520 MB/s
Write Speed 500 MB/s
4K Random Read (AS SSD) Up to 79,000 IOPS
4K Random Write (AS SSD) Up to 45,000 IOPS
Data Storage Life 480 TBW
Mean Time Between Failure (MTBF) 1,000,000 hours


Encryption AES 256 bit


Interface Type SATA III


Electrical Power Consumption 2.32 W
Electrical Power Consumption Standby 0.195 W


Operating Temperature 0 ~ 70 °C
Storage Temperature -40 ~ 85 °C
Vibration (Operating) 2.17 G
Vibration (Non-Operating) 20 G


Form Factor Solid State Drive
Case Colour Silver
Width 100.1 mm
Depth 69.85 mm
Height 7 mm
Weight 57 g


Warranty 5 Years

Key Features

Disk Capacity 960 GB
Main Colour Silver
Storage Capacity 960 GB
Solid State Drive Yes
Disk Form Factor 2.5
Read IOPS (4K) 79000
Write IOPS (4K) 45000

Item Details

Manufacturer Kingston
Manufacturer Code SUV500/960G
EAN 0740617273786
UPC 740617273786
Condition New

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Kingston
Manufacturer Code SUV500/960G

Do you have you a question about the Kingston UV500 (960GB) 2.5 inch Solid State Drive (Internal)?

PDF Datasheets and Manuals

Document File type File size
Datasheet pdf
