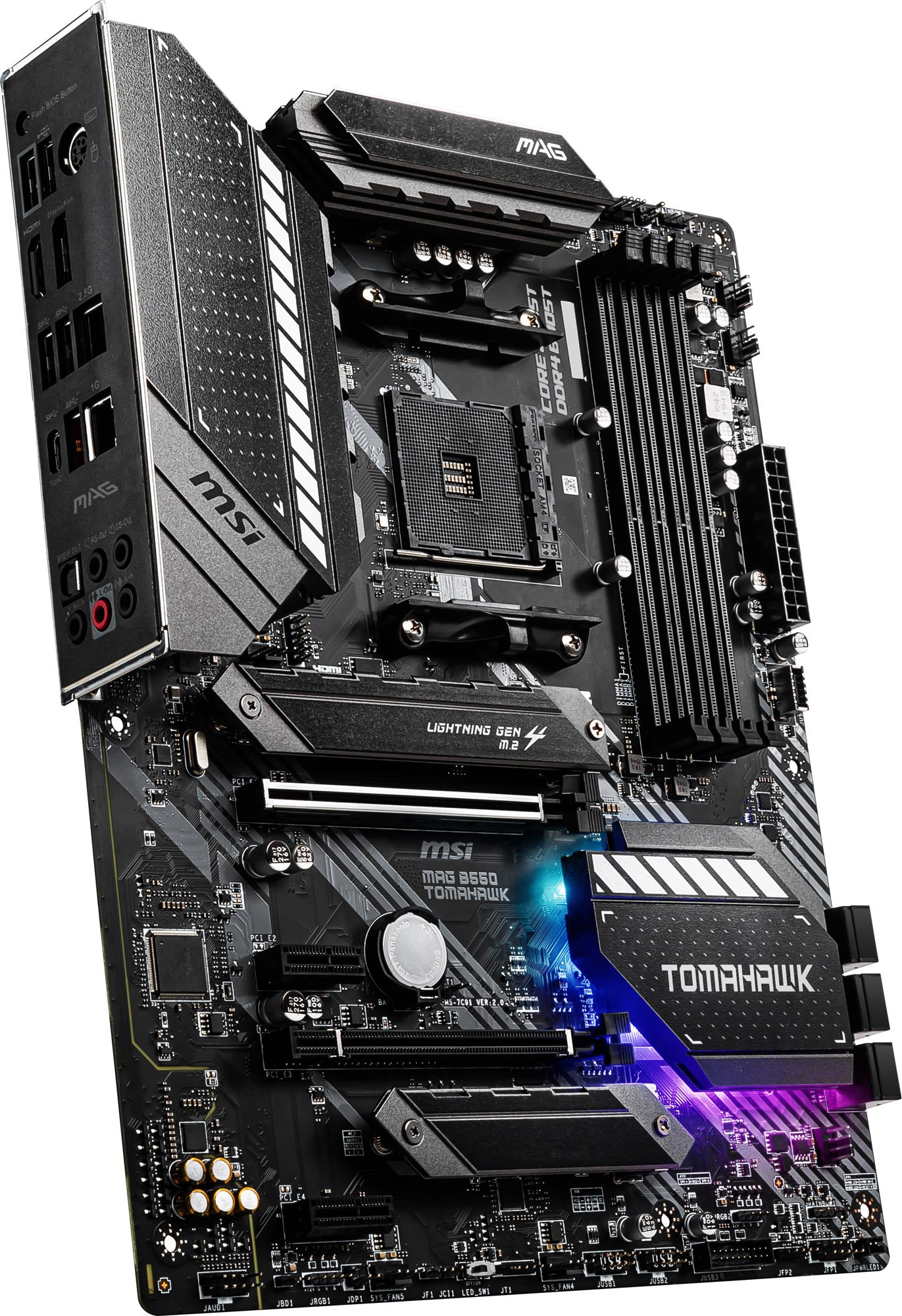

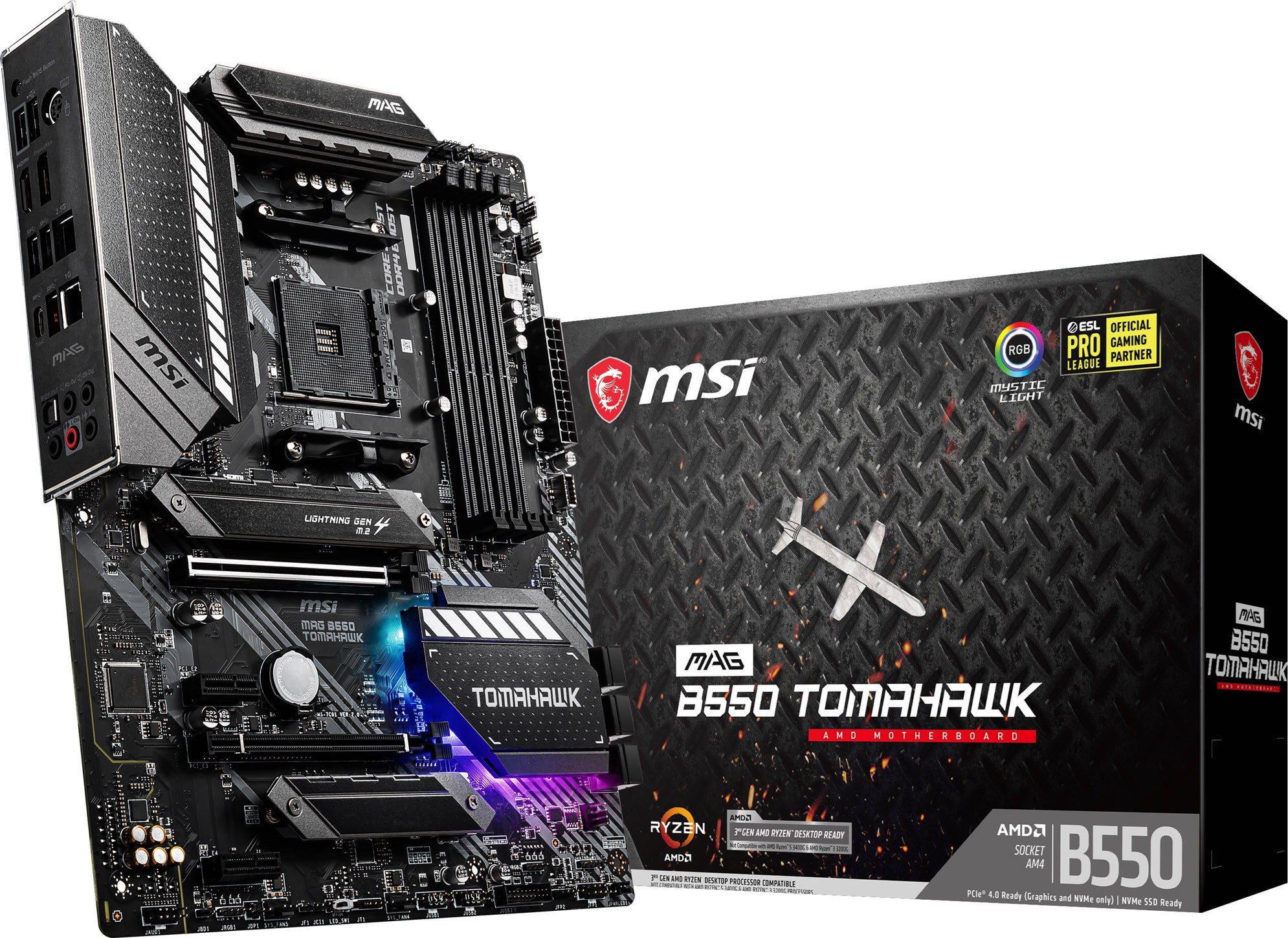

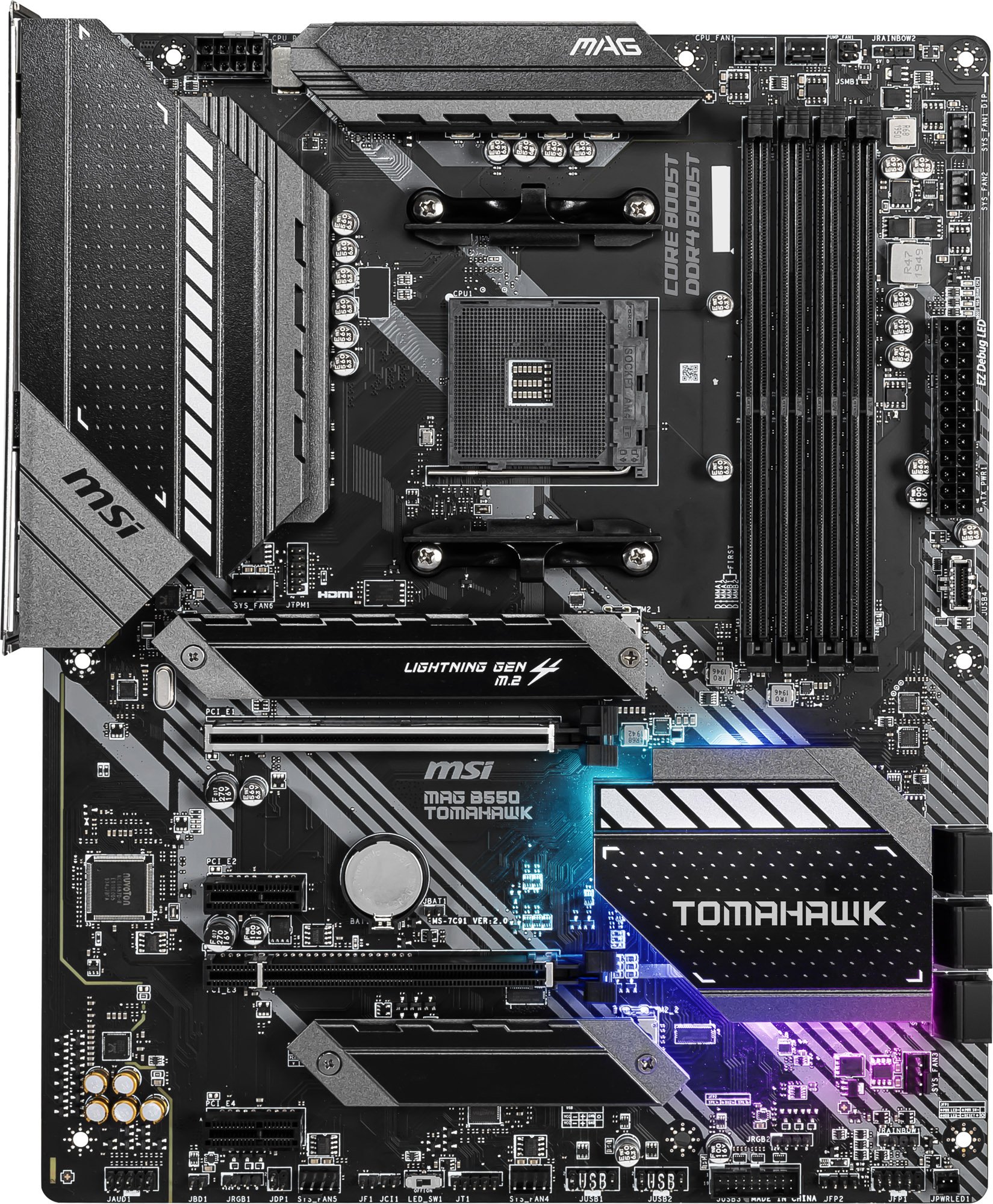

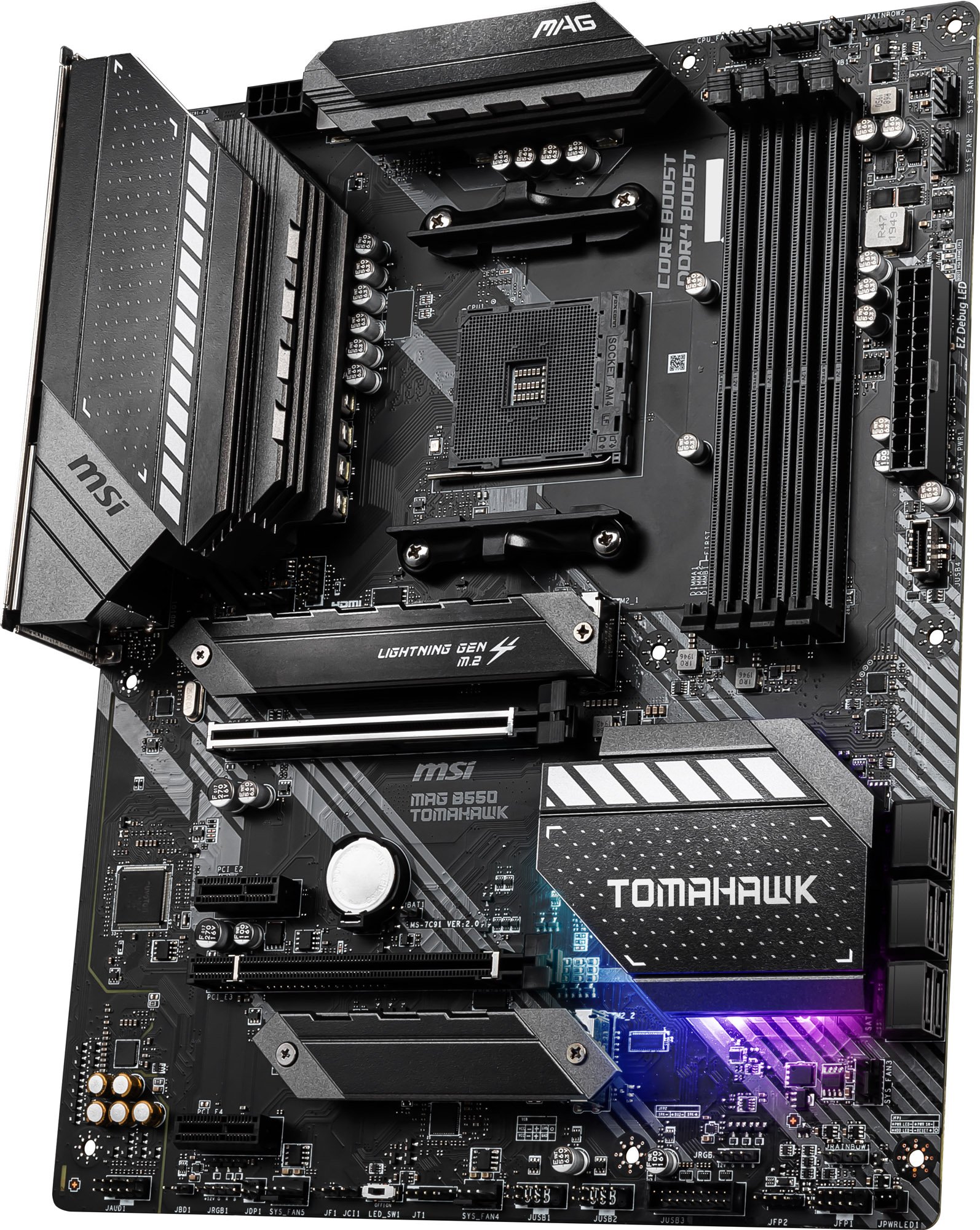

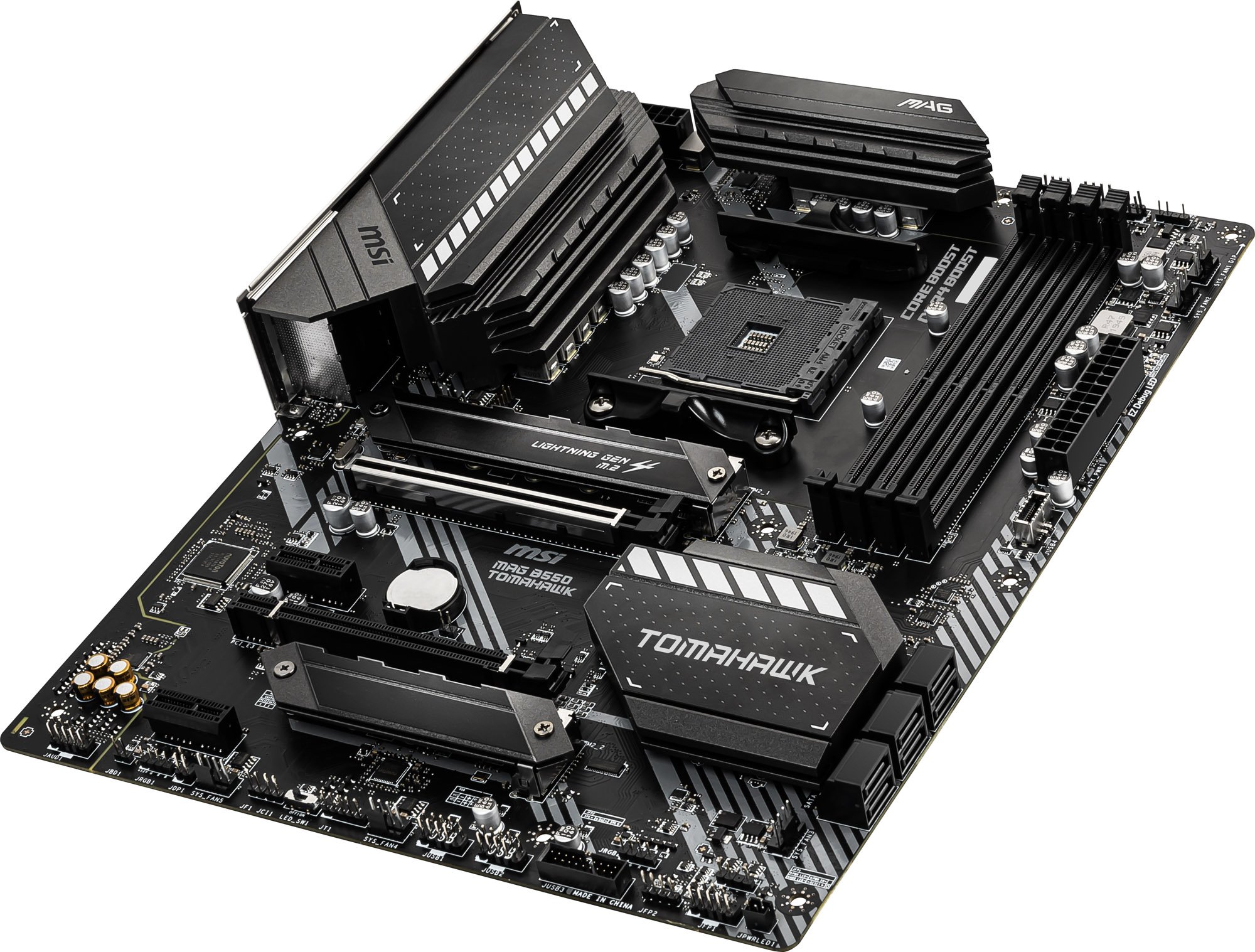

MSI MAG B550 TOMAHAWK ATX Motherboard for AMD AM4 CPUs

MSI MAG B550 TOMAHAWK ATX Motherboard for AMD AM4 CPUs

CCL Code: MBD2855

Was £178.80

SAVE £47

Now only

£130.99 inc VAT

MSI MAG B550 TOMAHAWK ATX Motherboard for AMD AM4 CPUs

MAG B550 TOMAHAWK

Was £178.80

SAVE £47

Now only

£130.99 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Today

6 In Stock Now

Order within

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • AMD B550 Chipset
  • Socket AM4
  • DDR4 (Max: 128GB / 4 slots)
  • 2 x M.2 & 6 x USB & 6 x SATA
  • HDMI and Display Port
CCL Code: MBD2855
Overview

MAG B550 TOMAHAWK
EXCLUSIVE FEATURE
MSI MAG B550 TOMAHAWK CORNERSTONE overview
MSI Core Boost Technology Core Boost Technology
With premium layout design, that is ready for unleashing the maximum performance.
MSI 6 layer PCB 6 layer PCB
6 layer PCB provides higher performance and long-lasting system stability without any compromise.
MSI 2oz Thickened Copper PCB 2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and performance reliability.
MSI Digital PWM Digital PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
MSI PCIe Steel Armor PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

MAG B550 TOMAHAWK
PREMIUM THERMAL SOLUTION
MSI MAG B550 TOMAHAWK THERMAL overview
MSI Extended Heatsink Extended Heatsink
MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
MSI M.2 Shield Frozr M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
MSI Pump Fan Support Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
MSI Heatsinks with 7W/mK Thermal Pad Heatsinks with 7W/mK Thermal Pad
7W/mK thermal pad provides better heat transfer to the heatsink.

MAG B550 TOMAHAWK
HIGH-SPEED TRANSMISSION
MSI MAG B550 TOMAHAWK LIGHTNING overview
MSI 2.5G plus Gigabit LAN 2.5G plus Gigabit LAN
Featuring 2.5G, Gigabit LAN with LAN manager delivers better network experience.
MSI Turbo USB Turbo USB
Featuring the TURBO USB 3.2 Gen 2 10Gbps with reversible Type-C connector.
MSI DDR4 Boost DDR4 Boost
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
MSI Lightning Gen 4 Solution Lightning Gen 4 Solution
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s banwidth for maximum transfer speed.

ESL PRO LEAGUE PARTNERSHIP

MSI MAG B550 TOMAHAWK & MAG VAMPIRIC 100R

MSI MAG B550 TOMAHAWK THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.

MSI MAG B550 TOMAHAWK TWIN TURBO M.2 and M.2 SHIELD FROZR
TWIN TURBO M.2 and M.2 SHIELD FROZR
Cooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection.

MSI MAG B550 TOMAHAWK 10 + 2 + 1 DUET RAIL POWER SYSTEM
10 + 2 + 1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design with concurrent stable power delivery. Combining 8pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy daily work.
  • 10 Duet Rail CPU Power System / Smart Power Stage 60A
  • 2 phases SOC Power
  • 1 phases APU Power
  • Digital PWM IC

MSI MAG B550 TOMAHAWK PCB WITH 2OZ THICKENED COPPER
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

MSI MAG B550 TOMAHAWK LIGHTNING GEN 4
LIGHTNING GEN 4 SOLUTION
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.

MSI MAG B550 TOMAHAWK GAMING RIG
CUSTOMIZE YOUR GAMING RIG
Personalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device.
  • Customize colors
  • Customize effects

MSI MAG B550 TOMAHAWK DUAL LAN WITH 2.5G LAN
DUAL LAN WITH 2.5G LAN
MAG B550 TOMAHAWK features high-bandwidth and low-latency 2.5G plus Gigabit LAN for demanding creators and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

MSI MAG B550 TOMAHAWK CORE BOOST
Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while doing.

MSI MAG B550 TOMAHAWK DDR4 BOOST
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

MSI MAG B550 TOMAHAWK MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MULTIPLE GPU SUPPORTS AND STEEL ARMOR
MAG B550 TOMAHAWK supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD® CrossFire setup Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

MSI MAG B550 TOMAHAWK AMPLIFY YOUR GAME WITH AUDIO BOOST
AMPLIFY YOUR GAME WITH AUDIO BOOST
Like a dedicated sound card, Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.


Main Features

  • Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update
  • Supports DDR4 Memory, up to 4866+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
  • Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
  • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag.
  • Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB and RAINBOW LED strip.
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
  • Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire
Awards
  • KitGuru - Worth Buying

    Read Full Article

    Good power delivery capabilities, an excellent fan header and control subsystem, and strong performance make the MSI MAG B550 Tomahawk a promising choice, provided you are happy with the HDMI and PCIe/M.2 limitations.

  • eTeknix - Bang For Buck Award

    Read Full Article

    If you want a well equipped ATX motherboard without the big price tags, this is certainly one of the best options. The design is an aquired taste, but there’s no complaints about their choice of hardware.

  • Overclock3D - Performance

    Read Full Article

    Whether you're a plug and go type, or someone who is willing to take the time to manually fettle your system, the MSI Tomahawk rewards you with performance in spades. It might be hiding its light under a bushel but what a bright light it is, and at £180, an affordable light.

  • Vortez - Approved

    Read Full Article

    The MSI MAG B550 Tomahawk features very capable heatsinks, looks classy and is fairly well future proofed. We reckon it’s definitely worthy of consideration within the B550 market, but there are X570 motherboards at this price point.

Specifications

CPU

CPU Socket Socket AM4
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
64-bit Support Yes
Socket AM4

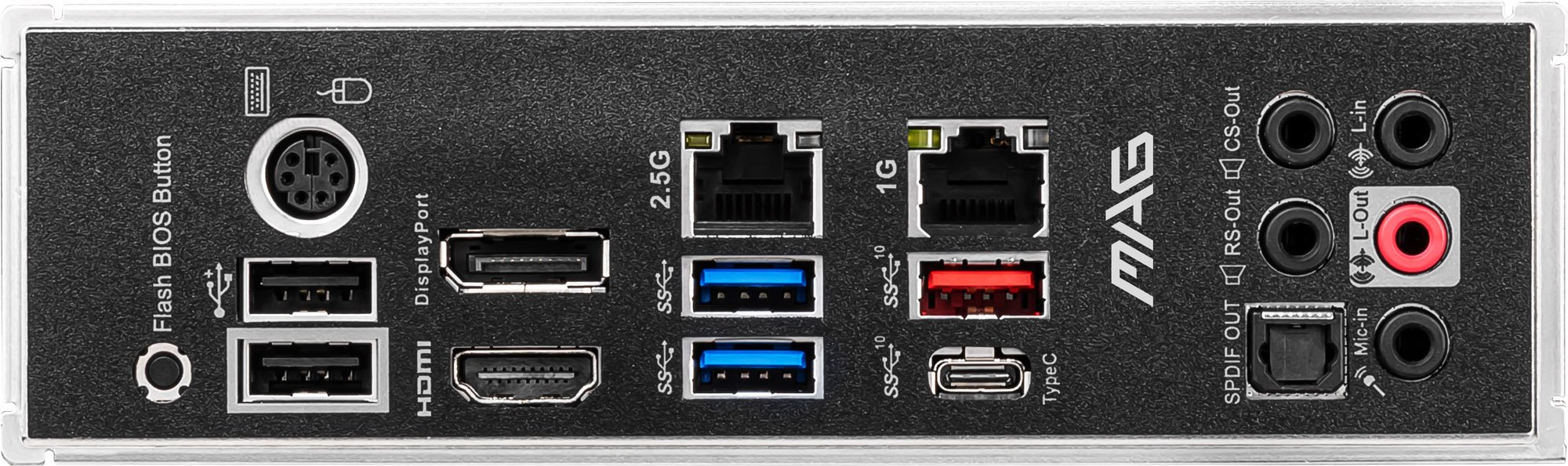

Rear Panel I/O Ports

USB Ports 1 x USB 3.1 Type-C
1 x USB 3.1 Type-A
2 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort
HDMI Port 1 x HDMI
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 2 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out

Internal I/O Connectors

SATA Connectors 6 x SATA III
USB Connectors 1 x USB 3.0 Type-C header
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Cooling Fan Support 1 x CPU fan header
1 x Water Pump fan header
6 x System fan headers
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 20+4-pin ATX
1 x 4+4-pin EPS
Other Connectors 1 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110)
1 x M.2, Socket 3, M Key (Type 2242/2260/2280)
2 x RGB LED headers
2 x Addressable LED headers

Memory

Memory Bus Speed 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Chipset Manufacturer AMD
Northbridge B550
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16
1 x PCI Express 3.0 x16 (@ x4)
2 x PCI Express 3.0 x1

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC1200

Warranty

Warranty 3 Years

Network

Integrated Network Realtek RTL8125B
Realtek RTL8111H
Network Speeds Supported Realtek RTL8125B: 10/100/1000/2500 Mbps
Realtek RTL8111H: 10/100/1000 Mbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 10 64-bit

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes
SLi/Crossfire Features Supports 2-Way AMD CrossFire Technology

Physical

Form Factor ATX Motherboard

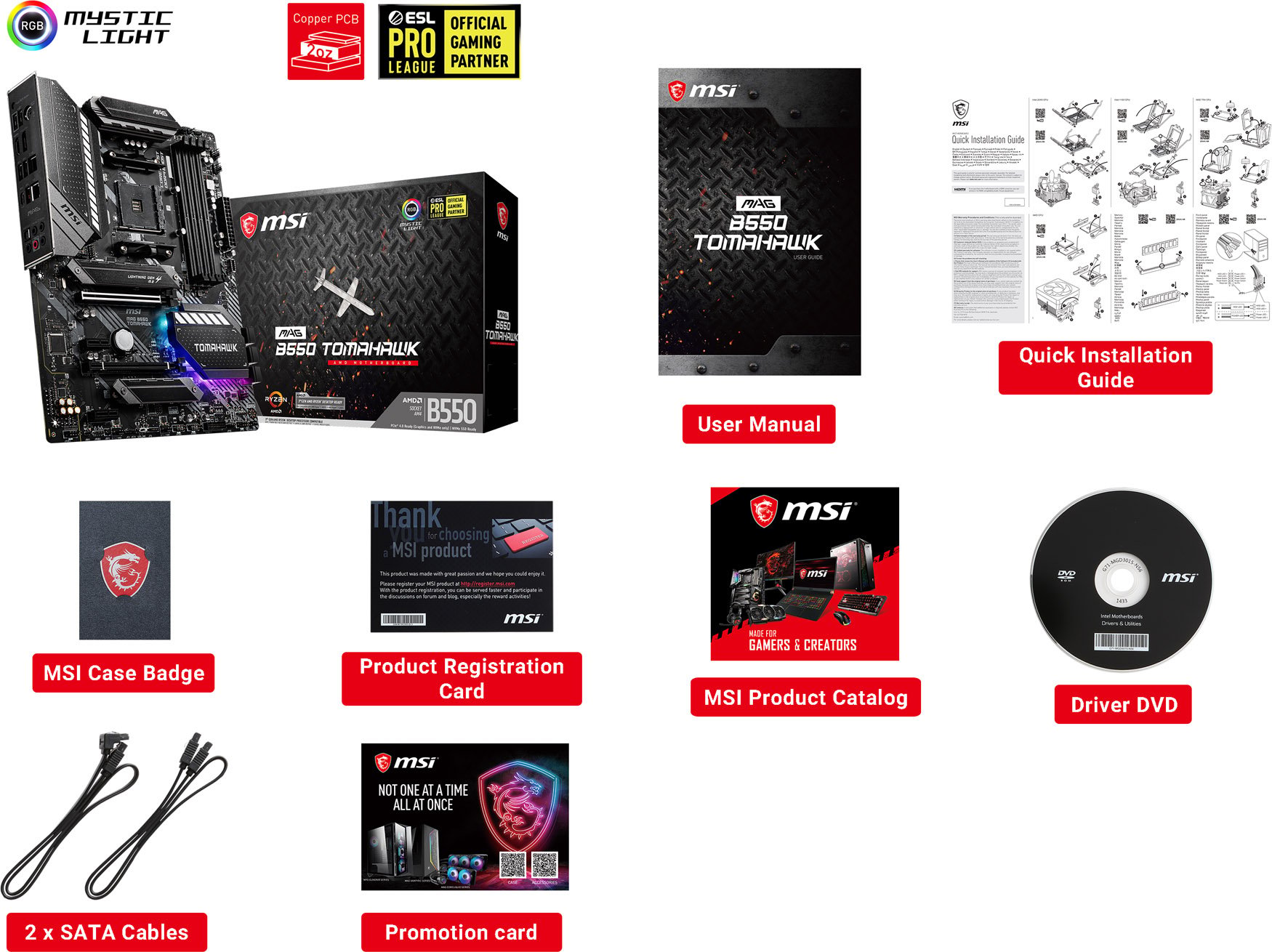

In The Box MAG B550 TOMAHAWK Motherboard
User Manual
Quick Installation Guide
MSI Case Badge
Product Registration Card
MSI Product Catalog
Driver DVD
2 x SATA Cables
Promotion Card
Width 305 mm
Length 244 mm

Key Features

Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
Memory Speed 4866 MT/s
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 3200 MT/s
Max Memory Speed Supported (overclocked) 5100 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
Maximum SATA M.2 ports 1
SATA ports 6
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Firewire No
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 6 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support ATi CrossFire
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset AMD B550
Thunderbolt No
Motherboard Model MSI MAG B550 TOMAHAWK
USB 3.1 Support Yes

Item Details

Manufacturer MSI
Manufacturer Code MAG B550 TOMAHAWK
EAN 4719072728625
UPC 824142217627
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code MAG B550 TOMAHAWK
Reviews
4.7 / 5 38 reviews

Stephen

12 months ago

Can't us it because, The motherboard cannot detect CPU Ryzen 5 5600x

Owen

August 2023

Works well, and is a really thick motherboard almost no flex to it at all when installing cpu cooler and powerr connectors/ram rgb on it is sparce but just enough to add flair and the gpu i have hides the parts of it i was worried about all around i could not imagine a better motherboard

Lunaa

March 2023

It's really good

Sam

March 2023

Needed a bios flash for a 5600 CPU but the flash button made this process easy as pie,would recommend for novice builders like me

Philip

March 2023

Great value for money that supports this ddram speed

customer

February 2023

Great product easily installed and comes with all the drivers on a disk

Jon

February 2023

Good looking motherboard, easy to set up

Callum

August 2022

Product is perfect, arrived withing the scheduled time and no damage during transit which is ideal!

Samuel

August 2022

Very capable and easy to install.

Milton

August 2022

Very good motherboard. Easy to assemble for a first timer by himself. Took 6 hrs only because cables were confusing

Tommy Langton

August 2022

The classic board that'll suit just about any build. AM4 continues to be one of the best platforms and there is so much refinement over the years. The range of compatible chips is just massive, hard to beat the price value here.

Tim mccarthy

June 2022

Good all round board if using a radiator at the top of your case make sure you have enough room as the heat sink is pretty high at the top of the board.

Mark

June 2022

Fast and efficient board, works well and fits well in my case. Would recommend for 7 series CPUs.

Sam

March 2022

Good mid tier am4 motherboard. BIOS flash button is very useful.

Josh

March 2022

Has a good amount of headers and in convenient places

Damian Brown

February 2022

Ordered a motherboard for a new pc build, was a good dicounted price so thought I would grab myself a bargain, everything is as it should be and quick delivery, what more can you ask for, will definitely be ordering more parts from this company. A*

Jamie Cooper-Clarke

January 2022

Great product. Had to flash the bios, but this was super easy with the flash button. Very impressed with the features. Delivery was over a week late, but that was due to Royal Mail. CCL dispatched the item shortly after I placed the order. Would definitely use again in the future.

Derek Hannen

January 2022

Makes a very clean install,having 2 M.2 Slots is very handy.

Mark

September 2021

Great motherboard to go with my 5600x Great features and well worth the price

Robert O'Connor

July 2021

Brilliant motherboard, great price from CCL and super fast delivery.

James Merce101 Mercer

February 2021

Upgraded to this motherboard from an Asus X470 Prime Pro and has allowed me to run higher, more stable ram speeds. Only negative is MSI RGB lighting app - lots of conflicts with ICUE etc.

John

February 2021

Msi is a dreadful company, board came with small components broken off in the mobo bag, called msi and they told me they cant help me as I already have the item.

Luke

December 2020

The b550 tomahawk is a very good option if you're looking to the mid-high range of b550 motherboards. With this motherboard you're not limited at all when it comes to VRM performance meaning the new zen 3 CPU's all the way up to the top CPU can work well. Overall, if you find it at a reasonable price, it's a great product.

Alun Williams

December 2020

I chose this motherboard to pair with an AMD R5 3600XT, an RX5600XT and 16Gb 3200Mhz memory. Really happy with the motherboard as I am not fussed by RGB so have switched it off. UEFI bios was easy enough to turn on XMP for the RAM and the EZ Debug was useful when I couldn't get the machine to boot initially. Also happy that it gives me a small bit of future proofing if I wanted to put a 5000 series CPU in it at a later date.

Sam Haken

December 2020

Great motherboard, came as expected and is in working order

Ian

December 2020

Amazing board, especially when paired up with an 5900X CPU and a RTX 3090 graphics card. Offer was amazing too, thanks CCL!

Lee Goodwin-Grafton

December 2020

After somewhat stubbornly sitting on my trusty i7 920/X58 setup for many years I decided to finally upgrade to something a lot more modern. I'd already decided to go Ryzen with the 3700X but struggled to pick out a motherboard I wanted, I finally decided on the MAG B550 TOMAHAWK and I'm really glad I did, a really great balance of performance and features. I love the clean and well laid out look of the board which isn't too fussy. Setup was easy, I paired the 3700X with some TeamGroup 3600Mhz Cl16 RAM and a Kingston A2000 1TB M2 NVMe drive, the RAM was detected and setup simply with a single click of the A-XMP profile button in MSI's excellent Click 5 BIOS (EZ Mode of course). The Kingston drive was detected fine too, on restart just pressed F11 and selected the USB stick with fresh Windows image and I was away. For my first new build in years I couldn't be happier, Windows boots instantly, dual LAN, both 1GB and 2.5GB, some RGB options to play around with a tons of fan control options too, can't go wrong. My only real issue was that product registration requires an actual photo of the barcode on the motherboard too (the 24pin power connector), I missed this and had already put the system together, but anyway got that sorted and claimed a free copy of Assassin's Creed Valhalla courtesy of MSI too, thanks very much! Overall an excellent motherboard, highly recommend. And as always great service from CCL.

michael green

December 2020

This board is a vast improvement on its earlier counterpart, this product has a more dense feel in weight over its 450 counterpart, which gives of the look and feel of quality not to mention the access to the 2 nvme m.2 slots with heat guard is a nice added touch, apart from a few various upgrades this board will help future proof if you indeed decide to upgrade either a new CPU or GPU, a simple bios update for any future CPU, or simply plug and play with any new graphics card with access to pcie gen 4 bandwith

scott

November 2020

Excellent board and very good value for the price point. Bought for a 3900xt, RTX 3070, 32gb 3600mhz memory build. I didnt want a flashing lights board this is black and gun metal. I fits nicely with the Bequiet dark rock 4 pro, and my black/grey ram. Seems very well built and some weight in it, plenty of connections and features that are listed in the specs page. Very pleased with the board and would recommend.

Jeffrey Lung

November 2020

Good quality product with good VRM. Pretty nice for my build with RGB lights, just waiting on a new graphics card!

scott

November 2020

Excellent board and very good value for the price point. Bought for a 3900xt, RTX 3070, 32gb 3600mhz memory build. I didnt want a flashing lights board this is black and gun metal. I fits nicely with the Bequiet dark rock 4 pro, and my black/grey ram. Seems very well built and some weight in it, plenty of connections and features that are listed in the specs page. Very pleased with the board and would recommend.

jay spencer

November 2020

Great motherboad with all the features I need and still plenty of room for future upgrades. Bought along with a Ryzen 3600 and RTX 3070 and I'm sure this is gonna last me well into the future.

Vytas

September 2020

This board is at the premium end of the B550 chipset, for a detailed technical review you are better off googling. If there's a real weakness it's a lack of USB ports, but the build quality and ease of use is as advertised. In particular the list of natively supported hardware is long meaning the amount of setup faff is minimal. In my case it was all plug and play, booting first time. One nice feature is the spacing between the CPU mount and the slots for your first pair of RAM. I was able to mount my Noctua NH14 in the best orientation (leaning out over the RAM) and could still remove my RAM if I wanted without disturbing the cooler beyond unclipping the outer fan. One odd duff detail is that the 1st lot of RAM goes in slot 2 (or B I forget) and the SATA cable array goes something like 3,4,1,2,5,6 so read the manual as you build. I think there may now be some slightly better value for money boards at this tier but overall I'm very satisfied with my purchase.

Sally Ford

September 2020

Motherboard was easy to fit and came complete with Sata cables,cable ties and screws for fitting M.2, only hitch was that the Bios had to be updated to support the AMD Ryzen CPU that was installed which was done with no problems and after that - all was working well.A great piece of kit for the price that I paid and very pleased with my purchase

Parand Pourmoussavian

September 2020

Very easy to install, great power delivery and thermal solutions. I buy MSI products because they are built like tanks. I have never had a product fail on me that was made by them. I originally considered going for the cheaper gigabyte elite however this one is a higher quality motherboard and is more than enough for any future upgrades you plan to do. The only con i can think of is the lack of usb ports on the back and perhaps the price could be a little lower, but thats probably the case with the entire b550 line up. all in all im very happy about my purchase

David Henderson

August 2020

Really pleased with it, great temps, built in IO shield and plenty of high end features. 2 x NIC's were great for me as was the number of fan headers. Quality piece of kit. BIOS is easy to navigate and flashback feature is very useful.

Ashley

August 2020

I love this mobo! Handles everything I've chucked at it nicely layed out. The bios was easy to use and the rbg can be turned off

A happy customer stuck indoors

July 2020

Good value motherboard. I find that the only down side is the lack of wifi and bluetooth but they have usb dongles that can provide all that so not a big impact. Delivery was within stated time even when the item was bought as a preorder.
