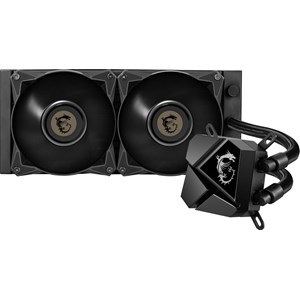

MSI MAG CORELIQUID P240 AIO 240mm CPU Cooler

MSI MAG CORELIQUID P240 AIO 240mm CPU Cooler

CCL Code: CLR2410

Discontinued

MSI MAG CORELIQUID P240 AIO 240mm CPU Cooler

MAG CORELIQUID P240

CCL Code: CLR2410

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview
msi coreliquid P240 banner
REBELLIOUS AND discreet
The MAG CORELIQUID P Series liquid coolers' water block is not the typical design you frequently see in the market today. It is modest and discreet, but with great quality. It is split into four pieces of unique diamond-cut areas, with three constructed in piano black and the last one featuring our proud MSI logo emblem.
msi mag coreliquid P series rebellious
LGA 1700 Compatible
The MAG CORELIQUID P Series liquid cooler provides out of box support for LGA 1700.
Msi Coreliquid P LGA 1700
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
hydro dynmic bearing
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
Msi Mag Coreliquid P thermal
Pump Motor
Resonance Elimination
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
Msi coreliquid  P series motor
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
msi mag coreliqudi tubing
EXTENSIVE COMPATIBILITY
Stylish yet built for flexibility, the MAG CORELIQUID P Series has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
Intel Socket
  • LGA 1150/1151/1155/1156/1200/1700
  • LGA 1366/2011/2011-3/2066
AMD Socket
  • AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
msi mag coreliquid P
Fan info
Number of Fans 2
Fan Dimensions 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches
Fan Speed 500 ~ 2000 RPM
Fan Air Flow 78.73 CFM
Fan Noise Level 14.3-34.3 dBA
Fan Air Pressure 2.39 mmH2O
Fan Bearing Two Ball Bearing
Fan Life Expectancy 70,000 hours
Fan Rated Voltage 12V DC
Fan Rated Current 0.15 A
Fan Power Consumption 1.8 W
PWM Mode Yes
PWM Cable Length 350±10mm /13.8±0.4inches
Radiator Info
Radiator Material Aluminum
Radiator Dimensions 276 x 120 x 27mm / 10.87 x 4.7 x 1.06 inches
Water Cooling Pipe Length 400mm / 15.75 inches
Pump/Block Info
Block Dimensions 70.5 x 70.5 x 52mm / 2.78 x 2.28 x 2.05 inches
Pump Life Expectancy 100,000 hours
Pump Noise Level 18 dBA
Pump Load Current 0.34A
Pump Power Consumption 4.08W
Pump Speed 4200 RPM
Pump Rated Voltage 12V DC
Socket Info
Intel Socket LGA 1150/1151/1155/1156/1200/1700
LGA 1366/2011/2011-3/2066
AMD Socket AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
Accessories
  1 to 2 Fan PWM Cable x 1
PSU Molex 4-Pin to 4-pin(2 Pin Wired) Cable X 1

Main Features

  • The MAG CORELIQUID P Series liquid cooler provides out of box support for LGA 1700.
  • The pump has been integrated into the radiator for sound dampening and noise reduction.
  • A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
  • A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
  • Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
Specifications

CPU Types

Socket Intel: LGA 1150/1151/1155/1156/1200/1700, LGA 1366/2011/2011-3/2066
AMD: AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2

Fan

Fan Bearing Type Two Ball
Fan Speed 500 ~ 2000 RPM
Fan Noise Level 14.3 ~ 34.3 dBA
Lifetime 70,000 hours
Fan Air Pressure 2.39 mmH2O
Airflow 78.73 CFM

Fan Speed Controller

Connector 4-pin PWM
Allowable Power 1.8 W
Voltage 12 V DC
Current 0.15 A

Physical

Form Factor AIO CPU Cooler
Case Colour Black
Base Material Copper
Heatsink Material Aluminium
In The Box Cooler
1-to-2 fan PWM cable
Molex Adapter
Width 70.5 mm
Depth 70.5 mm
Height 52 mm
Fan Width 12 cm
Fan Depth 120 mm
Fan Height 25 mm
Heatsink Width 276 mm
Heatsink Height 27 mm
Heatsink Depth 120 mm

Warranty

Warranty 3 Years

Key Features

Compatible with Socket AM3 Yes
Compatible with Socket AM2+ Yes
Compatible with Socket AM2 Yes
Compatible with Socket 1366 Yes
Compatible with Socket 1156 Yes
Heatpipe Technology No
Includes Fan Yes
Socket 2066/2011 Yes
Socket 115x Yes
Socket AM2(+)/AM3(+) Yes
Compatible with Socket FM1 Yes
L.E.D Fan No LED
Socket FM2/FM1 Yes
Liquid Cooler Yes
Compatible with Socket 1150 Yes
Watercooler Yes
Compatible with Socket 1151 Yes
Socket AM5/AM4 Yes
Socket SP3/TR4/sTRX4/sWRX80 No
Compatible with Socket 2066 Yes
Number of Fans 2 fan(s)
Radiator Size 240 mm
Socket 1200 Yes
RGB Software Type None
Socket 1700 Yes
Power Requirement (auto) 14 W
Cooler count 1
Our Cooling Rating (TDP) 255 W
Socket SP6/sTR5 No

Item Details

Manufacturer MSI
Manufacturer Code MAG CORELIQUID P240
Alternative Part Number 306-7ZW2P11-813
EAN 4719072851460
UPC 824142259047
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code MAG CORELIQUID P240
Reviews
5.0 / 5 6 reviews

Mike

February 2023

The only thing that makes sense to me about this game is the way the board looks and feels like the game itself

Ahmet

February 2023

Keeps an I5 13600k between 29*C and 70*C between idle and high load, mostly doesn't rise above 65s*C at high load. When you consider 13th gen processors are high heat generating, can rise to 80s 90s up to 100*C, that is excellent performance. Longevity? who knows. Noise level? radiator fans are the loudest in my system, which is overall a very low background hum, you can always replace the supplied fans with after market quiet fans, but i had venture you wouldn't get much of an improvement, it's the air you hear not any mechanical noise. I mounted it on top of case as exhaust, the pump is in the radiator not in the cooling block like majority of AIO coolers, so if air being trapped is a worry, use a a washer or two to raise the non pump side of radiator a little, probably overkill and unnecessary but there you go. Overall totally working fine at great temps, would recommend, terrific value price vs performance.

Mr Stephen Smith

February 2023

The cooler performs very well although I would have preferred that the pipes to the cpu block were a couple of centimeters longer and that the fan mounting screws were 3mm longer for easier assembly in the case this would have allowed the radiator to be fitted with the fans inside the front bezel of the case.

Paul

January 2023

amazing product with again great delivery time easy to install, and super effective in cooling my cpu at least 15 to 20 degree difference

Richard

June 2022

good item good seller

Szymon

March 2022

Very cool fast delivery
