Ssupd Meshlicious SFF Case - White USB 3.0

Ssupd Meshlicious SFF Case - White USB 3.0

CCL Code: CAS4301

£105.99 inc VAT

  • Ssupd Meshlicious SFF Case - White USB 3.0
  • Ssupd Meshlicious SFF Case - White USB 3.0
  • Ssupd Meshlicious SFF Case - White USB 3.0
  • Ssupd Meshlicious SFF Case - White USB 3.0
  • Ssupd Meshlicious SFF Case - White USB 3.0
  • Ssupd Meshlicious SFF Case - White USB 3.0
  • Ssupd Meshlicious SFF Case - White USB 3.0

Save 5% when you buy 3 or more eligible different items*

Ssupd Meshlicious SFF Case - White USB 3.0

G99.OE759W.00

£105.99 inc VAT

Available for delivery from Friday 31st May

Buying in bulk? Contact our business team.

Key Features:

  • PSU not included
  • 2 x 2.5" Drive(s) Max
  • 2 x 3.5" Drive(s) Max
  • Max MB Size: ITX
  • Tempered Glass
  • Front USB Type-C Port
CCL Code: CAS4301
Overview

Meshlicious is a combination of MESH and Delicious. There’s so much mesh that your mouth will water. Breathable, mesh panels lets you savor the airflow and minty temps.

This version comes with a 14.5cm PCIe 3.0 Riser Cable. For this cable to work on PCIe 4.0 components, the motherboard BIOS should be updated to the latest version with the PCIe configuration in BIOS set to Gen 3 or 3.0.

The package includes one PCIe riser cable and one HDMI 2.0 cable.

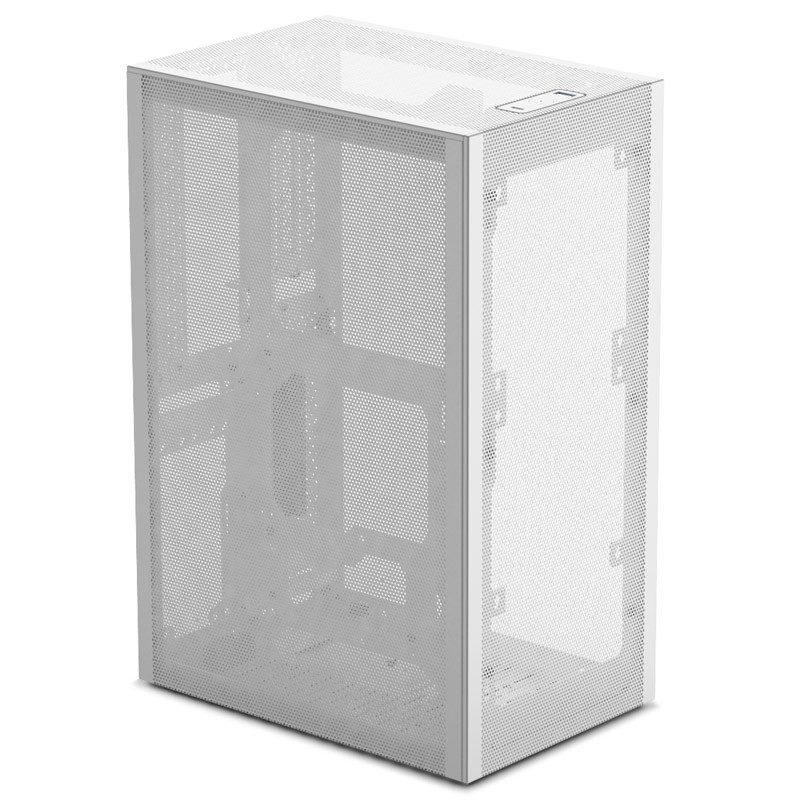

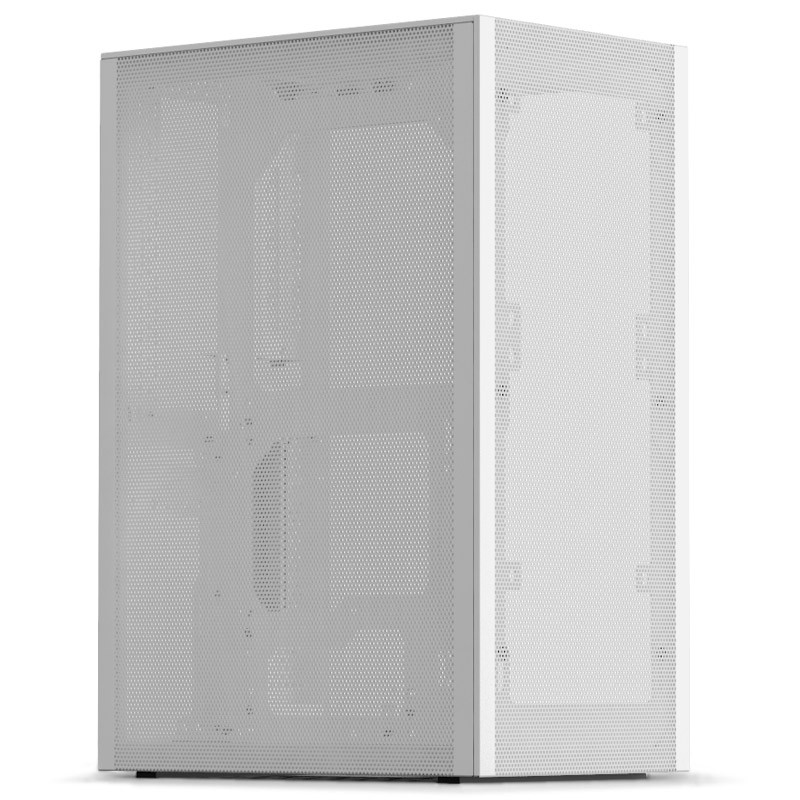

Well Ventilated for High End Hardware

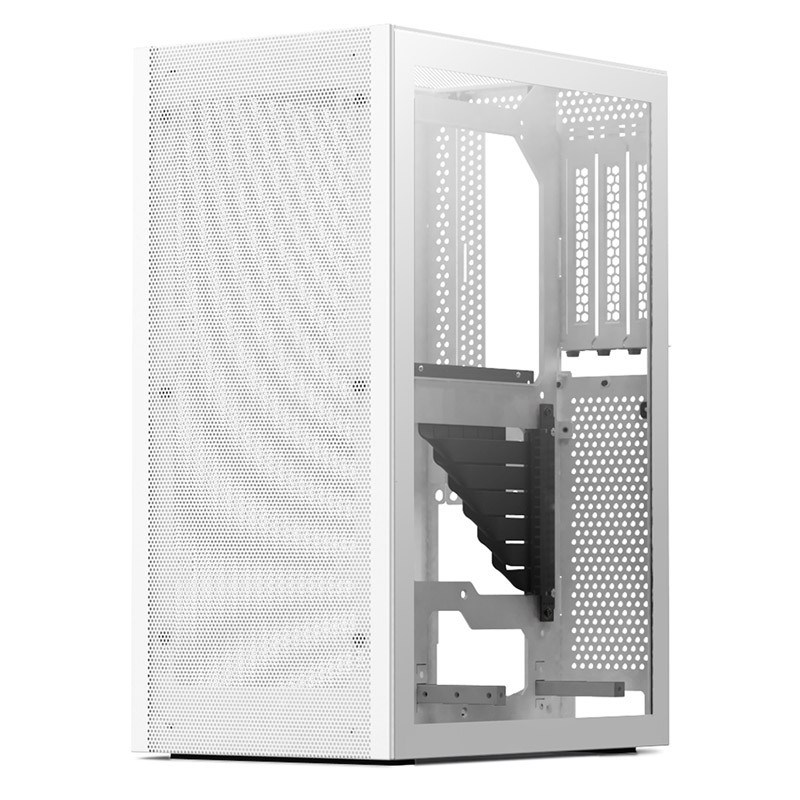

Breathable, mesh panels enables higher airflow and better cooling. A glass side panel is also included for a view of the hardware.

Supports Radiators up to 280mm

Meshlicious is great for liquid cooling. It can support a wide range of radiators up to 280mm. Dimensions supported are up to 320mm length, 143mm width and 63mm thickness.

Large GPU Support - up to Four Slots

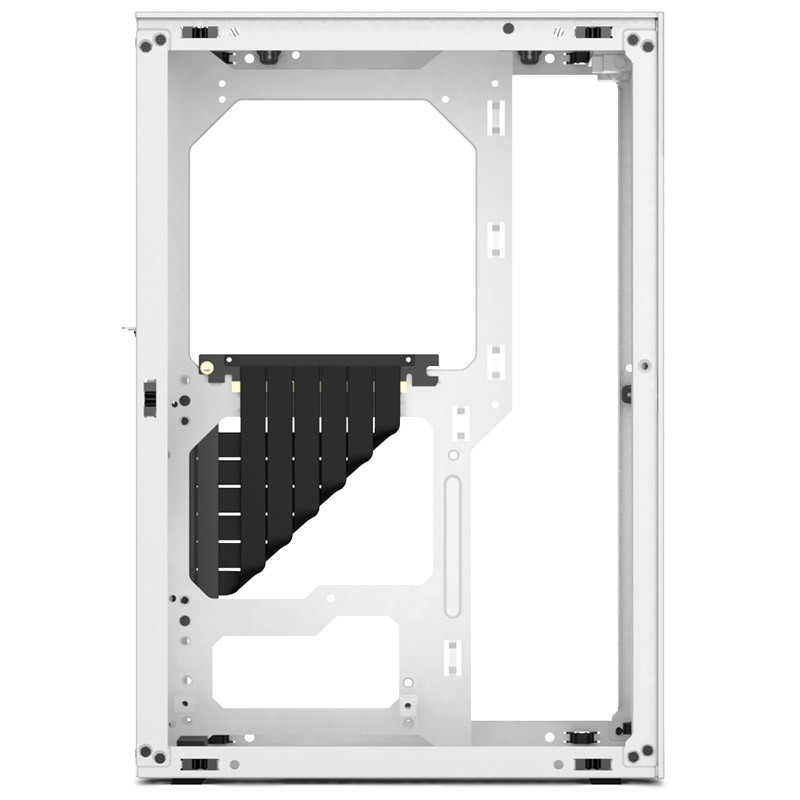

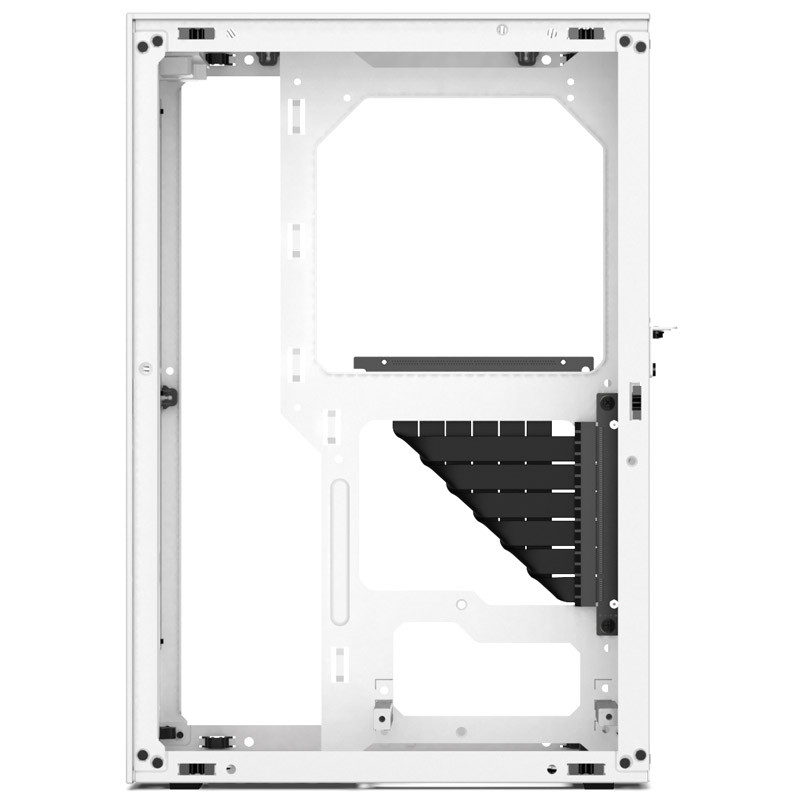

The motherboard tray also functions as a divider so you can split the CPU space and GPU sapce, making it possible to support GPUs up to four slots thick.

The GPU bracket is adjustable vertically, allowing for adjustments to the space available for the cables that are connected to the GPU.

Keeping it Cool by Design

Meshlicious is a high airflow, Small Form Factor (SFF) enclosure designed to keep you high end components cool and performing at their best.

ATX and SFX Power Supply Support

Compatible with both ATX and SFX power supplies. Meshlicious makes transitioning from an ATX build easy. There's no need to buy a new power supply.

Storage Drive Suppot up to 2 x HDD and 3 x SSD

Despite the small size, Meshlicious can support up to two 3.5" harddrives or four 2.5" hard drives (dependent on GPU size).

Main Features

  • Fine mesh panels and well ventilated
  • 14.67 liters in size
  • Support for regular size hardware
  • High quality powder coated SGCC steel
  • Tool-less external panels and easy to assemble
Promotions

Get 5% off PC Components, Peripherals and selected Monitors when you buy three or more*

USE CODE: UPGRADE5 at checkout

For a limited time only, buy at least three different PC components or Peripherals from different qualifying categories and get 5% off those items when you use code UPGRADE5 at checkout. *Terms & Conditions apply.

Qualifying categories are Processors, Motherboards, Desktop Memory, Solid State Drives, Hard Disk Drives, Power SuppliesCPU CoolersCases, MonitorsKeyboards, Mice, HeadsetsLaptop Cases and Bags.


Promotional Period: From 3rd May 2024 till 30th May 2024.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one processor, one motherboard and one keyboard). It will not apply to multiples from categories (e.g. three graphics cards).

Discount will be applied to the items in your basket when you enter the promo code UPGRADE5 at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: until till May 30th 2024.

Videos

The 2021 ITX Case to Beat – SSUPD Meshlicious

Specifications

Storage

Internal Expansion Bays 2 x 2.5" SSD (with full length GPU & ATX PSU) / 3 x 2.5" SSD (with full length GPU & SFX PSU) / 7 x 2.5" SSD (with SFF GPU & SFX PSU)
Up to 2 x 3.5" HDD (with Small Form Factor GPU)

Expansion

Expansion Slots Full Length GPU : Up to 4 slot; Small Form Factor GPU : 3 slot

Interfaces/Ports

USB Ports 1 x USB 3.1 Type-C
1 x USB 3.0

Electrical

Power Supports 170mm ATX PSU (with front fan only) / up to 160mm ATX PSU (with upward tubing AIO) / 140mm ATX PSU (with downward tubing AIO)
Cooling System Front: Supports 2x 120 mm or 2x 140 mm fans
Front Radiator: Supports 120 / 140 / 240 / 280 mm (Up to 320mm length, 143 mm width, 63 mm thickness with fans, dependent on GPU position / type)
CPU Cooler support: 3 slots GPU mode: Up to 73mm Height / 4 slots GPU mode: 53mm Height
Power Supply ATX, SFX-L, SFX PSUs supported

Physical

Form Factor SFF Case
Case Colour White
Material Steel
3mm Tempered Glass
1mm Mesh
LED Status Indicators Power
Motherboard Compatibility Mini-ITX
In The Box Case
Case Accessories
PCIe 3.0 Riser Card
HDMI Cable
Width 166.4 mm
Depth 245 mm
Height 360 mm
Weight 3.7 kg

Key Features

Firewire No
Max Motherboard Width 170 mm
Max Motherboard Height 170 mm
Main Colour White
Case Type SFF
USB 3.0 Support Yes
Case Form Factor SFF
Power Supply Included No
80Plus Rated No
PSU Form Factor ATX
Display Model in Showroom No
Illuminated No
e-SATA No
L.E.D Fan No LED
Max 3.5" Drives 2
Max 2.5" Drives 2
ITX Yes
Cooler Height 73 mm
Built-in Card Reader No
USB Type-C Support Yes
Front HDMI No
Side Panel Type Tempered Glass
GPU Length 336 mm
PSU Depth 170 mm
RGB LED Controller Included No
LED Strip(s) Included No
Maximum Motherboard Size Supported ITX

Warranty

Warranty 1 Year

Item Details

Manufacturer Ssupd
Manufacturer Code G99.OE759W.00
EAN 4718466009999
UPC 840353040885
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer Ssupd
Manufacturer Code G99.OE759W.00
Reviews
5.0 / 5 3 reviews

Gareth Ellis

May 2022

Fantastic smol form factor case. Easy to assemble, I combined it with an NZXT x63 CPU cooler to have a silent media box. A really well-designed case.

Mr Ogunmodede

December 2021

Very tricky case for a first time ITX builder, but there are some mods that are basically essential to use this case: adding taller feet and using taller stand offs to get more space behind the motherboard and vertically mounted GPU

Alex Scholefield

July 2021

You can watch vids on YouTube so I won't waste ppl time with a detailed review. A really nice case. Looks good sprayed next to my series X. It's super easy to build in. Got my main bits in within 10mins. Just cables and your cooling that takes time. Enough room for a small 120ml Res too. Takes some work but doable. Unless you really need a window, don't get one. Air flow is limited. I'm all water so I'm fine. I'm very pleased with my purchase. If you want a hassle free build get mesh only and go all air. I'm a sucker for water cooling builds. Pointless mostly but you can get a bit of extra juice out of GPU. Looks good lol. Only pay for it once. I'm still using 120, I bought a few years ago. Just new water and pipes. 4* on quality cos it's a budget case so it's not in the league of the like of ghost S1 ect. Who are 5* cases that carry a 5* price lol.
