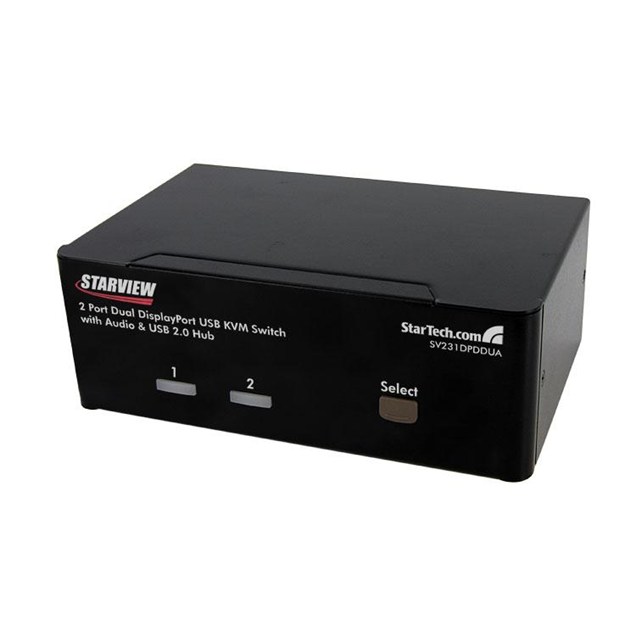

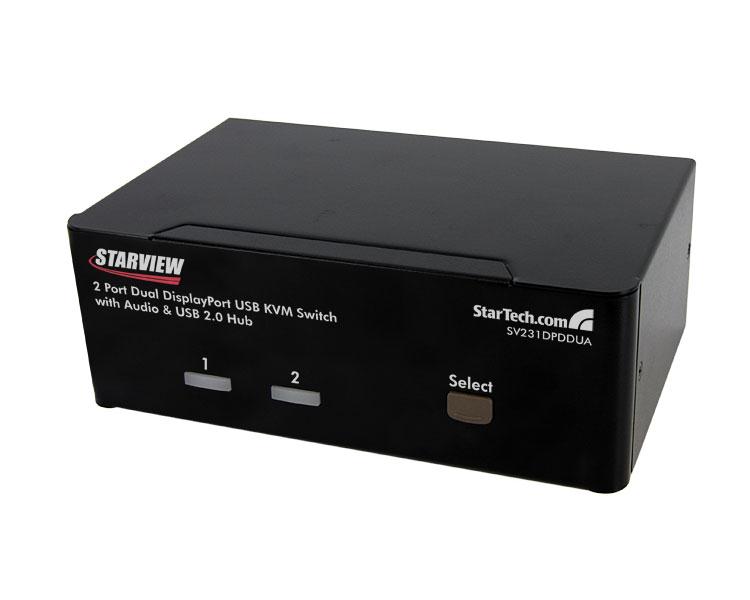

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Main Features
- Dual Native resolutions: 2560 x 1600 @ 60Hz, beyond 1080p on each monitor
- Mac and PC Compatible
- Supports a maximum resolution of 3840 x 2400 at lower refresh rates on each monitor
- Supports native DisplayPort computer connections - no adaptor required
- USB 2.0 peripheral sharing
- Analog 2-channel audio and microphone supported with 3.5mm connections; 7.1 Channel High Definition Digital Audio supported via the DisplayPort interface
- No driver or software installation required

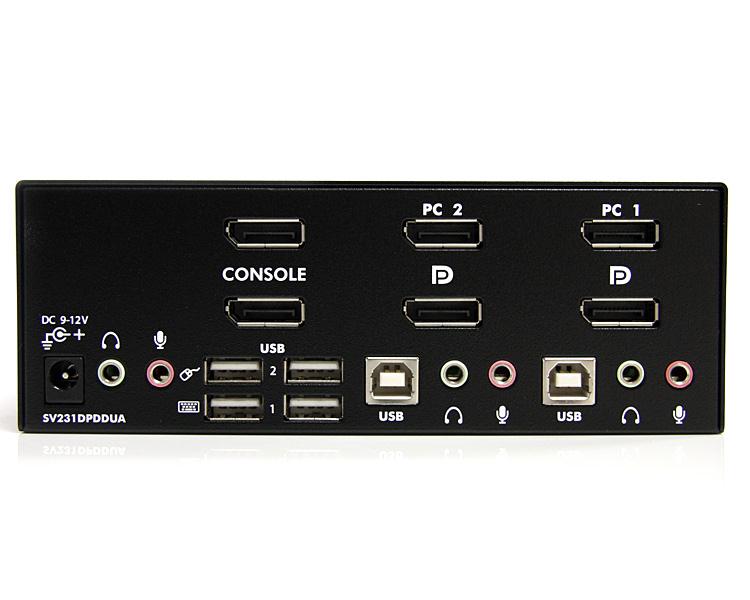

- Small form factor design with connection ports situated on the rear panel
- Supports DDC2B for monitor detection
- Supports hot-plug, un-plug and link status-failure detection
- Four Plug-and-Play USB console ports, including 2x dedicated peripheral (mouse and keyboard) ports and two USB 2.0 hub ports

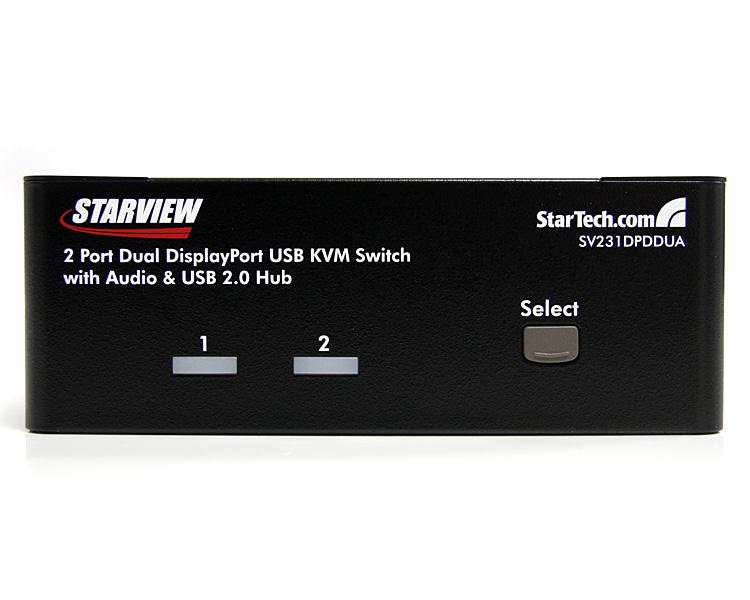

- Front-panel push-buttons as well as keyboard hotkey switching
- Full plug-and-play support with USB keyboards, mice, and connected peripherals
- Hotkey and push-button switching
- User-defined scan time intervals
- VESA and CEA compliant
- USB 2.0 HUB ports and Audio can be switched independently from the selected PC
