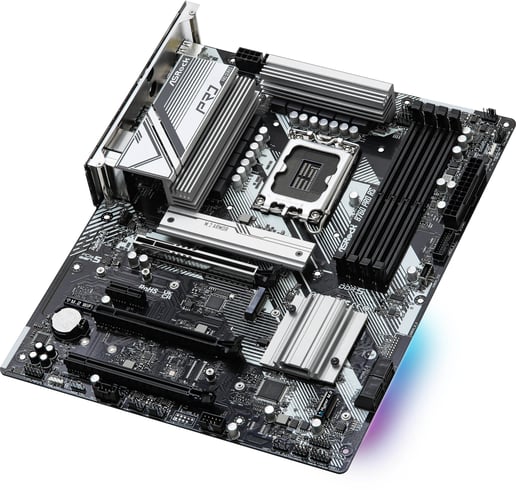

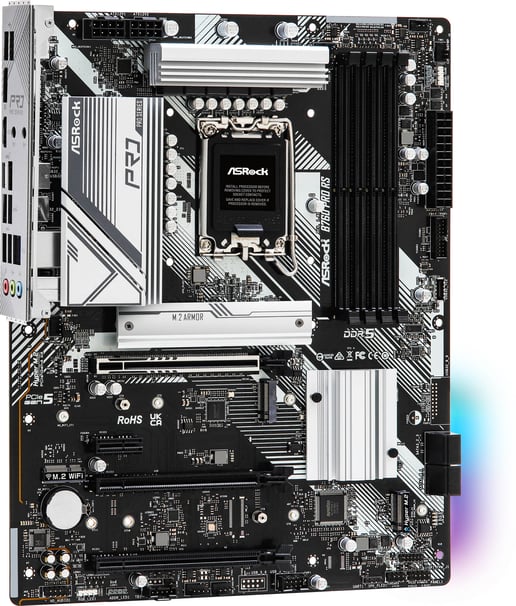

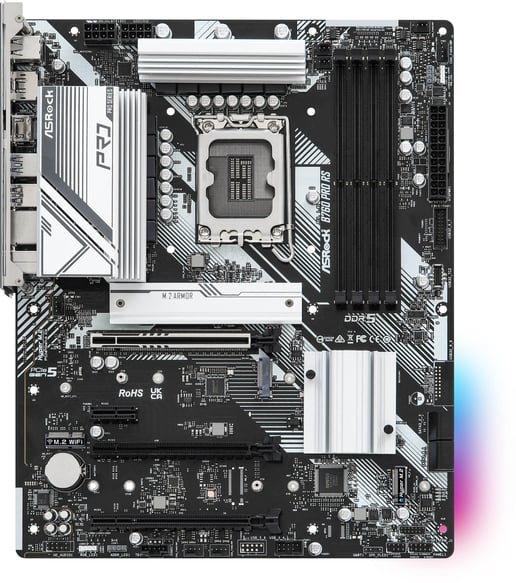

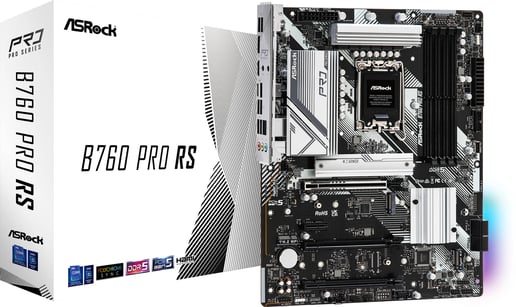

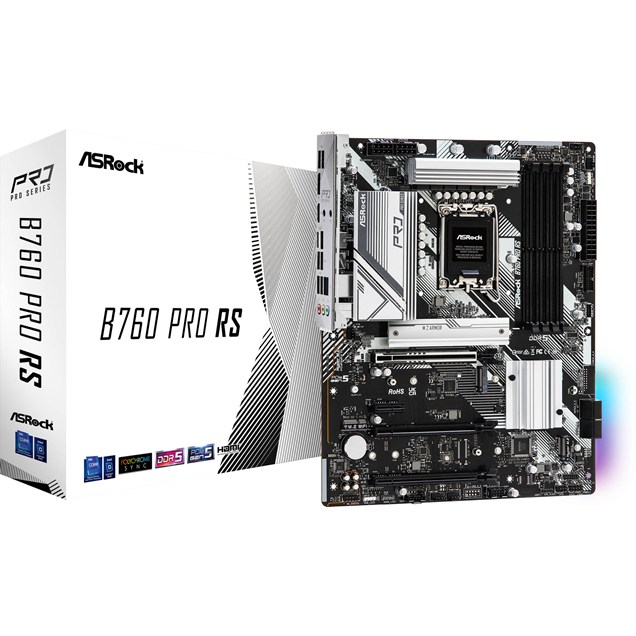

ASRock B760 Pro RS ATX Motherboard for Intel Socket 1700 CPUs
Available for delivery from Tomorrow
Click & Collect from Today
Low stock - don't miss out
Order within
You have 0 of these in your basket
Please note that this is a B Grade clearance item. It will be in good condition, but may show light signs of use and/or have been repackaged. The price has been reduced to reflect this.
All B Grade items are complete, working and have been fully tested.
This item is supplied with a Warranty: 1 Year warranty.
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: Intel
- Supported Processors: 13th Gen & 12th Gen Intel Core Processors
- 64-bit Support: Yes
- Socket: LGA1700

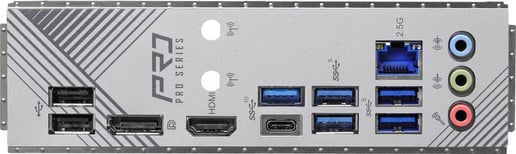

Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.1
- 1 x USB 3.1
- 4 x USB 3.0
- 2 x USB 2.0
- DisplayPorts: 1 x DisplayPort 1.4
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA III
- USB Connectors: 1 x USB-C 3.1 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 1 x USB 2.0 header (supports 2 ports)
- Speaker: 1 x Speaker header
Memory
- Memory Bus Speed: Up to 7200+ MHz
- Memory Type: DDR5
Motherboard
- Northbridge: B760
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 5, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x CPU/Water Pump fan header
- 5 x Chassis/Water Pump fan headers
- Thunderbolt Port(s): 1 x Thunderbolt AiC header
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x SPI TPM header
- Power Connector Port: 1 x 24-pin ATX
- 2 x 8-pin EPS
- Other Connectors: 2 x M.2 slots, Key M, Type 2260/2280 (PCIe Gen4x4)
- 1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen4x2)
- 2 x 3-pin ARGB LED headers
- 2 x 4-pin RGB LED headers
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 1 x PCI Express 4.0 x16 slot (@ x4)
- 1 x PCI Express 3.0 x16 slot (@ x1)
- 1 x PCI Express 3.0 x1 slot
Memory
- Maximum RAM: 128 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes (CPU dependant)
Sound
- Integrated Sound: Realtek ALC897
Warranty
- Warranty: 1 Year
Network
- Integrated Network: Dragon RTL8125BG
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: No
- Bluetooth: No
System Requirements
- Operating Systems Supported: Microsoft Windows 11 64-bit
System
- BIOS: 128Mb AMI UEFI Legal BIOS with GUI support
- Software Included: Yes
- Drivers: Yes
- SLi/Crossfire Features: Supports AMD CrossFire
Physical
- Form Factor: ATX Motherboard

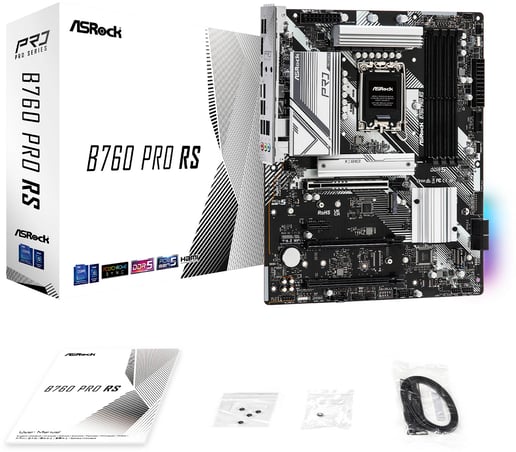

- In The Box: Motherboard
- 1 x User Manual
- 2 x SATA Data Cables
- 4 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3435XB
- Mfg Code: 90-MXBKS0-A0UAYZ
Warranty
- Warranty: 1 Year
