ASRock B760 Pro RS ATX Motherboard for Intel LGA1700 CPUs

ASRock B760 Pro RS ATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3435

Was £499.99

SAVE £370

Now only

£129.99 inc VAT

ASRock B760 Pro RS ATX Motherboard for Intel LGA1700 CPUs

90-MXBKS0-A0UAYZ

Was £499.99

SAVE £370

Now only

£129.99 inc VAT

Available for delivery from Saturday 20th July

or Click & Collect from Saturday 20th July

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR5 (Max: 128GB / 4 slots)
  • 3 x M.2 & 8 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3435
Overview

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

Main Features

  • Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
  • 10+1+1 Power Phase, Dr.MOS for VCore+GT
  • Supports DDR5 7200MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort, eDP
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2)
  • 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (4 Rear, 2 Front), 4 USB 2.0 (2 Rear, 2 Front)
  • Dragon 2.5G LAN
  • Supports ASRock Auto Driver Installer
Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 13th Gen & 12th Gen Intel Core Processors
64-bit Support Yes
Socket LGA1700

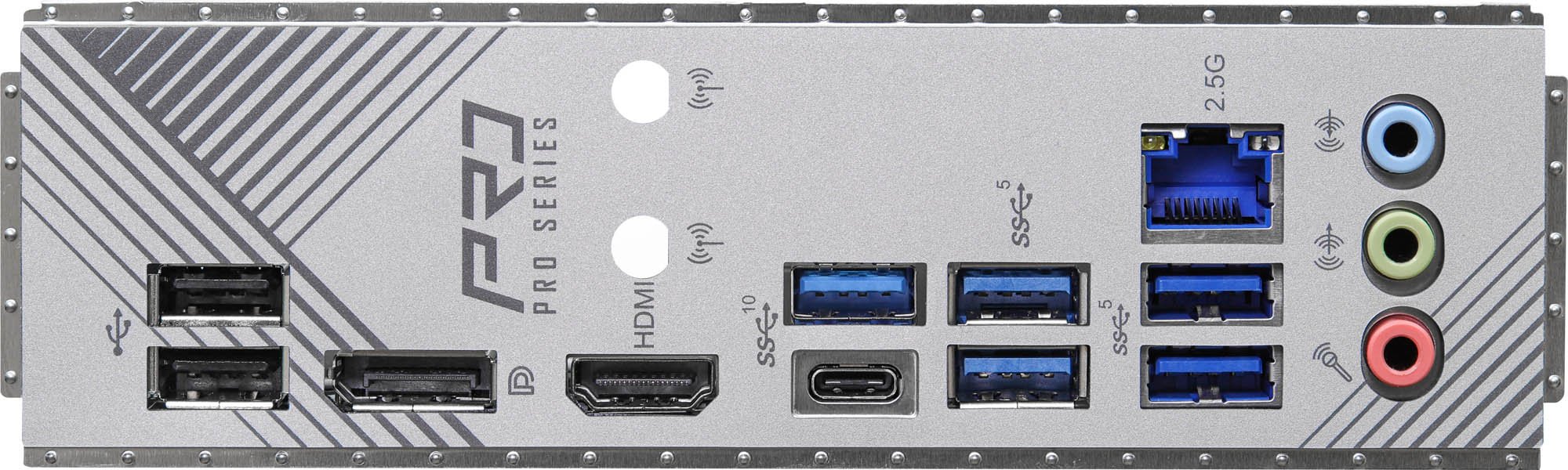

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.1
1 x USB 3.1
4 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU/Water Pump fan header
5 x Chassis/Water Pump fan headers
Thunderbolt Port(s) 1 x Thunderbolt AiC header
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 2 x M.2 slots, Key M, Type 2260/2280 (PCIe Gen4x4)
1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen4x2)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus Speed Up to 7200+ MHz
Memory Type DDR5
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge B760
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 3.0 x16 slot (@ x1)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek ALC897

Network

Integrated Network Dragon RTL8125BG
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11 64-bit

System

BIOS 128Mb AMI UEFI Legal BIOS with GUI support
Software Included (may be trial or restricted) Yes
Drivers Yes
SLi/Crossfire Features Supports AMD CrossFire

Physical

Form Factor ATX Motherboard

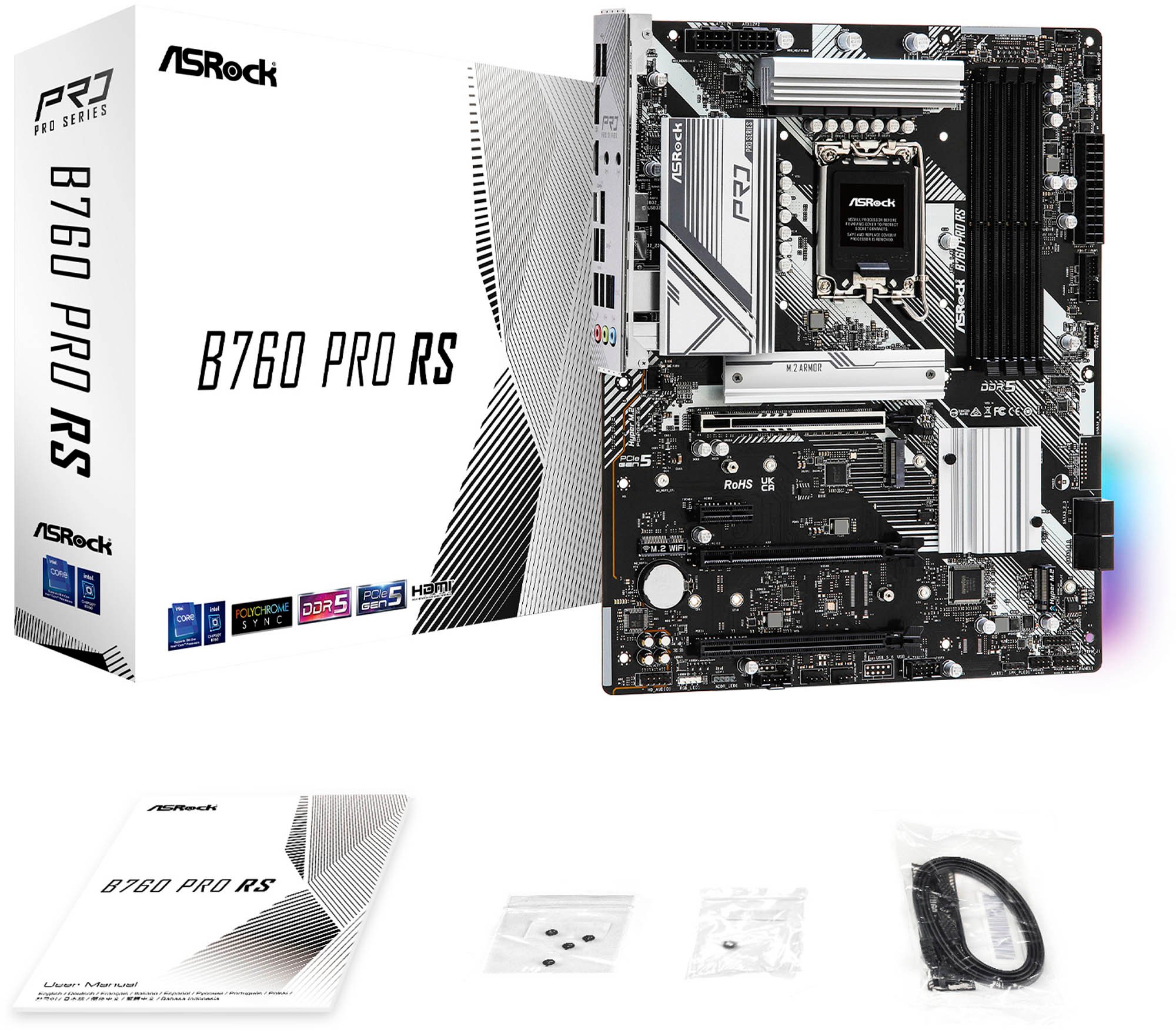

In The Box Motherboard
1 x User Manual
2 x SATA Data Cables
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
Width 244 mm
Length 305 mm

Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Chipset Manufacturer Intel
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Main Colour
Socket(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support ATi CrossFire
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Wake on LAN
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset Intel B760
Thunderbolt No
Motherboard Model ASRock B760 Pro RS
WiFi Speed Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
Cooler Height mm
M.2 Support Yes
On-board RGB Control ASRock RGB LED
Memory Speed 7200 MT/s
Skip Audio Test
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Radiator Size mm
Microsoft Processor List
Power Requirement (auto) 70 W
Cooler count
Max Memory Speed Supported (Non-overclocked) 4800 MT/s
Max Memory Speed Supported (overclocked) 7200 MT/s
CPU Power Pins (female) 16
PCI Express Power Pins (female) 3
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
PCI-e slots 4
SATA ports 4
No. of front USB2.0 ports supported 2
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1

Graphics

Graphics Chipset

Item Details

Manufacturer ASRock
Manufacturer Code 90-MXBKS0-A0UAYZ
Alternative Part Number B760 PRO RS
EAN 4710483942044
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-MXBKS0-A0UAYZ
