CPU

• Installed Processors (Max): 0 (1)
• Supported Processors: AMD Socket AM5 with support for:
• AMD Ryzen 9000 Series processors
• AMD Ryzen 8000 Series processors
• AMD Ryzen 7000 Series processors
• (Please visit GIGABYTE's website for the latest CPU support list.)
• Socket: AM5

Physical

• Form Factor: ATX

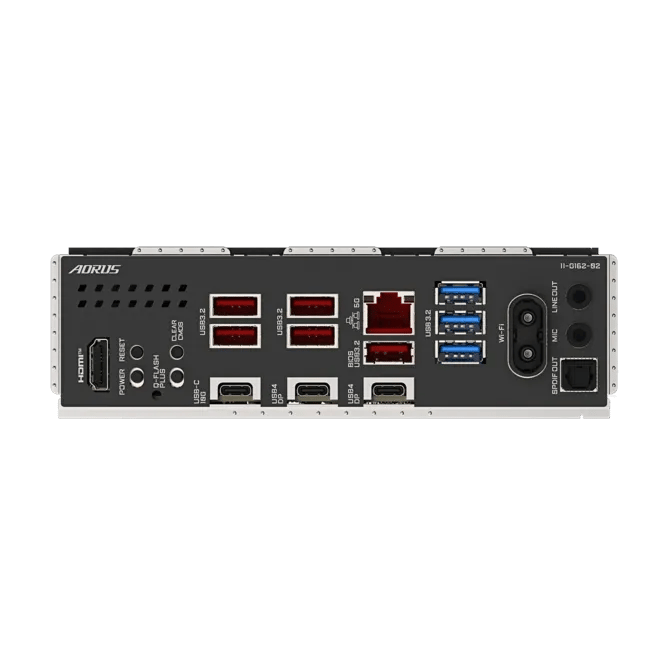

Rear Panel I/O Ports

• USB Ports: CPU + ASMedia USB4 controller:
• - 2 x USB4 USB Type-C ports on the back panel
• CPU:
• - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• Chipset + USB 3.2 Gen 1 Hub:
• - 4 x USB 3.2 Gen 1 ports available through the internal USB headers
• Chipset:
• - 1 x USB Type-C port on the back panel with USB 3.2 Gen 2x2 support
• - 1 x USB Type-C port on the back panel with USB 3.2 Gen 2 support
• - 1 x USB Type-C port with USB 3.2 Gen 2x2 support available through the internal USB header (supports up to 65W PD 3.0 / QC 4+ fast charging)
• * For precautions regarding the fast charging function, refer to "USB Type-C Header" in Chapter 2-7, "Internal Connectors."
• - 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• - 4 x USB 2.0/1.1 ports available through the internal USB headers
• DisplayPorts: x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
• HDMI Port: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
• Antenna Connectors: 2 x antenna connectors (2T2R)

Memory

• Memory Bus Speed: Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) /6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules
• Memory Type: DDR5
• Dual Memory Channel

Physical

• Colour: Black

Motherboard

• Northbridge: AMD X870E
• RAID Supported: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• * RAID 5 is only available with AMD Ryzen 9000 Series processors
• RAID 0 and RAID 1 support for SATA storage devices

Internal I/O Connectors

• Cooling Fan Support: 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 1 x system fan extension cable header (supports extending three system fan headers via a single cable)
• 1 x system fan/water cooling pump header
• 4 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• Power Connector Port: 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x PCIe power connector
• Other Connectors: Internal I/O Connectors:
• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x PCIe power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 1 x system fan extension cable header (can extend three system fan headers through one cable)
• 1 x system fan/water cooling pump header
• 4 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 5 x M.2 Socket 3 connectors
• 2 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB Type-C© header with USB 3.2 Gen 2x2 support
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only)
• 1 x HDMI port (Note)
• 1 x chassis intrusion header
• 1 x reset jumper
• 1 x Clear CMOS jumper
• 2 x temperature sensor headers
• Back Panel Connectors:

Expansion

• PCI Express X16 Slots: 3x

Memory

• Maximum RAM: 256 GB
• Memory Slot: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Graphics Device

• Integrated Graphics Supported: Integrated Graphics Processor with AMD Radeon Graphics support + ASMedia USB4 Controller:
• - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs with a maximum resolution of 3840x2160 @ 240 Hz
• * Supports DisplayPort 1.4 and HDR
• Integrated Graphics Processor with AMD Radeon Graphics support:
• - 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz
• * Supports HDMI 2.1, HDCP 2.3, and HDR
• ** Supports native HDMI 2.1 TMDS-compatible ports
• - 1 x front HDMI port, supporting a maximum resolution of 1920x1080 @ 30 Hz
• * Supports HDMI 1.4
• (Graphics specifications may vary depending on CPU support)

Sound

• Integrated Sound: Realtek ALC1220 CODEC
• * The front panel line-out jack supports DSD audio
• ESS ES9118 DAC chip
• Support for DTS:X© Ultra
• High Definition Audio
• 2/4/5.1-channel support
• * The functionality of the audio jack can be changed via the audio software. To configure 5.1-channel audio, access the audio software settings
• Support for S/PDIF Out

Network

• Integrated Network: Lan:
• Realtek 5GbE LAN chip (5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps) (LAN1)
• Realtek 10GbE LAN chip (10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps) (LAN2)
• Wireless:
• MediaTek Wi-Fi 7 MT7927 (RZ738)
• - Supports 802.11a/b/g/n/ac/ax/be standards with 2.4GHz, 5GHz, and 6GHz frequency bands
• - Bluetooth 5.4 support
• - Supports 11be 320MHz wireless standard
• (Actual data rates may vary depending on environment and equipment.)
• * Wi-Fi 7 features require Windows 11 SV3 to function properly (no driver support for Windows 10).
• ** Availability of Wi-Fi 7 channels in the 6GHz band depends on individual country regulations.
• *** Bluetooth version may change with updates. Please refer to the Wi-Fi chip vendor's website for the latest details.
• Bluetooth Version: 5.4

System Requirements

• Operating Systems Supported: Windows 11 64-bit

System

• BIOS: 1 x 512 Mbit flash
• Licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
• Special Features: Support for GIGABYTE Control Center (GCC)
• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• * Support for fan (pump) speed control depends on the fan (pump) you install
• Noise detection
• iTE I/O Controller Chip
• Software Included: Norton© Internet Security (OEM version)

Electrical

• Power Requirement(s): ATX

Physical

• Form Factor: ATX
• Width: 305 mm
• Length: 244 mm

Identifiers

• Stock Code: MBD3990
• Mfg Code: X870E AORUS ELITE X3D
