CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: AMD
• Supported Processors: AMD Ryzen 9000 / 8000 / 7000 Series Processors
• 64-bit Support: Yes
• Socket: AM5

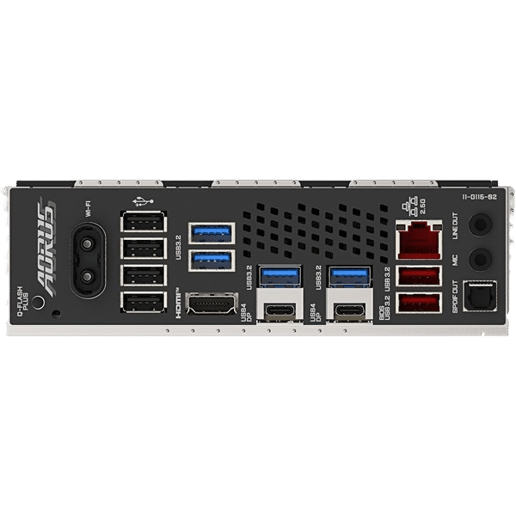

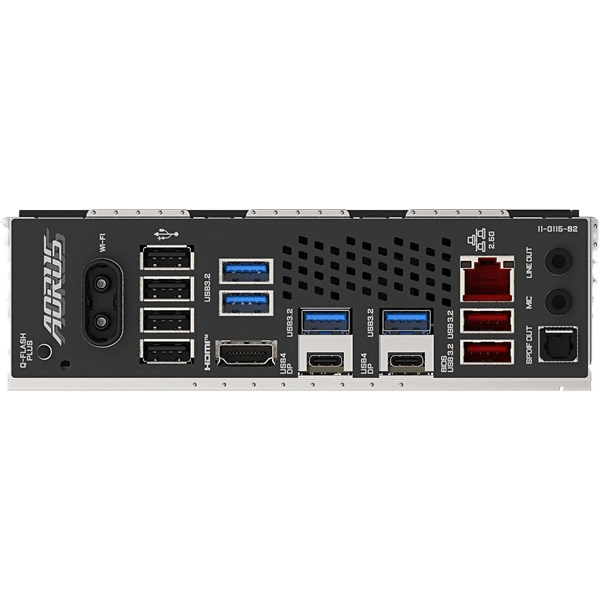

Rear Panel I/O Ports

• USB Ports: 2 x USB-C 4
• 2 x USB 3.2
• 4 x USB 3.0
• 4 x USB 2.0
• DisplayPorts: Yes via USB-C
• HDMI Port: 1 x HDMI 20.1

Internal I/O Connectors

• SATA Connectors: 4 x SATA III
• USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
• 1 x USB 3.0 header (supports 2 ports)
• 2 x USB 2.0 headers (supports 4 ports)

Memory

• Memory Bus Speed: Up to 8000 MT/s
• Memory Type: DDR5

Motherboard

• Northbridge: AMD X870
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 1 x RK-45
• Audio Line Out Ports: 1 x 3.5mm Jack
• Microphone In Port: 1 x 3.5mm Jack
• S/PDIF Port: 1 x S/PDIF Optical Out
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x CPU fan/Water Cooling pump header
• 4 x System fan headers
• 2 x System fan/Water Cooling pump headers
• TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• Power Connector Port: 1 x 24-pin ATX
• 2 x 8-pin EPS
• Other Connectors: 1 x M.2 slot, Socket 3, Key M, Type 25110/22110/2580/2280 (PCIe Gen5)
• 2 x M.2 slots, Socket 3, Key M, Type 22110/2280 (PCIe Gen5)
• 1 x M.2 slot, Socket 3, Key M, Type 22110/2280 (PCIe Gen4)
• 3 x 3-pin ARGB headers
• 1 x 4-pin RGB header
• 1 x Noise Detection header
• 2 x Temperature Sensor headers

Expansion

• Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
• 1 x PCI Express 4.0 x16 slot (@ x4)
• 1 x PCI Express 3.0 x16 slot (@ x2)

Memory

• Maximum RAM: 256 GB
• Memory Slot: 4 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek ALC1220

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Realtek
• Network Speeds Supported: Up to 2.5 Gbps
• Wireless LAN: Yes - Wi-Fi 7
• Bluetooth: Yes
• Bluetooth Version: 5.4

System Requirements

• Operating Systems Supported: Windows 11
• Windows 10 64-bit

System

• BIOS: 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Jumpers: 1 x Clear CMOS
  1 x Reset
• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: ATX Motherboard
• Width: 244 mm
• Length: 305 mm

Identifiers

• Stock Code: MBD3725XC1
• Mfg Code: X870 A ELITE WIFI7
