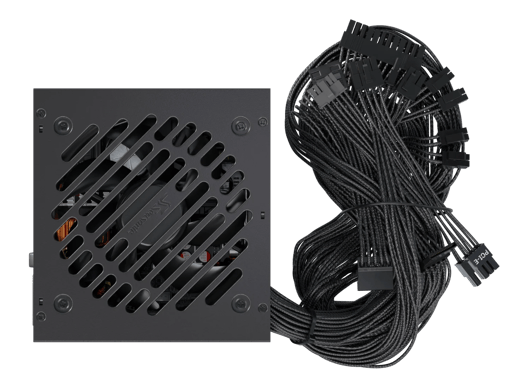

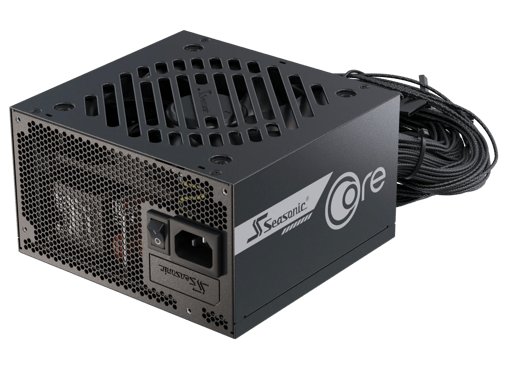

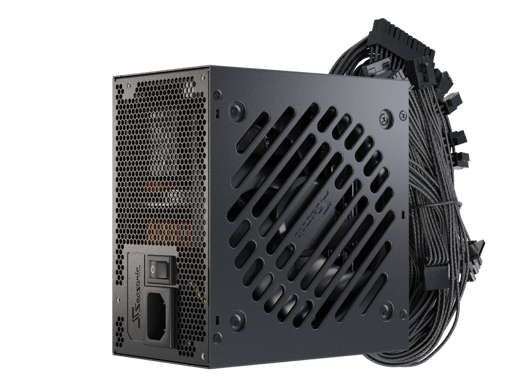

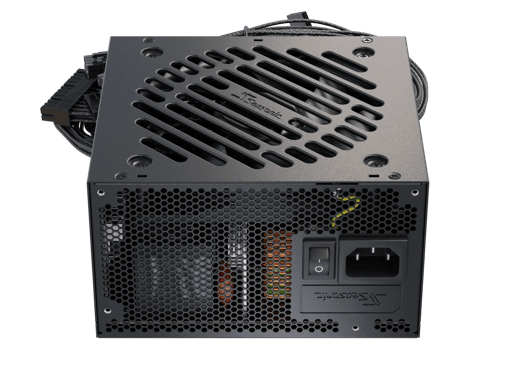

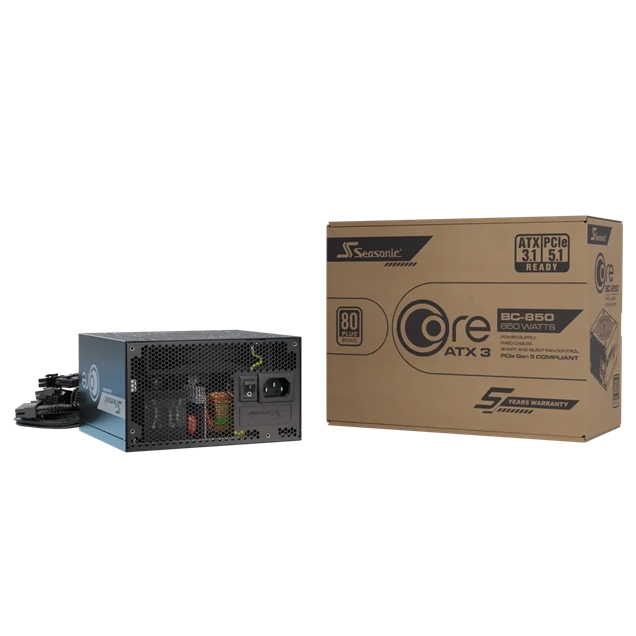

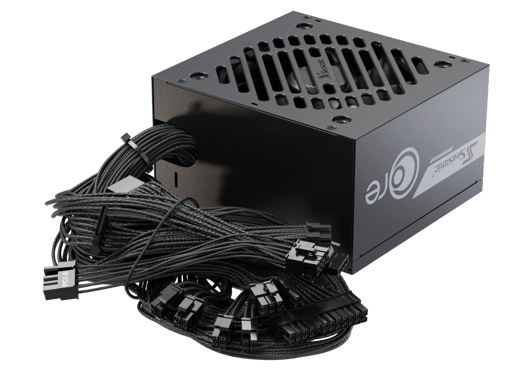

850W Seasonic SRP-CBC851-A5A51JF 80 Plus Bronze PSU
.png "850W Seasonic SRP-CBC851-A5A51JF 80 Plus Bronze PSU")
CORE BC – Power Made Simple
The Seasonic CORE BC Series delivers reliable performance and modern ATX 3.1 compliance at an essential value. Designed for everyday builders and gamers, it embodies Seasonic’s trusted quality in a compact 140 mm design with a durable scratch-resistant finish.
With 80 PLUS® Bronze efficiency, Smart and Silent Fan Control (S2FC), and a 120 mm HDB fan, it ensures cool, quiet, and stable operation. The CORE BC-750 and CORE BC-850 include a 12V-2×6 PCIe Gen 5.1 cable, ready for the latest GPUs, while the CORE BC-650 meets all ATX 3.1 requirements with traditional connectors.
Built on decades of engineering excellence, the CORE BC Series delivers the quiet efficiency, reliability, and durability that define every Seasonic power supply.
Attributes
- Cable length: Max. CPU Power Cable Length: 600 mm
- Max. 24-Pin Motherboard Power Cable Length: 550 mm
Interfaces/Ports
- Power Connectors: 1x 12V-2x6 (12+6-pin)
- SATA Connectors: 2x
- CPU Connectors: 2x 4+4-pin
- PCI Connectors: 3x 6+2-pin
- Motherboard Connectors: 1x 20+4-pin
- Molex Connectors: 1x
Compliance
- Standards: CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA
Electrical
- Voltage: AC Input:
- 100 V - 240 V
- 11 - 5.5 A
- 50 Hz - 60 Hz
- DC Output:
- Rail: +3.3 V
- Max Power: 20 A / 100W
- Total continuous power: 850 W
Physical
- Form Factor: ATX/EPS
Electrical
- Power: 850 W
Environmental
- Operating Temperature: 0 - 40'C
Physical
- Case Colour: Black

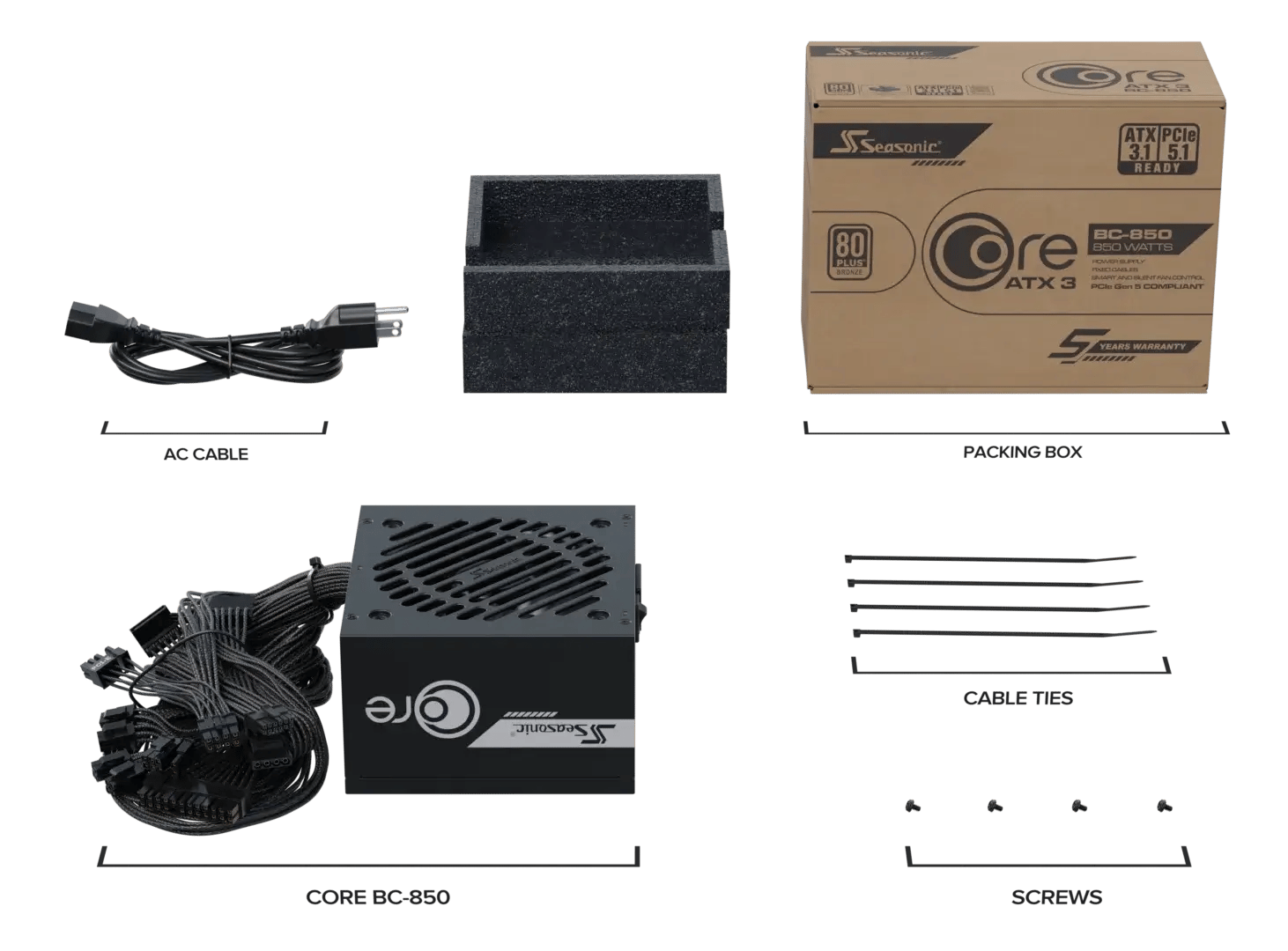

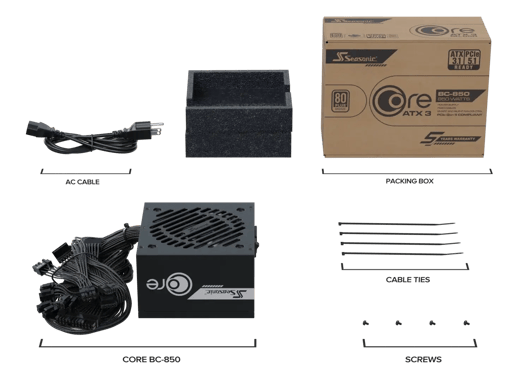

- In The Box: Fan Info:
- Size: 120 mm
- Fan bearing: Hydro Dynamic Bearing
- MTBF 40,000 hours at 40'C
- PSU MTBF: 100,000 (excl. fans)
- Cable Info.:
- Modularity: Fixed Cables
- Cable Type: Individual Black Cables with Braided Pattern
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
Warranty
- Warranty: 5 Years
Identifiers
- Stock Code: PSU2539
- Mfg Code: SRP-CBC851-A5A51JF
Warranty
- Warranty: 5 Years
