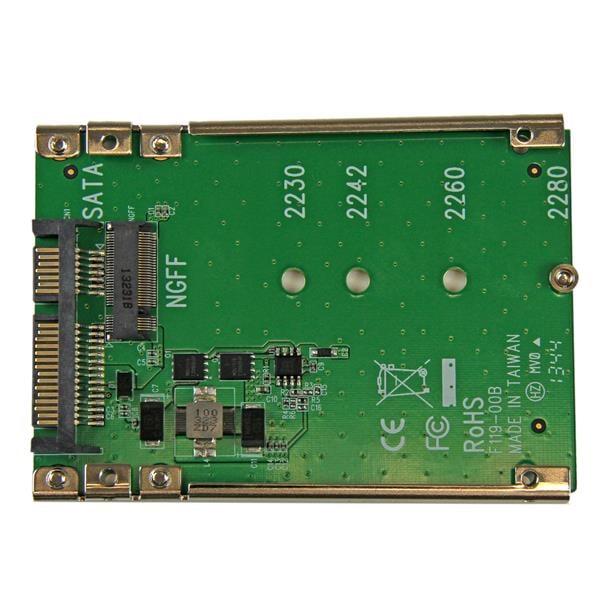

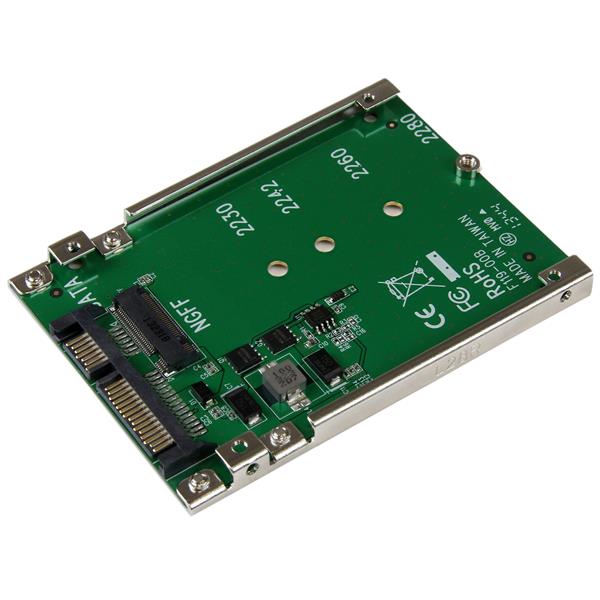

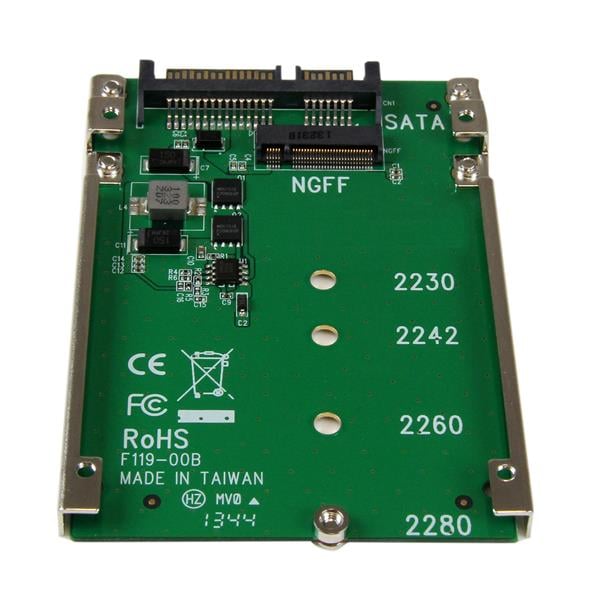

3 year on-site PC warranty* M.2 NGFF SSD to 2.5 inch SATA Adaptor Converter M.2 NGFF SSD to 2.5 inch SATA Adaptor Converter

CCL Code: CNT0294

Discontinued M.2 NGFF SSD to 2.5 inch SATA Adaptor Converter


Key Features:

  • Open-frame steel mounting bracket
  • 2.5in SATA form factor housing
CCL Code: CNT0294


Sorry, this product has been discontinued. We have found some similar products below.


Vastly increase system performance by adding the speed of an M.2 SSD (Next Generation Form Factor) in any 2.5 SATA application, with the SAT32M225 M.2 SSD to SATA adapter. Utilize the full potential of your SATA III controller, with an M.2 SSD reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. M.2 SSDs can also save you money by reducing your power consumption over regular platter drives. Help protect the health of your drive with an open-frame design that maximizes heat dissipation.

Main Features

  • Open-frame steel mounting bracket
  • Supports 7mm or larger 2.5 SATA bays
  • Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
  • 2.5in SATA form factor housing
  • Supports full length M.2 NGFF (Next Generation Form Factor) SSD Solid State Drives (2230, 2242, 2260, 2280)


Convert From 1 - M.2 (NGFF) Receptacle
Convert To 1 - SATA Data & Power Combo (7+15 pin) Receptacle

System Requirements

Operating Systems Supported Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Server 2012/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8/8.1 (32/64-bit) • Mac OS X • Linux


Operating Temperature -40 to 85 °C


Form Factor Converter Adaptor

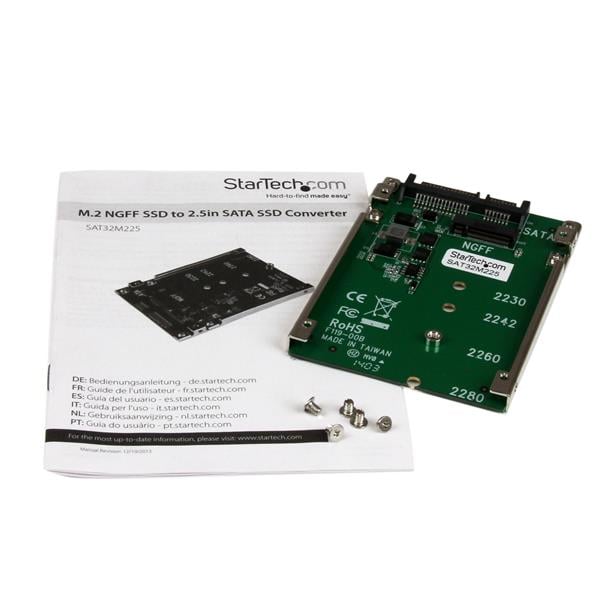

In The Box 1 - M.2 NGFF SSD to 2.5in SATA SSD Converter • 1 - Mounting screw kit • 1 - Installation manual
Width 7.0 cm
Depth 10.0 cm
Height 0.7 cm
Weight 0.40 kg


Warranty 2 Years

Item Details

Manufacturer Code SAT32M225
UPC 065030855600
Condition New

Warranty Information

Warranty 2 Years

Manufacturer Information

Manufacturer Code SAT32M225

Do you have you a question about the M.2 NGFF SSD to 2.5 inch SATA Adaptor Converter?

No reviews have been received for this product yet
