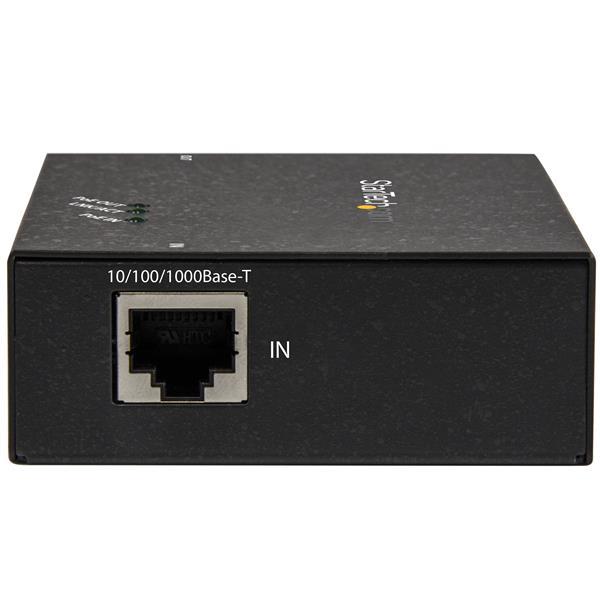

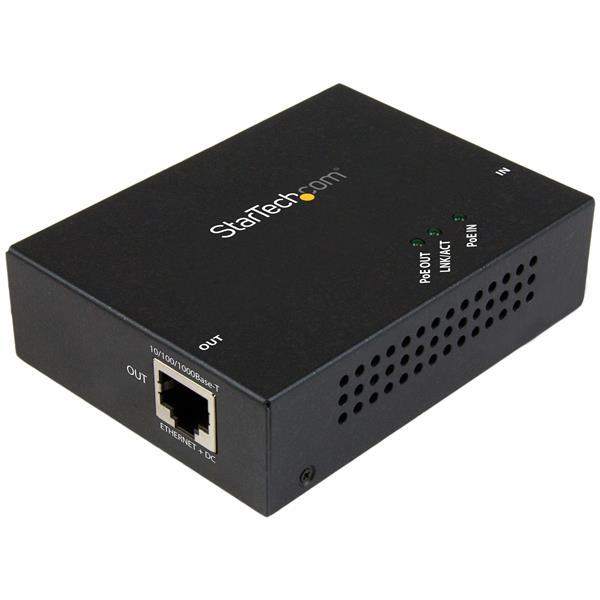

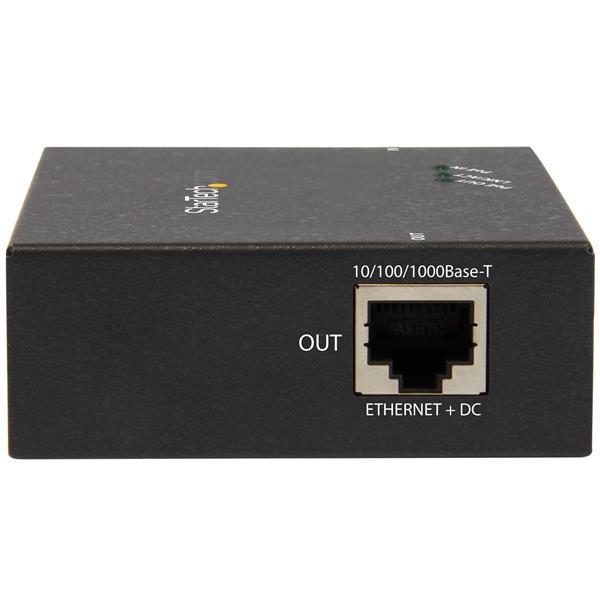

StarTech.com Gigabit PoE+ Extender - 802.3at/af - 100m (330ft)

StarTech.com Gigabit PoE+ Extender - 802.3at/af - 100m (330ft)

CCL Code: NET2264

£108.99 inc VAT

StarTech.com Gigabit PoE+ Extender - 802.3at/af - 100m (330ft)

POEEXT1GAT

£108.99 inc VAT

Available for delivery from Thursday 19th December

or Click & Collect from Thursday 19th December

Buying in bulk? Contact our business team.

Key Features:

  • 2kV ESD and surge protection
  • 52V to 56V input voltage
CCL Code: NET2264
Overview

This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure. Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it's easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability. Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices. Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you're all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE). Still need more distance? If an extra 100m isn't enough, this full-featured PoE extender offers daisy chain capability. You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It's perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used). Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter. You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.

Main Features

  • Deploy and access your Gigabit PoE-powered devices (PD) further away
  • Extend your PoE PDs over longer distances by daisy-chaining four extenders up to 500m (1640ft) total range (reduced power output at each connection)
  • Compact, wall-mountable, and rugged metal housing for convenience and reliability
  • 2kV ESD and surge protection
  • Plug-and-play setup with no power adaptor required
  • IEEE 802.3at 30W input to IEEE 802.3at/af 24W output
  • 52V to 56V input voltage
  • Automatically detects your connected PD to prevent damage if incorrectly installed
Specifications

Environmental

Operating Temperature 0 to 50 °C
Operating Humidity 5 to 95 %

Physical

Form Factor Extender
Case Colour Black
In The Box 1 - Gigabit Power over Ethernet Extender • 1 - Instruction Manual
Width 9.4 cm
Depth 7.0 cm
Height 2.6 cm
Weight 0.197 kg

Warranty

Warranty 2 Years Warranty

Key Features

Main Colour Black

Item Details

Manufacturer StarTech.com
Manufacturer Code POEEXT1GAT
UPC 065030860895
Condition New
Warranty

Warranty Information

Warranty 2 Years Warranty

Manufacturer Information

Manufacturer StarTech.com
Manufacturer Code POEEXT1GAT
Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Manual pdf 0.41MB
Datasheet pdf 0.24MB
