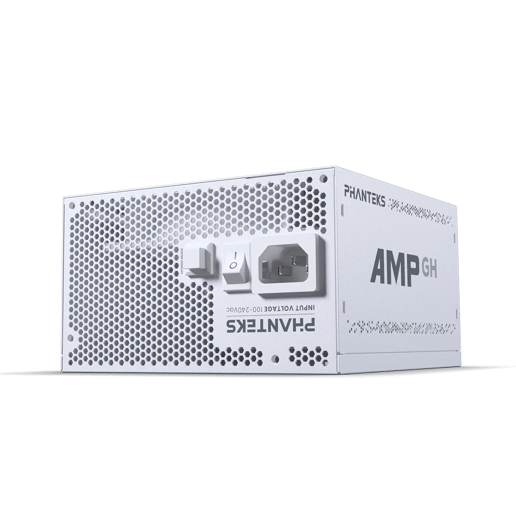

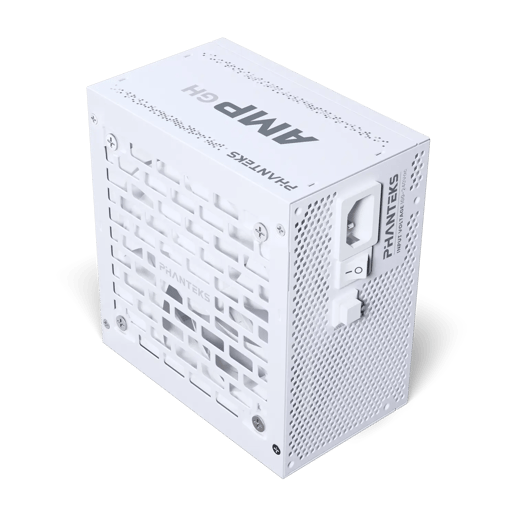

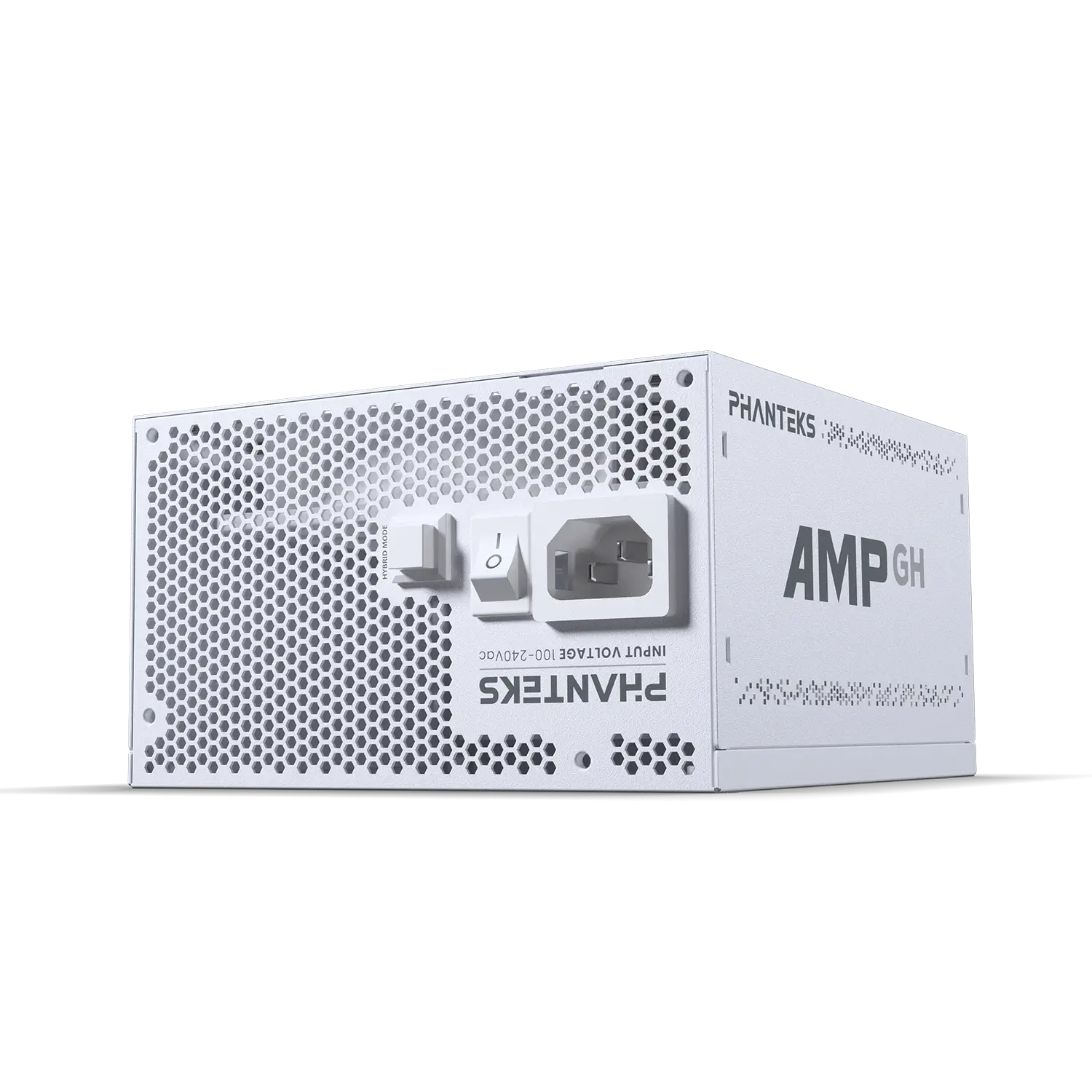

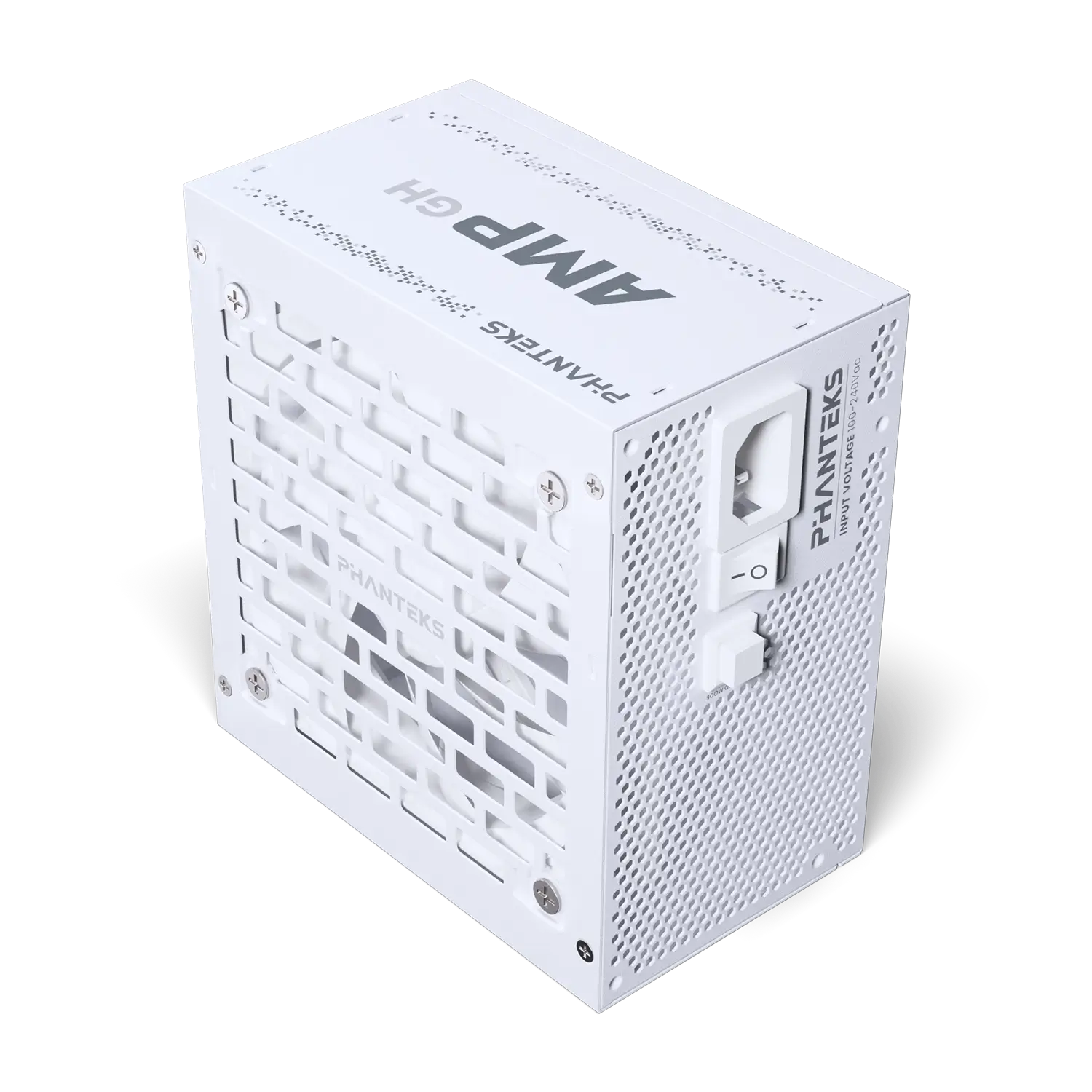

850W Phanteks AMP GH Modular 80 Plus Gold PSU
Available for delivery from Thursday 25th June
Click & Collect from Thursday 25th June
Order within
You have 0 of these in your basket
Introducing the Phanteks AMP GH Series, these units revolutionize cable management with sleek, individually textured cables for a pristine setup. Enhanced with a 120 mm Hydraulic Dynamic Bearing Fan, they deliver temperature-controlled operation in Hybrid Fanless mode, ensuring virtually silent performance.
With the latest PCIe Gen 5.1 GPU cable technology, the 12V-2x6 connector delivers up to 450W of power via a single cable. Engineered to meet ATX 3.1 specifications, the Phanteks AMP GH represents a superior and cost-effective choice for high-performance builds.
12V-2x6 Cable Included
- Built to ATX 3.1 Specifications, ready to handle new and upcoming CPU and GPU hardware requirements.
- Fully Modular Design, individually textured cables for easy installation and reduced clutter.
- Latest PCIe Gen5.1 GPU Connector, 12V-2x6 connector providing up to 450W of power through a single cable.
- Made to fit in most standard cases, so you can build with confidence and ease.
Packed With Features
- Ultra-high power density with a small footprint of only 140mm depth.
- Gold-plated high current terminals reduce current transmission resistance for increased efficiency.
- The hydraulic dynamic bearing (HDB) of the 120mm fan improves the lubrication of the bearing for increased stability and longevity.
- The back panel and PCB are connected by a copper plate to improve output power quality.
- Multiple 6-Pin and 8-Pin output connectors support all multi GPU platforms.
Premium Hybrid Mode
- Advanced fan control for smart thermal management.
- Operates completely fanless under 30% load for silent performance.
- Ideal for ultra-quiet system builds and noise-sensitive environments.
- Balances cooling efficiency with acoustic optimization.

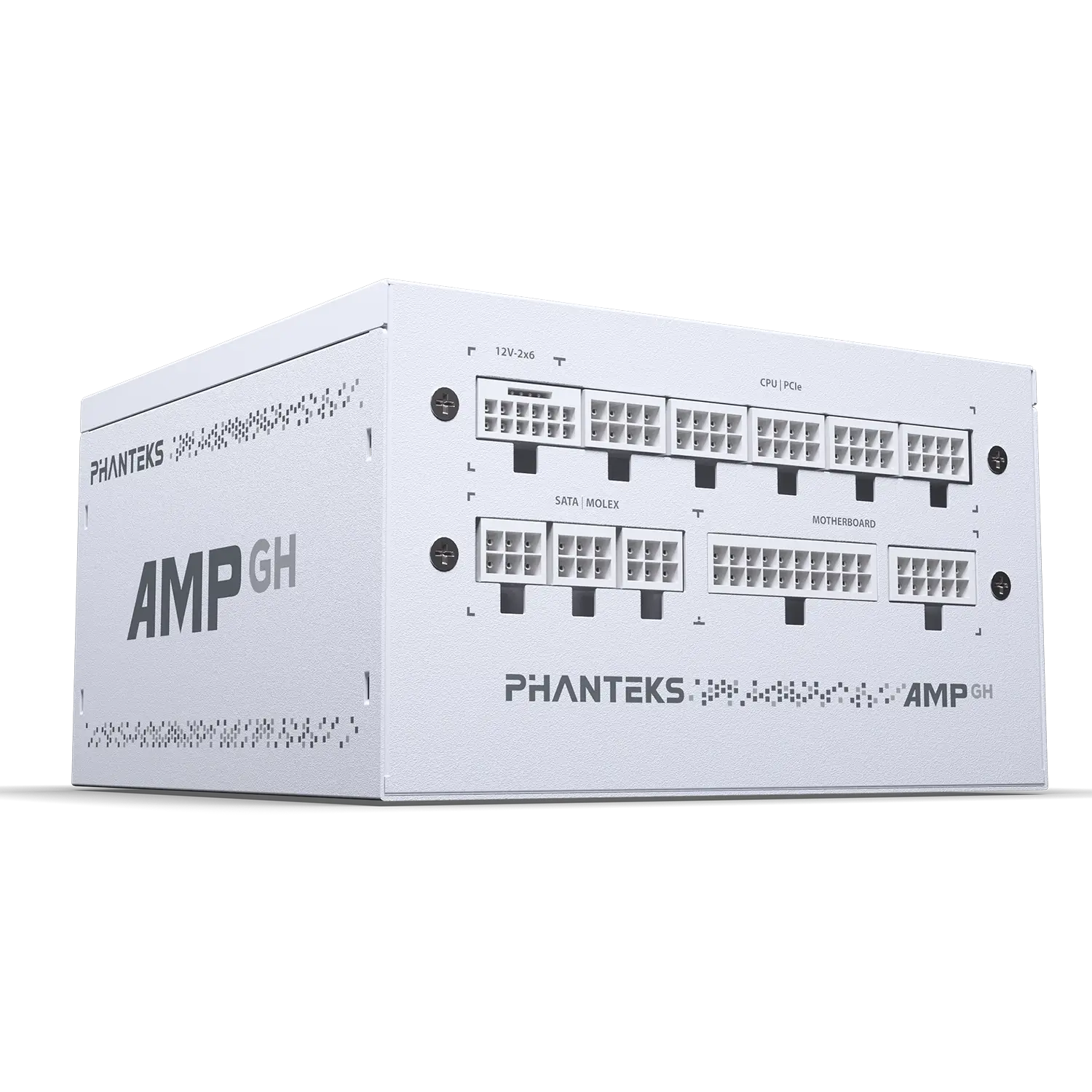

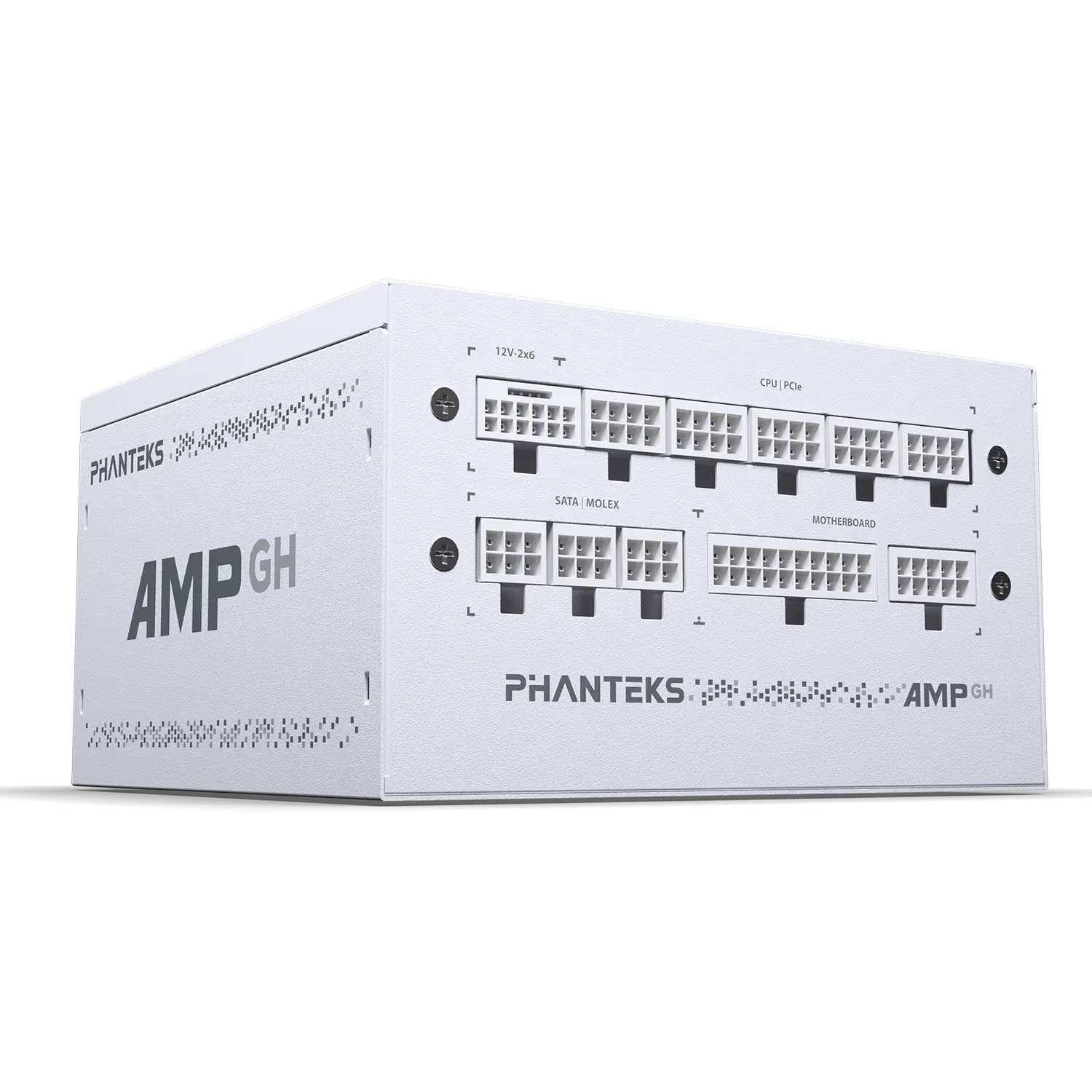

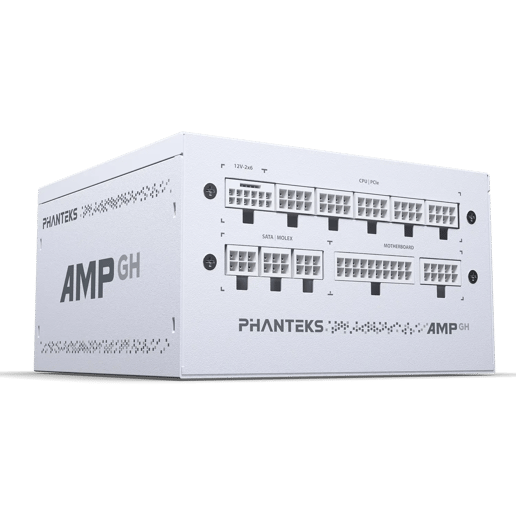

Interfaces/Ports
- SATA Connectors: 10 x SATA
- CPU Connectors: 2 x 4+4-pin EPS
- PCI Connectors: 4 x 6+2-pin PCIe
- Motherboard Connectors: 1 x 24-pin ATX
- Molex Connectors: 2 x Molex
- Other Connectors: 1 x 12V-2x6
Compliance
- Standards: 80 PLUS Gold Certified
- Safety: OPP, OVP, UVP, SCP, OCP, OTP
Electrical
- Voltage: 100 ~ 240 V
- Power: 850 W
- Frequency Range: 50 ~ 60 Hz
- Power Cord: Yes
Physical
- Form Factor: ATX Power Supply
- Case Colour: White
- In The Box: Power Supply
- Power Cable
- Modular Cables
- Accessory Kit
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
- Weight: 1.4 kg
Warranty
- Warranty: 8 Years
Identifiers
- Stock Code: PSU2500
- Mfg Code: PH-P850GH_WT01_UK
