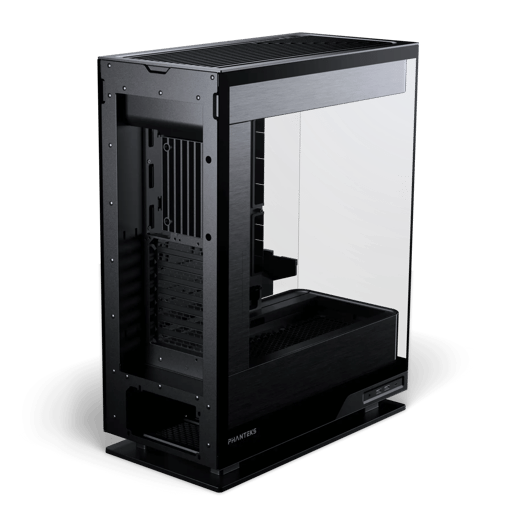

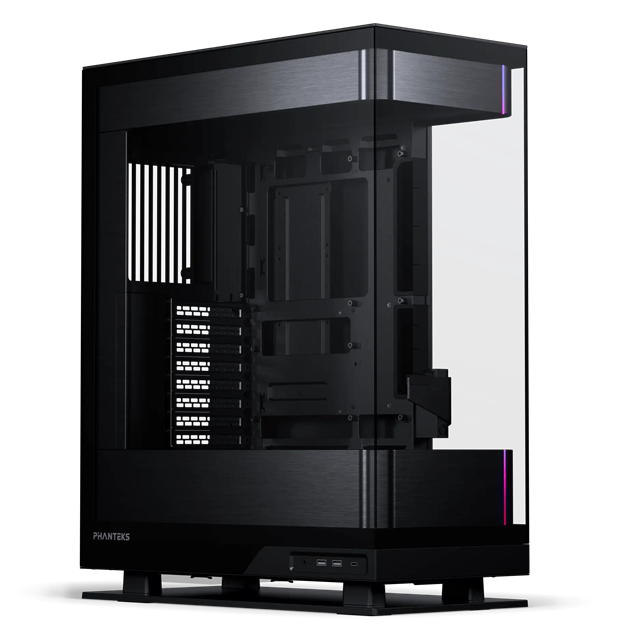

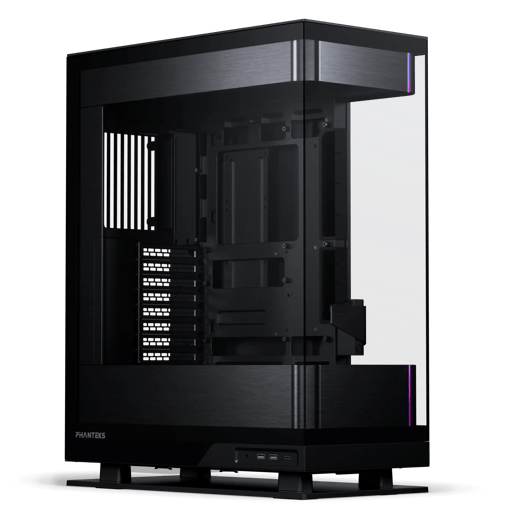

Phanteks Evolv X2 Mid Tower Gaming Case - Black
Available for delivery from Tomorrow
Click & Collect from Today
6 In Stock Now
Order within
You have 0 of these in your basket
The Evolv X2 redefines the desktop computer with its see-through glass design, aluminum interior, and powerful vertical cooling solution. The entire chassis floats above its base, drawing in surrounding air and channeling it efficiently through the GPU and CPU. Hot air is expelled through the top ventilation, enhancing thermal performance.
The interior of the Evolv X2 has been carefully designed to blend with the hardware components for a fully integrated look, with all cooling components sitting flush into the top and base. The integrated lighting and high-quality aluminum internal panels add flair to your system.
Designed To Cool
- Efficient vertical airflow design, drawing fresh air from the bottom and expelling warm air through the top.
- Floating chassis design ensures superior cooling by maximizing air intake through the bottom fan positions.
- Hot air is exhausted through the top, directed away from the user, thanks to the slanted grill design.
Looking Clean
- Mainboard and graphics card sitting front and center.
- Cooling fans and radiator sit hidden into the chassis as one.

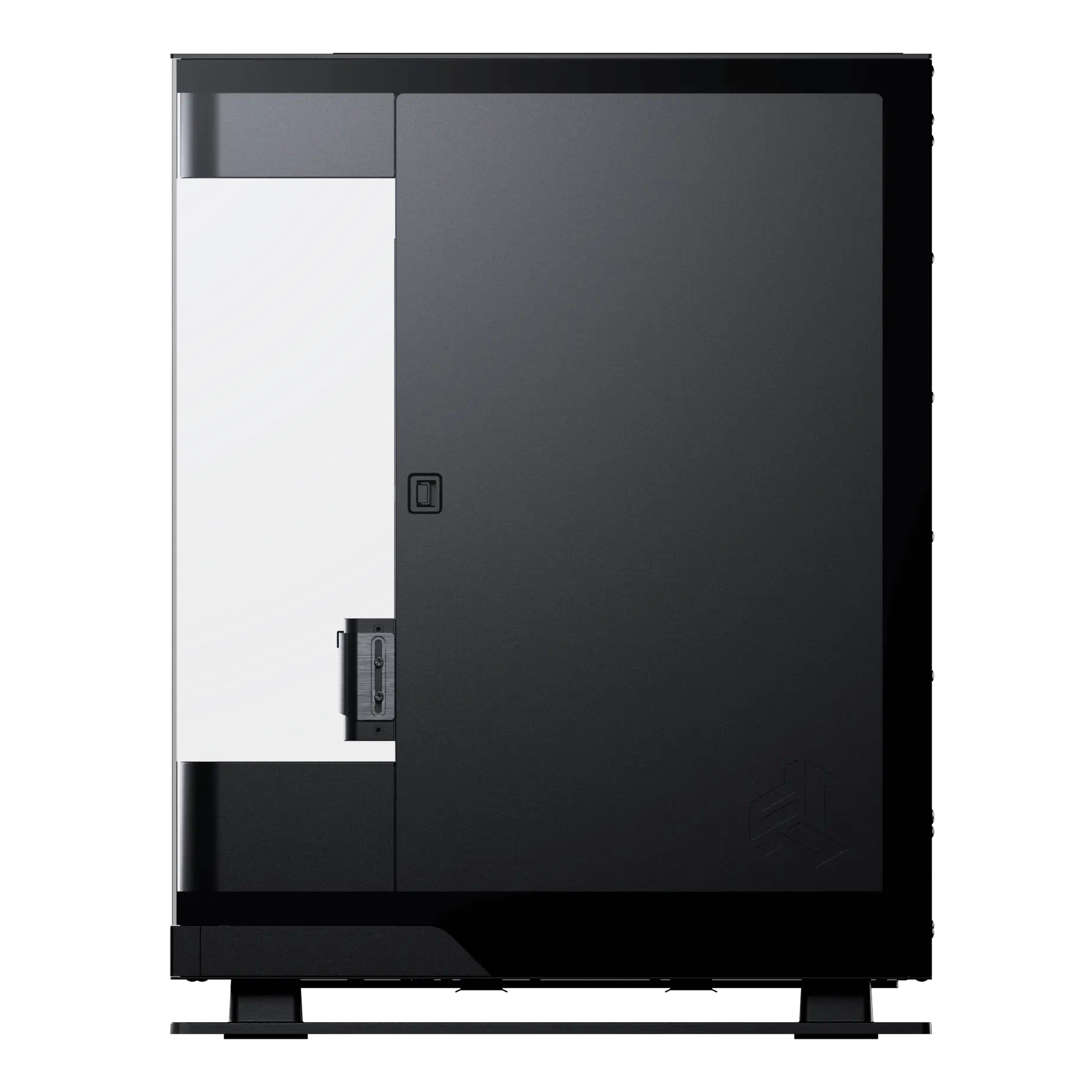

- The large cover door fully hides all cables behind the mainboard.
- Supports rear-connect mainboards for a zero-cable build.
Premium Build Quality
- Super strong steel and aluminum C-frame design.
- Unique see-through chassis showcases the mainboard and graphics card.
- Brushed aluminum interior wrapped around the cooling components.
Integrated Lighting
- Smooth and diffuse D-RGB lines run from top to bottom of the Evolv X2.
- 3x built-in D-RGB LED strips are pre-installed and connected.
Storage
- Side Storage Bracket - Supports 3x 2.5″ SSD drives.
- Bottom Storage Bracket - Supports 2x 3.5” HDD drives or 1x 3.5” HDD and 2x 2.5” SSD drives.
Fan Positions
- Top - 3x 120 mm
- Rear - 1x 120 mm
- Bottom - 3x 120 mm
Radiator Positions
- Top - 1x 360 (Up to 410 x 130 x 38 mm)
User Controls
- User Controls: Power
- Reset
Storage
- Internal Expansion Bays: Up to 5 x 2.5"
Up to 2 x 3.5"
Expansion
- Expansion Slots: 8 x Full Height
Interfaces/Ports
- USB Ports: 1 x USB-C 3.2
- 2 x USB 3.0
- Headphone Ports: 1 x 3.5mm COMBO Jack
- Microphone In Port: Shared with Headphone
Electrical
- Cooling System: Top: Supports 3 x 120mm fans
- Rear: Supports 1 x 120mm fan
Bottom: Supports 3 x 120mm fans - Power Supply: ATX Power Supply supported
Physical
- Form Factor: Mid Tower Case
Warranty
- Warranty: 5 Years
Physical
- Case Colour: Black
- Material: Steel
Aluminium - Tempered Glass
- ABS
- Motherboard Compatibility: E-ATX (up to 280mm)
ATX - mATX
- Mini-ITX
- In The Box: 1 x Evolv X2 chassis
- 1 x Storage bracket Pre-installed
- 1 x SSD bracket Pre-installed
- 6 x Zip ties
- 1 x Stand-off removal tool
- 1 x D-RGB mainboard adapter 500 mm
- 1 x Microfiber cloth
- 30 x Mainboard & SSD screws
- 4 x Power supply screws
- 8 x HDD screws
- 4 x Vertical-GPU bracket screws
- 1 x Mainboard stand-off
- Width: 228 mm
- Depth: 454 mm
- Height: 588 mm
- Weight: 14.2 kg
Identifiers
- Stock Code: CAS5433
- Mfg Code: PH-ES524XTG_DBK01
Warranty
- Warranty: 5 Years
