StarTech.com 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adaptor with SATA Power (Low Profile)

StarTech.com 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adaptor with SATA Power (Low Profile)

CCL Code: CNT0229

Sold out

Notify Me

StarTech.com 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adaptor with SATA Power (Low Profile)

PEXUSB3S4V

CCL Code: CNT0229

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

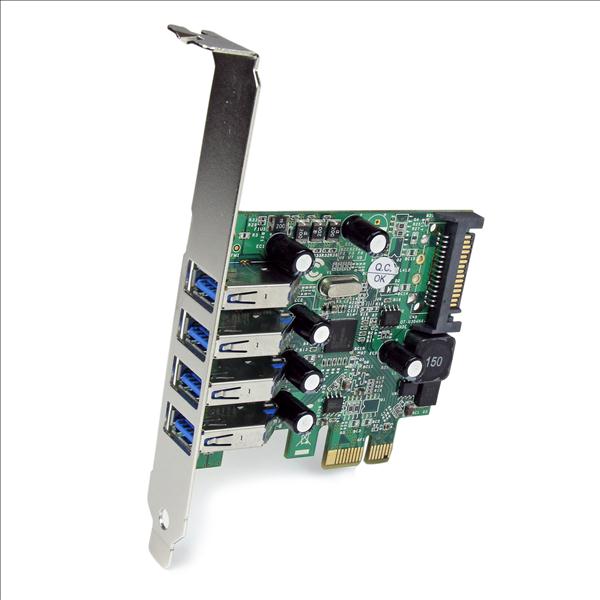

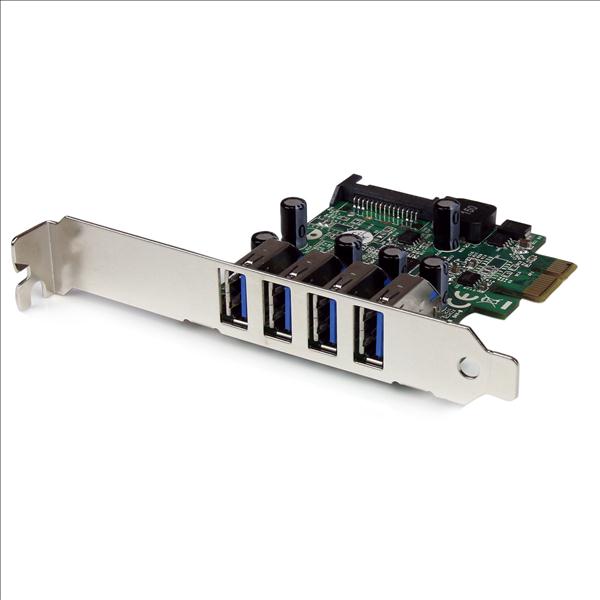

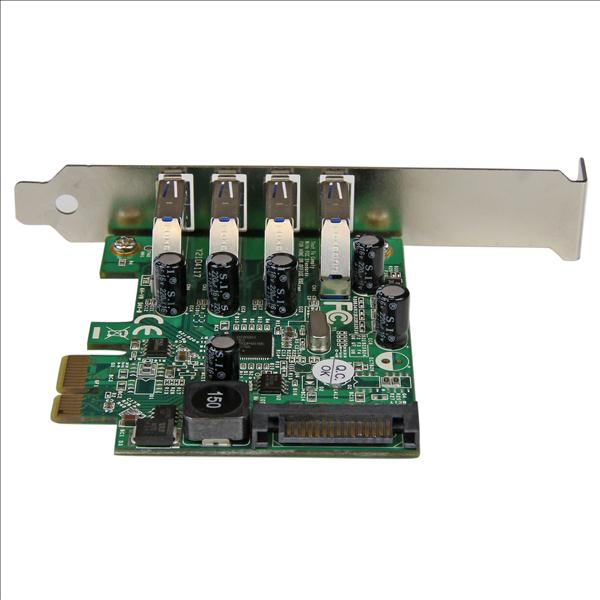

The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system. SuperSpeed USB 3.0 provides up to 5 Gbps of data bandwidth, while remaining backward compatible with existing USB 2.0 devices at 480Mbps. Using a stacked port layout that places the ports one on top of the other, more ports are able to fit into a smaller space. This 4-port PCIe USB 3.0 adapter enables all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system. Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply. The PEXUSB3S4V USB 3.0 PCIe card is backed by a StarTech.com 2-year warranty and free lifetime technical support. 4 external USB 3.0 ports in a stacked layout. Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications. Built-in optional SATA power connector for bus-powered USB devices. Optionally provides up to 900mA per USB port. Backward compatible with USB 2.0 and USB 1.0/1.1 devices. Compliant with PCI Express 2.0 specifications. Includes a Low Profile/half-height installation bracket. Upgrade an older PCIe-based system with USB 3.0 connectivity, to fully utilize USB 3.0 devices. Expand a system's USB capabilities with four additional external USB ports, for connecting additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc.

Main Features

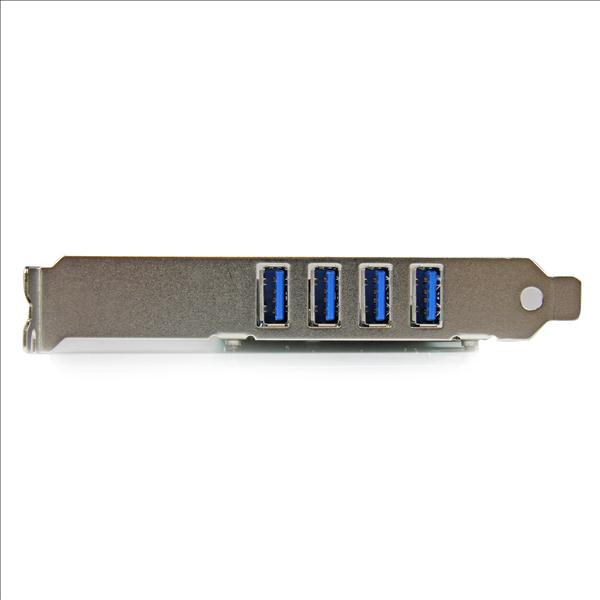

  • 4 external USB 3.0 ports in a stacked layout
  • UASP support for more efficient data transfer
  • Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications
  • Built-in optional SATA power connector for bus-powered USB devices
  • Optionally provides up to 900mA per USB port
  • Backward compatible with USB 2.0 and USB 1.0/1.1 devices
  • Compliant with PCI Express 2.0 specifications
  • Includes a Low Profile/half-height installation bracket
Specifications

Interfaces/Ports

Number of Ports 4
Port Connector USB

System Requirements

Operating Systems Supported Windows 10 (32/64-bit), 8/8.1 (32/64-bit)/Windows 7 (32/64-bit)/Vista (32/64-bit)/XP (32/64-bit)

Environmental

Minimum Storage Temperature 5 °C
Maximum Storage Temperature 50 °C
Minimum Storage Humidity 20 %
Maximum Storage Humidity 80 %

Physical

Form Factor PCI Card

Warranty

Warranty 2 Years

Key Features

Low Profile Yes
Card Width 1
PCIe Physical Slot required 1

Item Details

Manufacturer StarTech.com
Manufacturer Code PEXUSB3S4V
UPC 065030848961
Condition New
Warranty

Warranty Information

Warranty 2 Years

Manufacturer Information

Manufacturer StarTech.com
Manufacturer Code PEXUSB3S4V
Q&A

Do you have you a question about the StarTech.com 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adaptor with SATA Power (Low Profile)?

Q: This looks like a standard profile card and yet it only says Low Profile in the description. Is is standard and low or is tit standard with a low profile option?
Answer by Website User on 13th May 2021
Includes a Low Profile/half-height installation bracket.
0 customers found this answer helpful.
Post Answer
Q: I'm confused by the SATA power connection. Does this mean that it is necessary to connect this card to the PC Power supply?, I thought that plugging the PCIEx card to the motherboard took care of that ? Is the internal SATA power an optional extra to power items that take large current and do not have their own power supply ?
Answer by CCL on 9th April 2013
The SATA power will be to give the card the extra power required for the 4 USB 3.0 ports, as these in total will need more power than the PCI bus can supply. -Danlevan
0 customers found this answer helpful.
Post Answer
Q: I'm confused by the SATA power connection. Does this mean that it is necessary to connect this card to the PC Power supply?, I thought that plugging the PCIEx card to the motherboard took care of that ? Is the internal SATA power an optional extra to power items that take large current and do not have their own power supply ?
Post Answer
Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Datasheet pdf 0.14MB
Manual pdf 0.69MB
