StarTech.com 4-Port PCI Express USB 3.0 Card - 2 External, 2 Internal - SATA Power

StarTech.com 4-Port PCI Express USB 3.0 Card - 2 External, 2 Internal - SATA Power

CCL Code: CNT0320

£33.24 inc VAT

StarTech.com 4-Port PCI Express USB 3.0 Card - 2 External, 2 Internal - SATA Power

PEXUSB3S2EI

£33.24 inc VAT

Available for delivery from Tuesday 23rd April

Hurry, only 1 left!

Buying in bulk? Contact our business team.

CCL Code: CNT0320
Overview

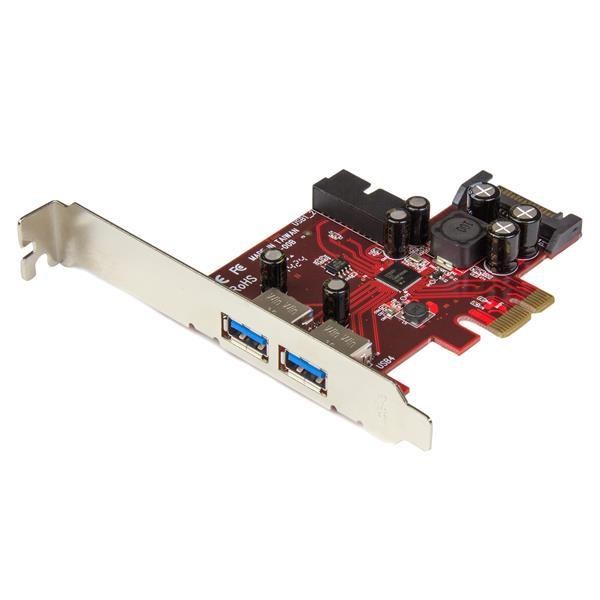

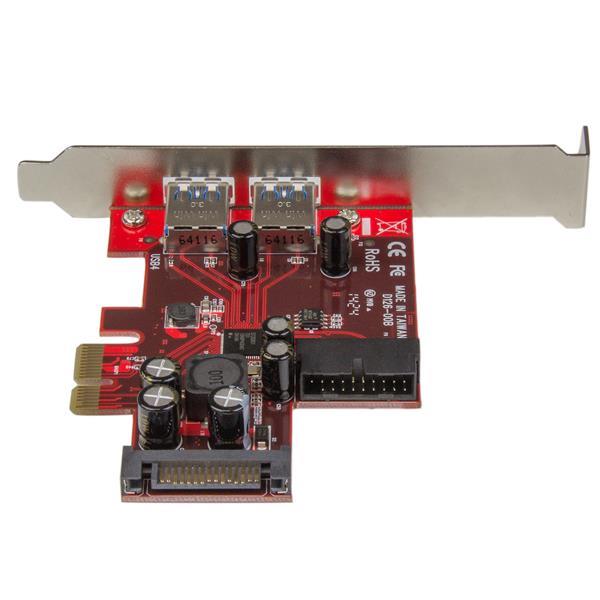

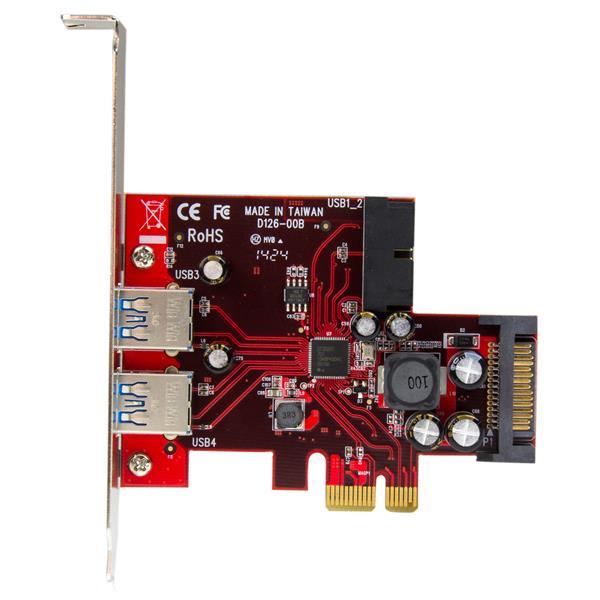

This PCI Express USB 3.0 card offers a cost-effective upgrade that lets you add four USB 3.0 ports to your computer through a PCIe slot. It offers two external ports plus two internal USB 3.0 headers to help adapt your desktop or server to support a variety of USB 3.0 devices. With extra motherboard-style USB 3.0 headers you have the flexibility to add more internal USB 3.0 devices to your PC. When your existing headers are occupied, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard and computer upgrades. For added convenience, the card integrates two external USB 3.0 ports, so you can plug in more devices such as external hard drives or printers. The USB 3.0 card is easy to install and requires no additional drivers or software in natively supported Windows 8.1 / 8 operating systems. Plus, it features a dual profile design that fits in standard or low-profile cases, so you can rest assured it will fit in your small form-factor system if needed. Connecting older peripherals isn't a problem either. So, there's no need to purchase new devices since the adapter card is backward compatible with your USB 2.0 and 1.x technology. This high-performance SuperSpeed USB 3.0 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.

Main Features

  • lexibility to connect external and internal USB 3.0 devices and supports UASP
  • Fast, hassle-free setup with Windows 8 native support, and fits into standard or low-profile systems
  • Backward compatibility lets you save money and connect existing USB 2.0 and 1.x devices
  • Transfer large files at lightning speed, with throughput support up to 5 Gbps
  • Optional SATA power connector provides up to 900mA per port for high-power USB devices
  • PCIe x1 interface, compliant with PCI Express 2.0 specifications
  • Configured with full-profile bracket, half-height bracket included
Specifications

Attributes

Compatible With Windows 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64) • Windows Server 2012, 2008 R2 • Linux 2.6.31 and up (Tested up to 3.5)

Interfaces/Ports

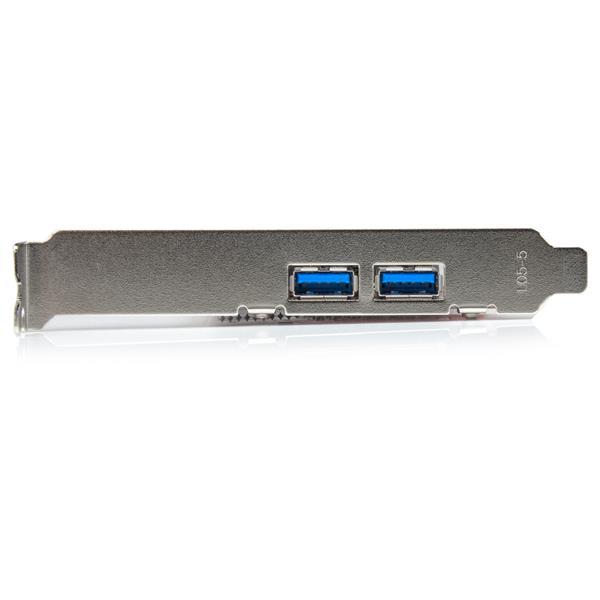

External Connectors 2 - USB 3.0 A (9 pin; SuperSpeed) Female
Internal Connectors 1 - SATA Power (15 pin) Plug • 2 - IDC (20 pin; USB 3.0; Motherboard Header) Receptacle

Warranty

Warranty 2 Years Warranty

Physical

Form Factor USB Card
In The Box 1 - 4 Port PCI Express USB 3.0 Card - 2 Ext 2 Int • 1 - Low-Profile Bracket • 1 - Driver CD • 1 - Instruction Manual
Width 1.8 cm
Depth 9.2 cm
Height 12.0 cm
Weight 0.55 kg

Item Details

Manufacturer StarTech.com
Manufacturer Code PEXUSB3S2EI
UPC 065030860338
Condition New
Warranty

Warranty Information

Warranty 2 Years Warranty

Manufacturer Information

Manufacturer StarTech.com
Manufacturer Code PEXUSB3S2EI
Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Manual pdf 0.32MB
Datasheet pdf 0.20MB
