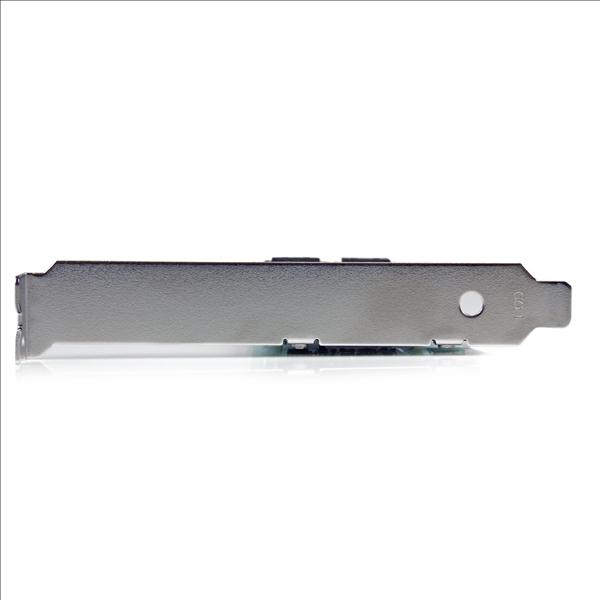

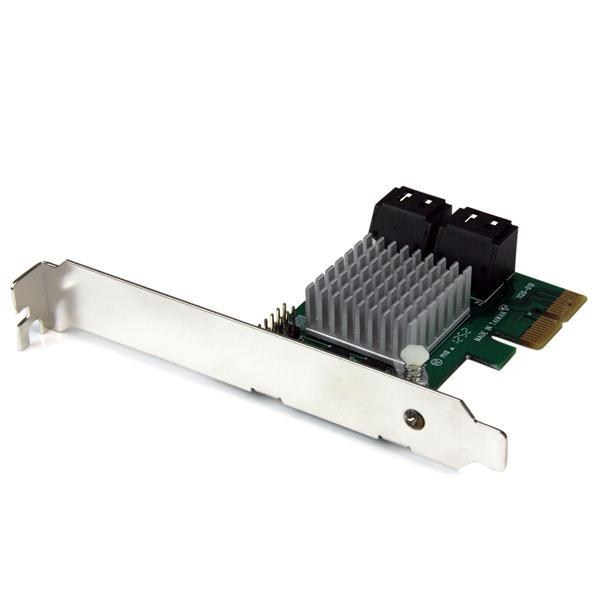

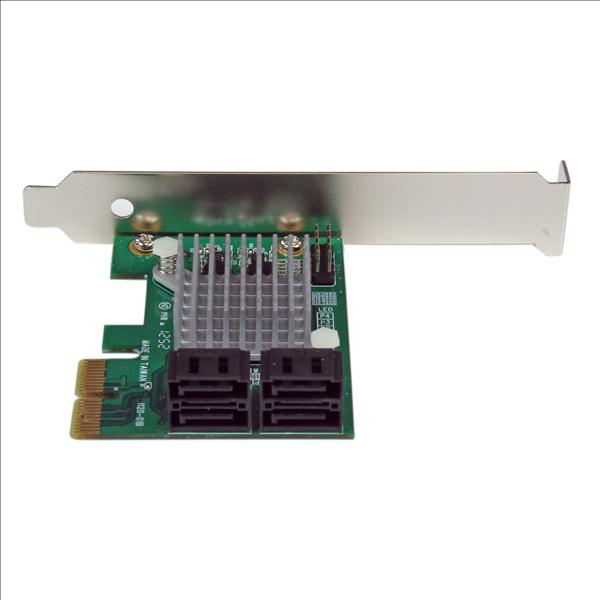

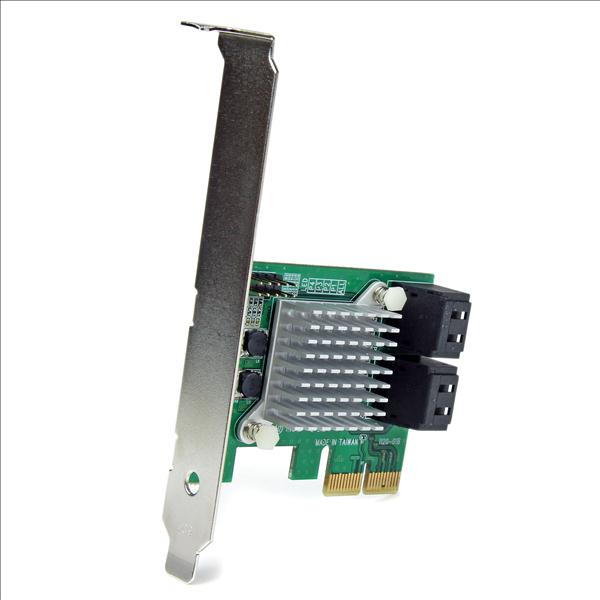

3 year on-site PC warranty* 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink

CCL Code: CNT0244

Sold out

Notify Me 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink


CCL Code: CNT0244

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

The PEXSAT34RH 4-Port PCI Express SATA III Controller Card adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections to high-performance hard drives and Solid State Drives (SSDs), all from a single PCIe expansion slot. The PCIe SATA controller card features Port Multiplier (PM) support on each port, which enables multiple SATA drives to be connected through one of the ports over a single cable, for a total of 7 simultaneous drive connections - (Connect up to 4 drives through PM on one port, and a single drive to each of the remaining 3 ports). Supporting RAID 0, RAID 1 and 1+0 configurations, this versatile PCI Express SATA RAID card includes an onboard heatsink to dissipate heat build-up, to help maintain peak operating performance even at full capacity. This PCIe SATA 6gbps card is backed by a 2-year warranty and free lifetime technical support. Maximize system capability by remaining backward compatible with older SATA (I/II) drives, while adding the outstanding speed of SATA III connectivity. Ensure reliable SATA host connections with a passively cooled expansion card. Use the card in virtually any computer system, regardless of chassis form factor. Upgrade an older PCIe-based system to SATA 6Gbps capability, to better utilize faster SATA drives. Add more internal SATA ports to a computer system, to connect additional storage drives and/or optical drives. Provide optimized off-site back-ups/vaulting, through built-in RAID 1 capability. Perfect for multi-drive internal RAID storage solutions.

Main Features

  • 4 AHCI SATA III (6Gbps) ports through PCI Express x2
  • Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps) drives
  • Supports HDDs/SSDs/Optical/Blu-Ray drives
  • Compliant with PCI Express 2.0 standards
  • Natively supported single chipset design
  • Port Multiplier FIS-based and Command-based switching supported
  • Supports Native Command Queuing (NCQ) and ATA/ATAPI commands
  • Supports hardware RAID 0, 1, and 1+0 modes configured through BIOS
  • Onboard heatsink keeps the card running cool
  • Includes Low Profile/Half-Height installation bracket
  • LED headers for HDD activity LED indicators


Card Type PCI Express


Internal Connectors 4 x Serial ATA ports

System Requirements

Operating Systems Supported Windows 10 (32/64-bit), 8/8.1 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000, Me, 98Se, 95, Windows Server 2012, 2008 R2, 2003, Linux


Warranty 2 Years


Operating Temperature 5 to 50 °C
Operating Humidity 20 to 80 %


Form Factor PCI Express Card
In The Box 1 - PCIe SATA Controller Card • 1 - Low Profile Bracket • 1 - Driver CD • 1 - Instruction Manual
Width 12.0 cm
Depth 7.0 cm
Height 2.0 cm
Weight 0.50 kg

Key Features

Low Profile Yes
Card Width 1
PCIe Physical Slot required 1

Item Details

Manufacturer Code PEXSAT34RH
UPC 065030849951
Condition New

Warranty Information

Warranty 2 Years

Manufacturer Information

Manufacturer Code PEXSAT34RH

Do you have you a question about the 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink?

Q: Does this controller allow hot swap of SATA drives? I'll be using a Supermicro CSE-721 case.
Answer by Website User on 23rd December 2021
Should be fine, you can plug a sata drive in to a running PC and it is detected by the OS and works fine. Circuitry in a hotswap bay will be adapted for this action anyway as part of its functionality.
0 customers found this answer helpful.
Post Answer
Q: will this card fit and work in a z97xpower ac MSI motherboard
Answer by Dan on 4th September 2014
Yes, this card would go into that motherboard just fine. -Danlevan
0 customers found this answer helpful.
Post Answer
Q: Does this card support drivers for Windows 7 and the popular flavours of Linux, eg. Ubuntu, Debian, Fedora, Mint etc.
Answer by CCL on 6th September 2013
According to StarTech this card is supported under: Windows® 8 (32/64-bit), 7 (32/64), Vista (32/64), XP (32/64) Windows Server® 2003 (32/64) Mac OS 10.6-10.8 Linux
0 customers found this answer helpful.
Post Answer
Q: Does this card correctly recognise 3TB+ hard drives?
Answer by CCL on 31st July 2013
Yes, this card has been tested by Startech on drive sizes up to 4TB. -MR
0 customers found this answer helpful.
Post Answer
