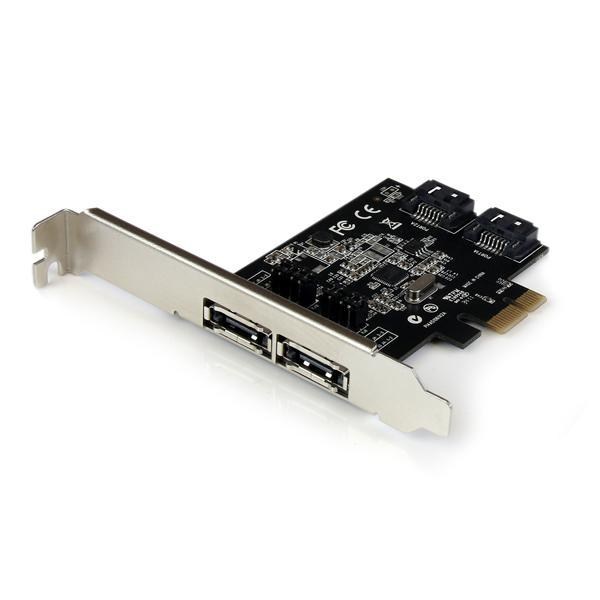

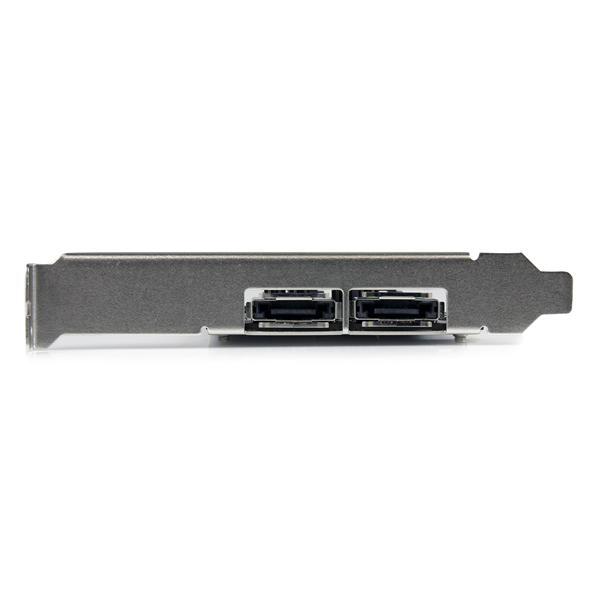

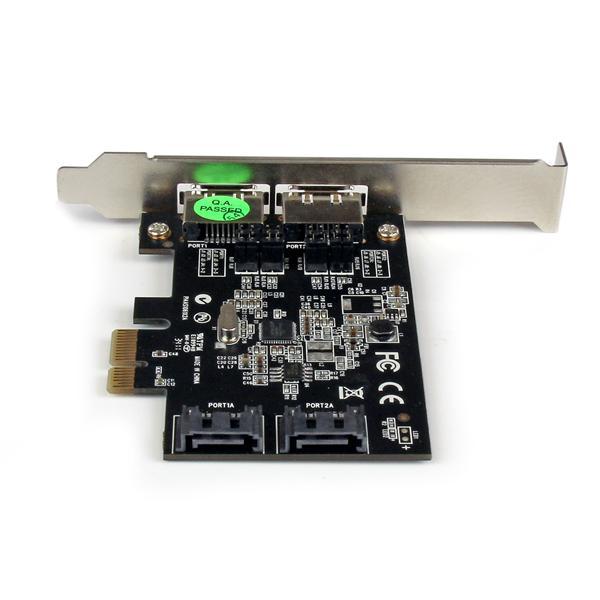

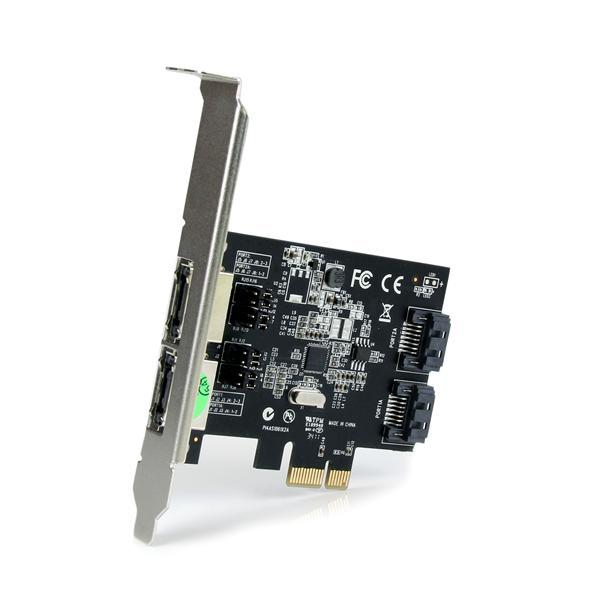

StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Internal/2 External

StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Internal/2 External

CCL Code: CNT0231

£36.62 inc VAT

StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Internal/2 External

PEXESAT322I

£36.62 inc VAT

Available for delivery from Tuesday 6th December

Buying in bulk? Contact our business team.

Key Features:

  • Uses existing SATA I/II cabling
CCL Code: CNT0231
Overview

The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed. The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required. The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray). The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support. This PCIe SATA controller card has two SATA channels that can be independently switched between the internal or external (eSATA) ports as needed. This versatile add-in card offers SATA III connectivity (6Gbps), while remaining backward compatible with SATA I (1.5Gbps) and II (3Gbps) device connections, which helps eliminate the expense of having to upgrade drives. Includes both a full and low profile/half-height bracket for installation into any size of desktop computer. Upgrade an older PCIe-based system with SATA 6Gbps connectivity, to better utilize faster SATA drives. Add more internal SATA ports to a computer system, for connecting additional storage drives and/or optical drives. Add internal and/or external SATA III ports to a computer through a single PCI Express slot, with the option to change the available connections to external/internal, as needed based on updated system requirements or applications.

Main Features

  • Two internal/external switchable SATA ports
  • Compliant with SATA revision 3.0, which can support up to 6Gbps of bandwidth
  • Support for SATA-based optical drives (CD/DVD/BD)
  • Uses existing SATA I/II cabling
  • Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands
  • Port Multiplier FIS-based and Command-based switching supported
  • Compliant with PCI Express 2.0 standards
  • Includes Low Profile/Half-Height installation bracket
Specifications

Interfaces/Ports

Number of Ports 4
Port Connector SATA

System Requirements

Operating Systems Supported Windows 10 (32/64-bit), 8/8.1 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000, Windows Server 2012, 2008 R2, 2003, Mac OS 10.X (Tested Up To 10.10), Linux

Physical

Form Factor PCI Card

Warranty

Warranty 2 Years

Key Features

Low Profile No
Card Width 1
PCIe Physical Slot required 1

Item Details

Manufacturer StarTech.com
Manufacturer Code PEXESAT322I
UPC 065030848428
Condition New
Warranty

Warranty Information

Warranty 2 Years

Manufacturer Information

Manufacturer StarTech.com
Manufacturer Code PEXESAT322I
Q&A

Do you have you a question about the StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Internal/2 External?

Q: Hi. Is this card able to be fitted to standard PCI motherboards?
Answer by Website User on 13th March 2017
No, this will only work in a PCI-express slot. -Danlevan
0 customers found this answer helpful.
Post Answer
Q: Is it possible (and if so how) to install this card and configure a connected SSD as the boot drive?
Answer by Dan on 1st September 2015
You should just be able to select the drive from the motherboard's boot priority list. -Danlevan
0 customers found this answer helpful.
Post Answer
Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Manual pdf 0.87MB
Datasheet pdf 0.15MB
