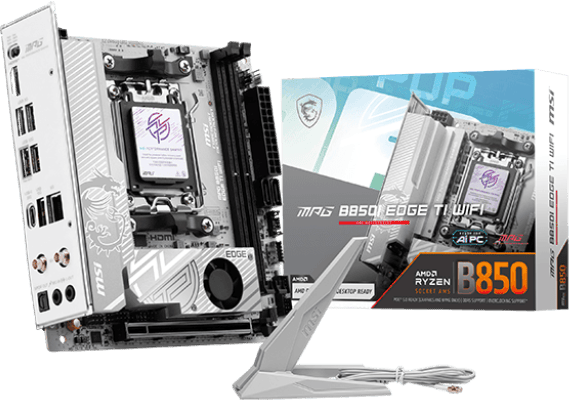

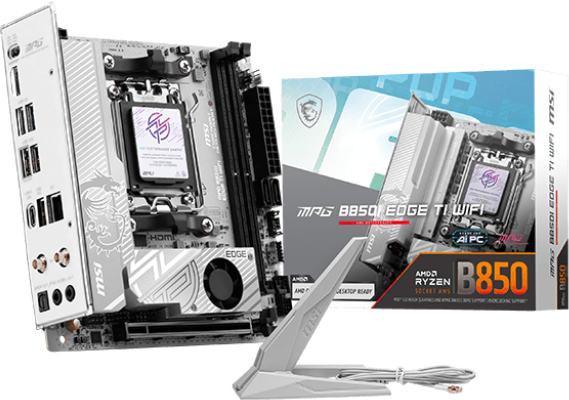

MSI MPG B850I EDGE TI WIFI ITX Motherboard for AMD Socket AM5 CPUs
Available for delivery from Tomorrow
Click & Collect from Today
Hurry, only 1 left!
Order within
You have 0 of these in your basket
Please note that this is a B Grade clearance item. It will be in good condition, but may show light signs of use and/or have been repackaged. The price has been reduced to reflect this.
All B Grade items are complete, working and have been fully tested.
This item is supplied with a Warranty: 3 Years warranty.
MPG B850I EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme X870 ITX motherboard for AMD Ryzen™ 9000 series processors.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM5
Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.2
- 3 x USB 3.1
- 2 x USB 3.0
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 2 x SATA
- USB Connectors: 1 x USB-C 3.1 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Memory
- Memory Bus Speed: Up to 8200 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: AMD B850
- RAID Supported: Yes
- RAID Format: RAID 0, 1
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- S/PDIF Port: 1 x S/PDIF Optical Out
- Antenna Connector(s): 2 x SMA Antennas
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x Combo fan header
- 1 x System fan header
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Type 2280 (PCIe Gen5)
1 x M.2 slot, Type 2280 (PCIe Gen4)
1 x 3-pin ARGB header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
Memory
- Maximum RAM: 128 GB
- Memory Slot: 2 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC4080
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek 8126
- Network Speeds Supported: Up to 5 Gbps
- Wireless LAN: Yes - Wi-Fi 7
- Wireless Network Speed: Up to 5.8 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.4
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: Mini-ITX Motherboard
- In The Box: Motherboard
- EU Regulatory Notice
- Quick Installation Guide
- Cable Sticker
- EZ Wi-Fi Antenna
- SATA Cable
3 x M.2 Screws - ARGB Extension Cable
1 to 3 EZ Conn-Cable (v2) - EZ Front Panel Cable
- Width: 170 mm
- Length: 170 mm
Identifiers
- Stock Code: MBD3912XB
- Mfg Code: MPG B850I EDGE TI WIFI
Warranty
- Warranty: 3 Years
