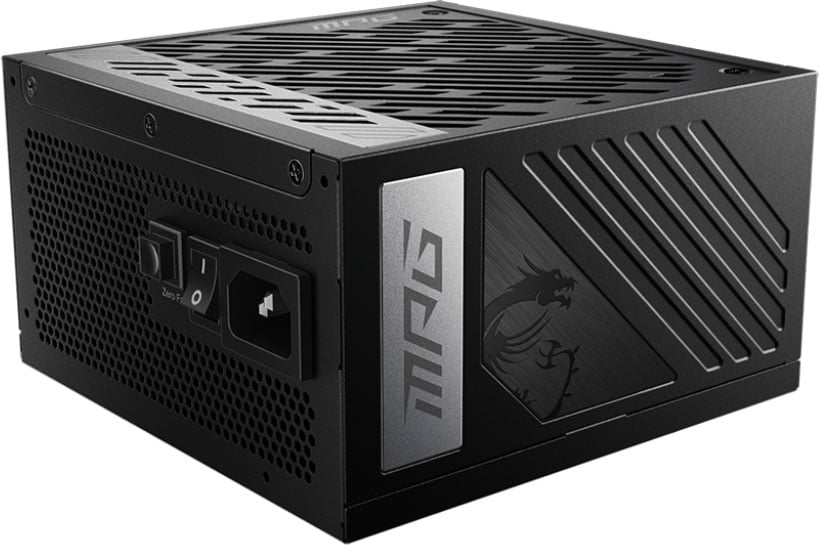

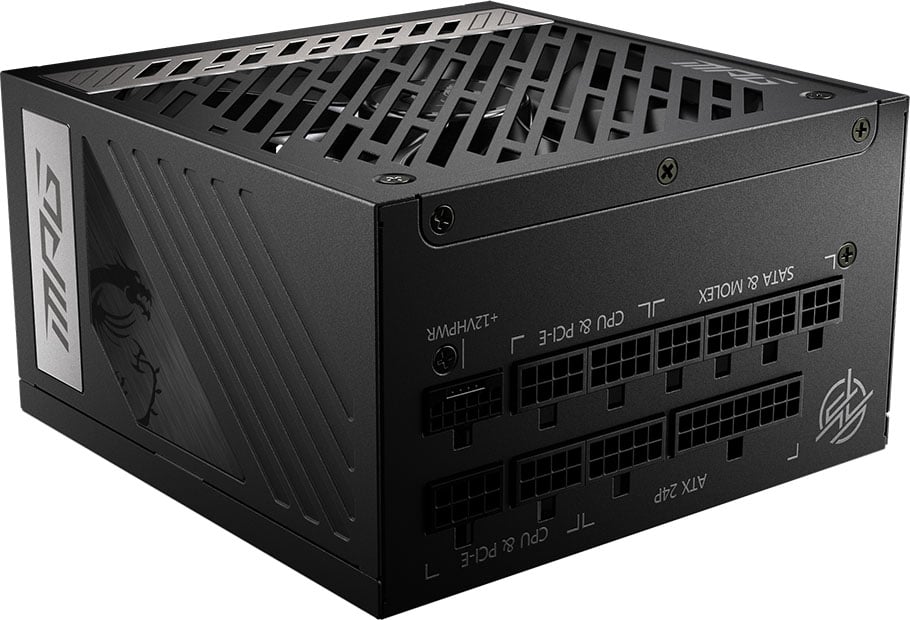

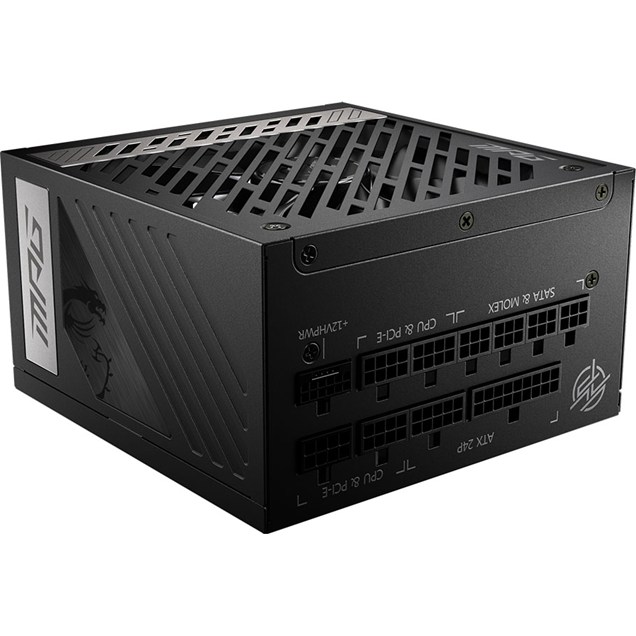

MSI MPG A850G PCIe5 850W Modular Power Supply 80 Plus Gold

MSI MPG A850G PCIe5 850W Modular Power Supply 80 Plus Gold

CCL Code: PSU2116

Sold out

Notify Me

MSI MPG A850G PCIe5 850W Modular Power Supply 80 Plus Gold

MPG A850G PCIe5

Key Features:

  • ATX Form Factor
  • Fully Modular
  • 2 x 4+4-Pin EPS CPU
  • 6 x 6+2-Pin PCIe
  • 1 x 12+4-Pin 12VHPVR
  • 8 x SATA
CCL Code: PSU2116

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Wattage:

Overview

GO AHEAD, POP YOUR STYLE

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

ATX 3.0 COMPATIBLE

It has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

80 PLUS GOLD CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

SINGLE-RAILED DESIGN

The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.

GPU SUPPORT FOR ALL

The gaming power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.

0% RPM MODE

The fan 0 RPM mode can stop the fan’s operation when TDP is below 40% to help with energy saving and providing silence.

*0% RPM Mode is on by default. Press the button to turn it off.

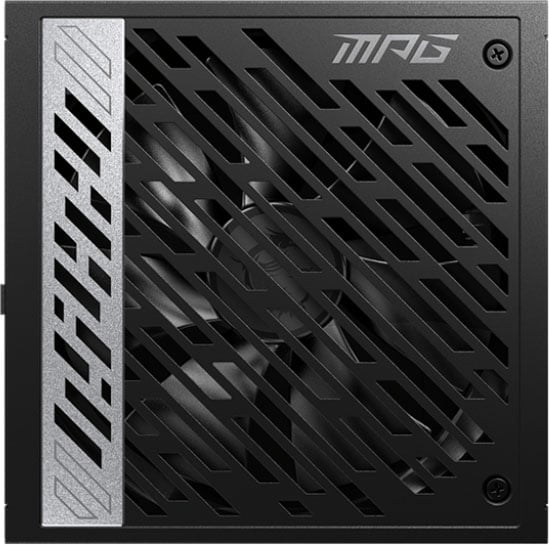

FLUID DYNAMIC BEARING

This power supply’s fan sports a fluid dynamic bearing, chosen to increase the life span of the fan while maintaining low noise level.

100% JAPANESE 105°C CAPACITORS

Aiming for unwavering product quality and performance stability, this power supply comes with 100% Japanese 105° C capacitors and solid capacitors.

FOR YOUR PEACE OF MIND

The power supply is proudly backed by a 10 year limited warranty, guaranteeing long term reliable and worry-free operation.

*Warranty may vary by country.

PROTECTION MECHANISMS

To make sure the entire system can operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.

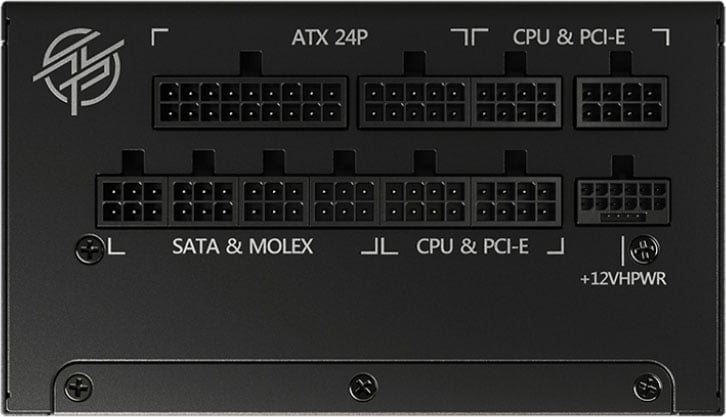

FULLY MODULAR

The power supply's fully modular design means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.

COMPACT SIZING

Smaller than typical PSUs on the market, the power supply’s compact sizing makes it an excellent fit for most PC cases.

ALL THE MORE ORGANIZED

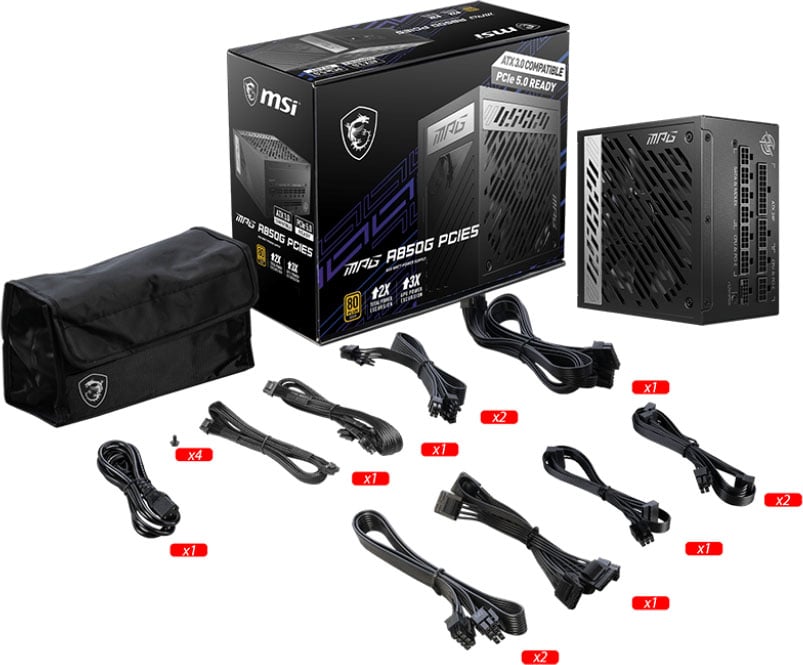

All of the power supply’s cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. Use the cables you need, and store the rest in the included cable bag.

Main Features

  • Supports NVIDIA GeForce RTX 40 Series graphics cards
  • Full modular design
  • Flat cables
  • 80 Plus Gold certified for high efficiency
  • 100% all Japanese 105 degrees C capacitor
  • Active PFC design
  • Industrial level protection with OVP, OCP, OPP, OTP, SCP, UVP
  • LLC Half Bridge Topology with DC-DC module design
Specifications

Interfaces/Ports

SATA Connectors 8
CPU Connectors 2 x 4+4-pin EPS
PCI Connectors 1 x 16-pin PCIe5
6 x 6+2-pin PCIe
Motherboard Connectors 1 x 24-pin ATX
Molex Connectors 4
Floppy Connectors 1 x Floppy

Compliance

ATX Spec ATX 3.0
Standards 80 PLUS Gold Certified
Safety OCP, OVP, OPP, OTP, SCP, UVP

Electrical

Voltage 100 ~ 240 V AC
Power 850 W
Frequency Range 50 ~ 60 Hz
Power Cord Yes

Physical

Form Factor ATX Power Supply
Case Colour Black
Width 150 mm
Depth 150 mm
Height 86 mm

Warranty

Warranty 10 Years

Key Features

Modular Cables Modular
80Plus Rated 80 Plus Gold
PSU Form Factor ATX
PCIe Connectors 6
Floppy Connector 1
Motherboard (EPS) Power Connectors 2 x 4+4-Pin
PCIe Pin Type 6+2-Pin
PSU Depth 150 mm
ETA Efficiency Cert. Gold
Lambda Noise Cert. Standard++
CPU Power Pins (female)
PCI Express Power Pins (female)
CPU Power Pins (male) 16
PCIe Power Pins (male) 48
12VHPVR 16-pin Connector Yes
Create Your Own Gaming PC (CCL) Yes

Item Details

Manufacturer MSI
Manufacturer Code MPG A850G PCIe5
EAN 4719072972189
UPC 824142293058
Condition New
Warranty

Warranty Information

Warranty 10 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code MPG A850G PCIe5
Reviews
5.0 / 5 1 review

Hart

January 2023

Best value PSU with pcie 5.0 support. Having no issue to work for 13600K with RTX 4080. And fitting in a GameMax Spark Mini Tower case. This PSU is quiet even in a small case. Having no issue with it for a month now. Very happy with it.
