SPECIFICATIONS

General

• Series: MasterFrame Series

• Product Name:

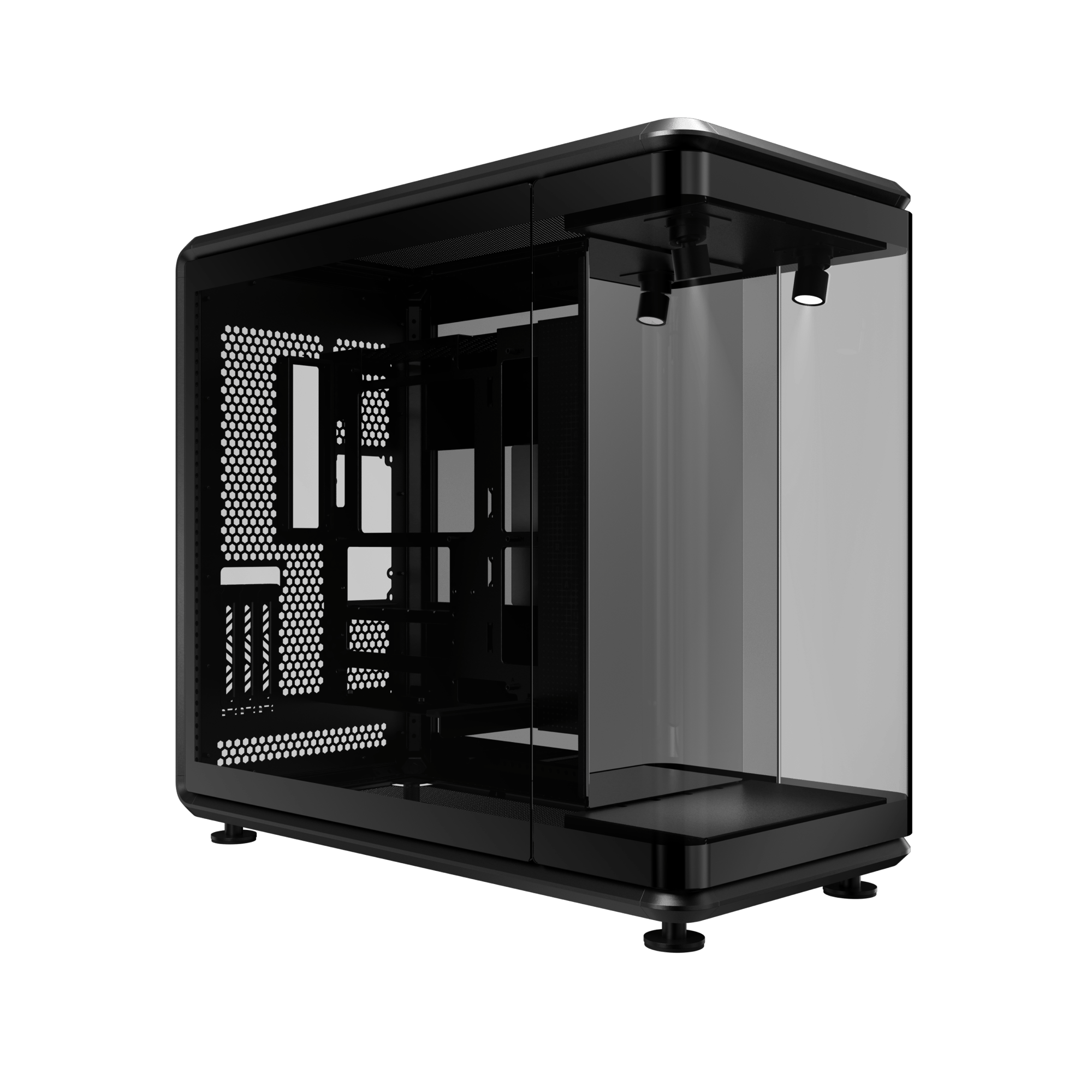

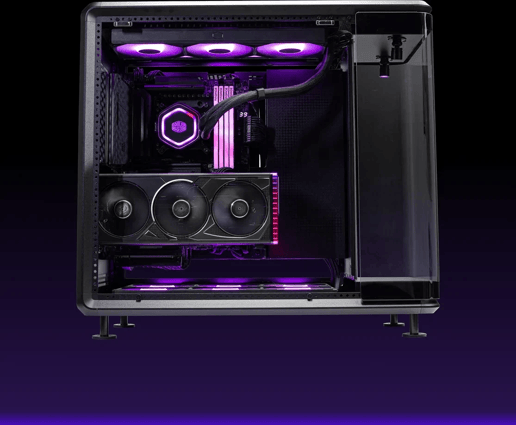

  • MasterFrame 360 Panorama

• Model Numbers:

  • Panorama: MF360-KINN-S00

• Case Type: Mid Tower

• Colour: Black

• Materials (Exterior): SGCC Steel

• Side Panels: Tempered Glass (Left & Right)

Dimensions & Volume

• Dimensions (L × W × H):

  • 549 × 291 × 581 mm (Including protrusions)

  • 511 × 291 × 581 mm (Excluding protrusions)

• Volume:

  • 86 L (without panels, protrusions, and feet)

  • 93 L (with panels, protrusions, and feet)

Motherboard Compatibility

• Mini-ITX

• Micro-ATX

• ATX

• BTF (ATX)

Power Supply Support

• PSU Type: ATX

• Maximum PSU Length: 210mm

Expansion & Storage

• PCI Expansion Slots: 3.5

• Drive Bay Support:

  • 1 × 3.5” HDD or 2 × 2.5” SSD

• Pre-installed Drive Bays (Tool-Free):

  • 1 × 3.5” HDD or 2 × 2.5” SSD

Cooling Support

Fan Support

• Top:

  • 6 × 120mm

  • 2 × 140mm

  • 2 × 180mm

  • 2 × 200mm

• Bottom:

  • 6 × 120mm

  • 2 × 140mm

  • 2 × 180mm

  • 2 × 200mm

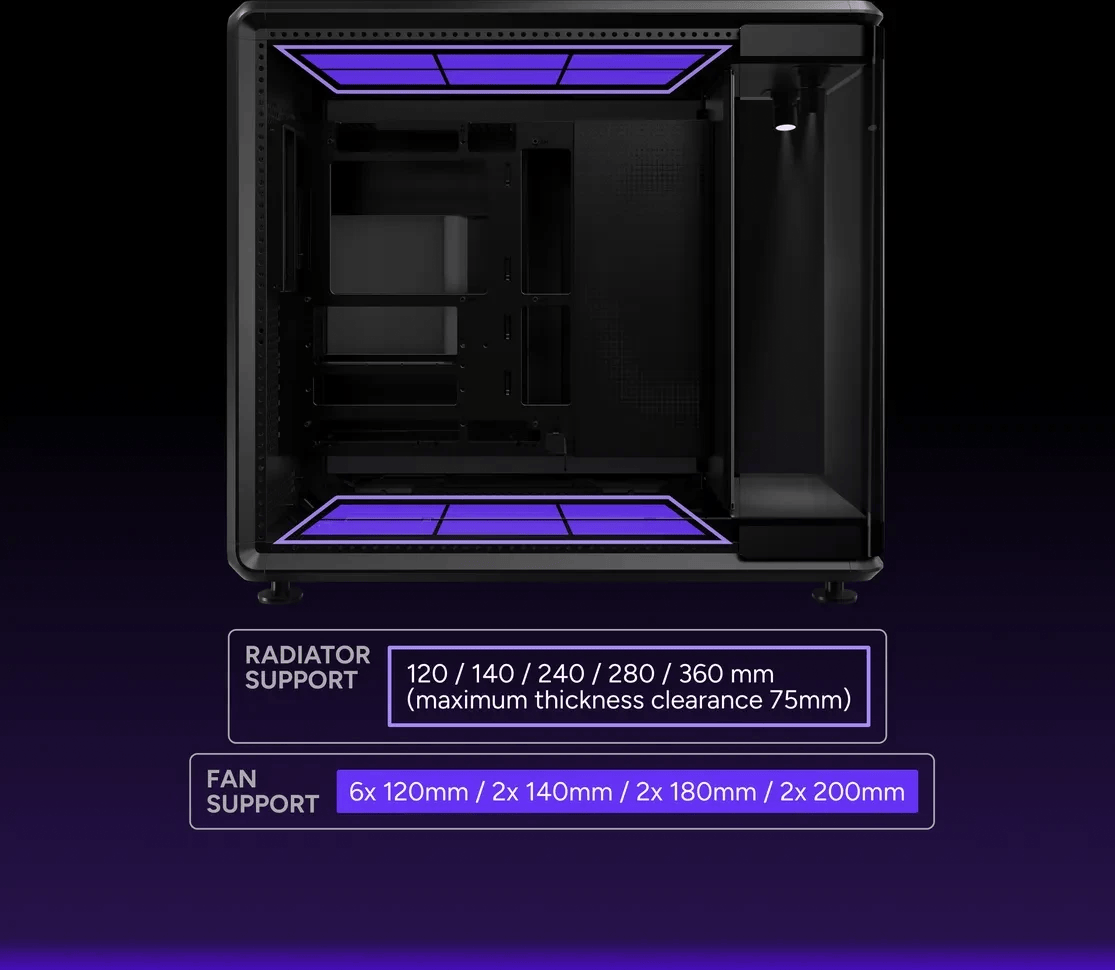

Radiator Support

• Top: 120 / 140 / 240 / 280 / 360mm

  • Maximum radiator thickness clearance: 75mm

• Bottom: 120 / 140 / 240 / 280 / 360mm

  • Maximum radiator thickness clearance: 75mm

Clearances

• Maximum CPU Cooler Height: 145mm

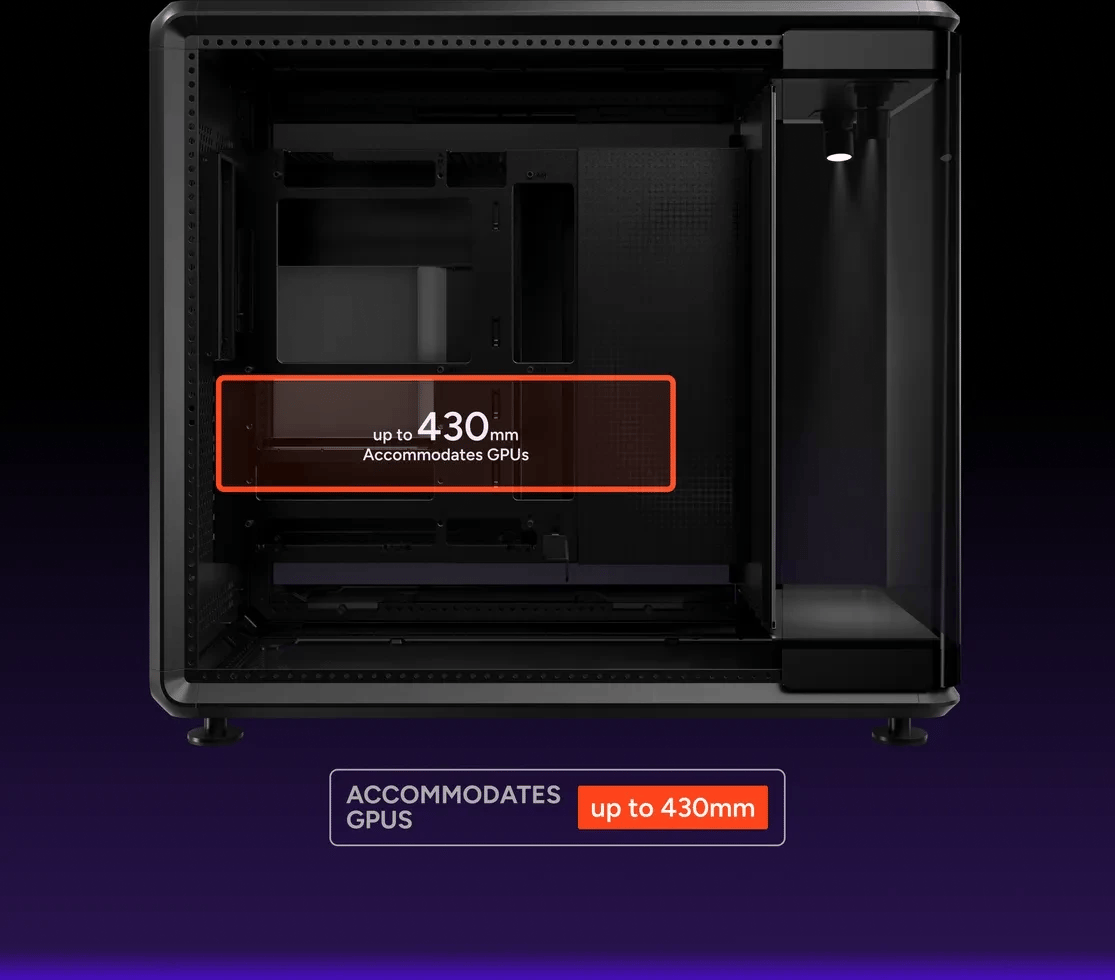

• Maximum GPU Length: 430mm

• Cable Routing Space (Behind Motherboard Tray): 110mm

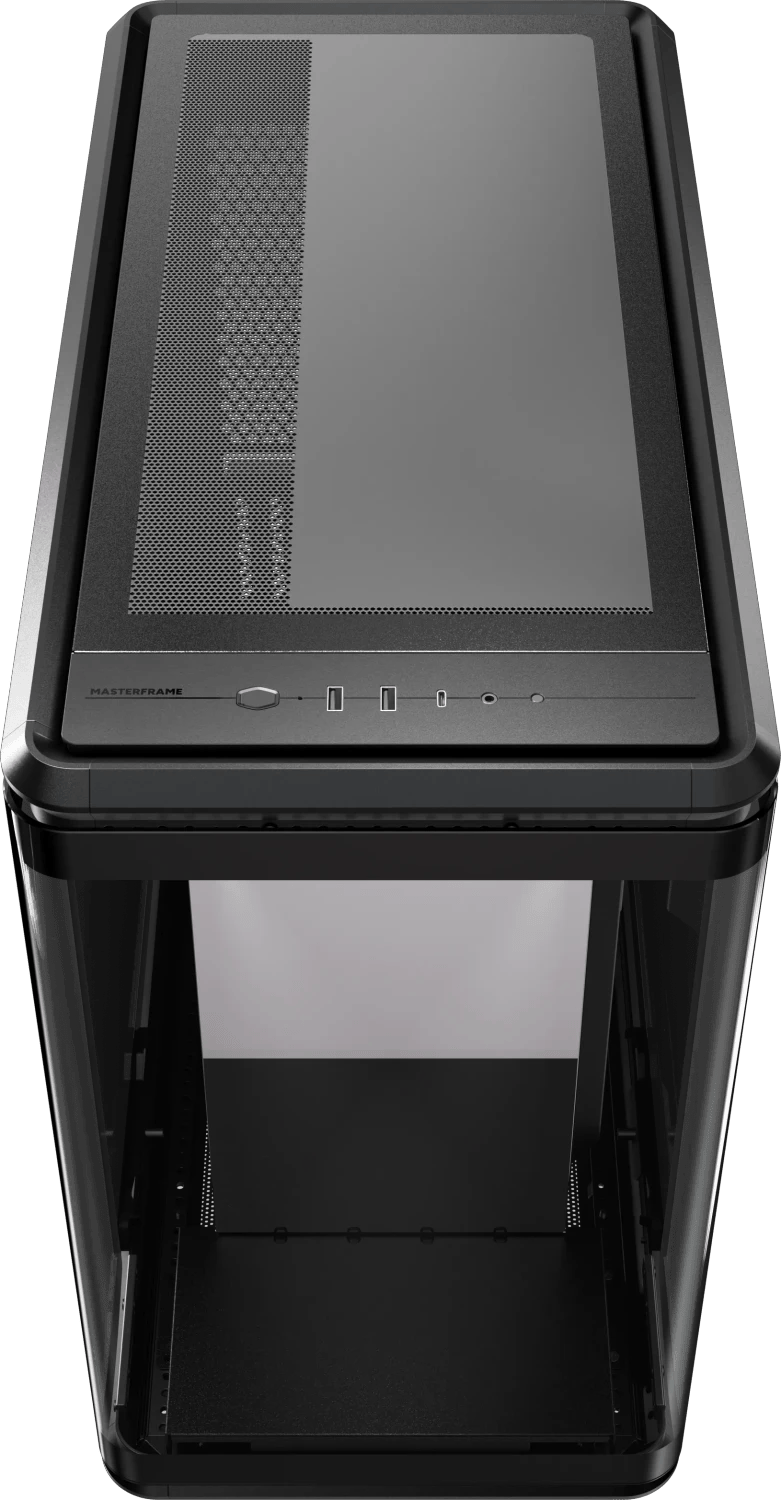

Front I/O

• 2 × USB 3.2 Gen 1 Type-A (5Gbps)

• 1 × USB 4.0 Gen 2×2 Type-C (20Gbps)

• 1 × 3.5mm Headset Jack (Audio + Mic)

Dust Management

• Dust Filters: Removable mesh-only filters

Additional Features

• PCIe 5.0 Riser Cable: 1 × Included

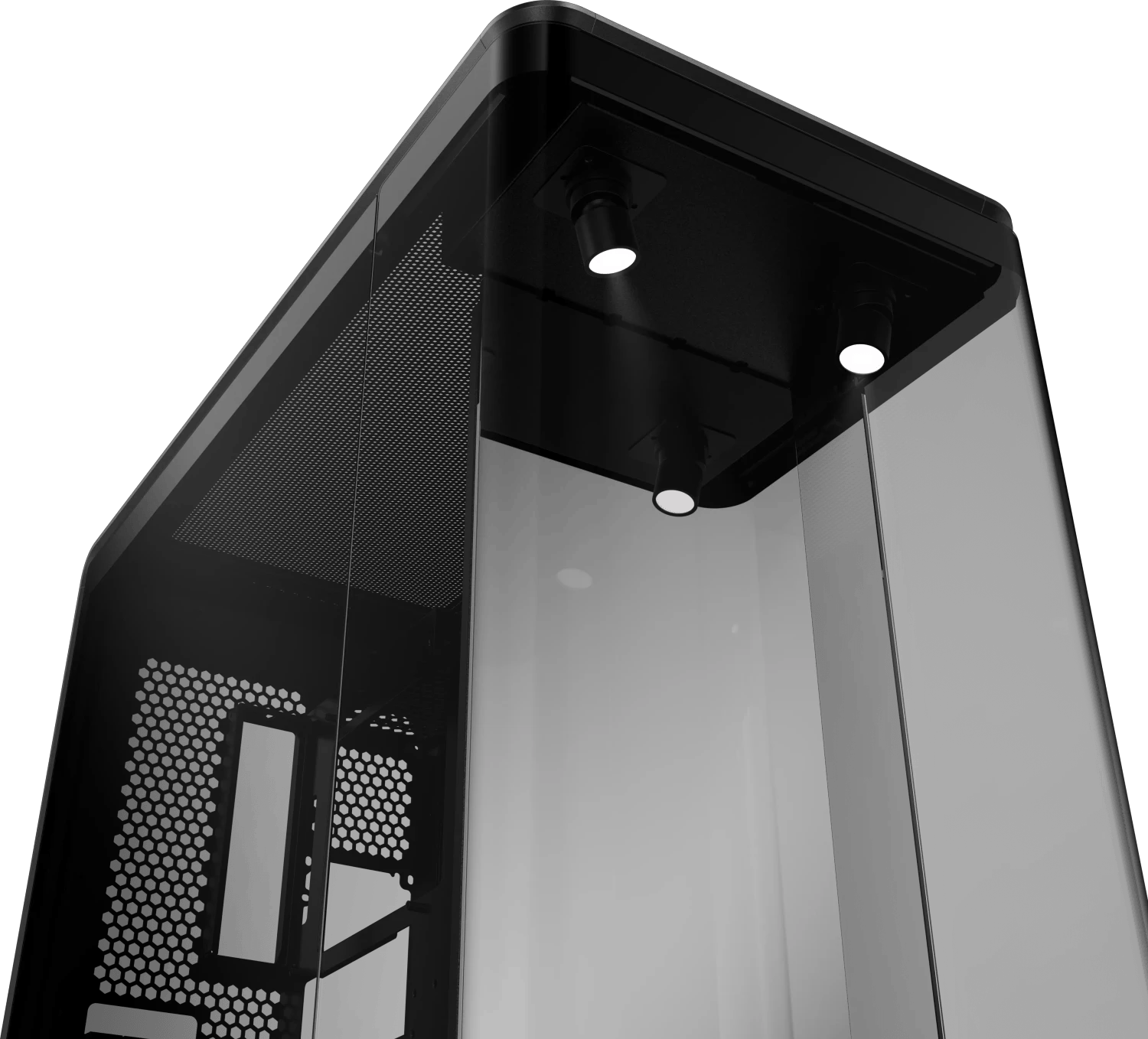

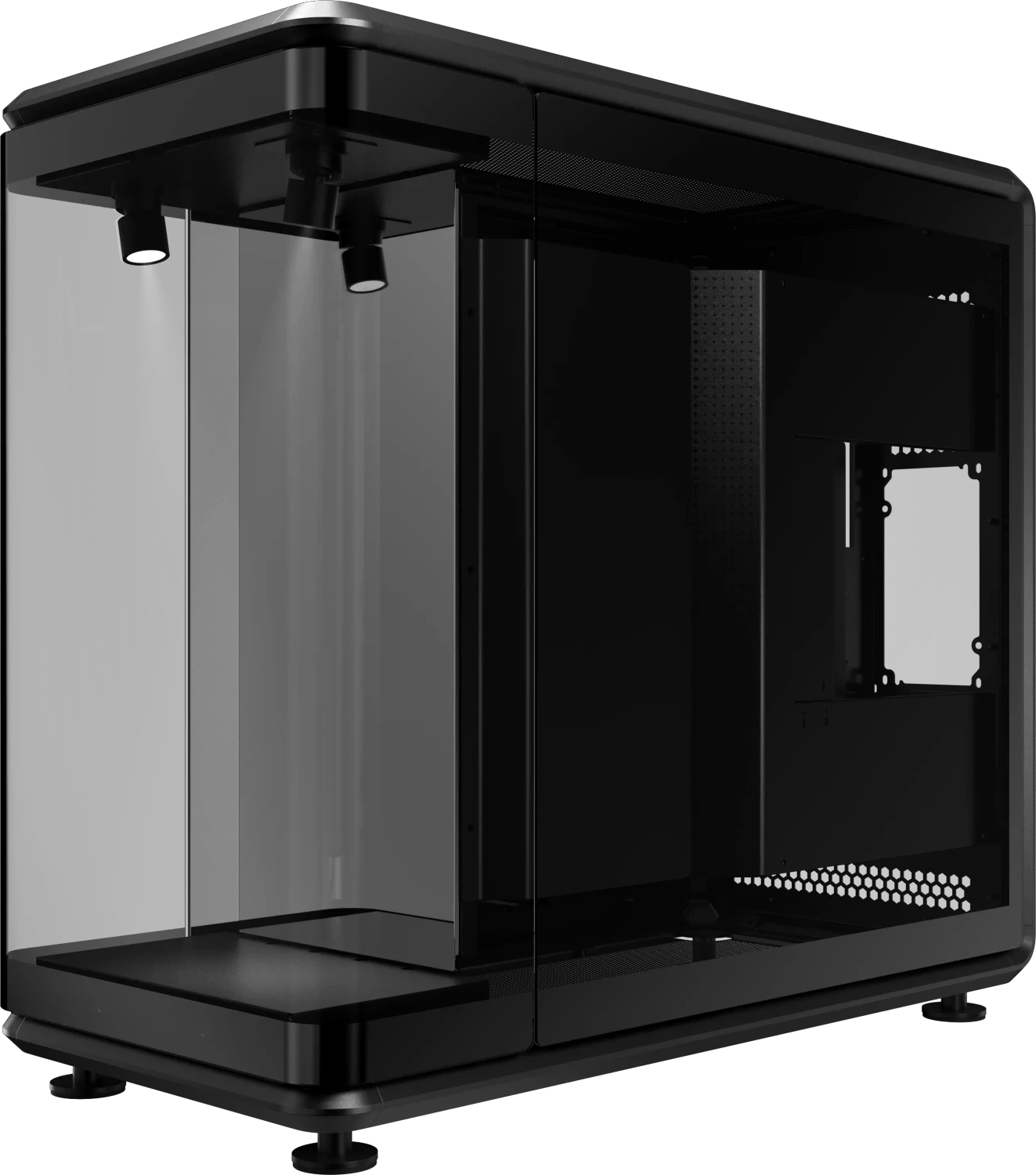

• ARGB Spotlights: 2 × Included

• DIY Tank & Pump Support:

  • Panorama: Right-side tank & pump bracket

  • Stage LCD / Stage Mirror: Left-side mounting support

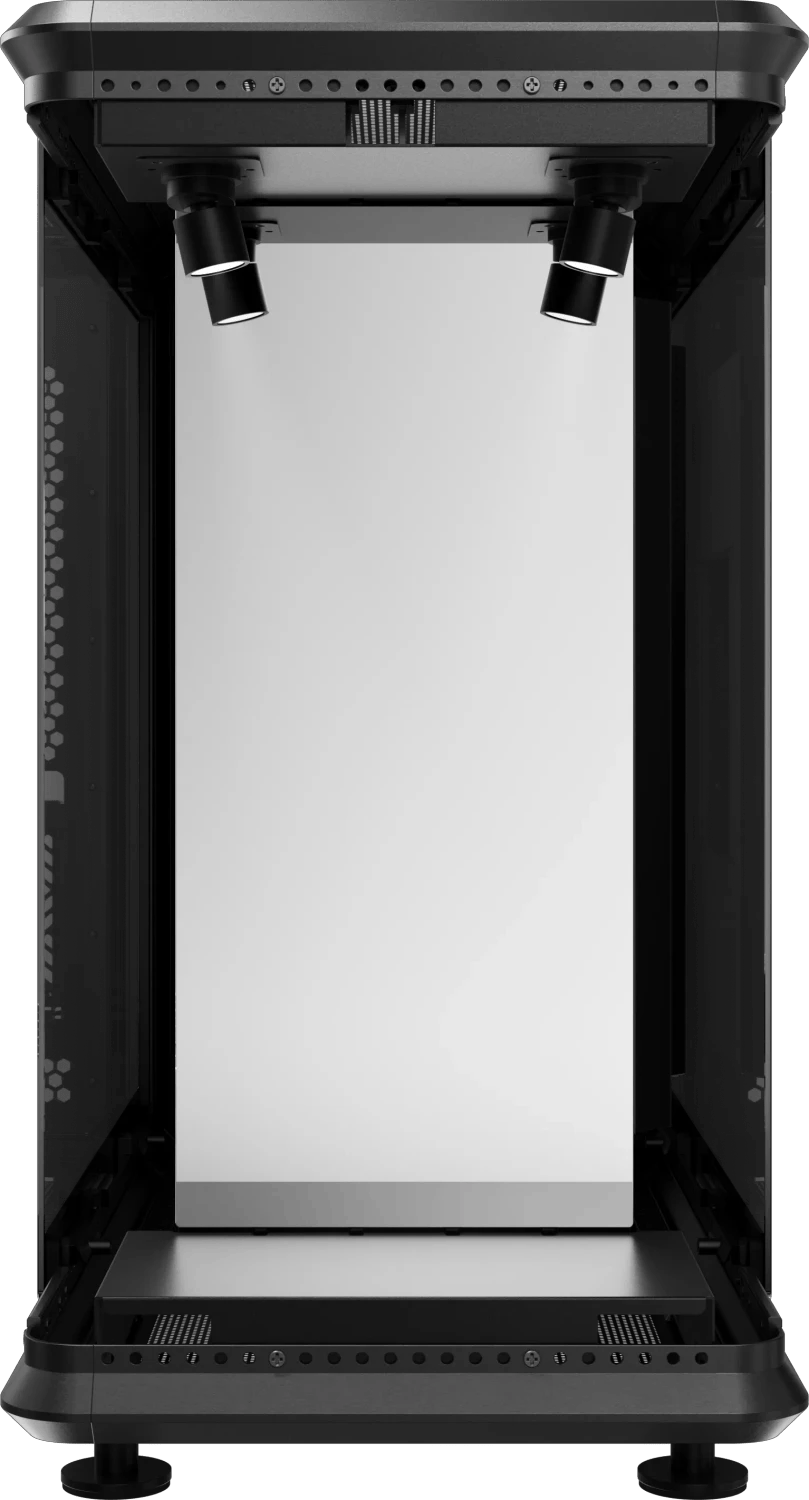

• Maximum Front Collectibles Display Area (H × W × D):

  • 328 × 290 × 110 mm

• Toolbox Included: Yes

Warranty

• Warranty Period: 2 Years
