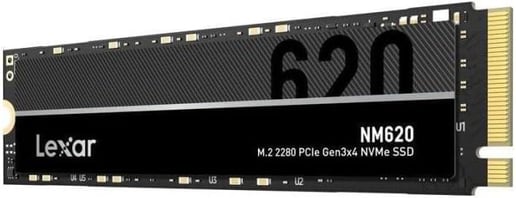

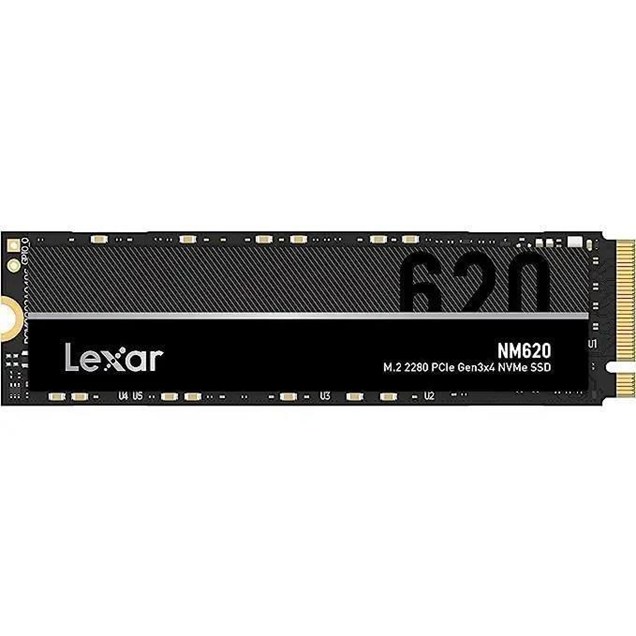

Lexar NM620 256GB M.2-2280 PCIe 3.0 x4 NVMe SSD

CCL Code: SSD1486
|
Manufacturer Code: LNM620X256G-RNNNG
| Manufacturer: Lexar
|
  • Lexar NM620 256GB M.2-2280 PCIe 3.0 x4 NVMe SSD
  • Lexar NM620 256GB M.2-2280 PCIe 3.0 x4 NVMe SSD
  • Lexar NM620 256GB M.2-2280 PCIe 3.0 x4 NVMe SSD
  • Lexar NM620 256GB M.2-2280 PCIe 3.0 x4 NVMe SSD

Key Features:

PCIe 3.0 x4 NVMe Interface
Up to 3000MB/s Read
4K IOPS Read: 92000
M.2 2280 Form Factor
Up to 1300MB/s Write
4K IOPS Write: 240000

£28.18

inc VAT

Available for delivery from Tuesday 11th October

Buying in bulk? Contact our business team here.

Overview

Next-Level Performance For Intensive Workloads

Designed for intensive workloads, the Lexar NM620 M.2 2280 PCIe Gen3x4 NVMe SSD offers next-level performance that puts you in the computing fast lane with speeds up 3300MB/s read and 300MB/s write1. It’s supported by the PCIe Gen3x4 NVMe 1.4 technology standard and built with the latest 3D NAND flash.

Ideal For Demanding Creative And Gaming

With speeds of up to 3300MB/s read, enjoy 6x the speed of SATA SSDs3. The NM620 puts you in the computing fast lane and offers impressive performance for demanding creative workstations and gaming experiences.

Features LDPC For Added Reliability

Low-Density Parity Check (LDPC) technology makes data transfers more reliable than ever by fixing data errors before they have a chance to slow you down.

Built To Last

Unlike traditional hard disk drives, the NM620 SSD has no moving parts, so it’s built to last. On top of that, it’s also shock and vibration resistant2, making it one robust and reliable SSD.

Efficient

Reduced power consumption and cooler operation makes the battery life last longer than a traditional hard drive.

Rigorously Tested

All Lexar product designs undergo extensive testing in the Lexar Quality Labs,facilities with more than 1,100 digital devices, to ensure performance, quality, compatibility, and reliability.

1 Up to 3300MB/s read transfer, write transfer speeds lower. Speeds based on internal testing. Actual performance may vary.

2Shock resistant (1500G, duration 0.5ms, Half Sine Wave) and vibration resistant (10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)). Based on internal testing. Actual performance may vary.

3Comparison based on internal testing. Actual performance may vary.

Specifications

Storage

Solid State Capacity 256 GB
Drive Size M.2 2280
Memory Type SSD
Memory Package 3D TLC
Memory Size 256 GB

Performance

Read Speed Up to 3,000 MB/s
Write Speed Up to 1,300 MB/s
4K Random Read (AS SSD) Up to 92k IOPS
4K Random Write (AS SSD) Up to 240k IOPS
Data Storage Life Up to 125 TBW
Mean Time Between Failure (MTBF) Up to 1,500,000 hours

Interfaces/Ports

Interface Type PCIe Gen3 x4 NVMe

System Requirements

System Requirements 1 x M.2 slot, Socket 3, Key M, Type 2280

Environmental

Operating Temperature 0 ~ 70 °C
Storage Temperature -40 ~ +85 °C
Vibration (Non-Operating) 10 ~ 2000Hz, 20 G
Shock (Non Operating) 1500G, 0.5ms

Physical

Form Factor Solid State Drive
Enclosure type Internal
Case Colour Black
In The Box 1 x 256GB SSD
Width 22 mm
Depth 80 mm
Height 2.25 mm
Weight 9 g

Warranty

Warranty 5 Years

Key Features

Disk Capacity 256 GB
Solid State Drive Yes
Disk Form Factor M.2 2280
Read IOPS (4K) 92000
Write IOPS (4K) 240000

Item Details

Manufacturer Lexar
Manufacturer Code LNM620X256G-RNNNG
UPC 843367123148
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Lexar
Manufacturer Code LNM620X256G-RNNNG
Questions and Answers

Do you have you a question about the Lexar NM620 256GB SSD, M.2-2280, PCIe Gen3 x4 NVMe, Internal?

Reviews
5.0 / 5 2 reviews

Callum

3 months ago

It is working absolutly amazingly, deffinently an upgrade from my original SATA 120GB SSD!

James W

5 months ago

Great little M 2, easy to install and use. Running Windows on an X570 mobo and it starts up very quickly.
