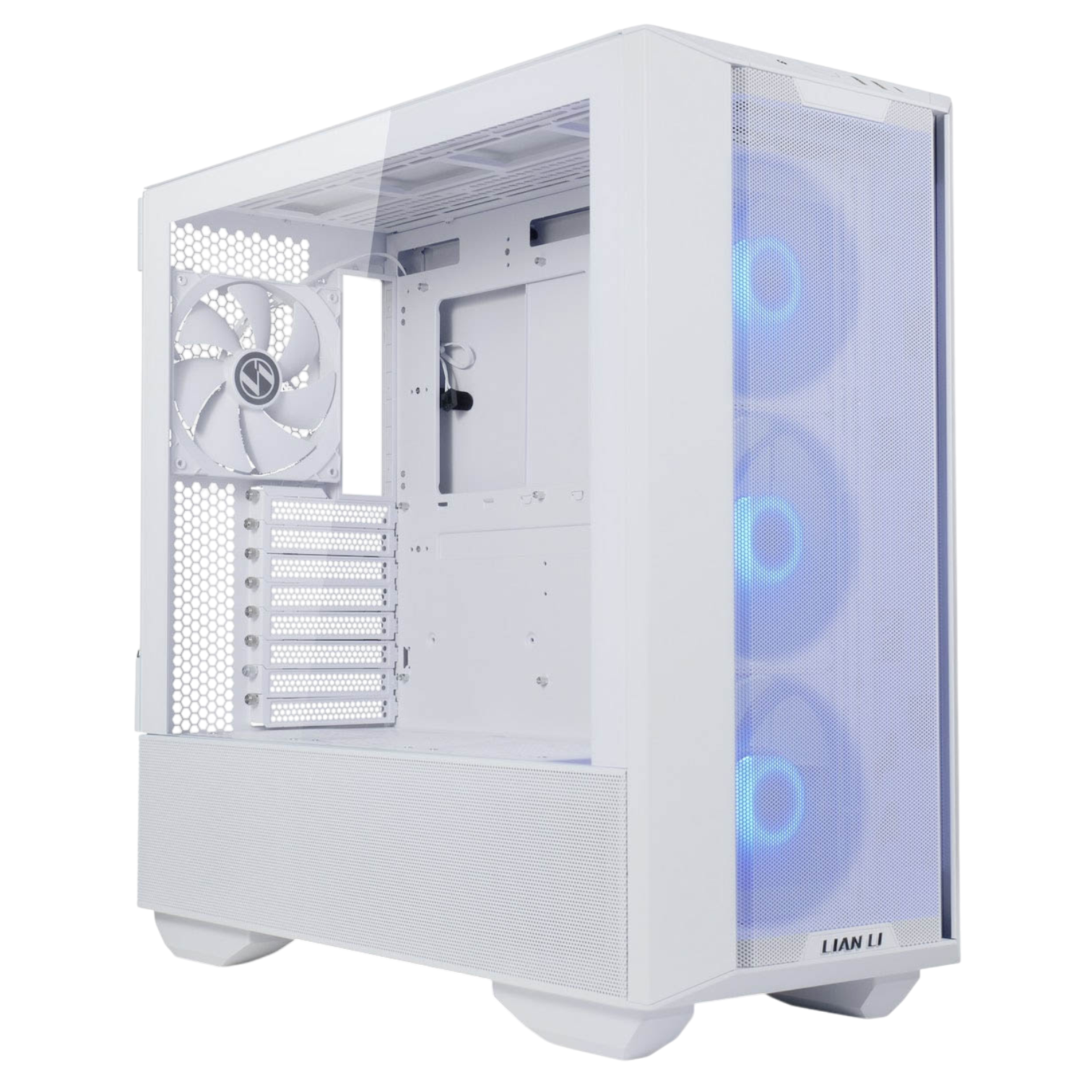

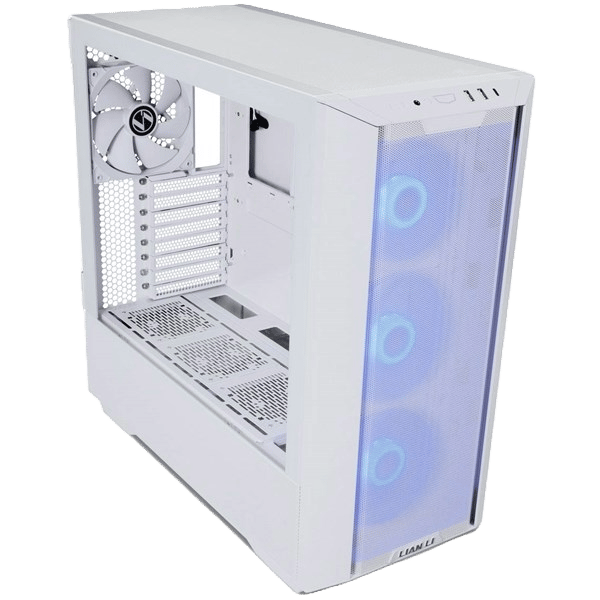

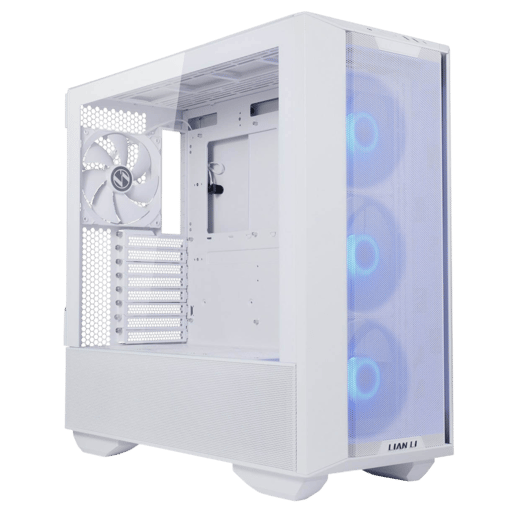

AVAILABLE IN TWO COLORS, TWO MODELS
The LANCOOL III black features a premium hairline brushed aluminum element that looks as good as it feels, while the LANCOOL III white features a minimalist white powder coating. The tempered glass panel allows showing off the internal components.
LANCOOL III
Comes equipped with 4 x 140mm high airflow PWM fans that provide strong out-of-box cooling performance.
- Front Intake Fan – 200~1800 RPM / 83.5 CFM /2.3 mm H2O
- Rear Exhaust Fan - 200~1800 RPM / 83.5 CFM / 2.3 mm H2O

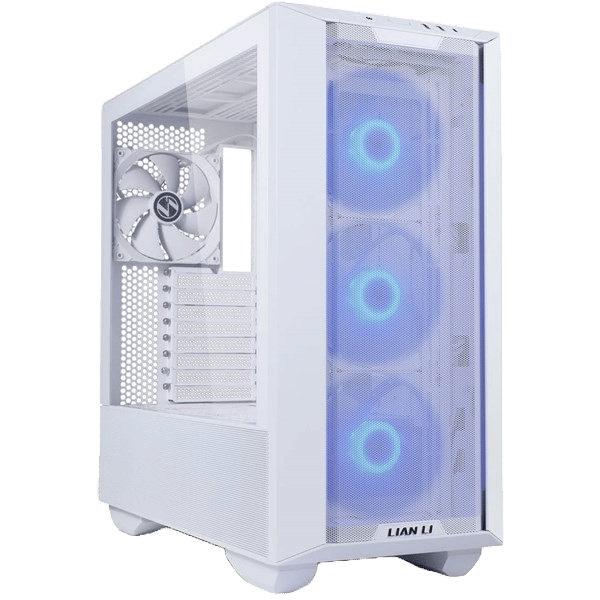

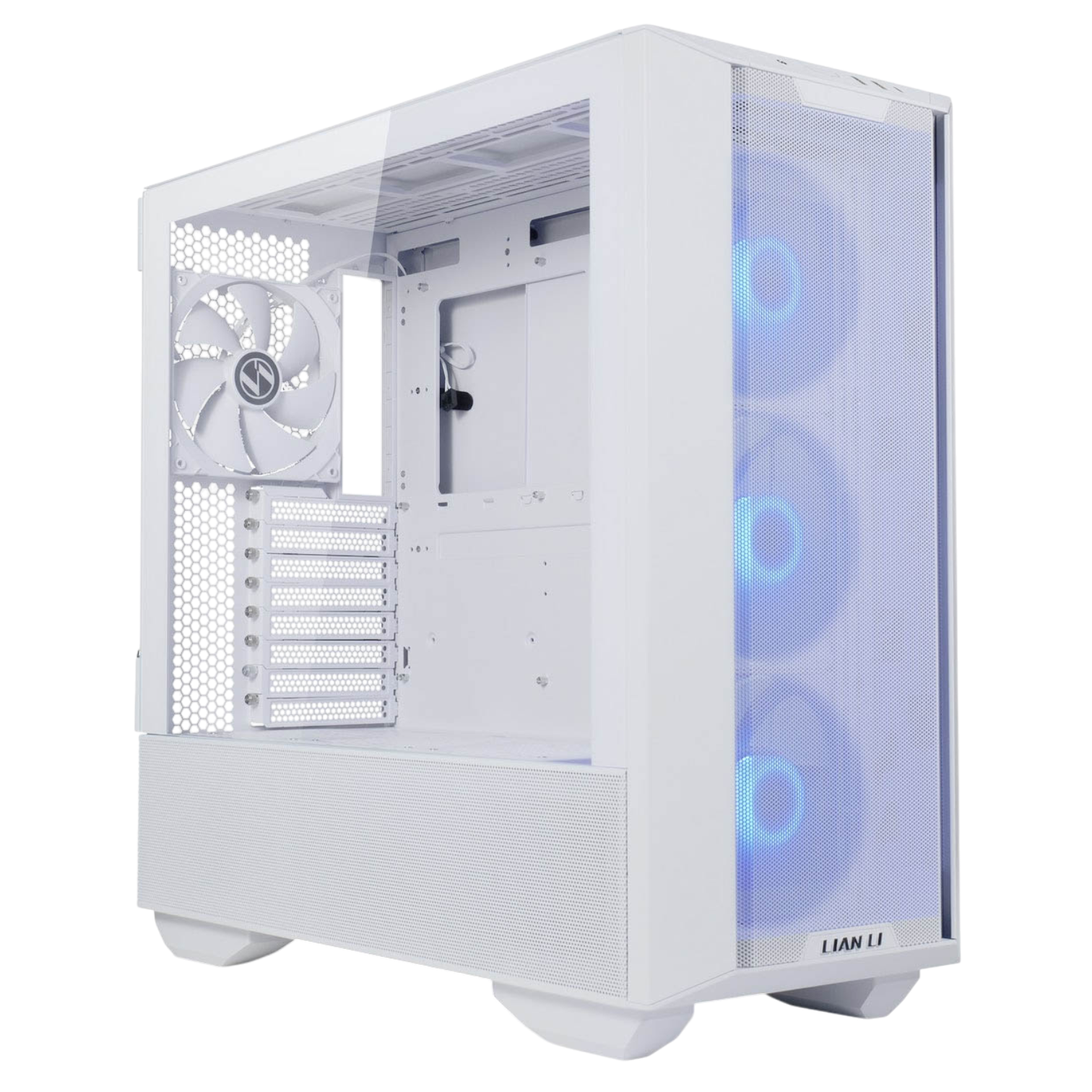

LANCOOL III RGB
Comes equipped with 3x 140mm ARGB PWM fans that have similar performance as the LANCOOL III RGB 140mm back PWM Fan.
- Front Intake ARGB Fan - 300~1650 RPM / 83.5 CFM / 2.3 mm H2O
- Rear Exhaust Fan - 200~1800 RPM / 83.5 CFM / 2.3 mm H2O

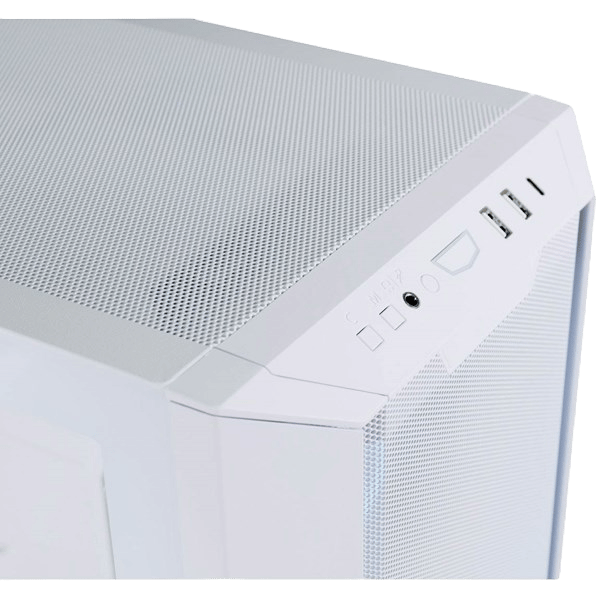

Offering 7 colors and 8 lighting modes (the 8th mode is MB SYNC), the included ARGB controller can be operated via the front IO C and M buttons and can extend its control for 3 additional ARGB devices.
EXTREME AIRFLOW CRAFTMANSHIP
A fine mesh design has been implemented at the front, top, and both bottom side panels of the LANCOOL III.
Top and 2x Bottom Side Panels
The two bottom side panels provide sufficient airflow to efficiently cool the GPU when fans are installed above the PSU shroud.

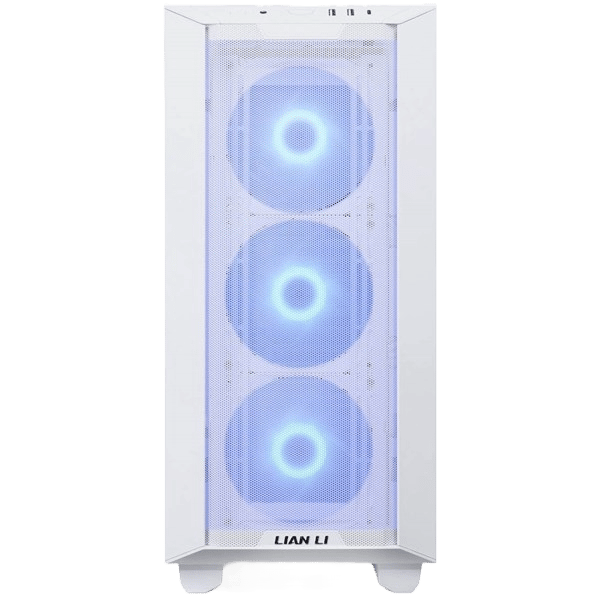

Front Panel
The 51% porosity offers an ample direct fresh air intake.
HINGED PANELS ALL AROUND

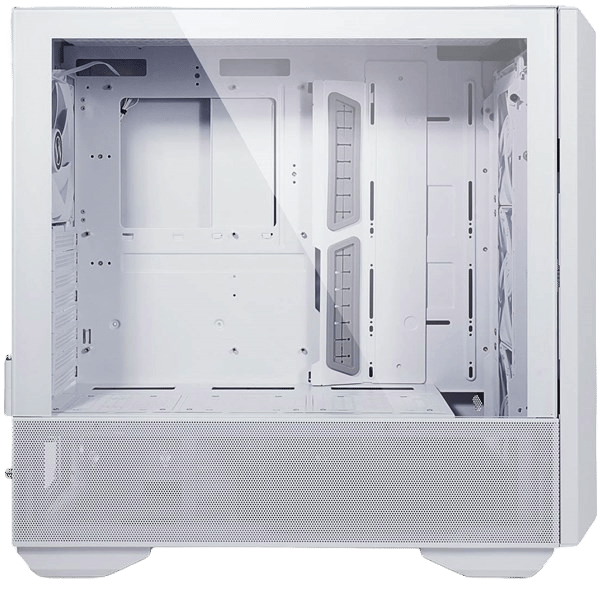

The hinged tempered glass side panels offer an unobstructed view of the interior configuration, while the bottom shroud panels provide quick access to the PSU and storage drives.
The two removable 4mm tempered glass panels located on each side of the case can be opened by pulling the front aluminum handle.
The mesh panels located on both sides of the PSU shroud area can be removed for cleaning when the front panel is unattached.
FLEXIBLE CONFIGURATION
With ample interior room, the LANCOOL III can offer different cooling and usage scenarios.
AIR Cooling
With high airflow stock fans, and air tower clearance up to 185mm, the LANCOOL III is ideal for an air-cooling build.
AIO Cooling
With ample front intake, the LANCOOL III can provide strong performance for an AIO cooling build. The top fan bracket can support up to 3 x 120mm/140mm fans and offers enough thickness clearance for an AIO with a 420 radiator/fan combo.
Custom Water Cooling
With the ability to support 3 × 360mm radiators simultaneously, the LANCOOL III can offer custom water-cooling enthusiasts, lots of imagination.
SPACIOUS COOLING SUPPORT
The LANCOOL III is optimized for water-cooling and high-end thermal solutions. A maximum of 10 × 120mm fans or a large 420mm radiator can be mounted in the main chamber.
Multi-way Front Fan/Radiator Bracket
The multi-way front fan bracket offers 4 different ways to mount a radiator or fans to cater to different cooling needs, and features a new latch/handle mechanism to easily secure it in place without the need of the locking thumbscrews.
Removable Top Fan Bracket
The removable top fan bracket with offset fan mounting points allows for a thicker fan and radiator combo to be installed at the top of the LANCOOL III by providing enough clearance from the ram.
Modular PSU Shroud Bracket – Fan/ Pump/ SSD
The adjustable modular PSU shroud bracket can accommodate 1 x 360mm radiator, 3 x 120mm fans, 3 x 2.5” SSDs, or a pump/reservoir combos.
Side Multi-Purpose Mounting Slots
Mounting slots beside the motherboard are provided at 105mm apart (standard 120mm fan mounting points) to allow the installation of a distro plate or a reservoir/pump bracket.
EXTENSIVE STORAGE CAPACITY
Multiple storage drive mounting locations are supported for up to 12 x 2.5” SSDs or 4 x 3.5” HDDs and 8 x 2.5” SSDs.
Adjustable Drive Cage
2 adjustable drive cages (each for 2 x 3.5” HDDs or 2 x 2.5” SSDs) can be individually removed or adjusted.
Toolless SSD tray
Two spring-loaded SDD trays located behind the motherboard tray allow for a toolless installation of the drives.
Side SSD tray

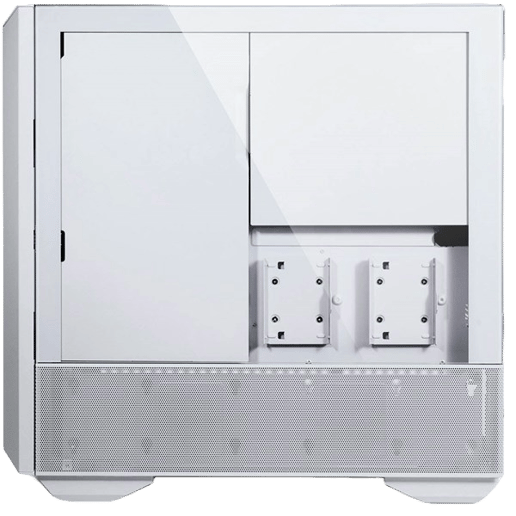

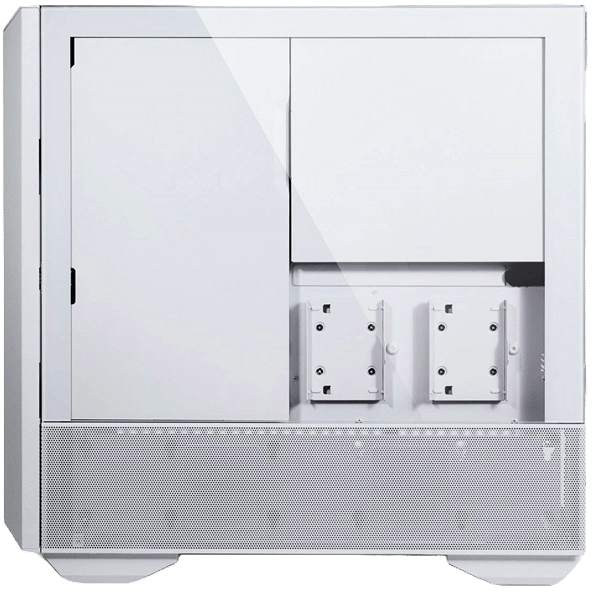

The side-mounted SSD trays located inside the right PSU shroud panel can support up to 3 x 2.5” SSDs or can be removed to improve airflow.
COMPREHENSIVE CABLE MANAGEMENT
As the second chamber located on the right side is visible, great consideration has been given to cable management. The LANCOOL III features an upgraded solution to ensure neat cable routing with toolless magnetic cable cover doors, and a well-organized layout for hubs and cables.
3 Layers Velcro Straps
Holds 3 different sets of cables separately.
Routing Velcro Straps
Provides a clear path for cables such as the CPU 8pin, fan cables, USB cables…
Layout for Fan Hubs
3 fan controllers/ fan hub mounting locations are provided between the large Velcro straps, with an additional one at the removable plate behind the motherboard.
Hinged Cover Doors
Magnetic, hinged, and removable cable cover doors hide cable clusters and provide easy access at the same time.
Sliding Cable Routing Cover
By slightly loosening the two back thumb screws, the cable cover can be adjusted to fit different sizes of motherboards.
REVERSIBLE FRONT I/O
Optimized for PC locate on a desk, the front I/O can be relocated to the bottom of the chassis.
FRIENDLY PSU INSTALLATION
The removable PSU mounting bracket allows for PSU installation outside of the chassis, to then slide it in through from the rear.
ANTI-SAG BRACKET FOR PERFECTLY HORIZONTAL GPU
A GPU anti-sag bracket is included for a seamless display of the hardware through the side tempered glass panels.
