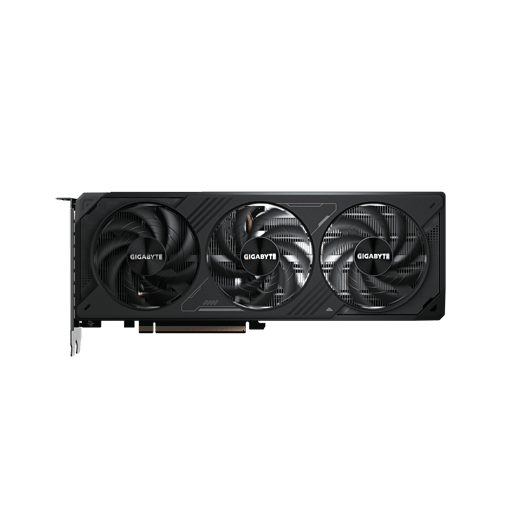

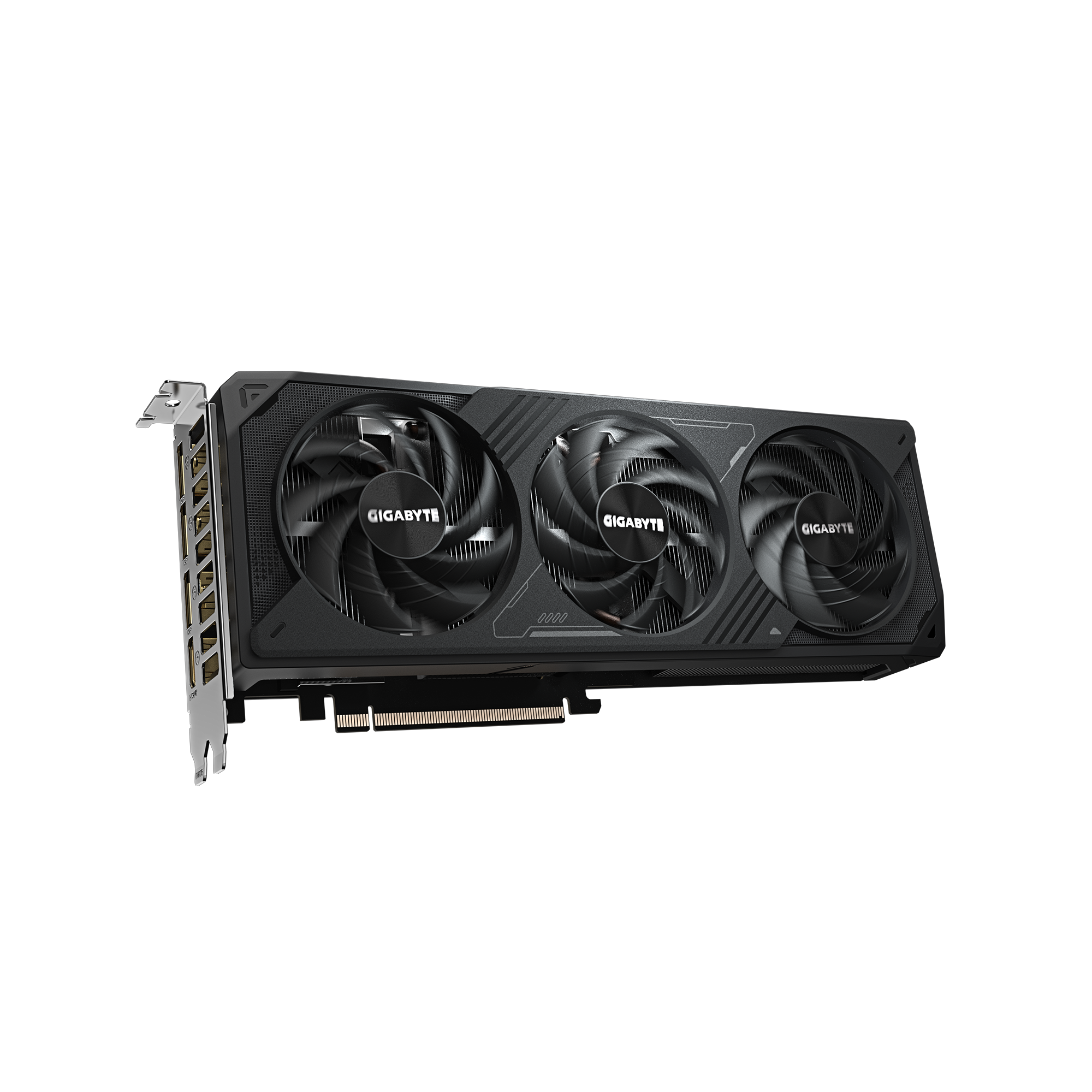

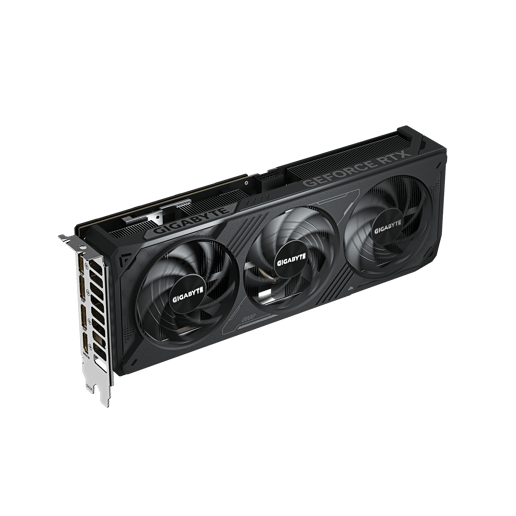

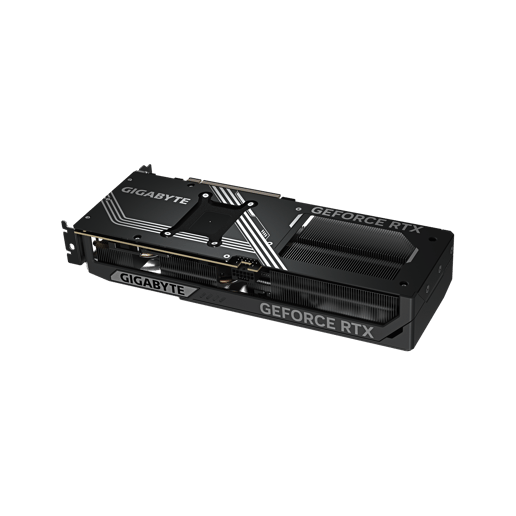

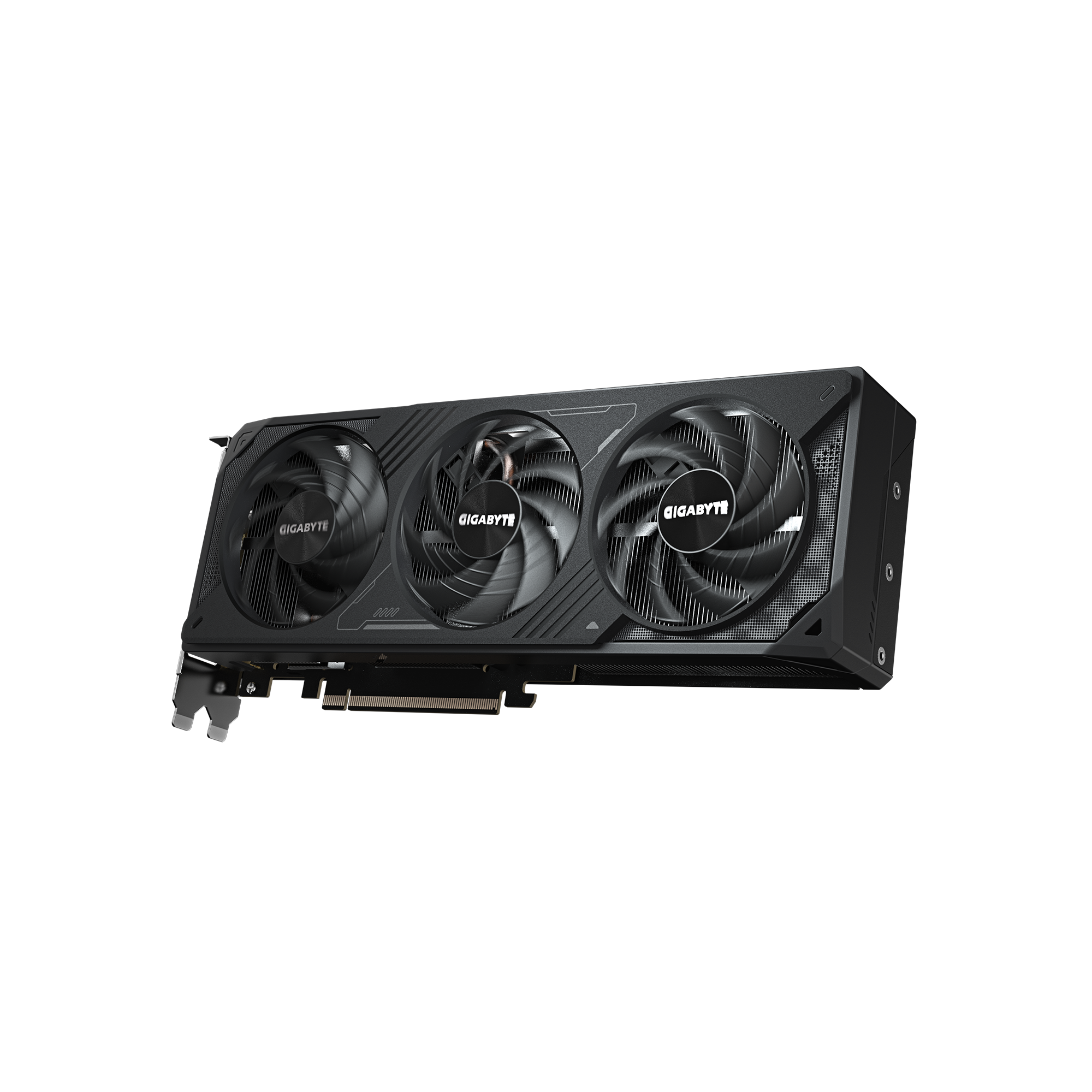

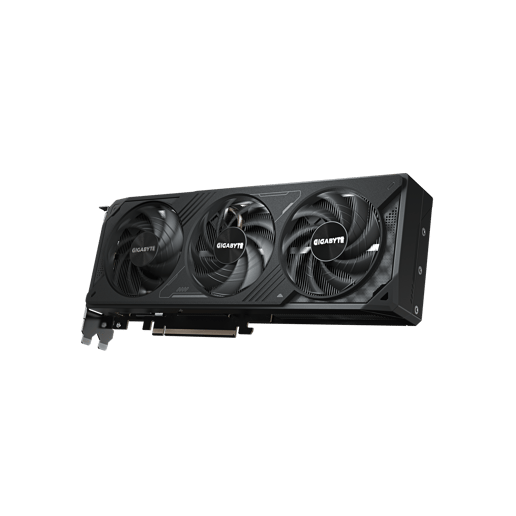

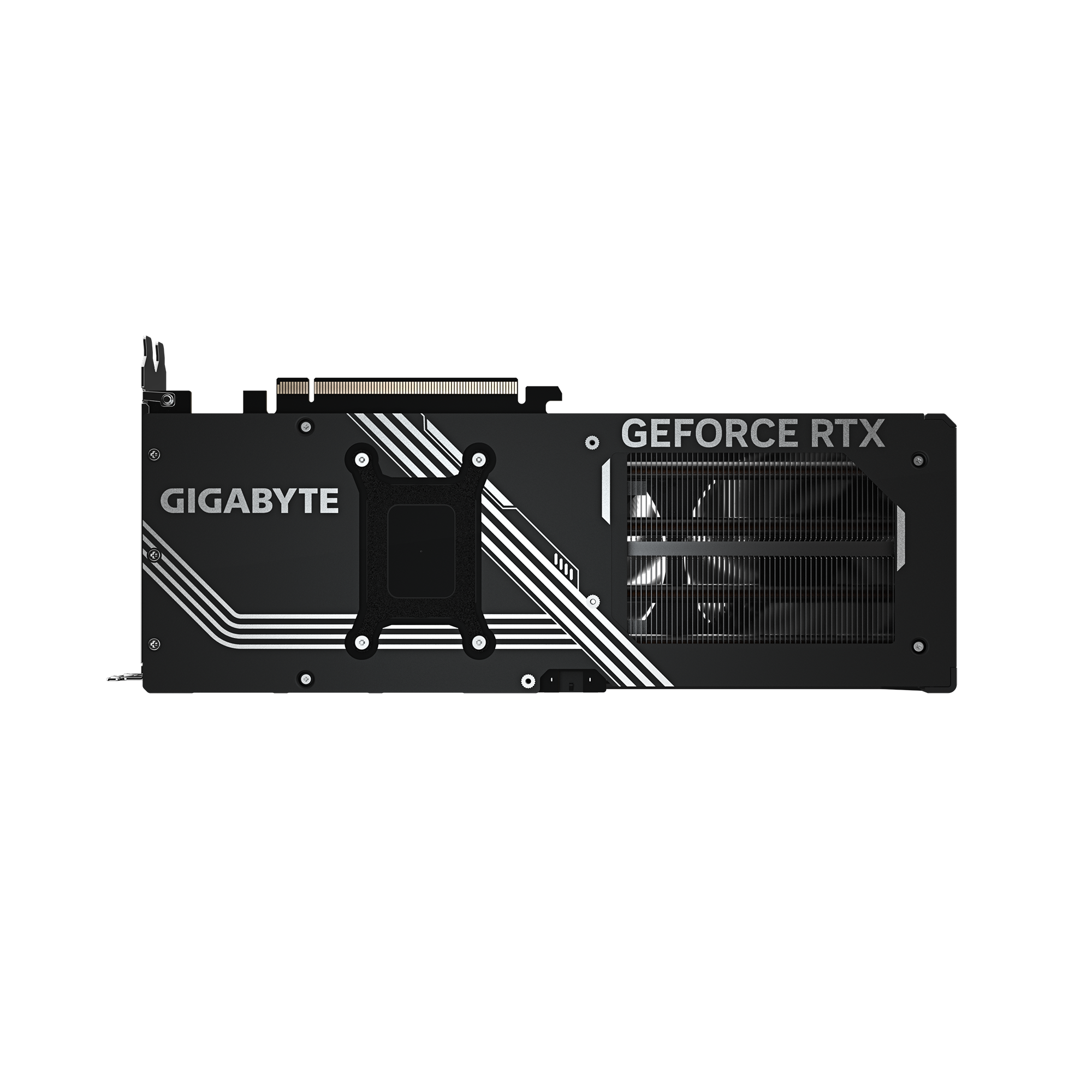

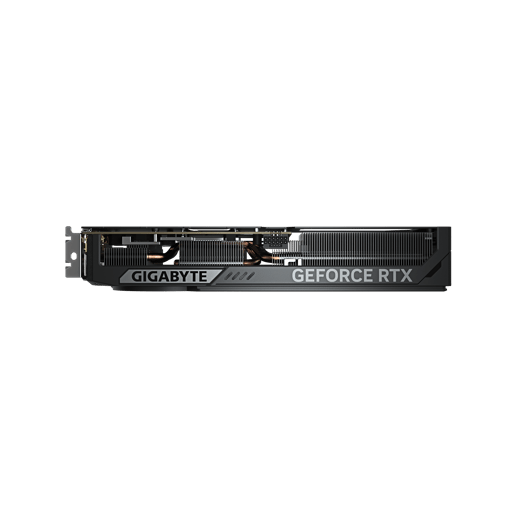

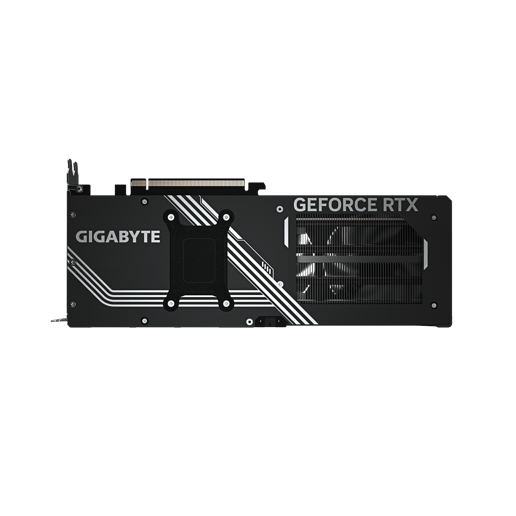

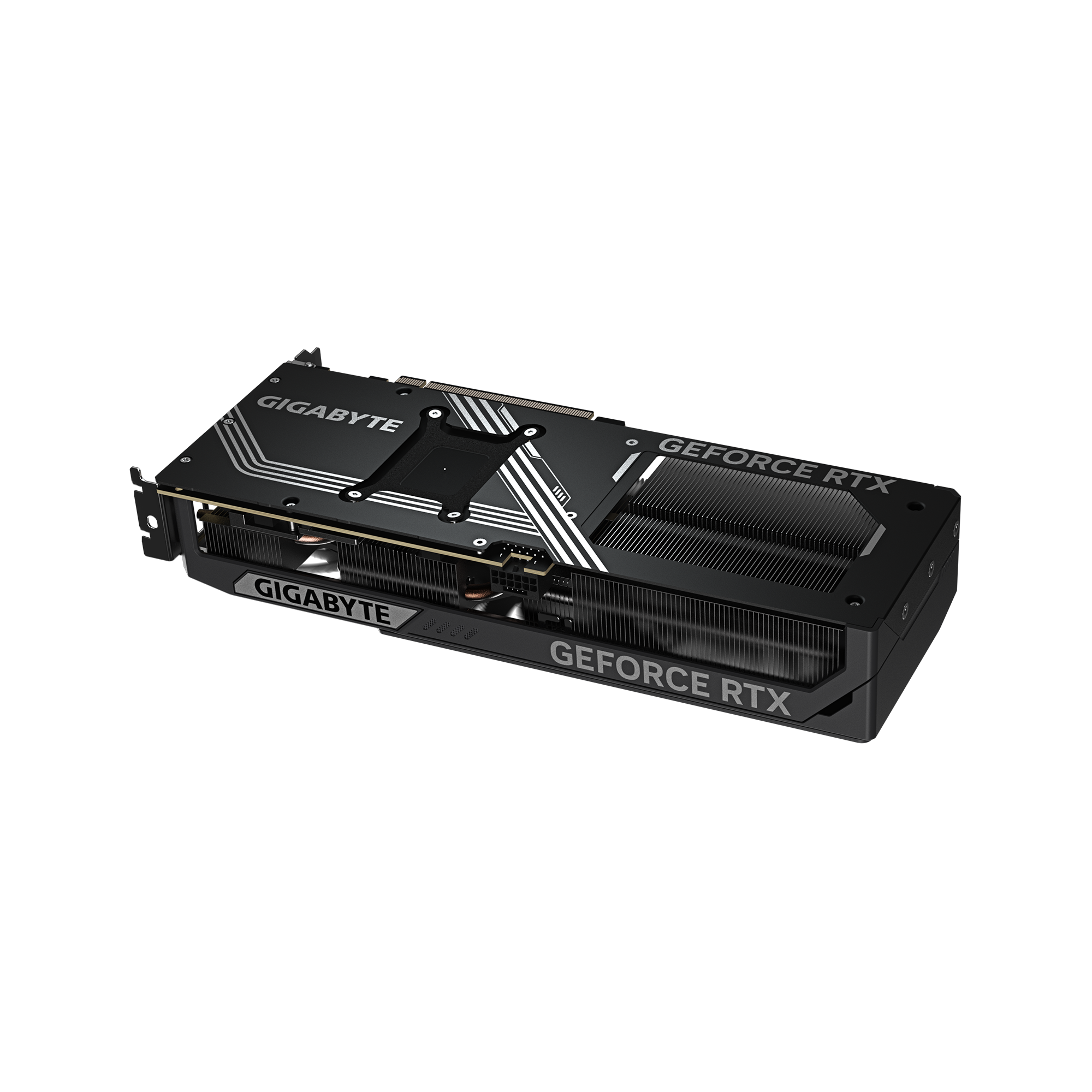

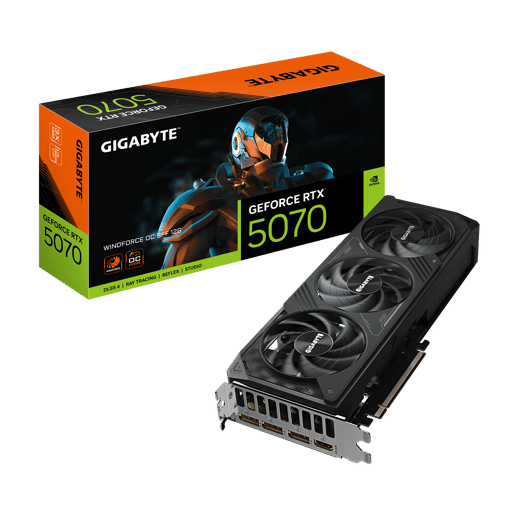

Gigabyte GeForce RTX 5070 WINDFORCE SFF OC 12GB GDDR7 Graphics Card

Compare

Gigabyte GeForce RTX 5070 WINDFORCE SFF OC 12GB GDDR7 Graphics Card

Name: Gigabyte GeForce RTX 5070 WINDFORCE SFF OC 12GB GDDR7 Graphics Card
Brand: Gigabyte
SKU: VGA7255
Price: 604.99 GBP
Availability: InStock

GV-N5070WF3OC-12GD

£604.99 inc VAT

Available for delivery from Monday 19th May

or Click & Collect from Tuesday 20th May

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

12GB GDDR7 Graphics Memory
PCI Express 5.0 x16 Interface
Overclocked Edition
Outputs - HDMI and Display Port

CCL Code: VGA7255

Overview

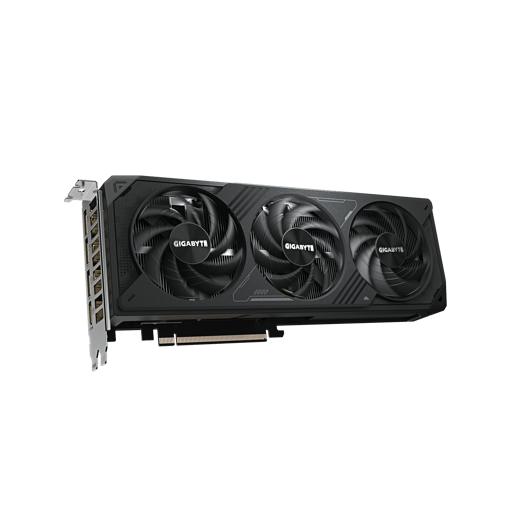

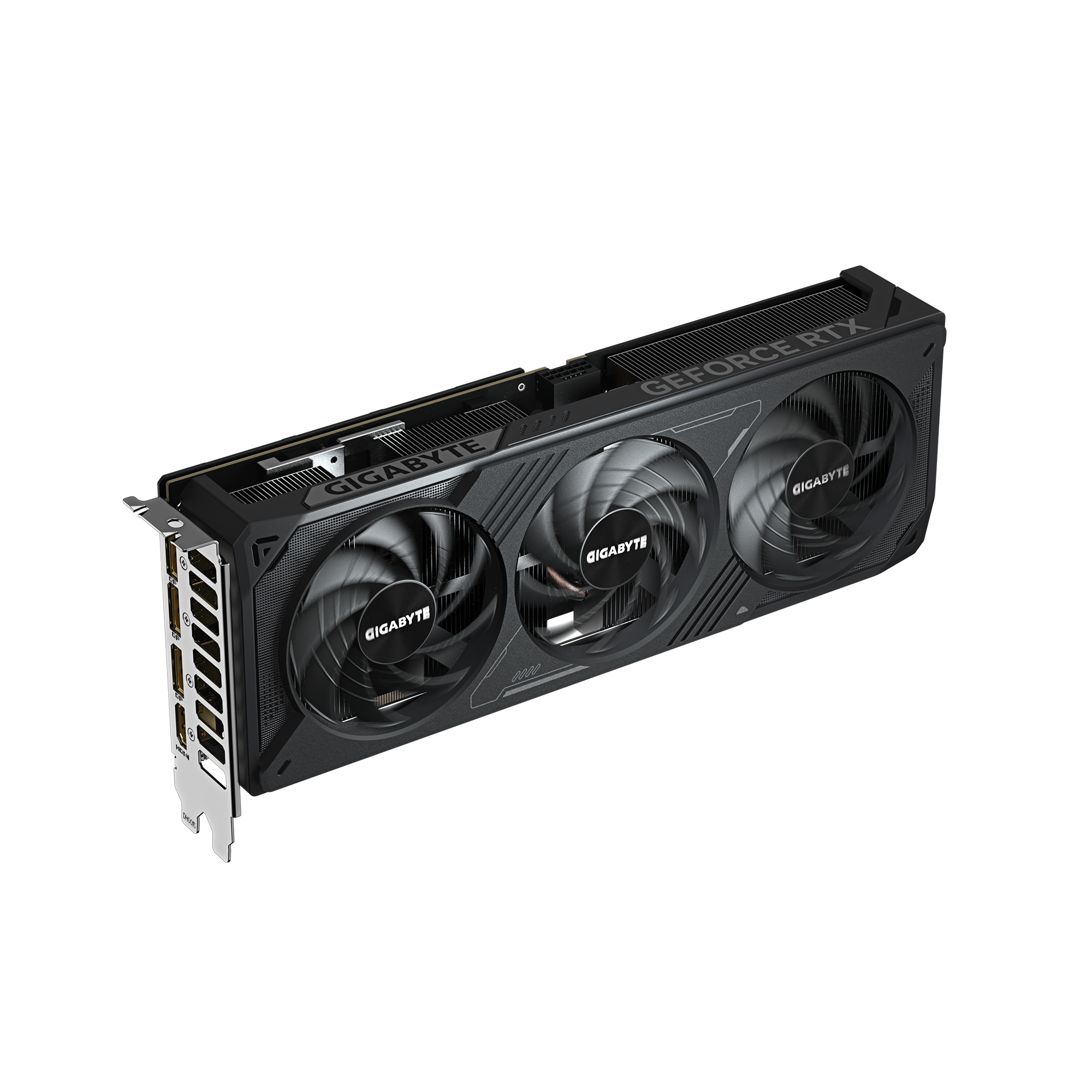

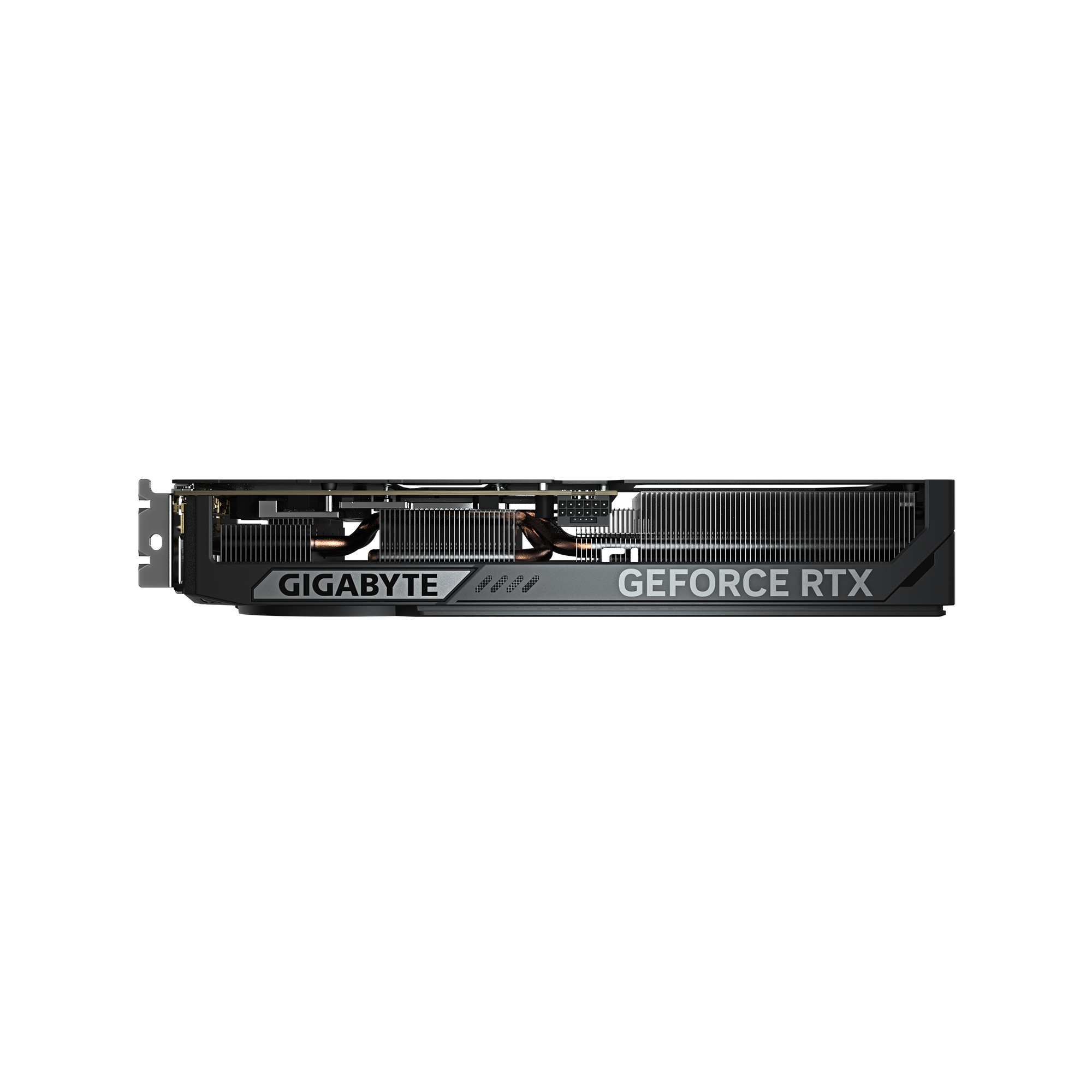

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Main Features

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070
Integrated with 12GB GDDR7 192bit memory interface
WINDFORCE cooling system
NVIDIA SFF-ready
Reinforced structure

Promotions

For a limited time, purchase a qualifying new GeForce RTX™ 5070 or higher graphics card and get DOOM: The Dark Ages Premium Edition from NVIDIA!

For more details on this promotion and to see all qualifying products, visit our promotion page! Terms & Conditions apply.

Promotional Period: From 2PM April 30^th 2025 till May 21^st 2025, while stocks last. Codes cannot be issued for orders placed before the start time/date of this promotion, regardless of the invoice date.

Redemption Period: Codes MUST be redeemed before June 20^th 2025 - they will expire after this time. CCL will not issue replacement codes.

Terms and conditions apply. Click here to view details.

Terms and Conditions

One code provided per order, regardless of item quantity or other promotional items. UK residents only. Offer available on qualifying new NVIDIA GeForce RTX™ 5070 or higher graphics cards or system with a NVIDIA GeForce RTX™ 5070 or higher graphics card installed. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. A link to retrieve your code will be sent to the e-mail address of the account used for purchase within 7 days of invoice. Offer is available on orders placed on CCLOnline.com - offer is not valid on orders placed over the telephone or via our eBay or Amazon stores. Codes expire on June 20^th 2025. NVIDIA's full Terms & Conditions can be found here.

Specifications

GPU

Chipset Manufacturer	NVIDIA
Chipset Model Name	GeForce RTX
Chipset Model Number	5070
Chipset Additional Information	WINDFORCE SFF OC
Base Chip Clock	2165 MHz
Graphics Core	CUDA
Number of Cores	6144

Memory

Memory Size	12288 MB
Memory Clock	28 Gbps
Memory Type	GDDR7
Memory Width	192 bit
Memory Bandwidth	672.2 GB/s

Interfaces/Ports

Video Card Bus Type	PCI Express
Video Card Bus Version	5.0 x16

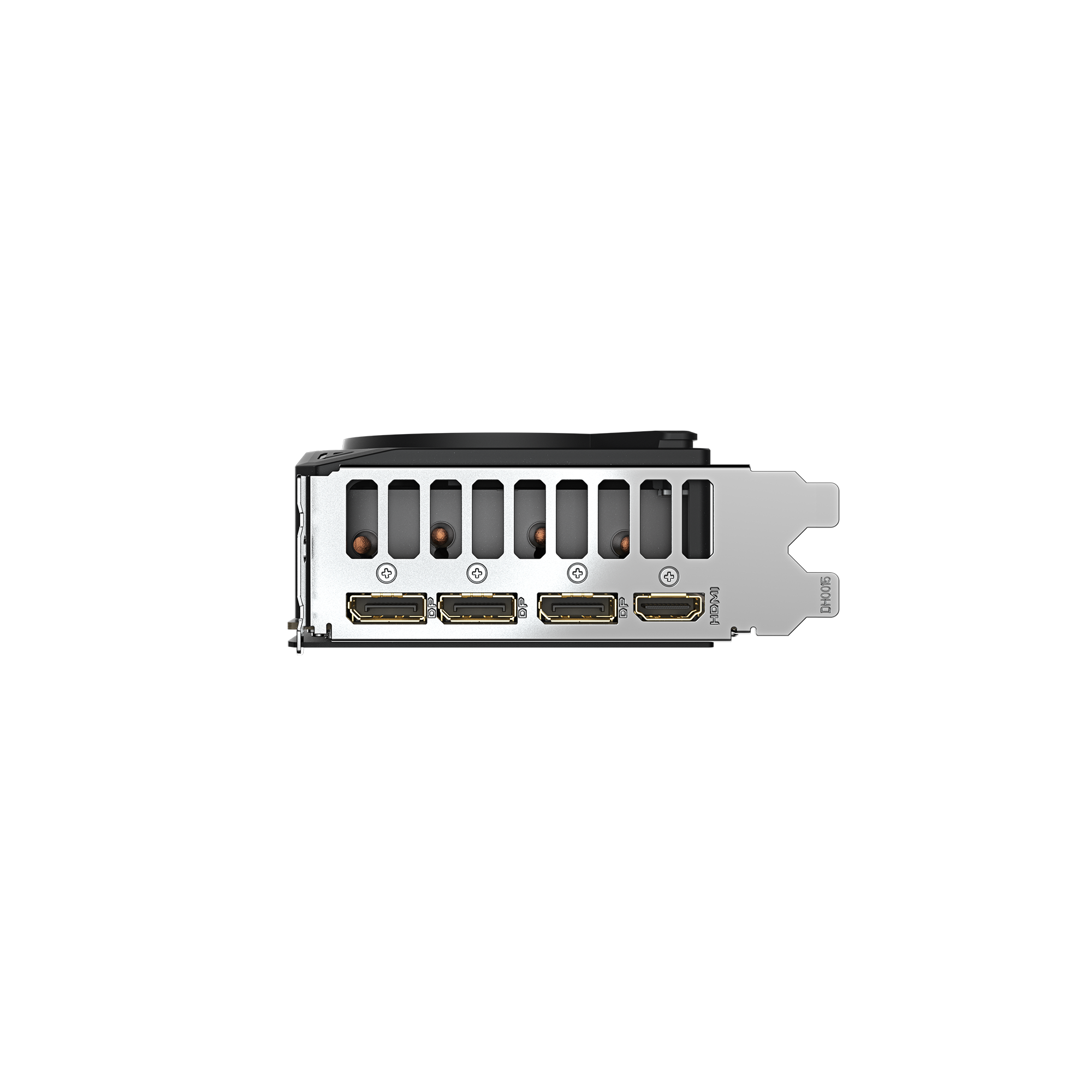

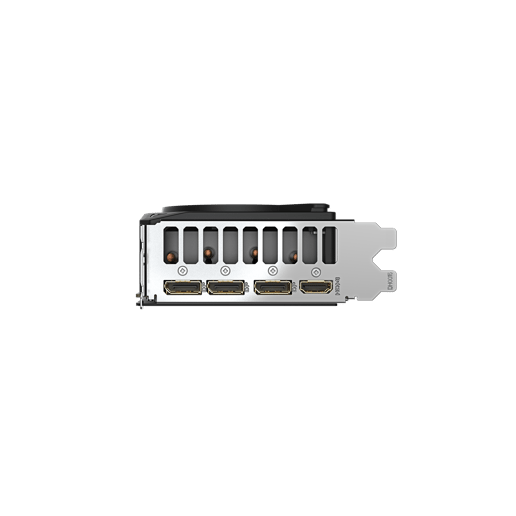

HDMI Port	1 x HDMI 2.1b
DisplayPort	3 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max)	Yes (4)
Maximum Resolution	7680 x 4320

System Requirements

1 x PCI Express 5.0 x16 slot

Electrical

Power Connector	1 x 12V-2x6 or 2 x 8-pin PCIe
Power Consumption	250 W
Recomended Power Supply	750 W

Physical

Form Factor	Graphics Card

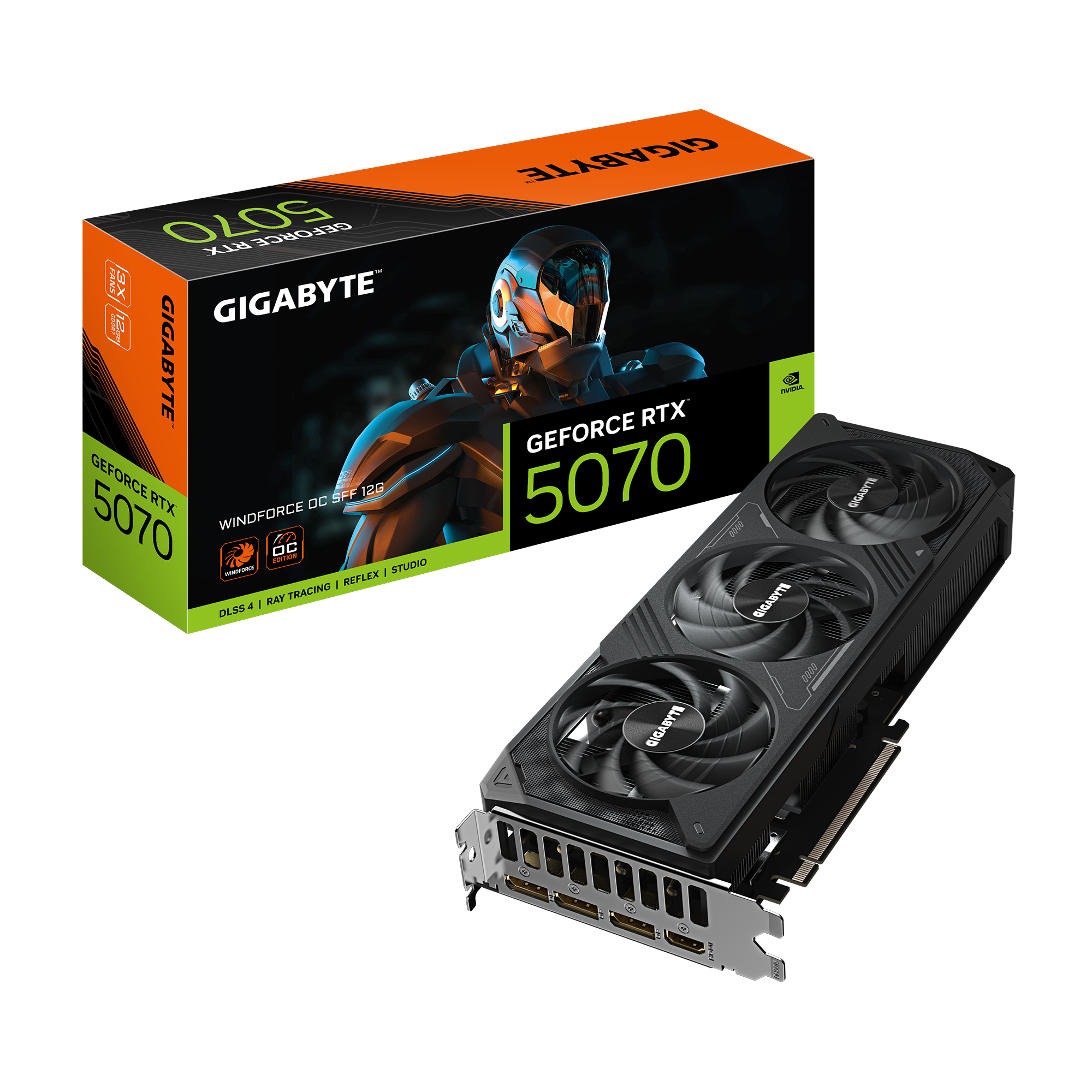

In The Box	Graphics Card Quick guide 1 x 12V-2x6 to 2 x 8-pin PCIe adapter
Width	50 mm (2.5 slot)
Depth	282 mm
Height	110 mm

Warranty

3 Years

Key Features

Interface Type	PCI Express 5.0 x16
Config Gaming x8 (CB/CCL)	No
Graphics Memory Type	GDDR7
Main Colour	Black
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
Graphics Usability	Gaming
DisplayPort Connection	Yes
Direct X Support	Direct X 12
Cooler Type	Dynamic Fan Inc. 0dB Mode
Low Profile	No
NVIDIA GeForce	RTX 5070
PCIe Pin Type	12+4-Pin (16-Pin)
Cooling Technology	Dynamic Fan Inc. 0dB Mode
VR Ready	NVIDIA
GPU Length	282 mm
Card Width	3
Power Requirement (auto)	250 W
GPU Power (TDP)	250 W
Graphics card count	1
PCI Express Power Pins (female)	16
PCIe Physical Slot required	16
12VHPWR 16-pin Connector	Yes
AI Ready	Yes
12V-2x6 Rating	300W
