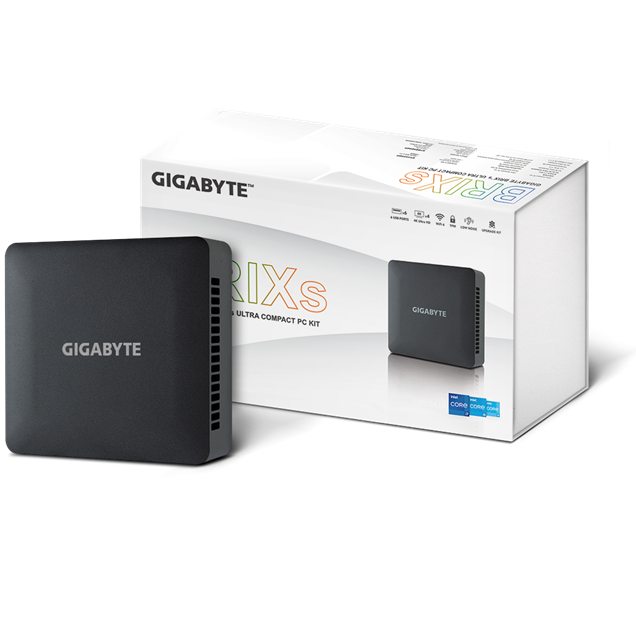

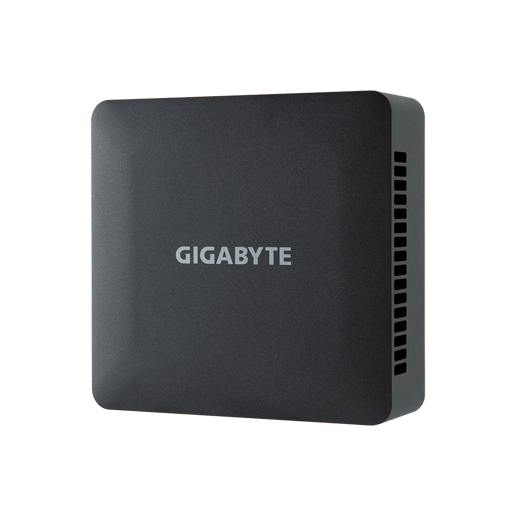

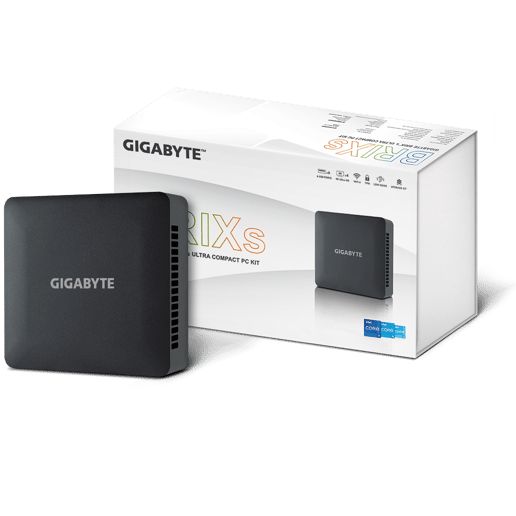

Gigabyte BRIX Barebone Kit with Intel Core i5-1335U CPU

Gigabyte BRIX Barebone Kit with Intel Core i5-1335U CPU

CCL Code: BRB0741

Sold out

Notify Me

Gigabyte BRIX Barebone Kit with Intel Core i5-1335U CPU

GB-BRI5H-1335

Key Features:

  • 2 x USB 3.2 Gen2, 2 x USB 2.0 Ports
  • Low Noise
  • VESA Support
CCL Code: BRB0741

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Processor:

Overview

Upgrade to the future

The most recent generation of mainstream BRIX products adopts an all-new chassis design. Computing performance has increased, but the design does not require an increase in the size of the chassis. Its appearance has curved, soft, and twisted lines with a liveliness that makes it very unobtrusive.

By the way it was assembled and layered, and designing oblique angles around the base, a sense of simplicity is created to achieve a lightweight design. This allows users to enjoy ultimate computing performance while also having a stylish and elegant product.

GIGABYTE BRIX™S With Intel® Core™ Processors - Uncompromised Performance

With 13th Gen Intel® Core™ Processors, Intel advanced its hybrid design and made it even better than our previous product with 10th Gen Intel® Processors. Faster Performance-cores means getting dedicated tasks done faster and easier. More Efficiency-cores means better multi-tasking.Great on-board graphics and best-in-class connectivity means a fully immersive experience and ultra-responsive wired and wireless connections.

Superior Low Noise

Thanks to the enhanced thermal and firmware designs, we can now present the updated 2023 BRIX as one of the lowest-noise mini PCs on the market. There are three levels of power plan settings in the BIOS (quiet, standard, and performance). Users can find a noise level suitable for all applications. In standby mode, the noise generated is 20 dB, and at 100% CPU load, 40 dB.

Delivering Superior Performance Where You Need It Most

You can save time and enhance the quality of your computing experience by utilizing built-in intelligence. Enjoy features like low noise operation while collaborating and automated text, image, and audio improvements while creating. In addition, enjoy system optimization for bandwidth and video resolution while gaming on the go.

The Perfect Solution for Windows 11 TPM 2.0 Support

Windows 11 is the latest operating system from Microsoft®, featuring dozens of exciting new functions and Android app support that effectively improve productivity, system security, and gaming performance. However, many users may be confused about whether they need TPM 2.0 support to upgrade to Windows 11. In fact, TPM 2.0 hardware is not a requirement to pass TPM 2.0 verification. GIGABYTE BRIX™ mini-PCs are not only known for our world-renowned durability but also for our leading role in product design, especially when it comes to TPM 2.0 support in the BIOS. Many GIGABYTE Intel® and AMD BRIX™ Mini PCs can pass TPM 2.0 verification for Windows 11 simply by enabling the TPM-related function in the BIOS. Intel-based chipset (12th /11th/10th Gen Core i processor) and above platforms will feature firmware-based fTPM function, while AMD models will load with a hardware TPM chip. With this advanced BIOS setting, GIGABYTE BRIX™ mini-PCs can pass TPM 2.0 verification for Windows 11, preventing TPM 2.0 support from becoming an issue for users during system upgrades.

Main Features

  • Elegant design with enhanced computing power
  • 13th Gen Intel Core i5-1335U Processor
  • Intel Iris Xe Graphics, 96EU, 1.25GHz
  • Super Fast 2.5G LAN + Wi-Fi 6 Module
  • 4 x 4K Module - 2 x HDMI 2.1 and 2 x USB Type C with DP alt mode
  • 2 x USB 3.2 Gen2, 2 x USB 2.0 Ports
  • Low Noise
  • VESA Support
Specifications

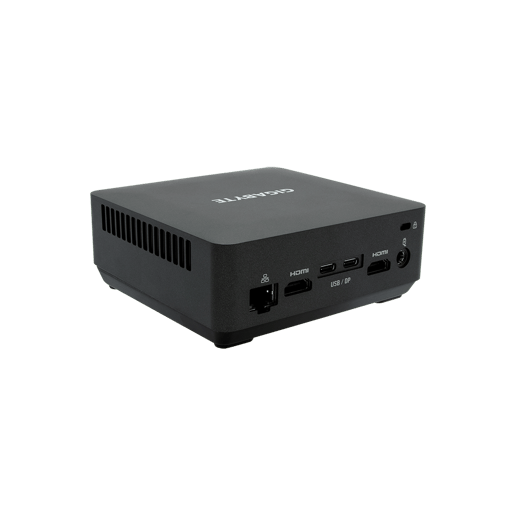

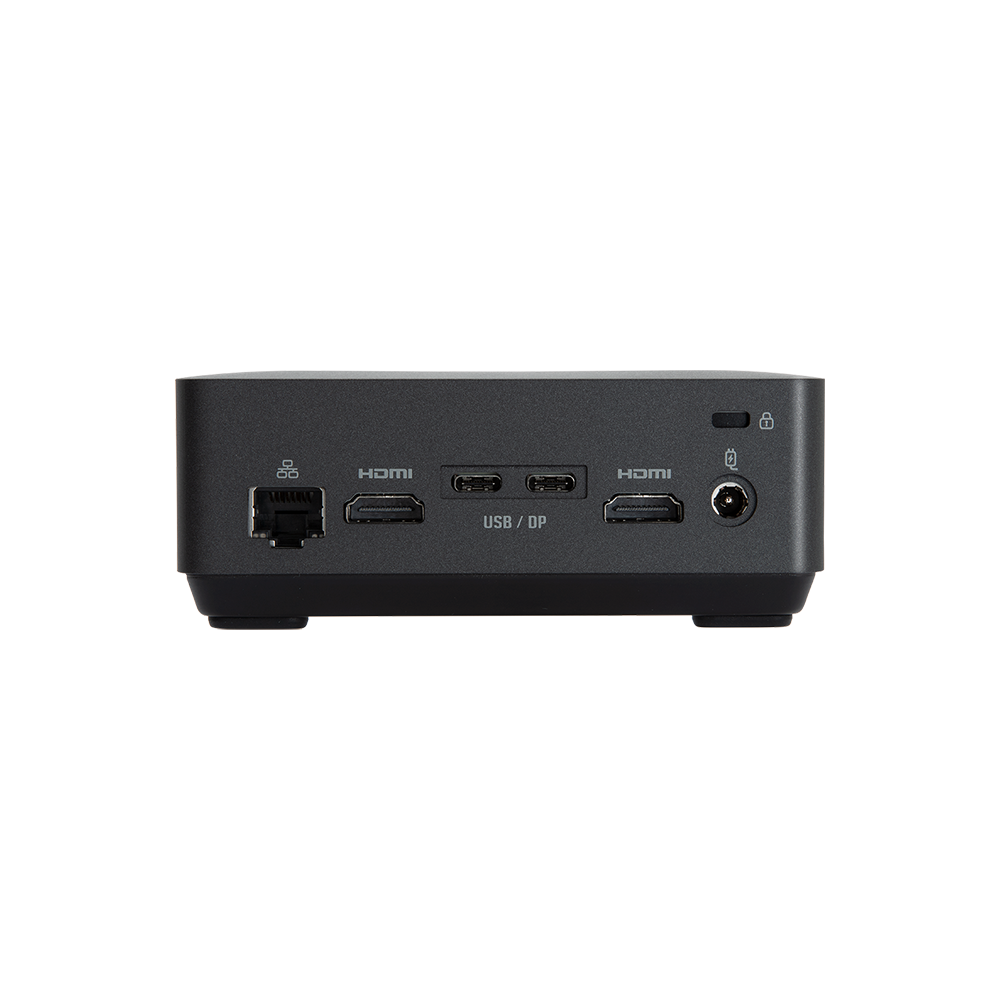

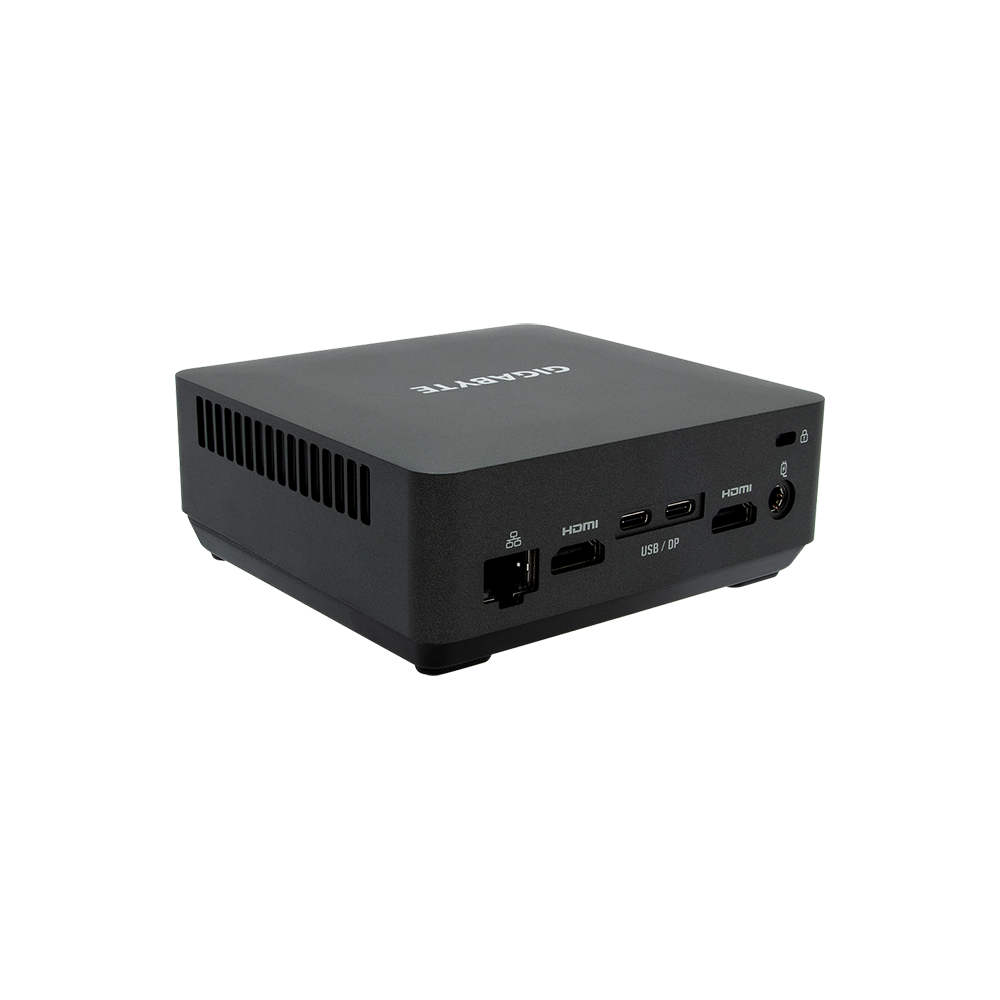

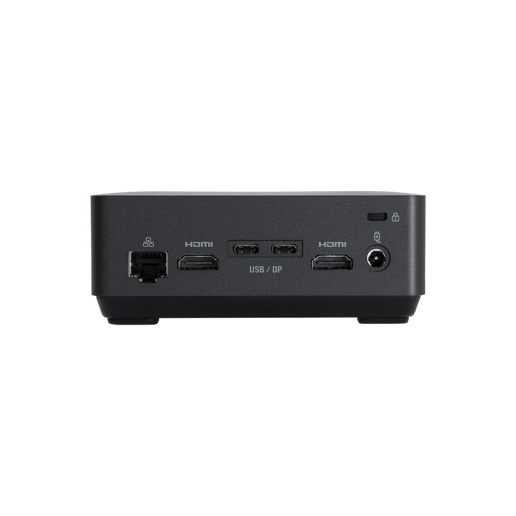

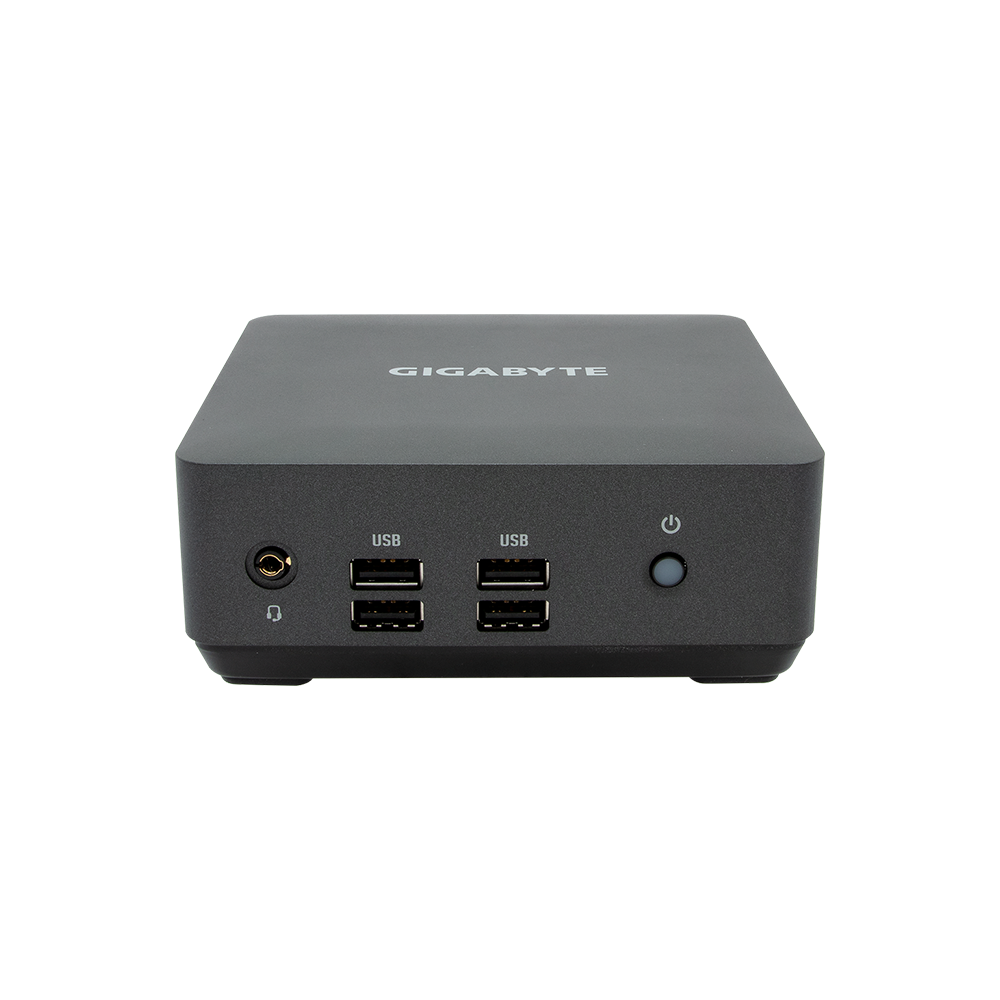

Rear Panel I/O Ports

Microphone In Port 1 x 3.5mm COMBO Jack
Audio Line Out Ports Shared with Microphone
USB Ports 2 x USB-C 3.1
2 x USB 3.1
2 x USB 2.0
RJ-45 Ports 1 x RJ-45
HDMI Port 1 x HDMI 2.1
DisplayPorts Yes - via USB-C DP Alt

Sound

Integrated Sound Yes

Physical

Width 120 mm
Depth 124 mm
Height 49.7 mm
Case Colour Black

Electrical

Voltage 19.5 V
Power Supply Yes
Power 135 W

CPU

CPU Family Intel Core i5
Processor Number 1335U
CPU Speed 1.3 GHz
L3 Cache 12 MB
Installed Processors (Max) 1 (1)
Number of Cores 10
Number of Threads 12 threads
CPU Base Speed 2.5 GHz
CPU Type Intel Core i5
CPU Manufacturer Intel
CPU Cores Ten Core
CPU Brand Intel
CPU Base TDP 15 W
CPU Threads 12
CPU Boost Speed 4.6 GHz

Memory

Maximum RAM 64 GB
Memory Bus Speed 3200 MHz
Memory Type DDR4
Maximum Memory Size 64 GB

Network

Integrated Network Yes
Wireless LAN Yes - Wi-Fi 6

Graphics Device

Graphics Chipset Manufacturer Intel
Graphics Chipset Model Name Iris Xe
Graphics Chipset Intel Iris Xe

Key Features

ECC Memory Supported No
ECC Memory Required No
Integrated Graphics Supported Yes
SATA Supported Yes
RDIMM Memory Supported No
RDIMM Memory Required No
Maximum Number of CPUs 1
Wireless Network Yes
Motherboard Width 999 mm
Motherboard Height 999 mm
mSATA Supported No
U.2 Supported No
Case Type SFF
Memory Channel Dual
On-board Audio Type 5.1
Number of SATA Ports 1 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
Case Form Factor SFF
Power Supply Included Yes
Motherboard Form Factor Other
Max 2.5" Drives 1
WiFi Speed 2400 Mbps
Graphics Card Count 1
Wireless Adapter Type Internal
Microsoft Processor List C
Total 2.5" + 3.5" drive bays 1
Graphics card count 1
Cooler count 1
Total M.2 Slots 1
Processor count 1

Graphics

Graphics Chipset Intel Iris Xe
IGP/APU Graphics Intel Iris Xe

Warranty

Warranty 1 Years

Item Details

Manufacturer Gigabyte
Manufacturer Code GB-BRI5H-1335
EAN 4719331602116
Condition New
Warranty

Warranty Information

Warranty 1 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code GB-BRI5H-1335
