NZXT H6 Flow Mid Tower Case - Black

NZXT H6 Flow Mid Tower Case - Black

CCL Code: CAS4824

Discontinued

  • NZXT H6 Flow Mid Tower Case - Black
  • NZXT H6 Flow Mid Tower Case - Black
  • NZXT H6 Flow Mid Tower Case - Black
  • NZXT H6 Flow Mid Tower Case - Black
  • NZXT H6 Flow Mid Tower Case - Black
  • NZXT H6 Flow Mid Tower Case - Black
  • NZXT H6 Flow Mid Tower Case - Black
  • NZXT H6 Flow Mid Tower Case - Black
  • NZXT H6 Flow Mid Tower Case - Black
  • NZXT H6 Flow Mid Tower Case - Black

Compact Dual-Chamber Mid-Tower Airflow Case

Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.

NZXT H6 Flow Mid Tower Case - Black

CC-H61FB-01

Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.

Key Features:

  • Max Motherboard Size: ATX
  • Tempered Glass Side
  • 3 x 3-pin DC Fan(s)
  • Front USB Type-C Port
  • 2 x 2.5" / 1 x 3.5" Bay(s)
  • PSU Not Included
CCL Code: CAS4824

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

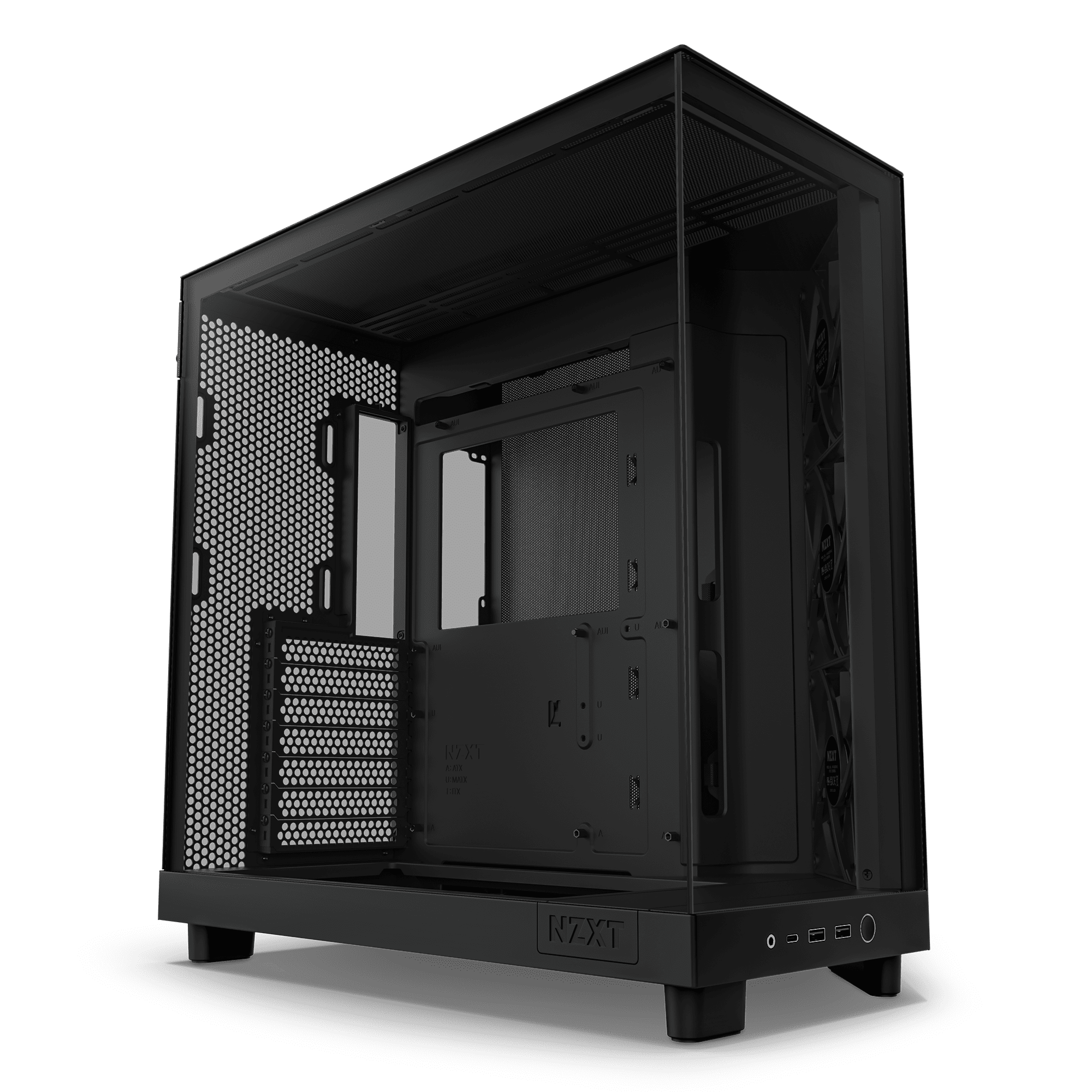

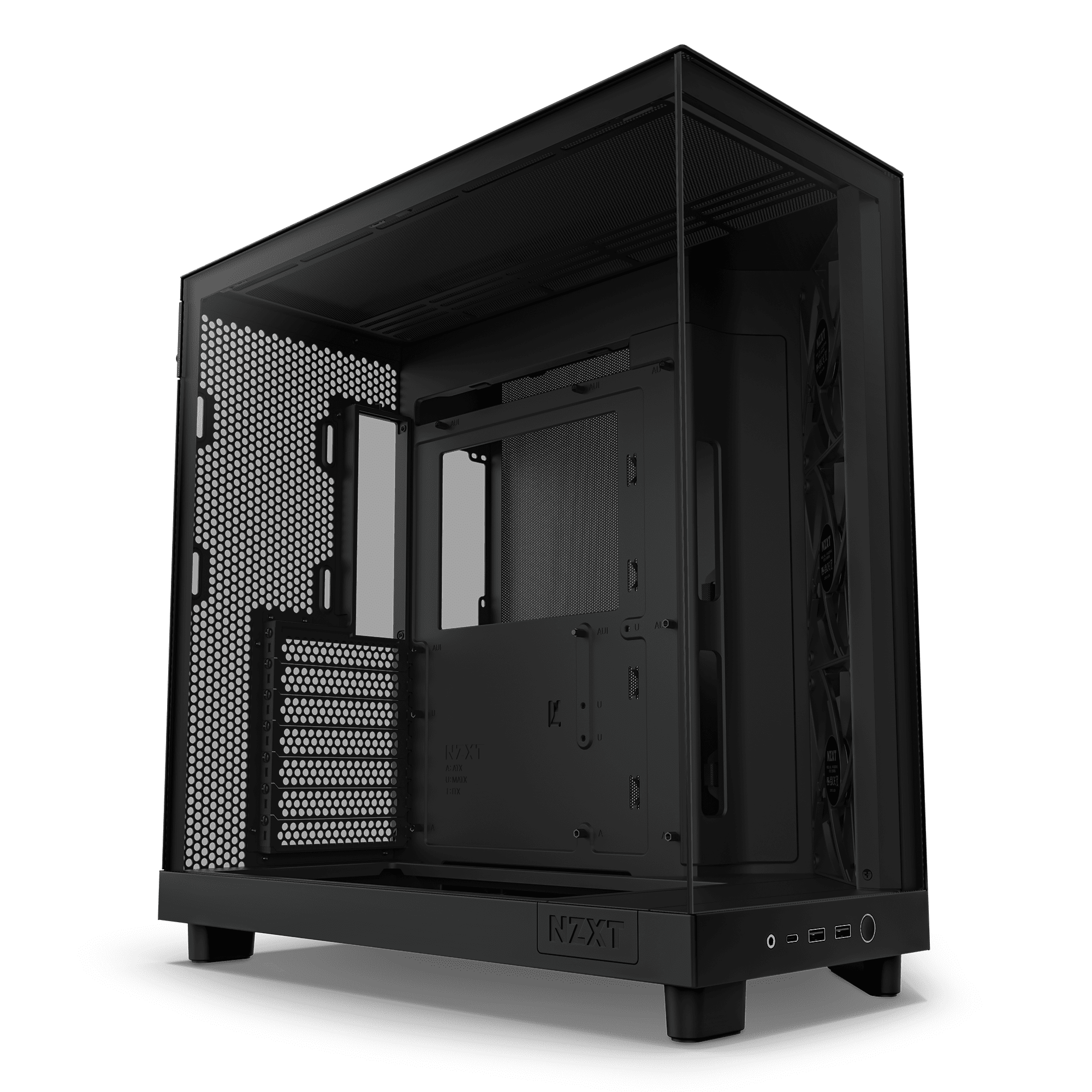

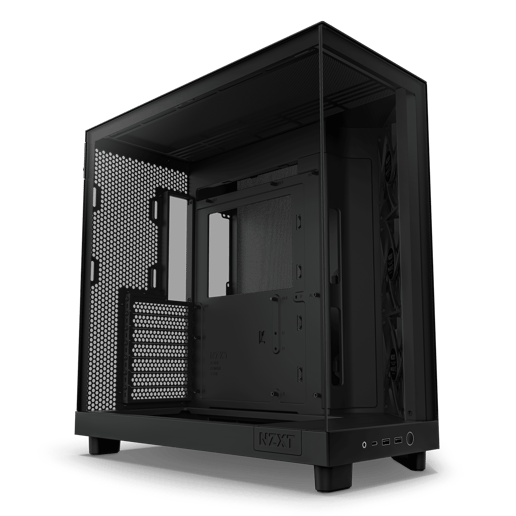

Panoramic Paneling

Wraparound glass provides an unobstructed view of the inside.

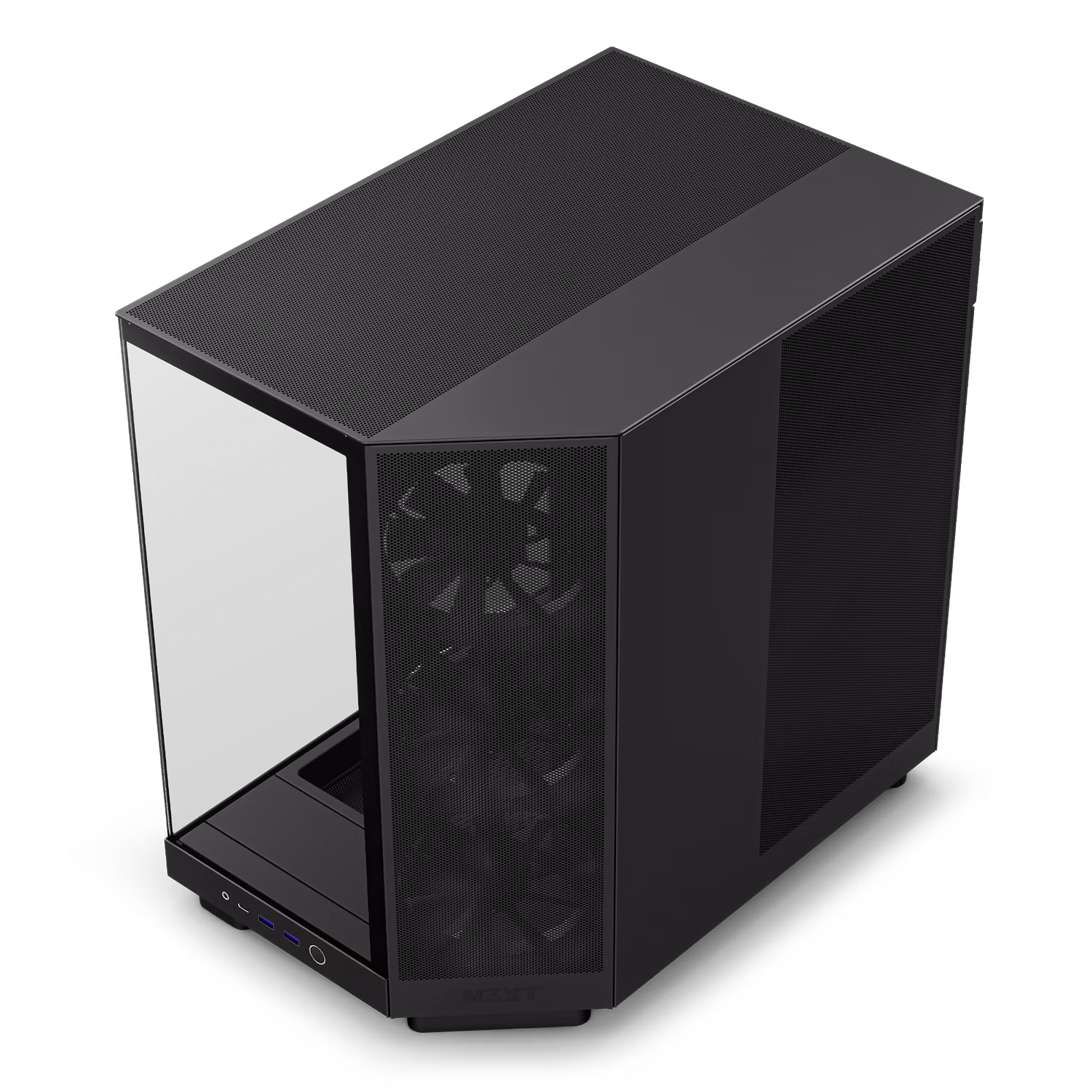

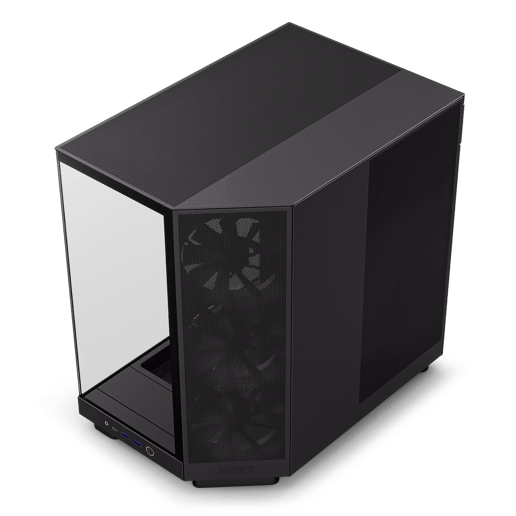

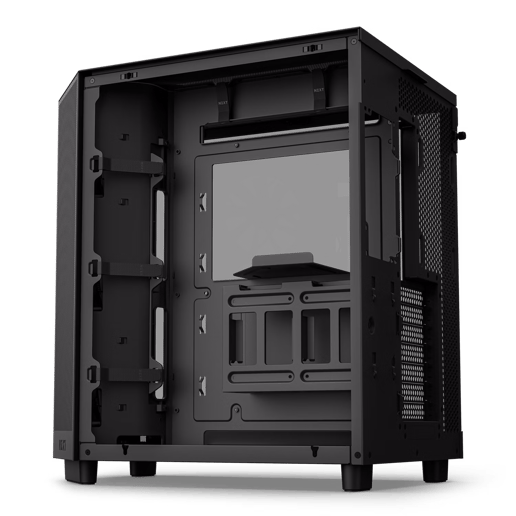

Compact Dual-Chamber

Improves cooling performance and creates an uncrowded aesthetic.

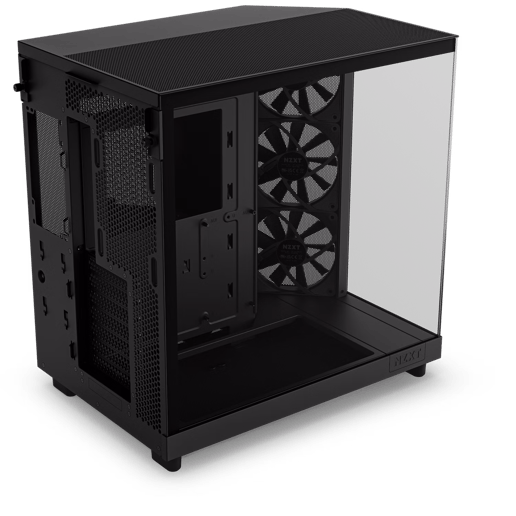

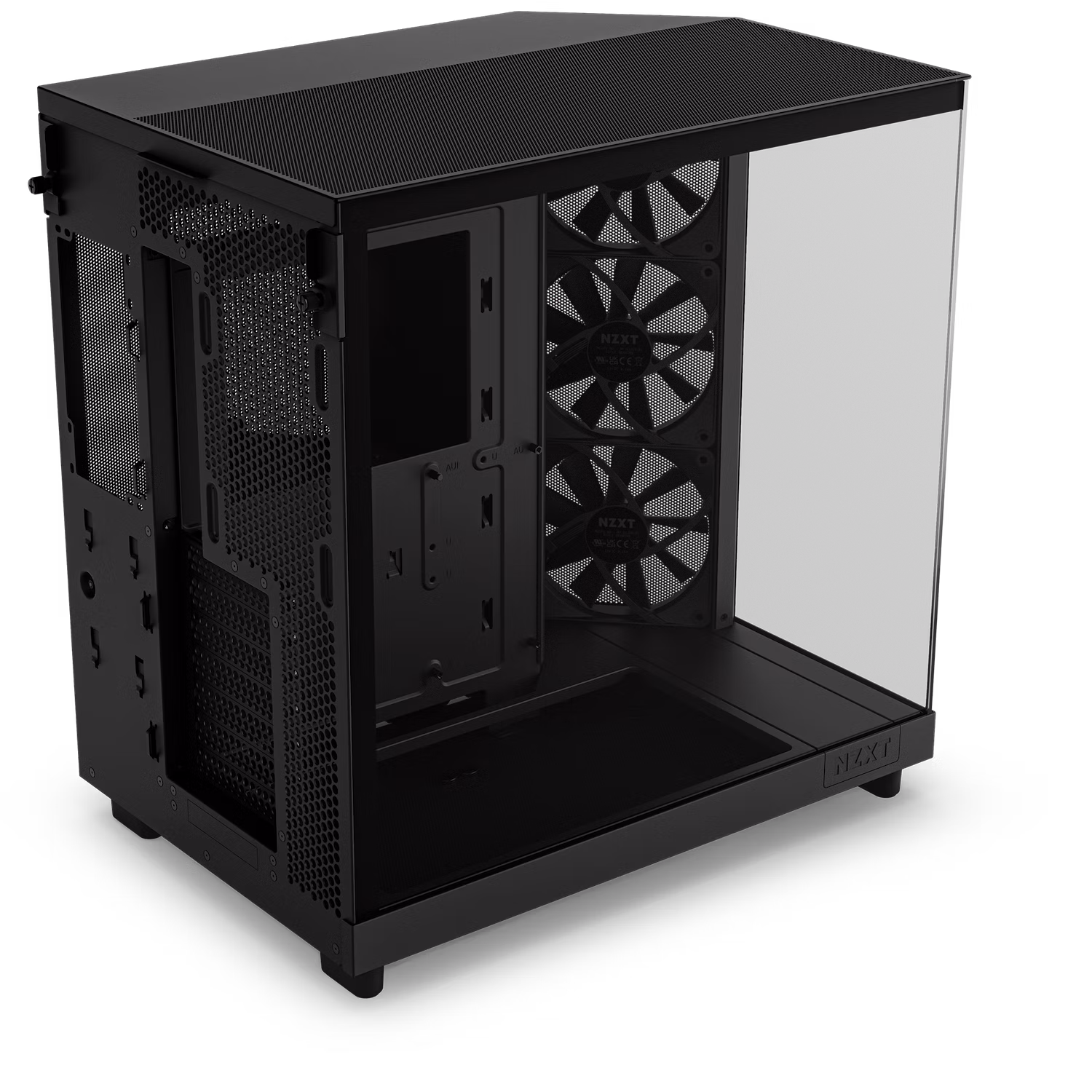

Out-of-the-Box Cooling

3 x 120mm fans are angled for optimal out-of-the-box cooling.

High Performance Airflow

Perforation pattern on the panels is optimized for maximum airflow.

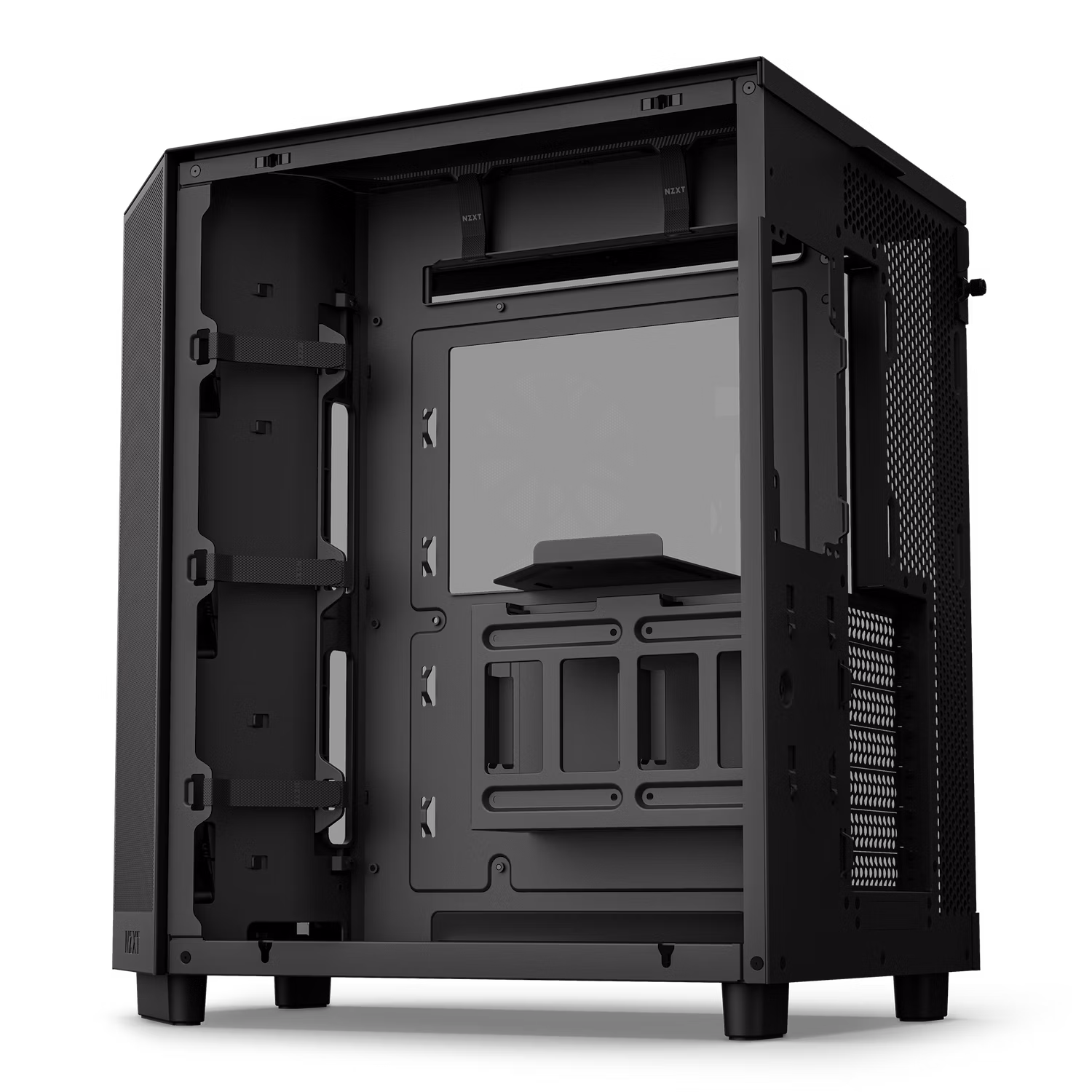

Cable Management

Easily manage cables with the wide channels and included straps.

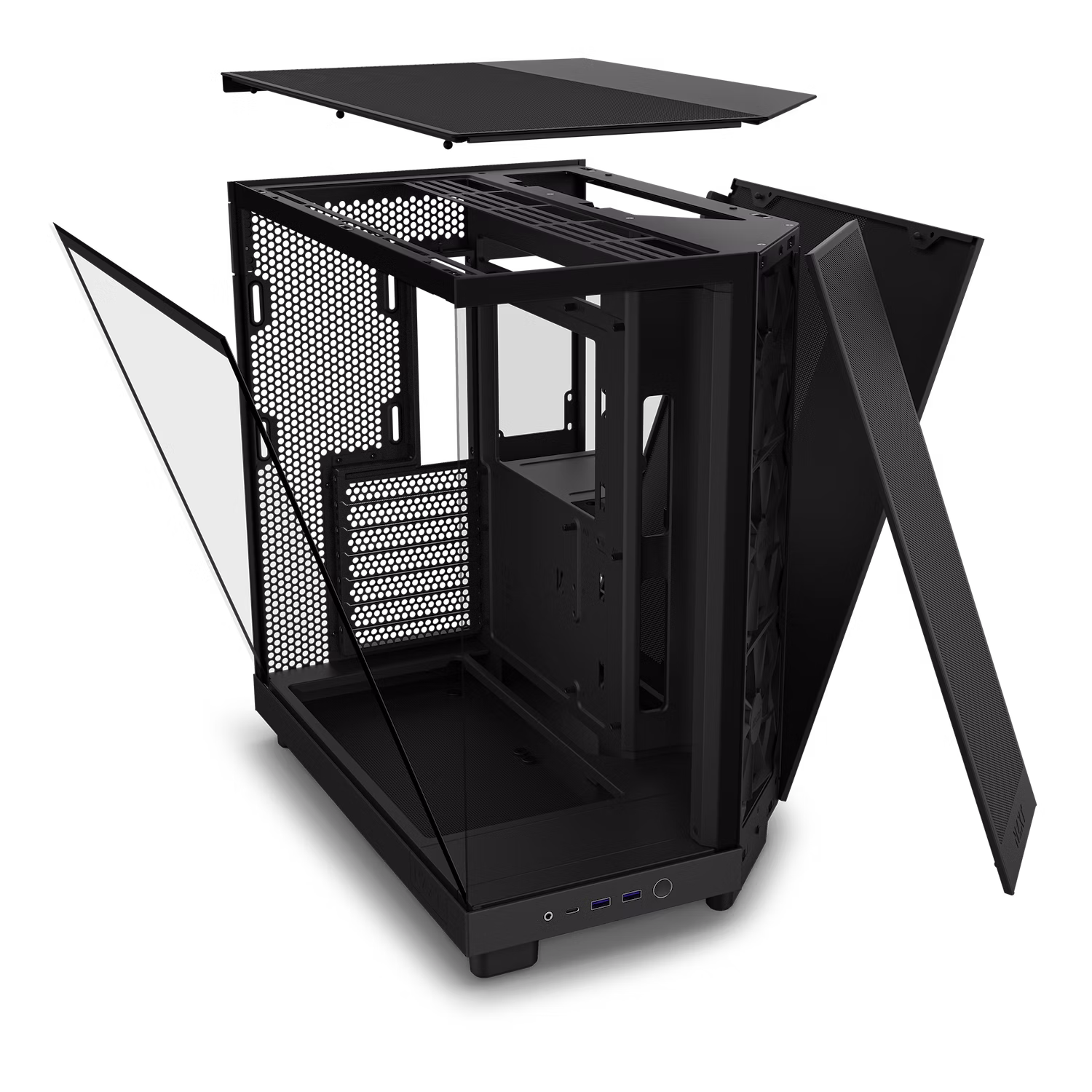

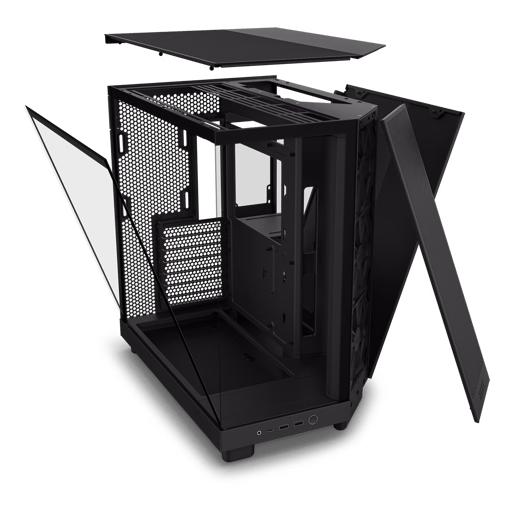

Tool-Free Entry

Access the top and side panels without tools for quick upgrades.

Spacious Support

Up to a 360mm radiator in the top and clearance for a 365mm GPU.

Main Features

  • Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
  • Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
  • Includes three pre-installed 120mm fans positioned at an ideal angle for superb out-of-the-box cooling.
  • The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
  • An intuitive cable management system simplifies the build process by using wide channels and straps.
  • Tool-free access to the top and side panels makes upgrading quick and convenient.
  • Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance.
Videos

NZXT H6 Flow

Experience performance from a fresh perspective. The new #NZXT H6 Flow's innovative compact design emphasizes GPU cooling with a strategically angled front corner, so the fans direct air where it's most needed. Features include: ? Compact Dual-Chamber Design ? Out-of-the-Box Cooling ? Panoramic Paneling ? And More!

Specifications

Storage

Internal Expansion Bays 2 x 2.5"
1 x 3.5"

Expansion

Expansion Slots 7 x Full Height

Interfaces/Ports

USB Ports 1 x USB-C 3.1
2 x USB 3.0
Headphone Ports 1 x 3.5mm COMBO Jack
Microphone In Port Shared with Headphone

Electrical

Cooling System Right: Supports 3 x 120mm fans (included)
Top: Supports 2 x 140mm or 3 x 120mm fans
Bottom: Supports 2 x 140mm fans
Rear: Supports 1 x 120mm fan
Power Supply ATX Power Supply supported

Warranty

Warranty 2 Years

Physical

Form Factor Mid Tower Case
Case Colour Black
Material SGCC Steel
Dark Tinted Tempered Glass
Motherboard Compatibility ATX
Micro-ATX
Mini-ITX
In The Box H6 Flow
Installation Accessories
User Guide
Width 287 mm
Depth 415 mm
Height 435 mm
Weight 9.4 kg

Key Features

Max Motherboard Width 244 mm
Max Motherboard Height 305 mm
Main Colour Black
Case Type Tower
Case Form Factor Mid Tower
Power Supply Included No
80Plus Rated No
PSU Form Factor ATX
Illuminated No
L.E.D Fan No LED
Max 3.5" Drives 1
Max 2.5" Drives 2
ATX Yes
Micro-ATX Yes
ITX Yes
E-ATX No
Cooler Height 163 mm
Built-in Card Reader No
USB Type-C Support Yes
Side Panel Type Tempered Glass
GPU Length 365 mm
PSU Depth 200 mm
Number of Fans 3 fan(s)
RGB LED Controller Included No
LED Strip(s) Included No
Fan Connector 3-pin DC
Maximum Motherboard Size Supported ATX
RGB Software Type None
Total 2.5" + 3.5" drive bays 3
Power Requirement (auto) 9 W
USB3.0 ports 2
USB-C ports 1
Low profile expansion No
Vinyl Position - Top No
Vinyl Position - Front Yes
Vinyl Position - Left Yes
Vinyl Position - Right No
Max Supported Radiator Length 360 mm

Item Details

Manufacturer NZXT
Manufacturer Code CC-H61FB-01
EAN 5056547204055
Condition New
Warranty

Warranty Information

Warranty 2 Years

Manufacturer Information

Manufacturer NZXT
Manufacturer Code CC-H61FB-01
