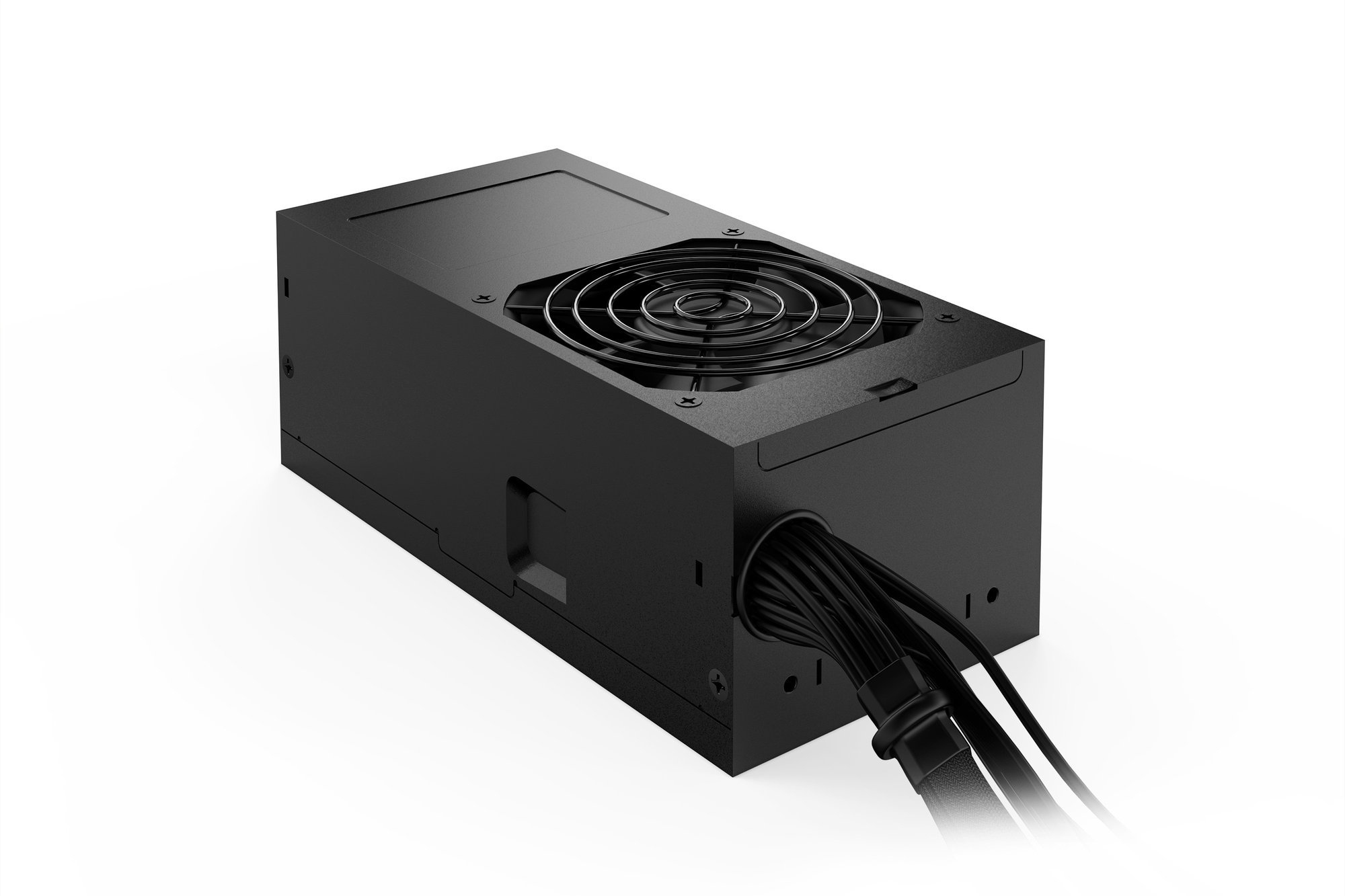

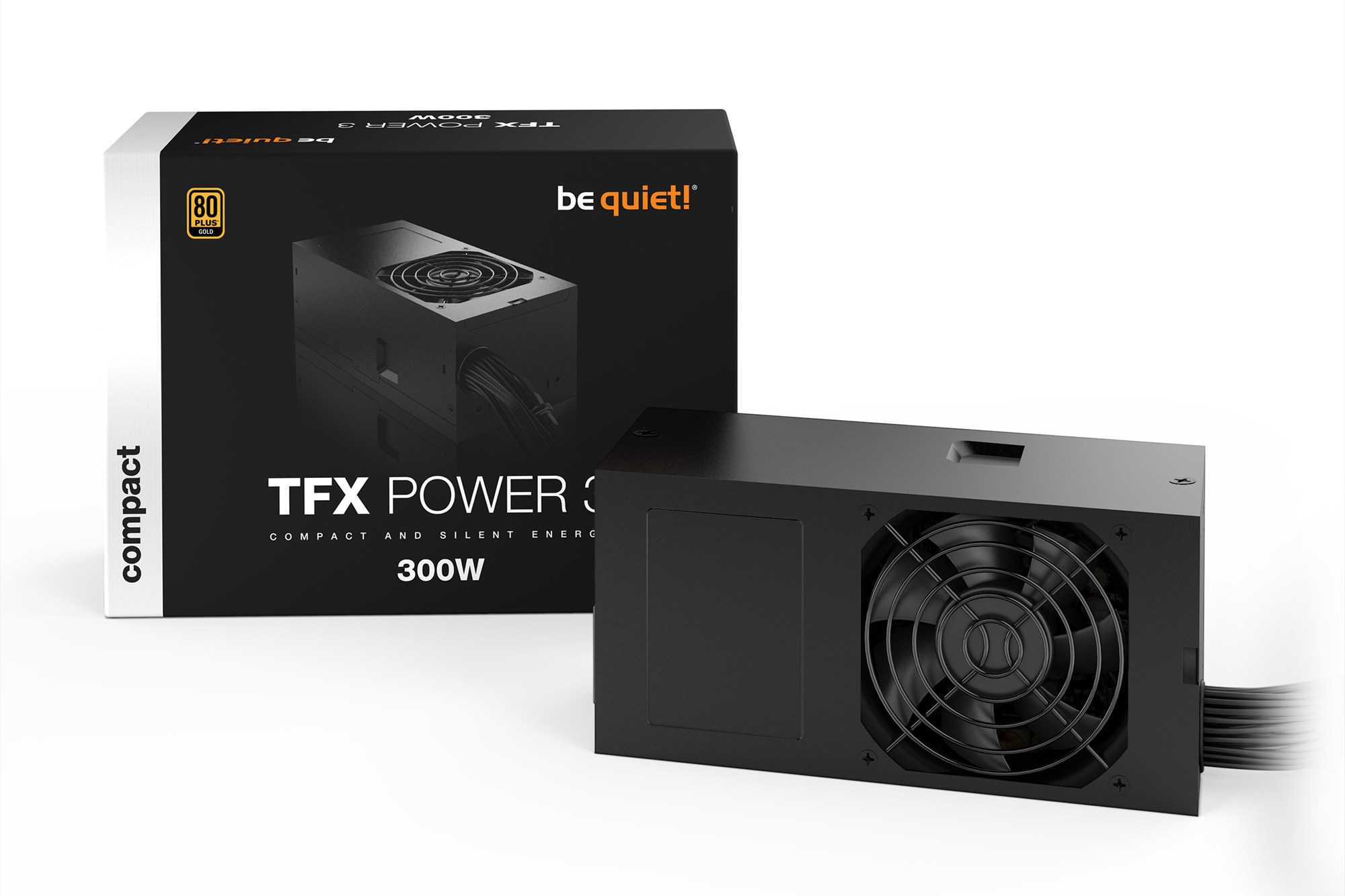

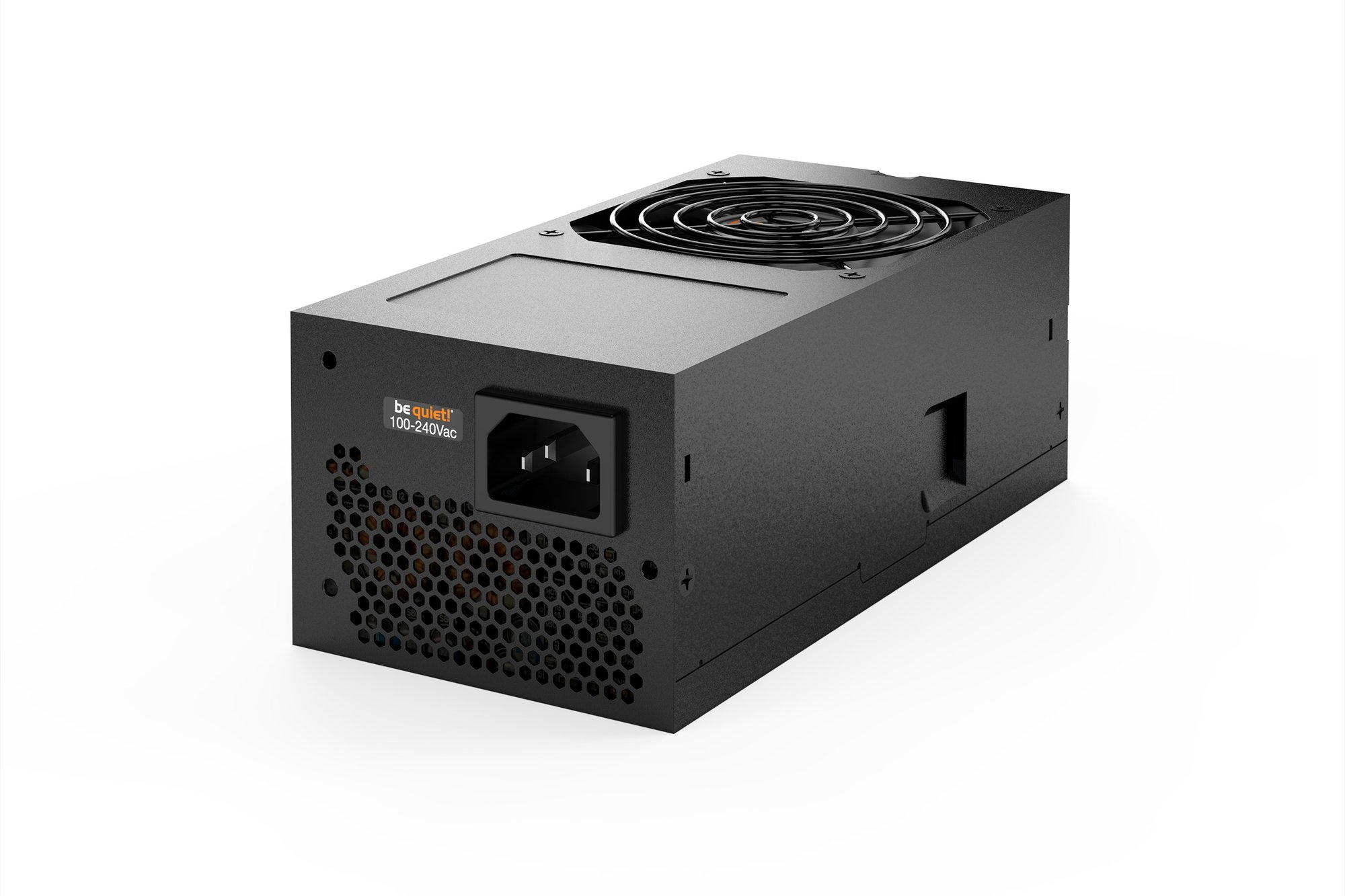

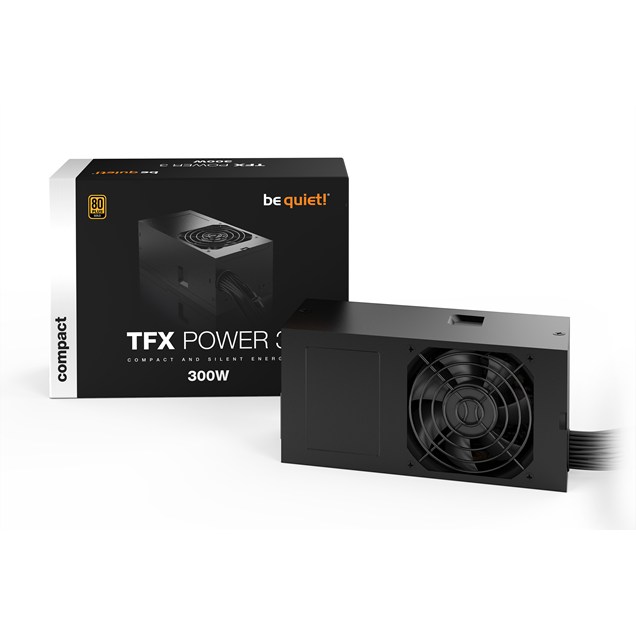

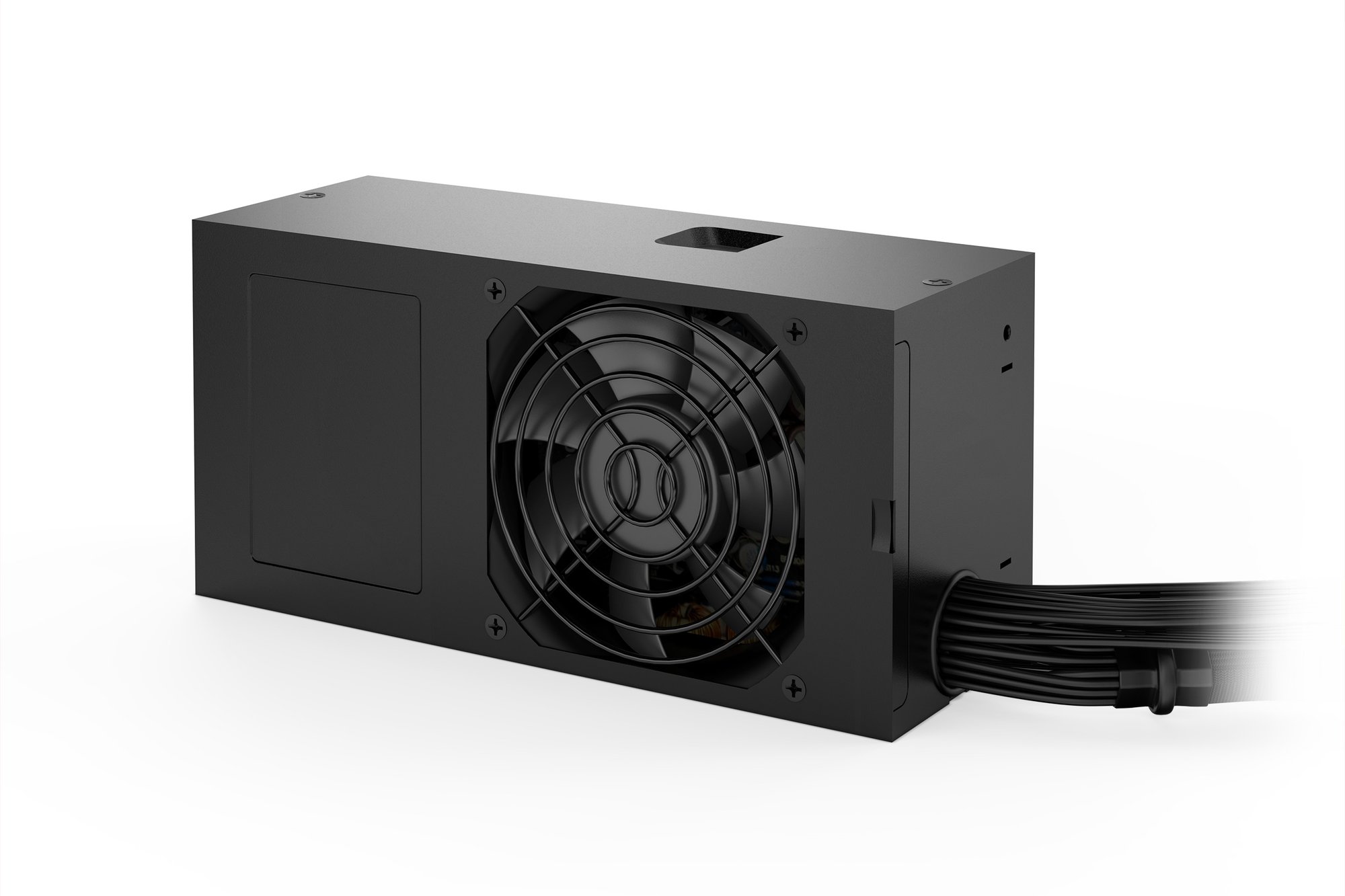

300W Be Quiet! TFX Power 3 80 Plus Gold PSU
TFX Power 3 300W Gold: the upgraded be quiet! high-efficiency PSU for mini and media PCs with 80 PLUS® Gold certification and PCIe graphics card support.
80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
TFX Power 3 300W Gold is certified 80 PLUS Gold with an efficiency rating of up to 91.7%. With this outstanding energy efficiency, the TFX Power 3 300W Gold ensures low power consumption and by that lower costs alike.
STRONG DUAL 12V RAIL
For a stable operation
The dual 12V rail design supports high stability as the CPU receives its power through an independent rail. For demanding peripherals like a graphics card, a PCIe connector is included. This makes the TFX Power 3 300W Gold the ideal PSU for all who strive for enough power to support small systems at low noise.
QUIET AND SAFE
Optimized for low-noise operation
The temperature-controlled fan ensures a quiet operation and produces little wasted heat. Since TFX Power 3 300W Gold meets the latest safety requirements, it defends the PC system against overcurrents, over- and undervoltage, short circuit, overloads and comparable failures.
Interfaces/Ports
- SATA Connectors: 3 x SATA
- CPU Connectors: 1 x 4-pin EPS
- PCI Connectors: 2 x 6+2-pin PCIe
- Motherboard Connectors: 1 x 24-pin ATX
- Molex Connectors: 2 x Molex
- Floppy Connectors: 1 x Floppy
Compliance
- Standards: 80 PLUS Gold Certified
- CE, CB, TUV, CU (Russia)
- Safety: OCP, OVP, UVP, SCP, OTP, OPP
Electrical
- Voltage: 100 ~ 240 V
- Power: 300 W
- Frequency Range: 50 ~ 60 Hz
- Power Cord: No
Environmental
- Operating Temperature: 0 ~ 40 °C
Physical
- Form Factor: TFX Power Supply
- Case Colour: Black
- In The Box: Power Supply
- Screws
- Cable Ties
- User Manual
- Width: 85 mm
- Depth: 175 mm
- Height: 65 mm
- Weight: 1.1 kg
Warranty
- Warranty: 3 Years
Identifiers
- Stock Code: PSU1963
- Mfg Code: BN323
Warranty
- Warranty: 3 Years
