CPU

• Installed Processors (Max): 0 (1)

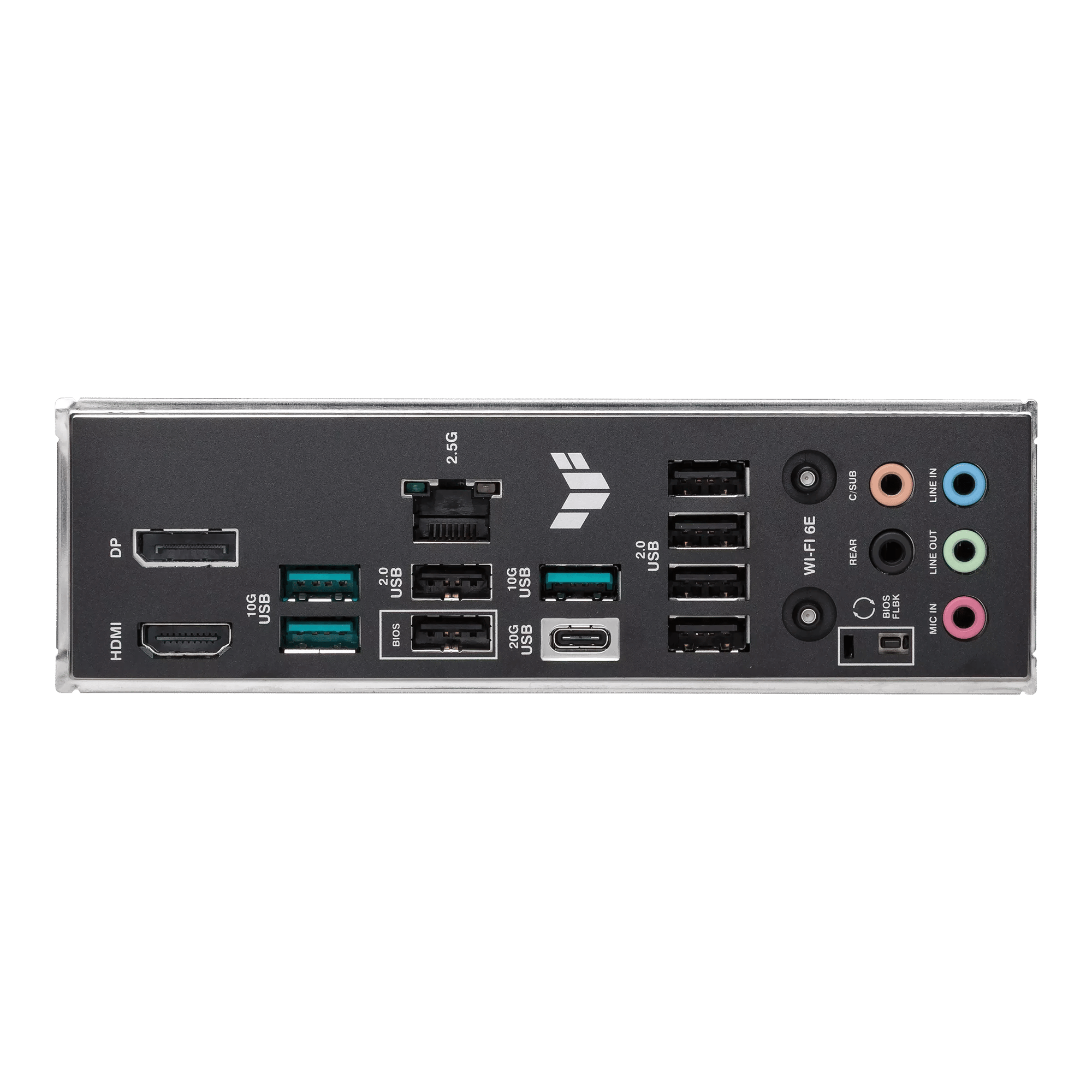

Rear Panel I/O Ports

• DisplayPorts: 1x DisplayPort v1.4
• Supports max. 8K@30Hz
• HDMI Port: 1x HDMI v2.1
• Supports 4K@60Hz

Internal I/O Connectors

• SATA Connectors: 4 x SATA 6Gb/s ports
• USB Connectors: Rear USB (Total 10 ports)
• 1 x USB 20Gbps port (1 x USB Type-C)
• 3 x USB 10Gbps ports (3 x Type-A)
• 6 x USB 2.0 ports (6 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 10Gbps connector (supports USB Type-C)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• * USB Type-C power delivery output: max. 5V/3A.

Memory

• Memory Bus Speed: Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
• Memory Type: 4 x DIMM slots, max. 256GB, DDR5
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPOT)
• ASUS Enhanced Memory Profile (AEMP)

Electrical

• Power Requirements: ATX

Physical

• Colour: Black

Motherboard

• Northbridge: AMD B650E
• RAID Supported: AMD RAIDXpert2 Technology
• Ryzen 9000 Series Processors: RAID 0/1/5/10
• Ryzen 8000 Series Processors: RAID 0/1
• Ryzen 7000 Series Processors: RAID 0/1/10

Internal I/O Connectors

• Cooling Fan Support: 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power Connector Port: 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
• Other Connectors: Back Panel I/O Ports
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack button
• Internal I/O Connectors
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x Thunderbolt (USB4) header

Expansion

• Number of PCI Express Slots: 4x
• PCI Express Slot Type: AMD Ryzen 9000 & 7000 Series Desktop Processors*
• 1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD B650 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 2 x PCIe 4.0 x1 slots

Memory

• Maximum RAM: 256 GB

Storage

• Embedded Storage Capacity: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• AMD Ryzen 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)
• AMD B650 Chipset
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
• 4 x SATA 6Gb/s ports
• Specifications vary by CPU types.
• ** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.

Sound

• Integrated Sound: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
• - Impedance sense for front and rear headphone outputs
• - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• - Supports up to 32-Bit/192 kHz playback*
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• - Audio cover
• - Unique de-pop circuit
• * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Ethernet
• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard
• Wireless & Bluetooth
• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.3**
• * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
• ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• Bluetooth Version: 5.3

System Requirements

• Operating Systems Supported: Windows 11 64-bit
• Windows 11 64-bit

System

• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Special Features: ASUS TUF PROTECTION
• - DIGI+ VRM (- Digital power design with DrMOS)
• - ESD Guards
• - TUF LANGuard
• - Overvoltage protection
• - SafeSlot
• - Stainless-steel back I/O
• ASUS Q-Design
• - M.2 Q-Latch
• - PCIe Slot Q-Release
• - Q-Antenna
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• ASUS Thermal Solution
• - M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - BIOS FlashBack button
• - BIOS FlashBack LED
• - ProCool
• - Pre-mounted I/O shield
• - SafeDIMM
• Aura Sync
• - Addressable Gen 2 headers
• Software Included: ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• - Fan Xpert 4
• - Two-Way AI Noise Cancelation
• AI Suite 3
• - TurboV EVO
• - DIGI+ VRM
• - PC Cleaner
• ASUS DriverHub
• TUF GAMING CPU-Z
• DTS Audio Processing
• Adobe Creative Cloud (Free Trial)
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode
• Manageability
• - WOL by PME, PXE

Physical

• Form Factor: ATX
• In The Box: Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 1 x TUF GAMING sticker
• 2 x M.2 rubber packages
• Documentation
• 1 x Quick start guide
• Width: 244 mm
• Length: 305 mm

Identifiers

• Stock Code: MBD4032
• Mfg Code: 90MB1M20-M0EAY0
