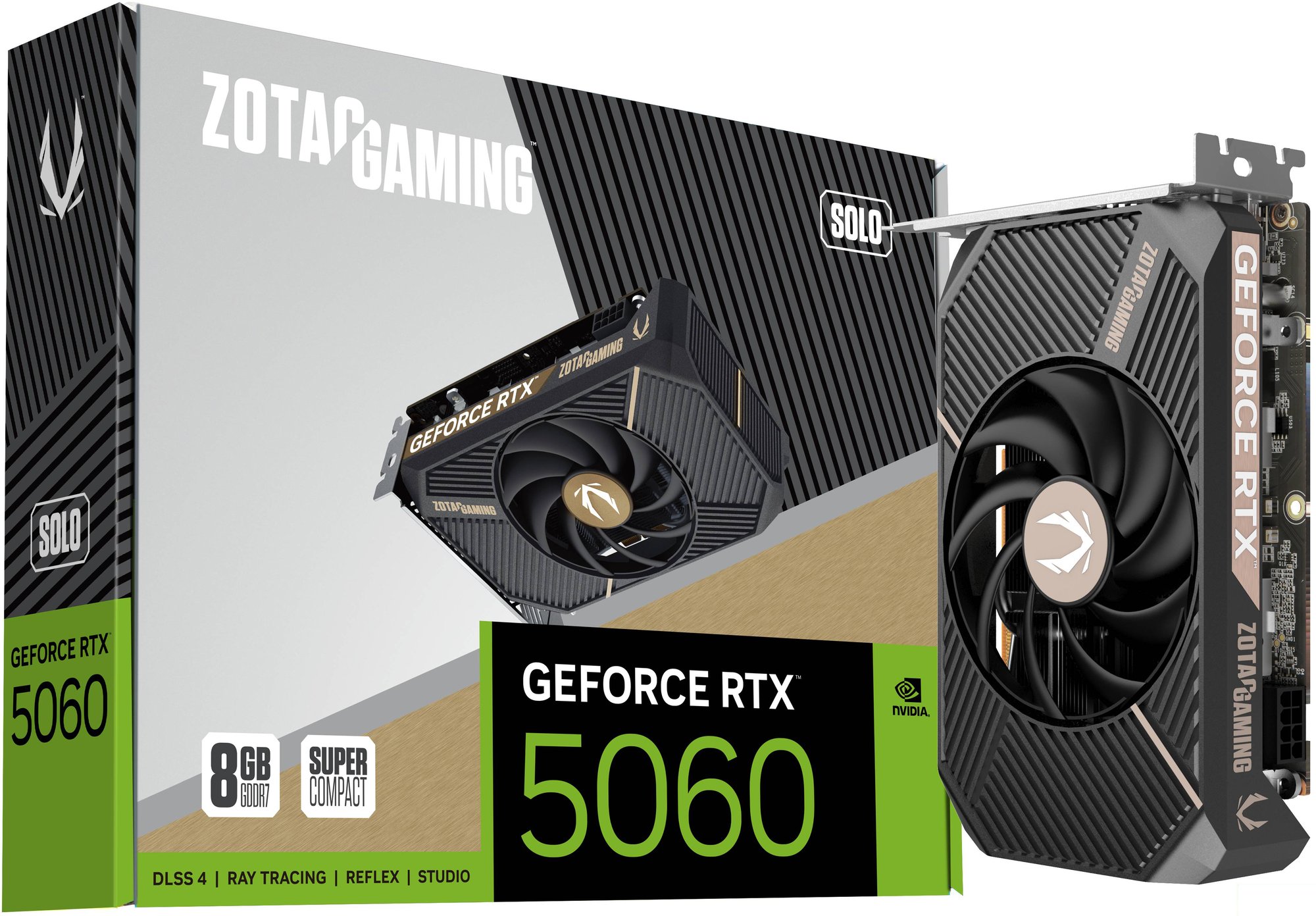

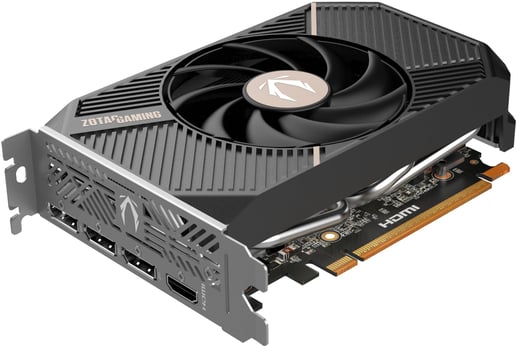

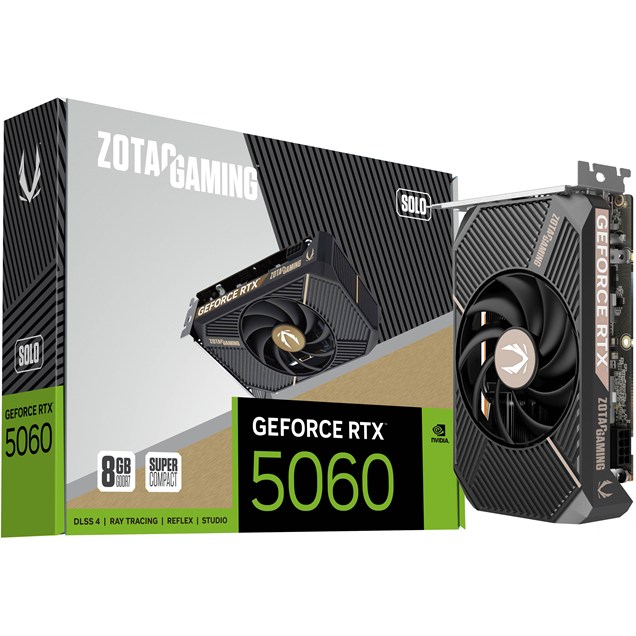

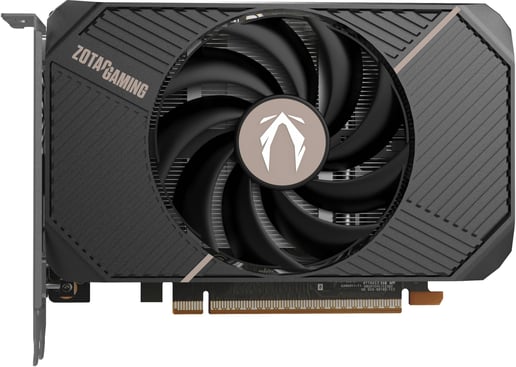

Zotac GeForce RTX 5060 SOLO 8GB GDDR7 Graphics Card
The ZOTAC GAMING GeForce RTX 5060 SOLO is a super compact graphics card. The smallest ZOTAC GAMING 50-series GPU, but with all the advantages in graphics processing and gaming performance.
WIDE CASE COMPATIBILITY
The compact design of the ZOTAC GAMING GeForce RTX 5060 Series of GPUs are SFF-ready, making it easier for gamers looking to upgrade. With a slim 2-slot width and up to 8.7inch / 220.5mm short length, most PC cases available can easily accommodate with a simple drop-in installation.

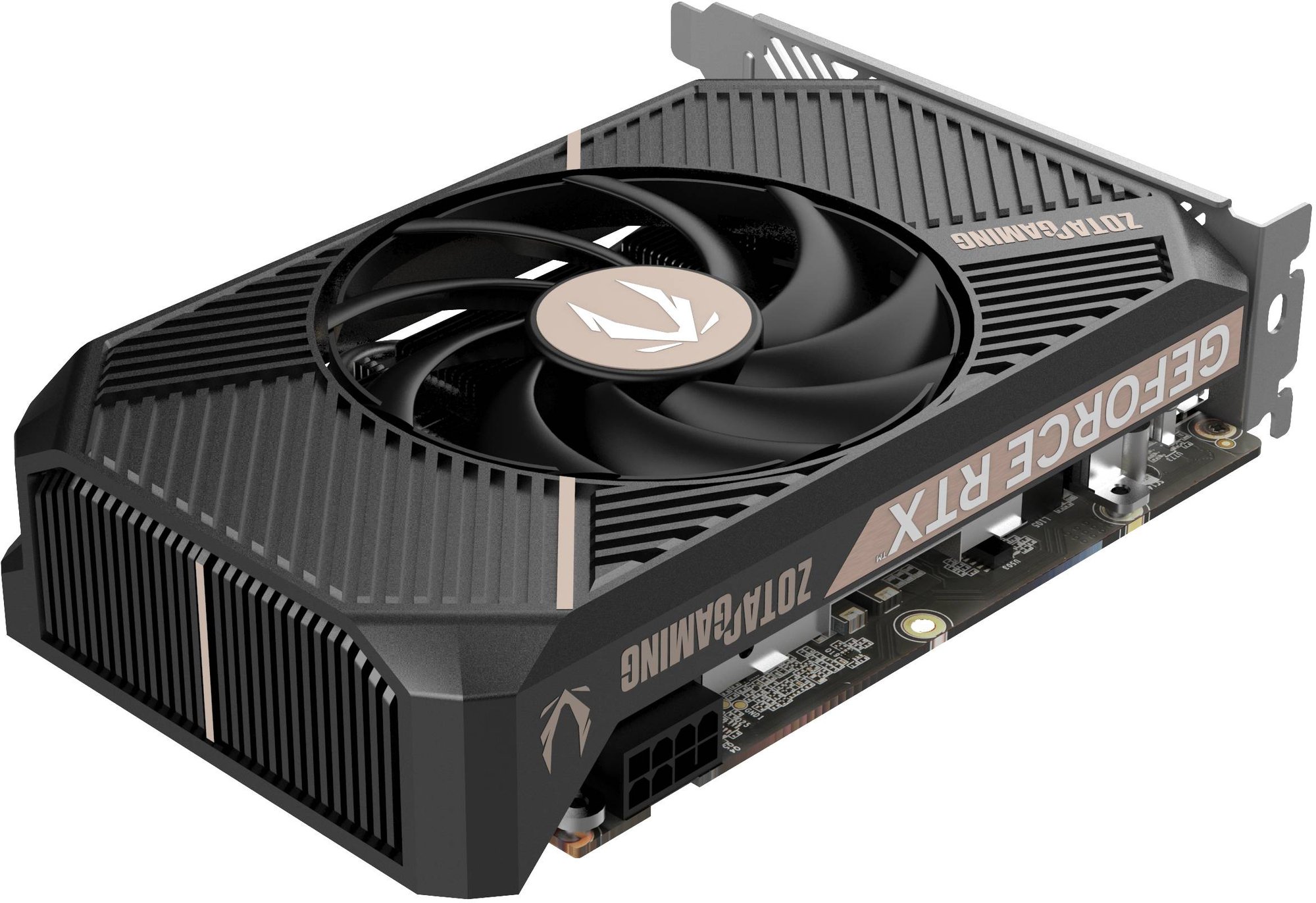

STANDARD 8-PIN POWER
A single 8-pin PCIe power connector is all that’s needed to power this GPU. A lower 650W minimum recommended power supply (PSU) means that there are potentially less components needed for an upgrade, making the 5060 Series a more appealing upgrade choice.
GPU
- Chipset Manufacturer: NVIDIA
- Chipset Model Name: GeForce RTX
- Chipset Model Number: 5060
- Chipset Additional Information: SOLO
- Boost Chip Clock: 2497 MHz
- Graphics Core: CUDA
- Number of Cores: 3840
Memory
- Memory Size: 8 GB
- Memory Clock: 28 Gbps
- Memory Type: GDDR7
- Memory Width: 128 bit
- Memory Bandwidth: 448 GB/s

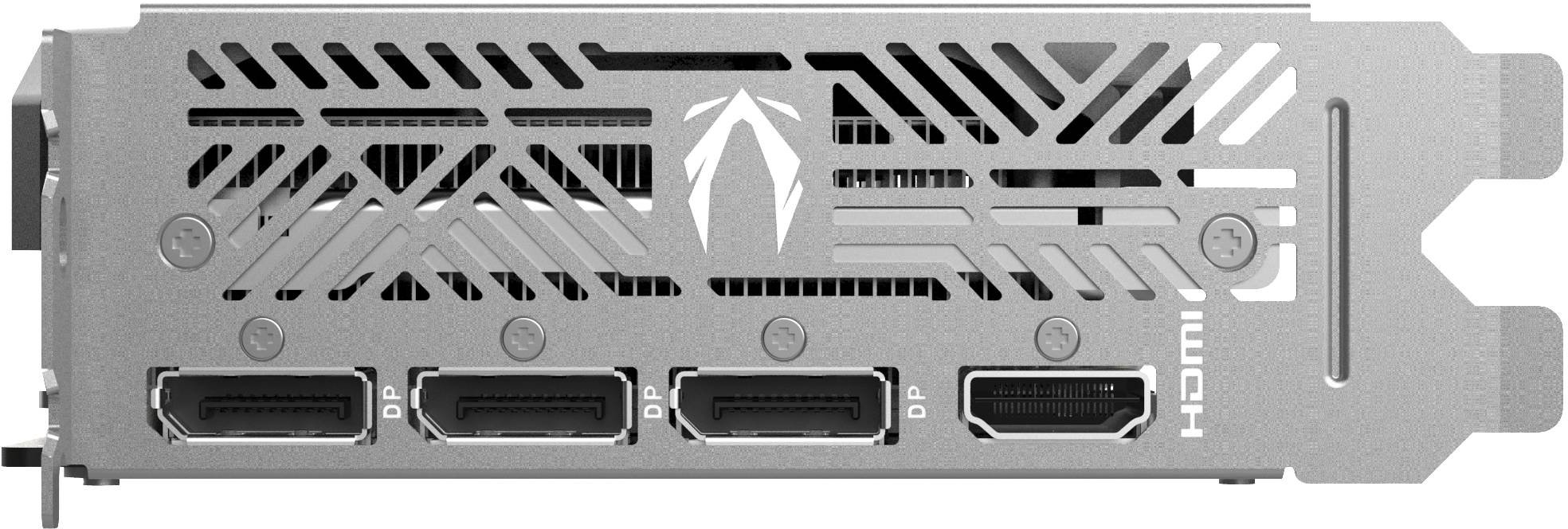

Interfaces/Ports
- Video Card Bus Type: PCI Express
- Video Card Bus Version: 5.0 x8
- HDMI Port: 1 x HDMI 2.1b
- DisplayPort: 3 x DisplayPort 2.1b
Resolution
- Multiple Monitor Support (Max): Yes (4)
- Maximum Resolution: 7680 x 4320
System Requirements
- System Requirements: 1 x PCI Express 5.0 x16 slot
Electrical
- Power Connector: 1 x 8-pin PCIe
- Power Consumption: 145 W
- Recomended Power Supply: 550 W
Physical
- Form Factor: Graphics Card
- In The Box: Graphics Card
- User Manual
- Width: 36.4 mm (Dual Slot)
- Depth: 164.5 mm
- Height: 111.2 mm
Warranty
- Warranty: 3 Years
- 5 Years with registration
Identifiers
- Stock Code: VGA7467
- Mfg Code: ZT-B50600G-10L
