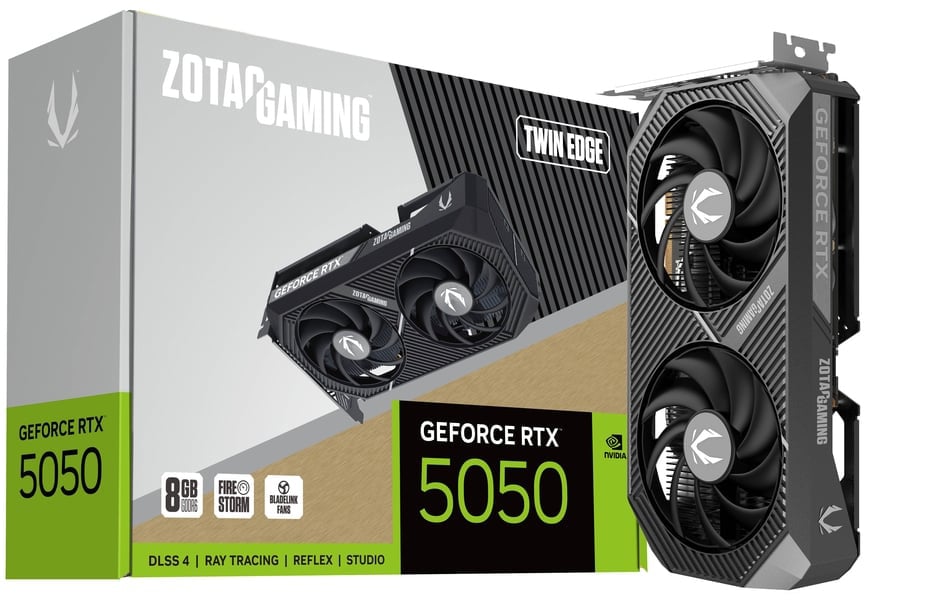

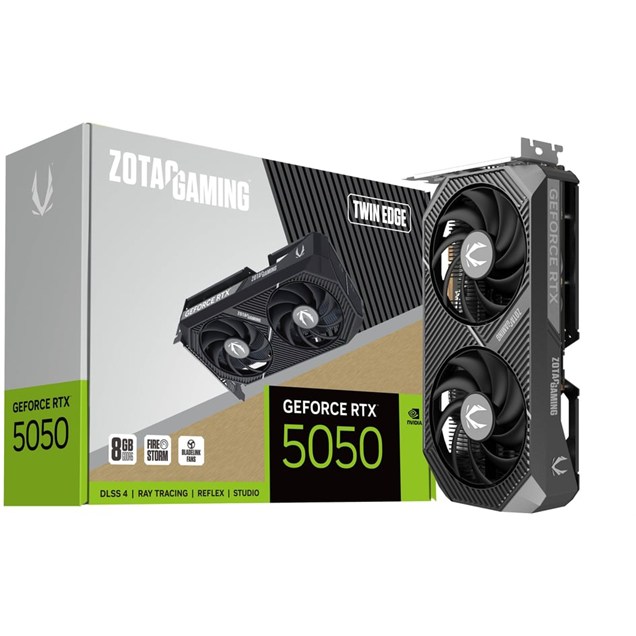

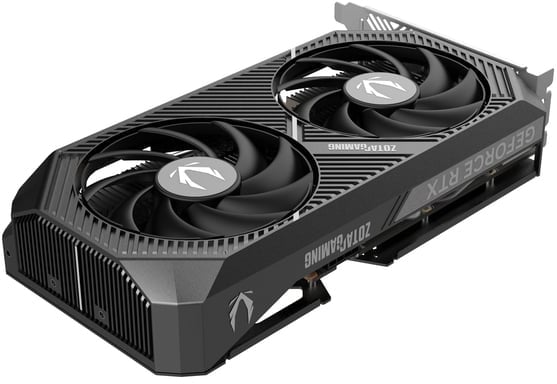

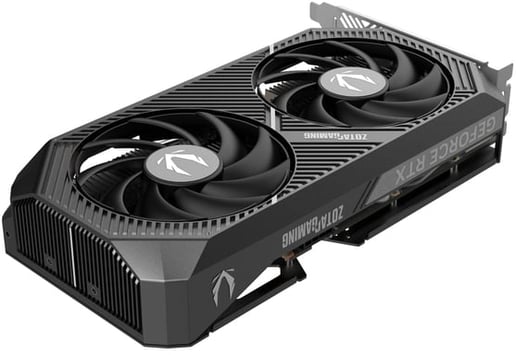

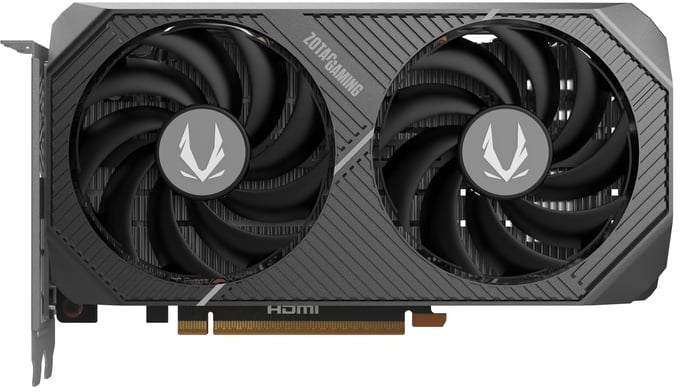

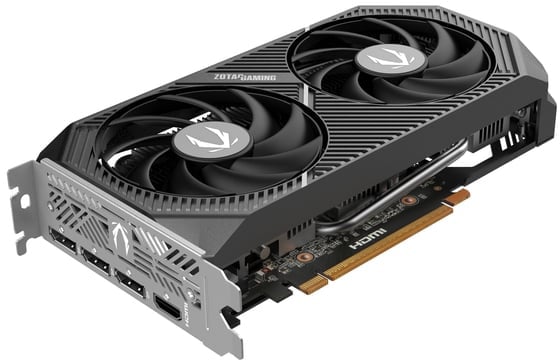

Zotac GeForce RTX 5050 Twin Edge 8GB GDDR6 Graphics Card
ZOTAC reimagines one of the core essentials of a performance PC, as the centerpiece of an entire setup. Blending design, performance, and airflow dynamics, the ZOTAC GAMING GeForce RTX 50 series GPUs blur the line between tech and art.
The ZOTAC GAMING GeForce RTX 5050 Series Twin Edge and their OC variants have a purposefully designed compact footprint to enable small but powerful PC builds, with an elegant design aesthetic.
WIDE CASE COMPATIBILITY
The compact design of the ZOTAC GAMING GeForce RTX 5050 Series of GPUs are SFF-ready, making it easier for gamers looking to upgrade. With a slim 2-slot width and as compact as 164.5mm (6.5 inches) in length, most PC cases available can easily accommodate with a simple drop-in installation.
STANDARD 8-PIN POWER
A single 8-pin PCIe power connector is all that’s needed to power this GPU. A lower 550W minimum recommended power supply (PSU) means that there are potentially less components needed for an upgrade, making the 5050 Series a more appealing upgrade choice.

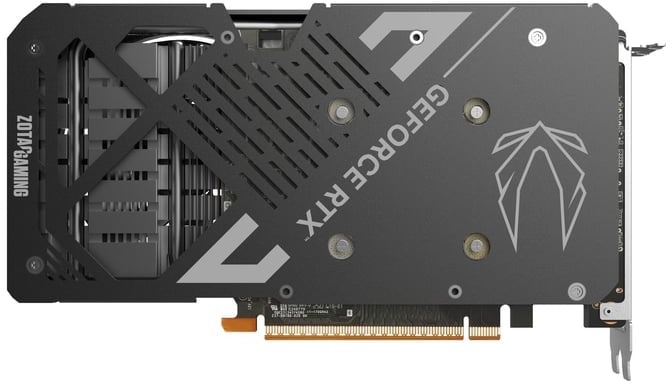

METAL BACKPLATE
The ZOTAC GAMING GeForce RTX 5050 Series rigidity is achieved with a metal backplate, giving it a strong foundation in durability.
GPU
- Chipset Manufacturer: NVIDIA
- Chipset Model Name: GeForce RTX
- Chipset Model Number: 5050
- Chipset Additional Information: Twin Edge
- Boost Chip Clock: 2572 MHz
- Graphics Core: CUDA
- Number of Cores: 2560
Memory
- Memory Size: 8 GB
- Memory Clock: 20 Gbps
- Memory Type: GDDR6
- Memory Width: 128 bit
Interfaces/Ports
- Video Card Bus Type: PCI Express
- Video Card Bus Version: 5.0 x8

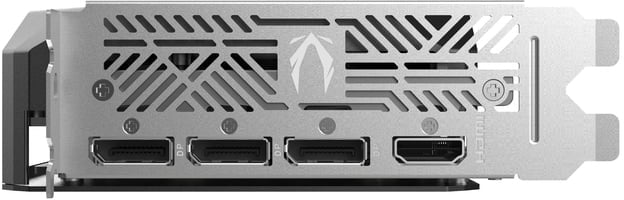

- HDMI Port: 1 x HDMI 2.1b
- DisplayPort: 3 x DisplayPort 2.1b
Resolution
- Multiple Monitor Support (Max): Yes (4)
- Maximum Resolution: 7680 x 4320
System Requirements
- System Requirements: 1 x PCI Express 5.0 x16 slot
Electrical
- Power Connector: 1 x 8-pin PCIe
- Power Consumption: 130 W
- Recomended Power Supply: 550 W
Physical
- Form Factor: Graphics Card
- In The Box: Graphics Card
- User Manual
- Width: 41.6 mm (Dual Slot)
- Depth: 220.5 mm
- Height: 120.25 mm
Warranty
- Warranty: 3 Years
Identifiers
- Stock Code: VGA7496
- Mfg Code: ZT-B50500E-10M
Warranty
- Warranty: 3 Years
