The Z890 GAMING PLUS WIFI motherboard supports Intel Core Ultra Processors (Series 2).
- Form Factor: ATX
- Socket Type: LGA 1851
- Chipset: Intel Z890

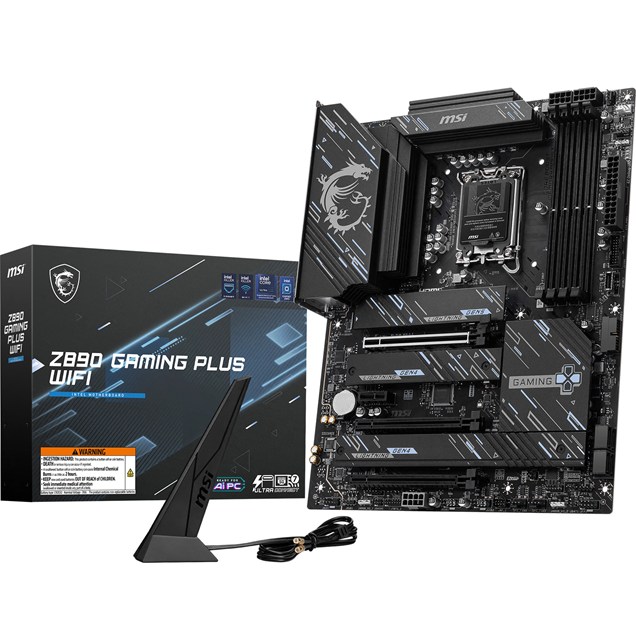

MSI Z890 GAMING PLUS WIFI ATX Motherboard for Intel LGA1851 CPUs
£272.99
Discontinued
Z890 GAMING PLUS WIFI
MSI Z890 GAMING PLUS WIFI ATX Motherboard for Intel LGA1851 CPUs
FORM FACTOR: ATX
SOCKET: LGA1851
MEMORY: DDR5 (MAX: 256GB)
STORAGE: 4 X M.2, 4 X SATA
WI-FI: BUILT-IN
USB: 8 PORT(S)
Win the Competition
The Z890 GAMING PLUS WIFI, Intel LGA 1851 gaming motherboard delivers the latest connectivity, including Wi-Fi 7, 5G LAN, Thunderbolt, PCIe 5.0, and M.2 Gen5. Designed for AI-PCs and EZ DIY, it’s an ideal Z890 ATX motherboard for Intel Core Ultra CPU.
Supports Intel Core Ultra Processors (Series 2)
Ultra Power - 14 Duet Rail Power System with 55A DrMOS
With exclusive Core Boost technology and dual 8 pin power connectors, the Z890 GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC
- 14 Duet Rail Power System with 55A DrMOS
- 1-Phase SA Power
- 1-Phase GT Power
- 1-Phase VNNAON Power
Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (9200+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 9200+ MT/s OC, supports Intel XMP.
1 x Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
- 1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor** and EZ PCIe Clip II)
- 2 x PCIe 4.0/3.0 x16 slots*
- 1 x PCIe 4.0/3.0 x1 slot
*Support x16/x4/x4
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connectors
The Z890 GAMING PLUS WIFI motherboard features the latest M.2 slots:
- 1 x Gen5 x4 128Gbps slot*
- 3 x Gen4 x4 64Gbps slots
*with EZ M.2 Shield Frozr II
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
Ultra Connect
5G LAN: An Intel Killer 5G LAN controller delivers a premium network gaming experience.
Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K display support*.
Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
HD Audio: 7.1-Channel HD Audio with Audio Boost.
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: Intel
- Supported Processors: Intel Core Ultra Processors (Series 2)
- 64-bit Support: Yes
- Socket: LGA1851

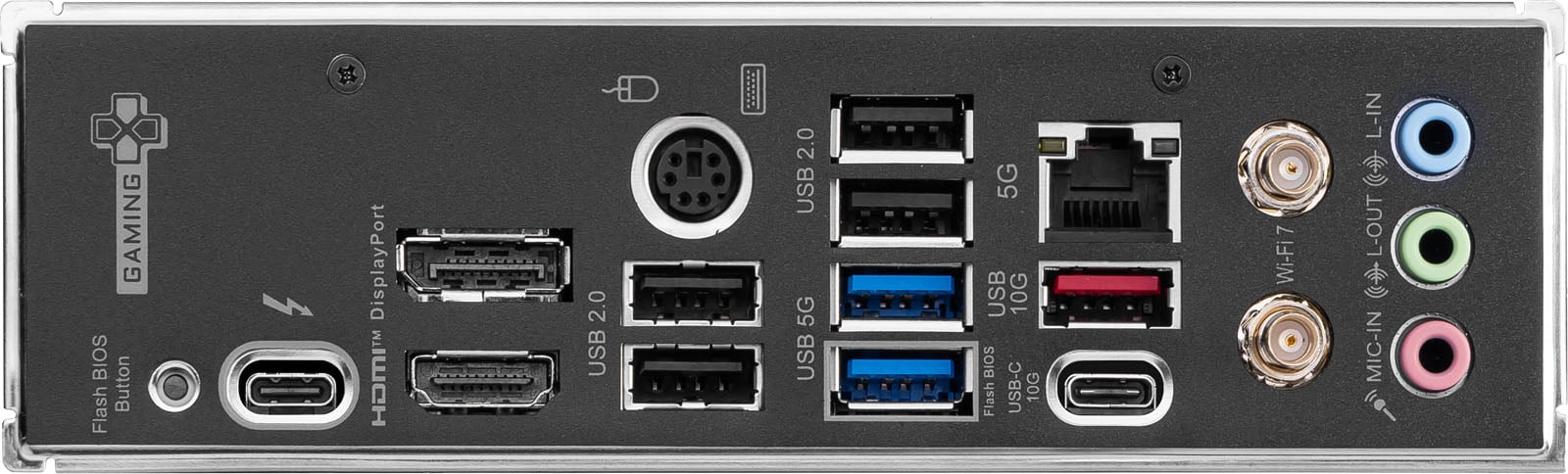

Rear Panel I/O Ports
- USB Ports: 1 x Thunderbolt 4
- 1 x USB-C 3.1
- 1 x USB 3.1
- 2 x USB 3.0
- 4 x USB 2.0
- DisplayPorts: 1 x DisplayPort 1.4
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA III
- USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
- 2 x USB 3.0 headers (supports 4 ports)
- 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 9200 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: Intel Z890
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 5, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x Combo fan header
- 5 x System fan headers
- Thunderbolt Port(s): 1 x Thunderbolt 5
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
- 2 x 8-pin EPS
- 1 x 8-pin PCIe
- Other Connectors: 1 x M.2 slot, Type 2260/2280 (PCIe Gen5)
- 1 x M.2 slot, Type 2260/2280/22110 (PCIe Gen4)
- 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4)
- 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4 or SATA)
- 3 x 3-pin ARGB headers
- 1 x 4-pin RGB header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 2 x PCI Express 4.0 x16 slots (@ x4/x4)
- 1 x PCI Express 4.0 x1 slot
Memory
- Maximum RAM: 256 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC897
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Killer E5000
- Network Speeds Supported: Up to 5 Gbps
- Wireless LAN: Yes - Wi-Fi 7
- Wireless Network Speed: Up to 5.8 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.4
System Requirements
- Operating Systems Supported: Windows 11
System
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard

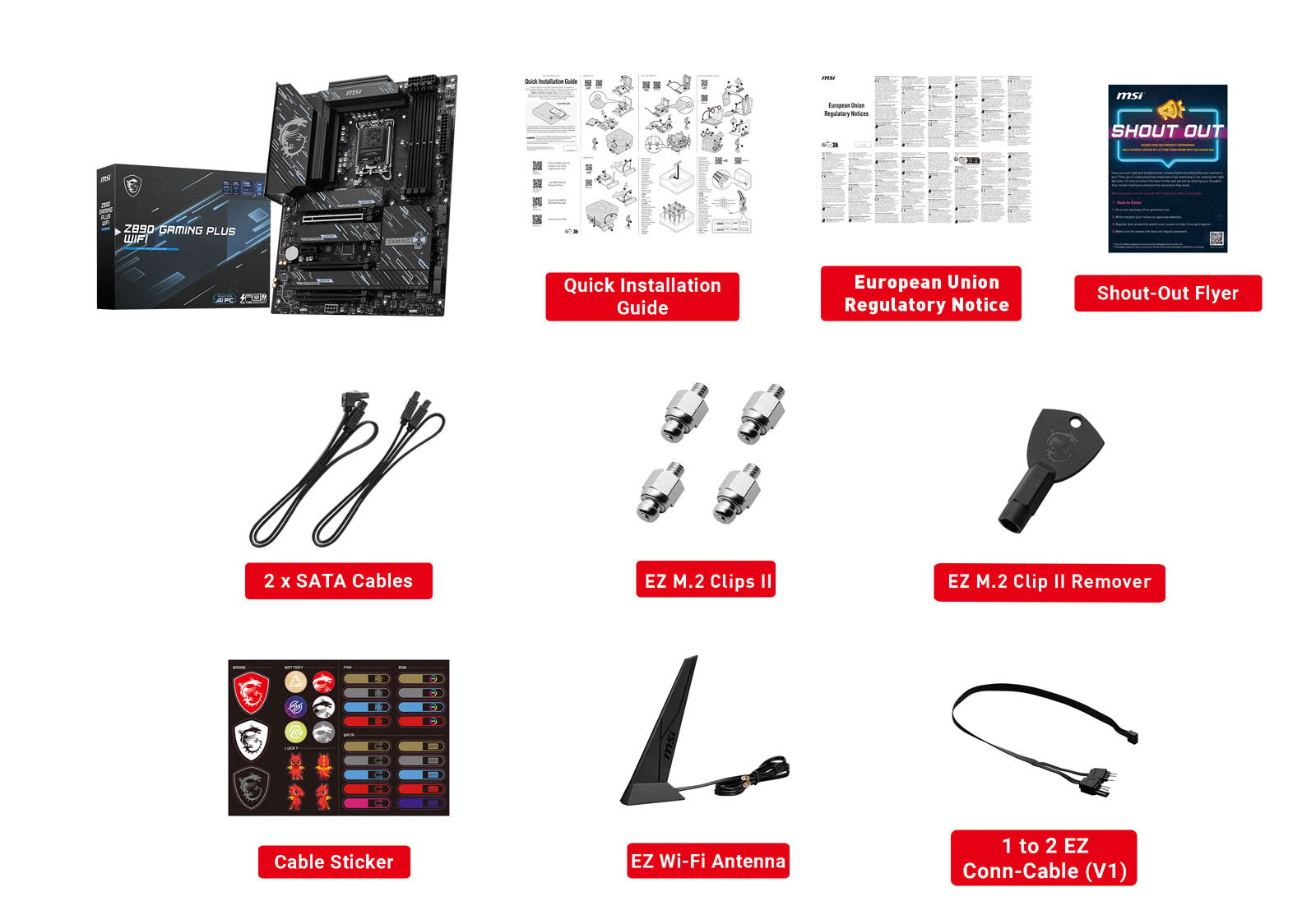

- In The Box: Motherboard
- Quick Installation Guide
- EU Regulatory Notice
- Shout Out Flyer
- 2 x SATA Cables
- 4 x EZ M.2 Clip II
- EZ M.2 Clip II Remover
Cable Stickers - EZ Wi-Fi Antenna
- 1-to-2 EZ Conn-Cable V1
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3762
- Mfg Code: Z890 GAMING PLUS WIFI
Warranty
- Warranty: 3 Years
