CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: Intel
• Supported Processors: Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
• 64-bit Support: Yes
• Socket: LGA1700

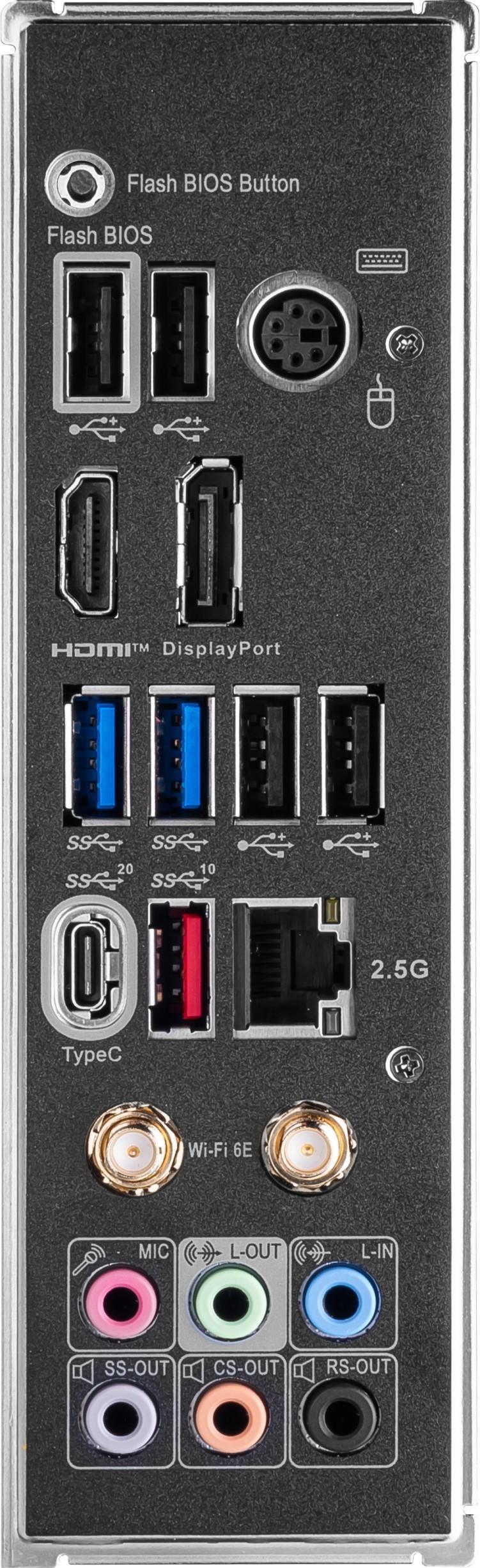

Rear Panel I/O Ports

• USB Ports: 1 x USB-C 3.2
• 1 x USB 3.1
• 2 x USB 3.0
• 4 x USB 2.0
• DisplayPorts: 1 x DisplayPort 1.4
• HDMI Port: 1 x HDMI 2.1

Internal I/O Connectors

• SATA Connectors: 6 x SATA III
• USB Connectors: 1 x USB-C 3.1 header (supports 1 port)
• 2 x USB 3.0 headers (supports 4 ports)
• 2 x USB 2.0 headers (supports 4 ports)

Memory

• Memory Bus Speed: Up to 7200 MHz
• Memory Type: DDR5

Motherboard

• Northbridge: Intel Z790
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 5, 10
• SATA Supported: Yes

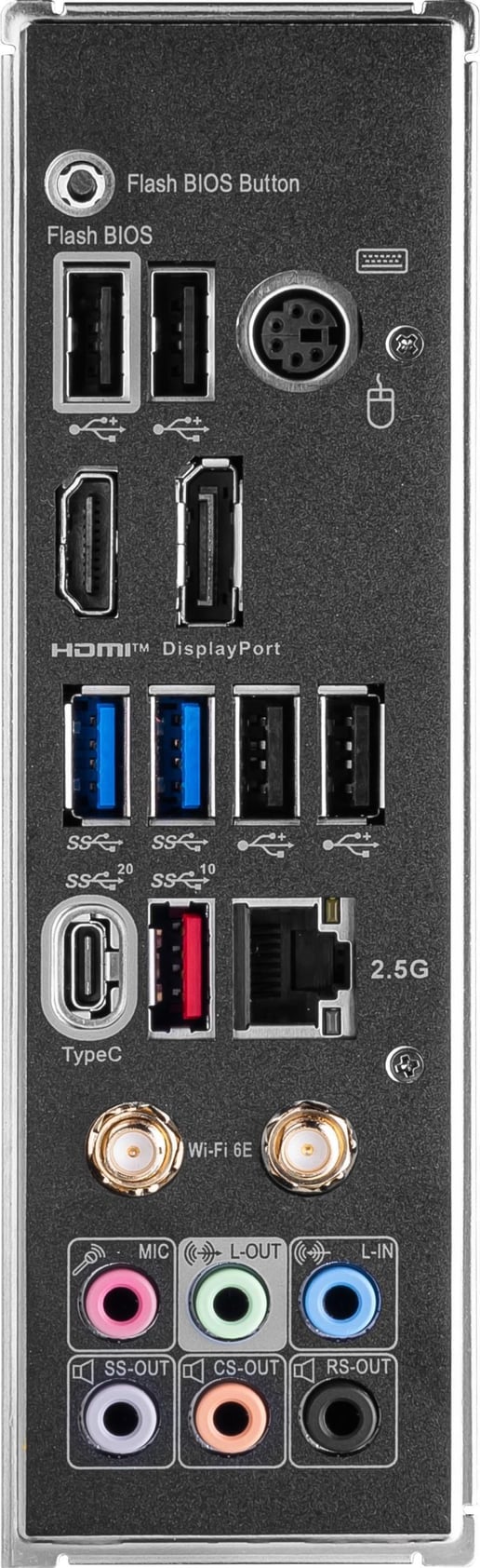

Rear Panel I/O Ports

• Keyboard/Mouse Combo Port: 1 x PS/2
• RJ-45 Ports: 1 x RJ-45
• Audio Line In Ports: 1 x 3.5mm Jack
• Audio Line Out Ports: 4 x 3.5mm Jacks
• Microphone In Port: 1 x 3.5mm Jack
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x Pump fan header
• 6 x System fan headers
• Thunderbolt Port(s): 1 x TBT connector (JTBT, supports RTD3)
• 1 x USB4 card connector (JTBT_U4_1, supports RTD3)
• Chassis Intrusion Connector: 1 x Chassis Intrusion header
• TPM Header: 1 x TPM header
• Power Connector Port: 1 x 24-pin ATX
  2 x 8-pin EPS
• Other Connectors: 1 x M.2 slot, Type 2242/2260/2280/22110 (PCIe Gen4)
• 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4)
• 2 x M.2 slots, Type 2242/2260/2280 (PCI Gen4 or SATA)
• 2 x 3-pin ARGB LED header
• 2 x 4-pin RGB LED header
• 1 x Tuning Controller connector

Expansion

• Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
• 1 x PCI Express 4.0 x16 slot (@ x4)
• 1 x PCI Express 3.0 x16 slot (@ x1)
• 1 x PCI Express 3.0 x1 slot

Memory

• Maximum RAM: 192 GB
• Memory Slot: 4 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek ALC897

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Intel
• Network Speeds Supported: Up to 2.5 Gbps
• Wireless LAN: Yes - Wi-Fi 6E
• Wireless Network Speed: Up to 2.4 Gbps
• Bluetooth: Yes
• Bluetooth Version: 5.3

System Requirements

• Operating Systems Supported: Microsoft Windows 11

System

• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: ATX Motherboard

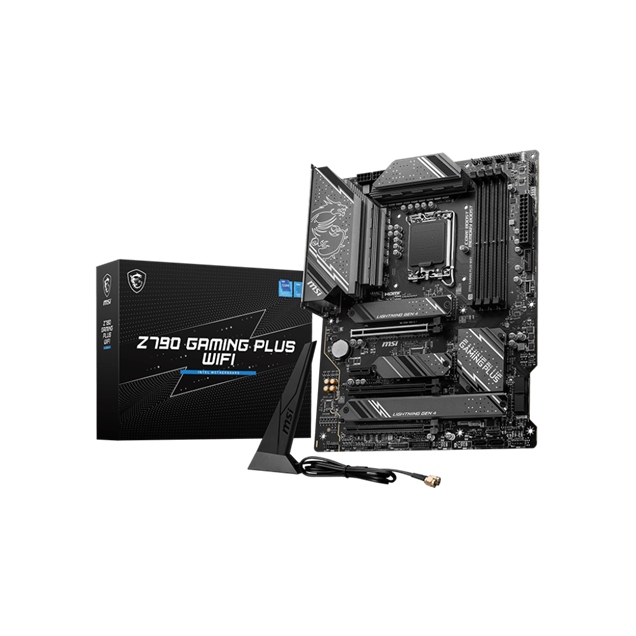

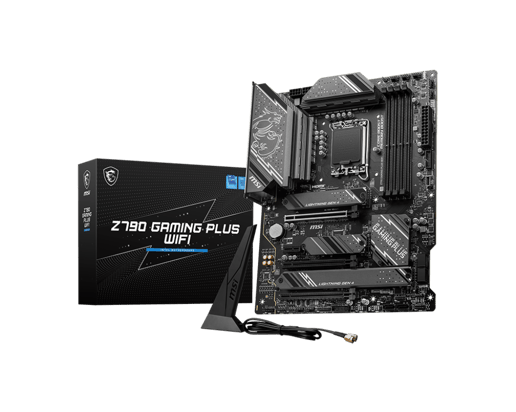

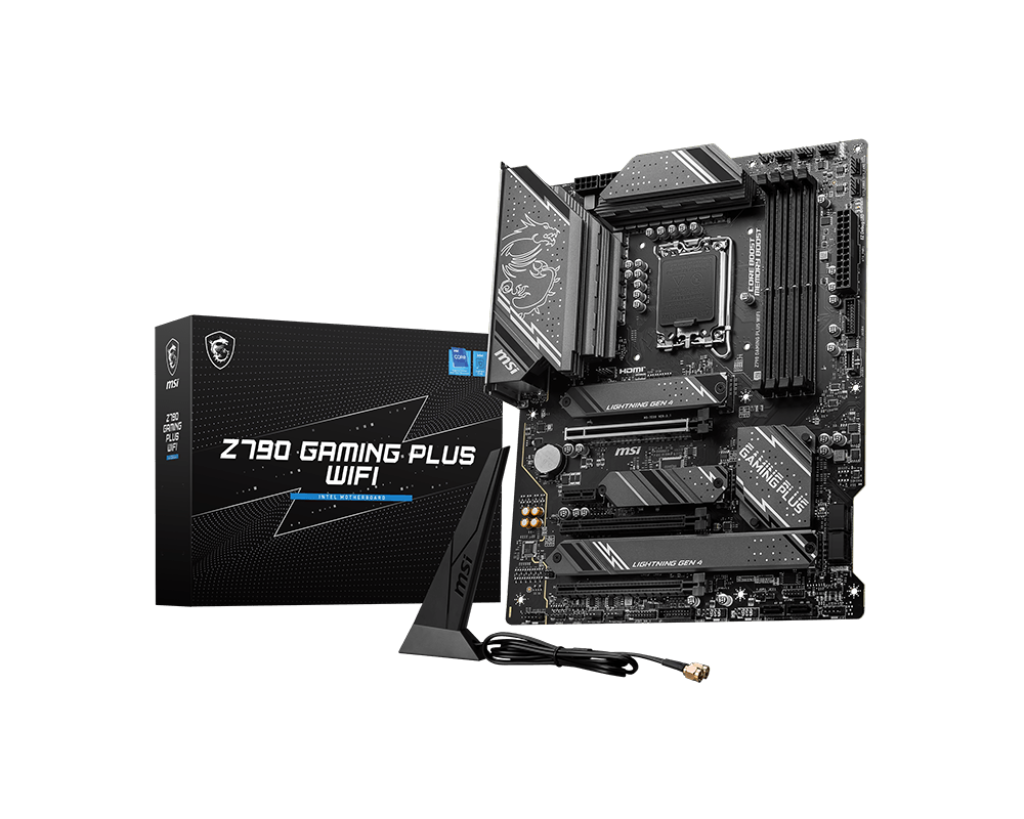

• In The Box: Motherboard
• Wi-Fi Antenna
• 2 x SATA Cables
• EZ M.2 Clips
• M.2 Screw / Standoff Set
• DVD Driver
• Cable Stickers
• Quick Installation Guide
• EU Regulatory Notice
• Width: 244 mm
• Length: 305 mm

Identifiers

• Stock Code: MBD3547XC1

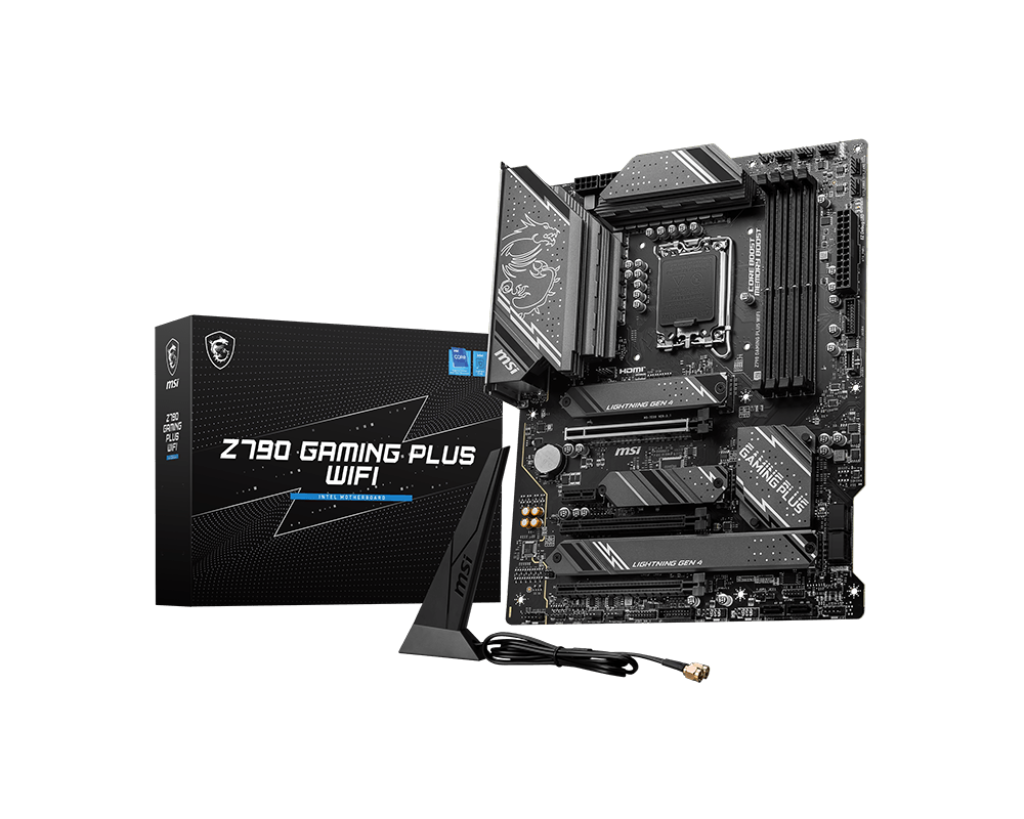

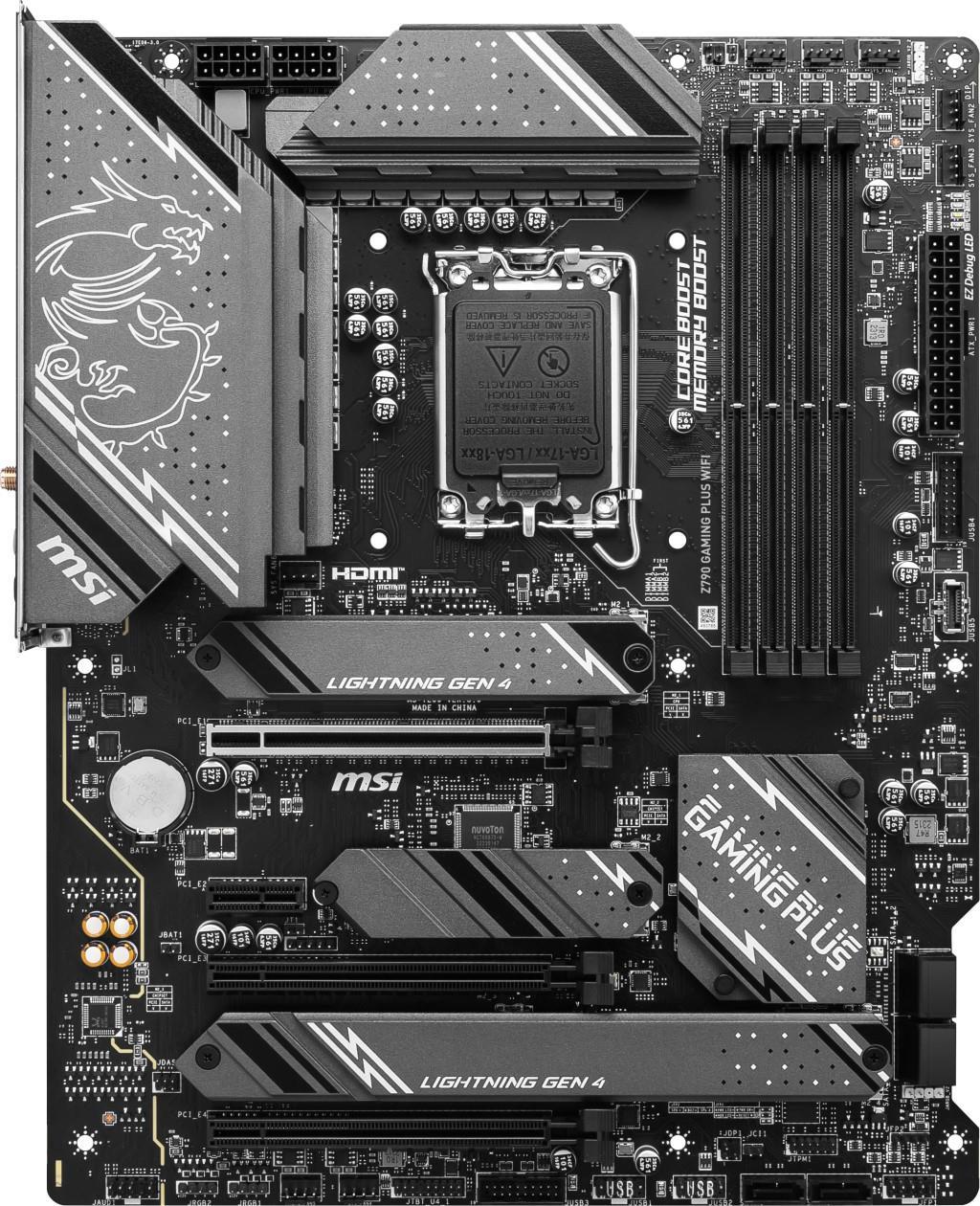

• Mfg Code: Z790 GAMING PLUS WIFI
