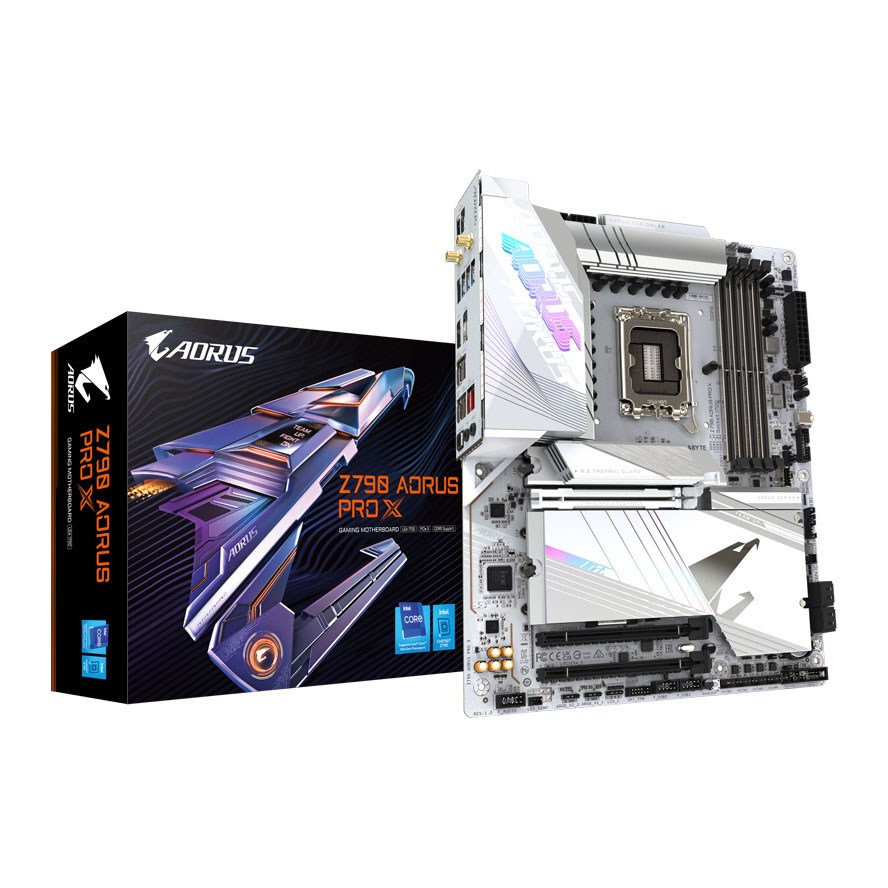

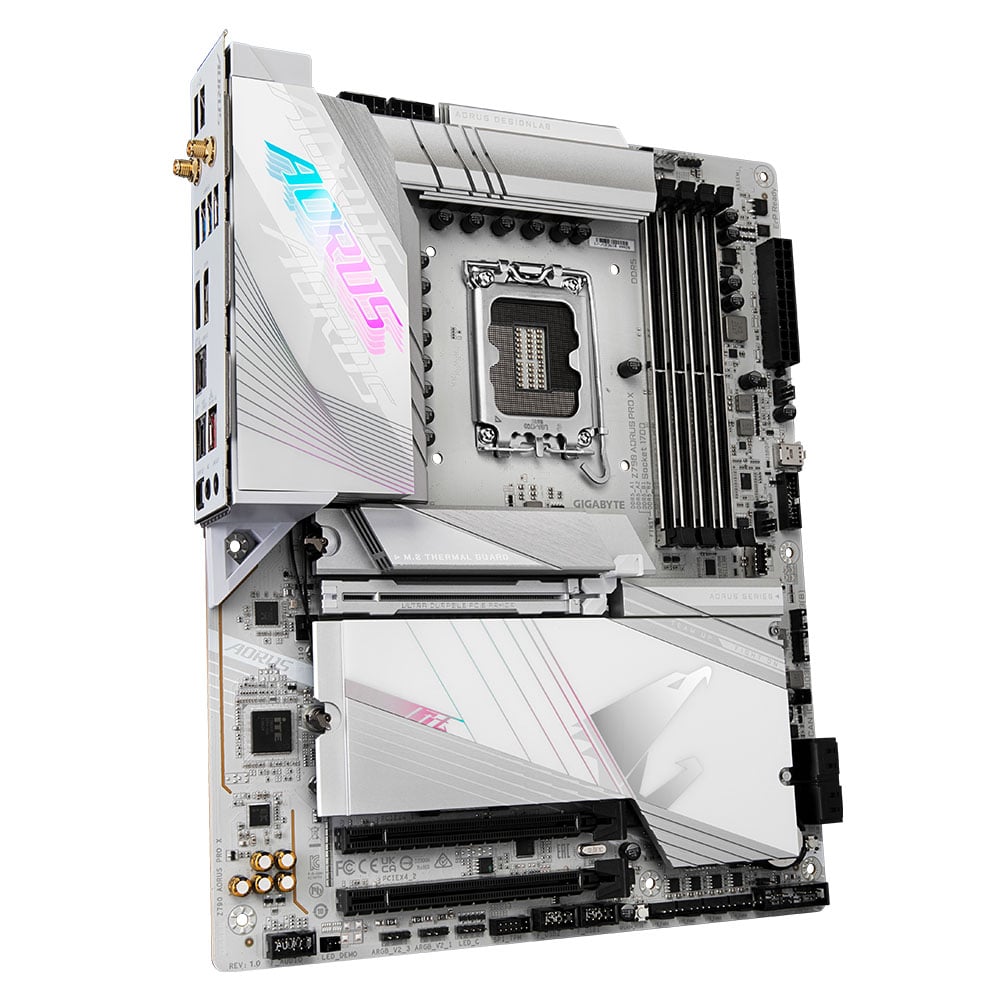

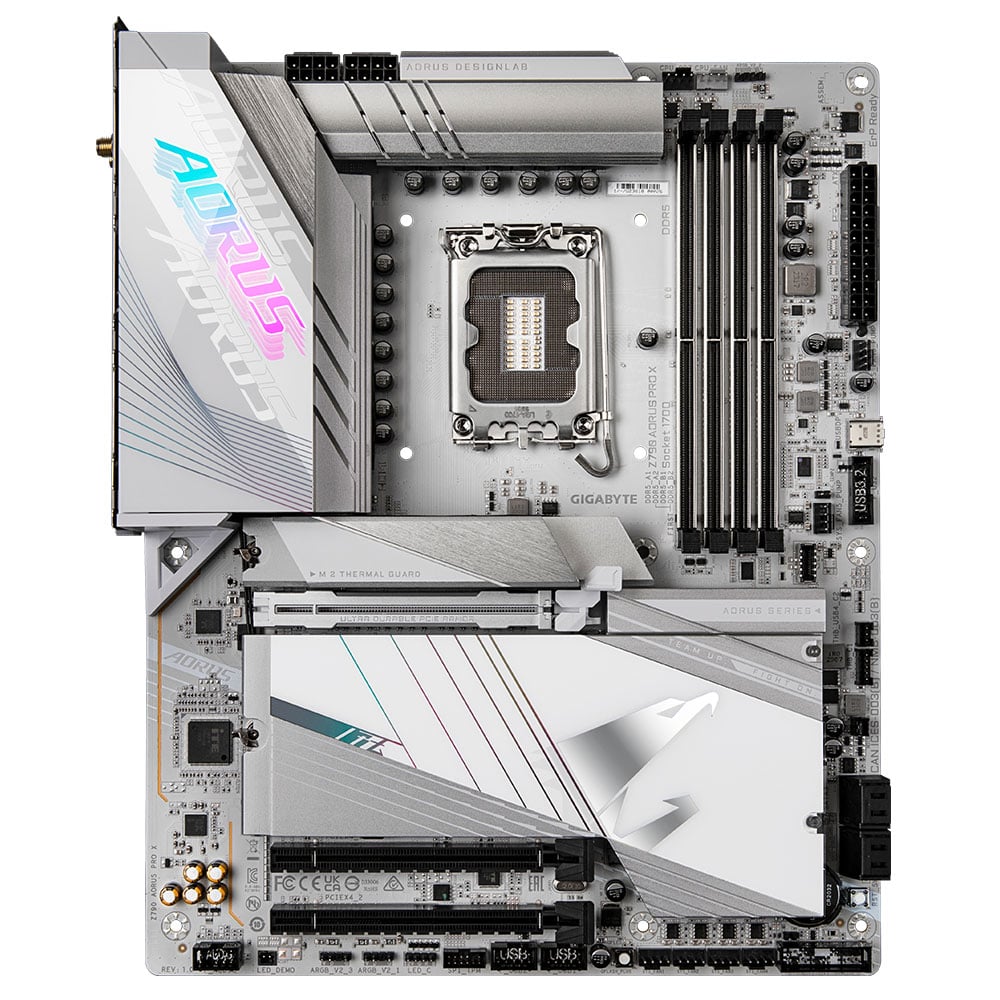

Gigabyte Z790 AORUS PRO X ATX Motherboard for Intel Socket 1700 CPUs
Available for delivery from Tuesday 4th August
Click & Collect from Tomorrow
Low stock - don't miss out
Order within
You have 0 of these in your basket
Please note that this is a B Grade clearance item. It will be in good condition, but may show light signs of use and/or have been repackaged. The price has been reduced to reflect this.
All B Grade items are complete, working and have been fully tested.
This item is supplied with a Warranty: 1 Year warranty.
X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel® Core™ 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: Intel
- Supported Processors: 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
- 64-bit Support: Yes
- Socket: LGA1700

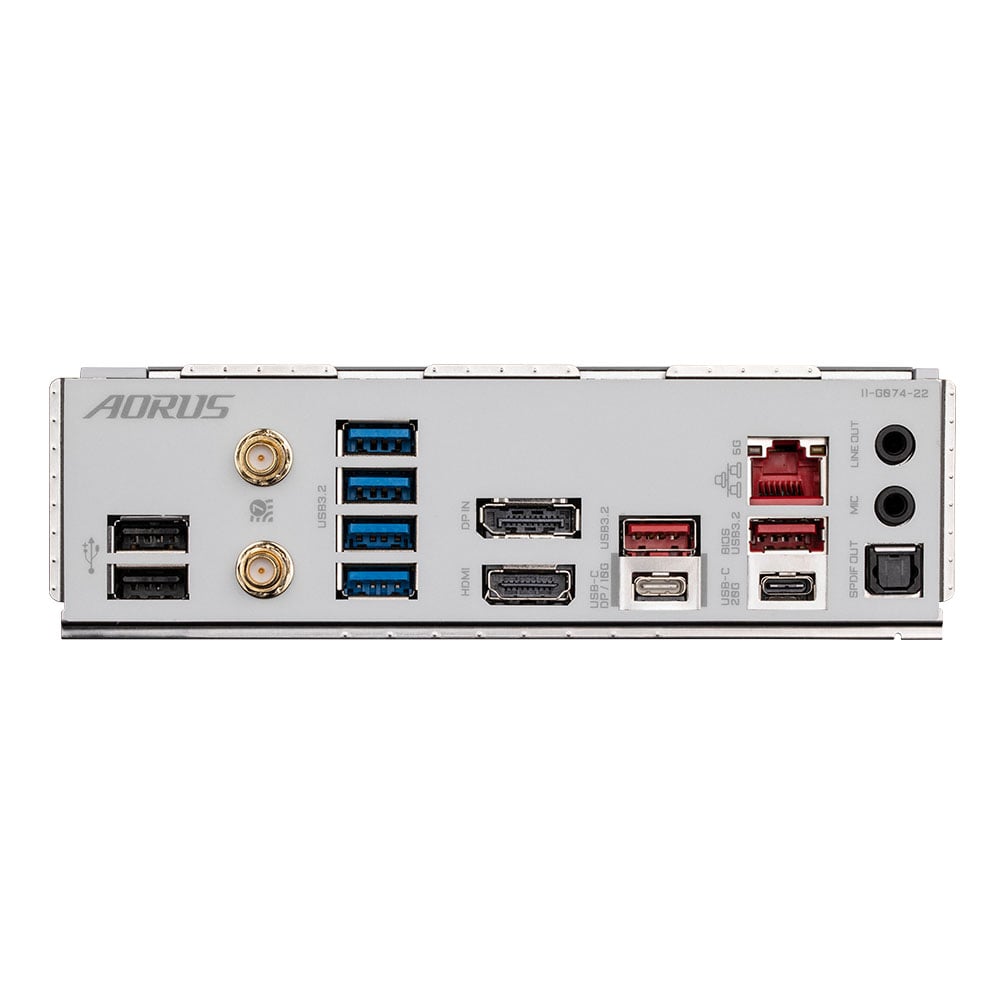

Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.2
- 1 x USB-C 3.1
- 2 x USB 3.1
- 4 x USB 3.0
- 2 x USB 2.0
- DisplayPorts: Yes, via USB-C
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA III
- USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 1 x USB-C 2.0 header (supports 1 port, only for Intel HD Graphics)
- 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 8266 MHz
- Memory Type: DDR5
Motherboard
- Northbridge: Intel Z790
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 5, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- S/PDIF Port: 1 x S/PDIF Optical Out
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x CPU/Water Pump fan header
- 4 x System fan headers
- 2 x System/Water Pump fan headers
- Thunderbolt Port(s): 2 x Thunderbolt add-in card connectors
- TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
- Power Connector Port: 1 x 24-pin ATX
- 2 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Socket 3, M Key, Type 22580/25110 (PCIe Gen5)
- 2 x M.2 slots, Socket 3, M Key, Type 2280/22110 (PCIe Gen4)
- 1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4)
1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4 or SATA) - 3 x 3-pin ARGB LED headers
- 1 x 4-pin RGB LED header
- 1 x Noise Detection header
- 2 x Temperature Sensor headers
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 1 x PCI Express 4.0 x16 slot (@ x4)
- 1 x PCI Express 3.0 x16 slot (@ x4)
Memory
- Maximum RAM: 192 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC1220-VB
Warranty
- Warranty: 1 Year
Network
- Integrated Network: Realtek
- Network Speeds Supported: Up to 5 Gbps
- Wireless LAN: Yes - Wi-Fi 7
- Wireless Network Speed: Up to 5.8 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.3
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3614XB
- Mfg Code: Z790 AORUS PRO X
Warranty
- Warranty: 1 Year
