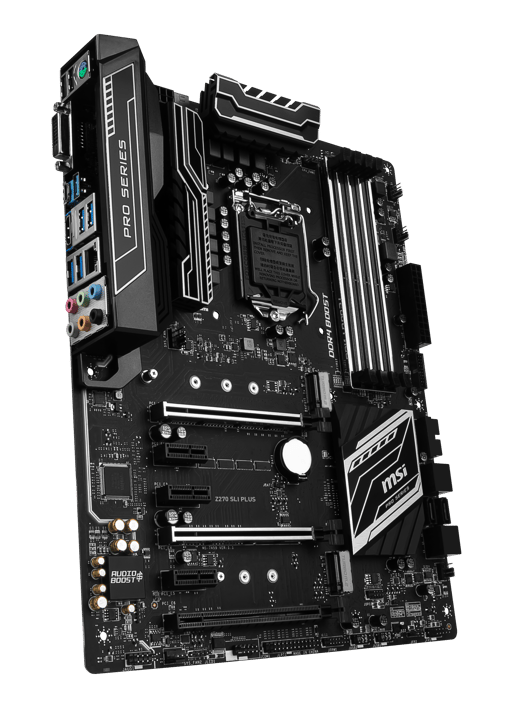

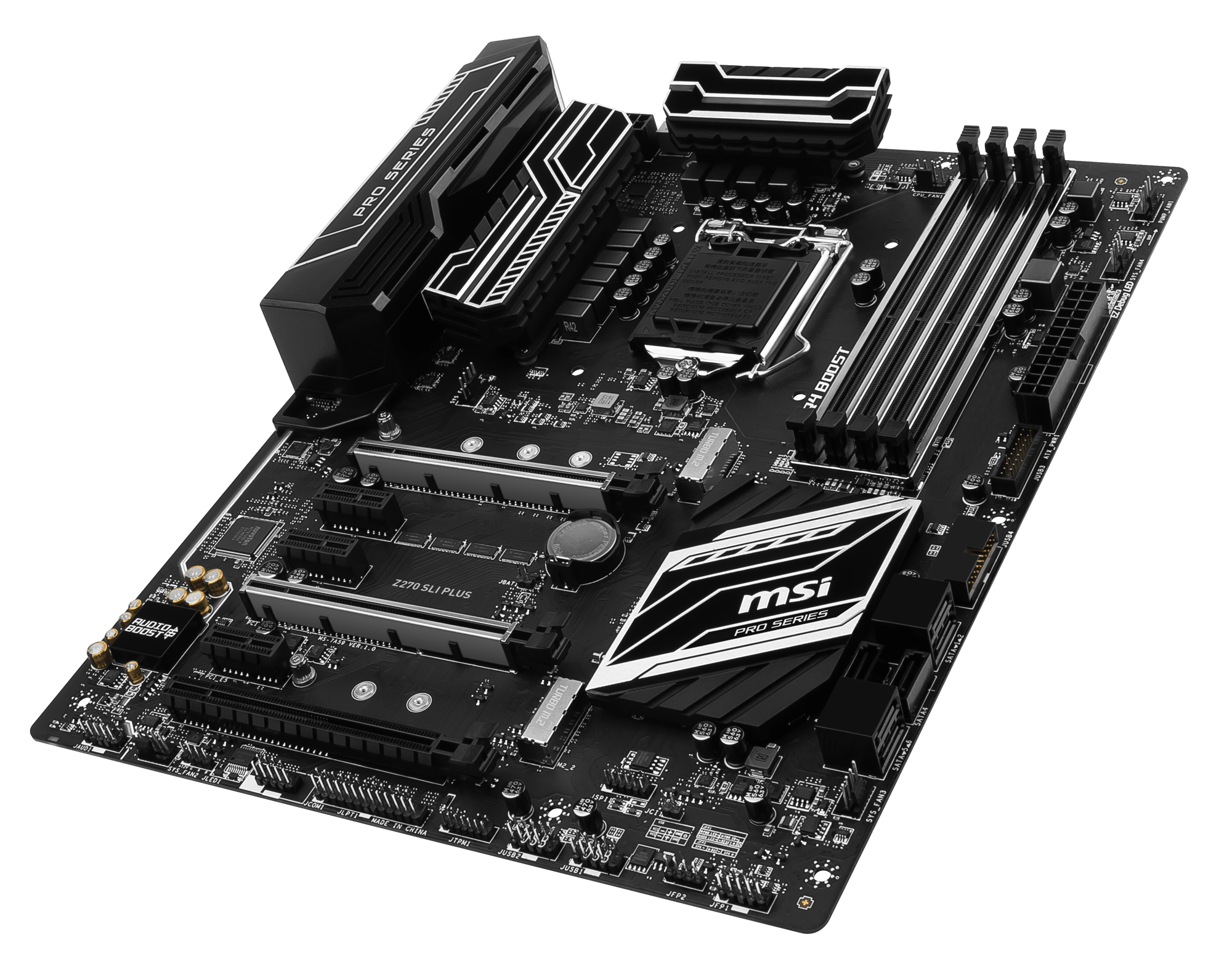

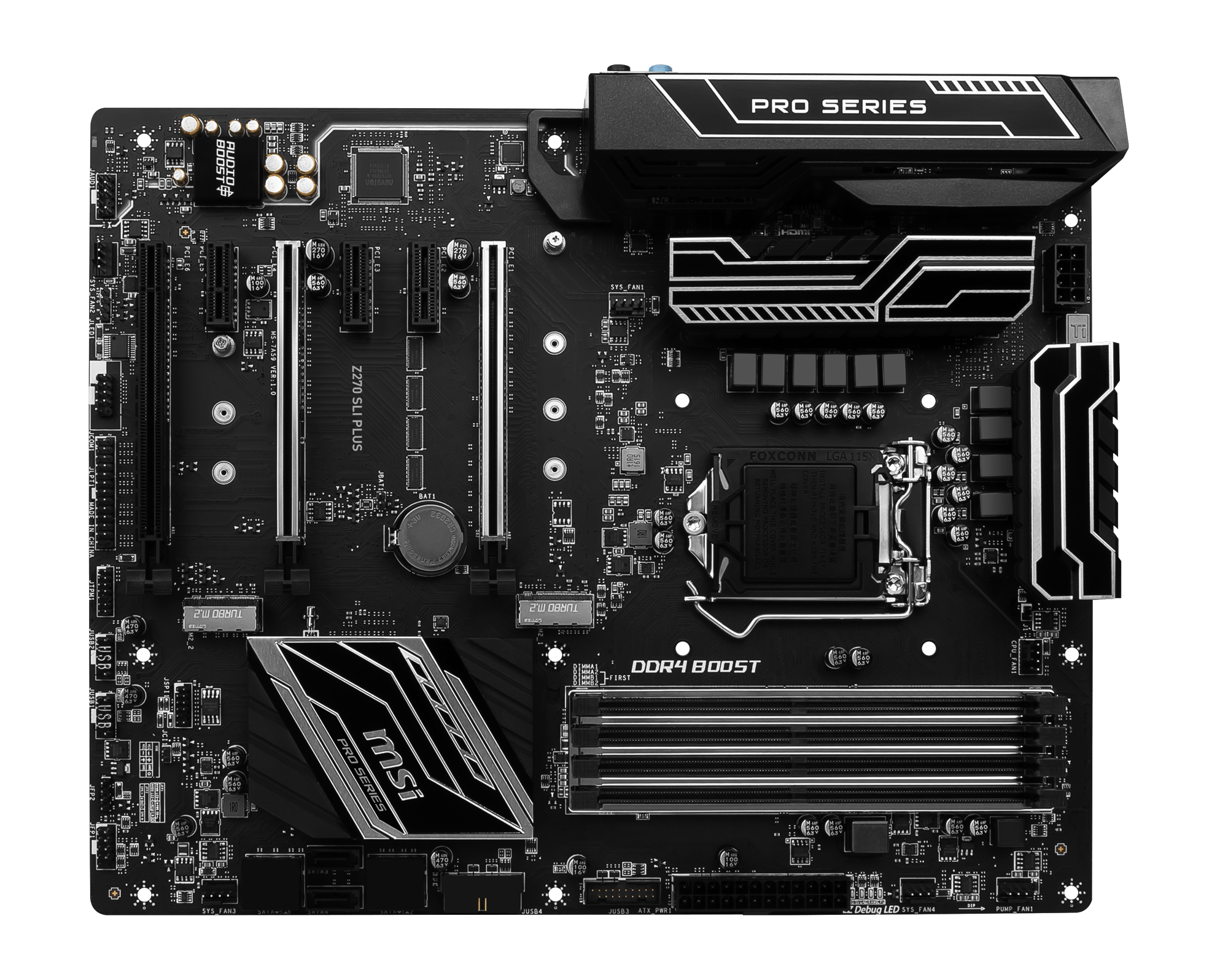

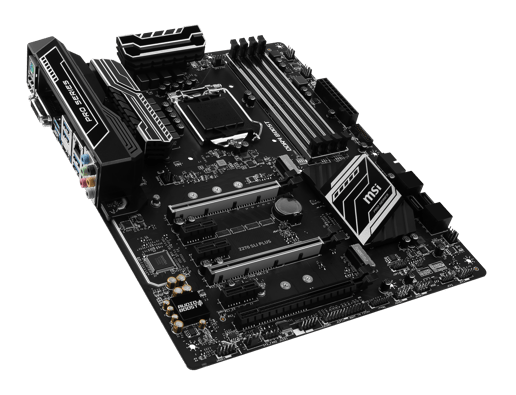

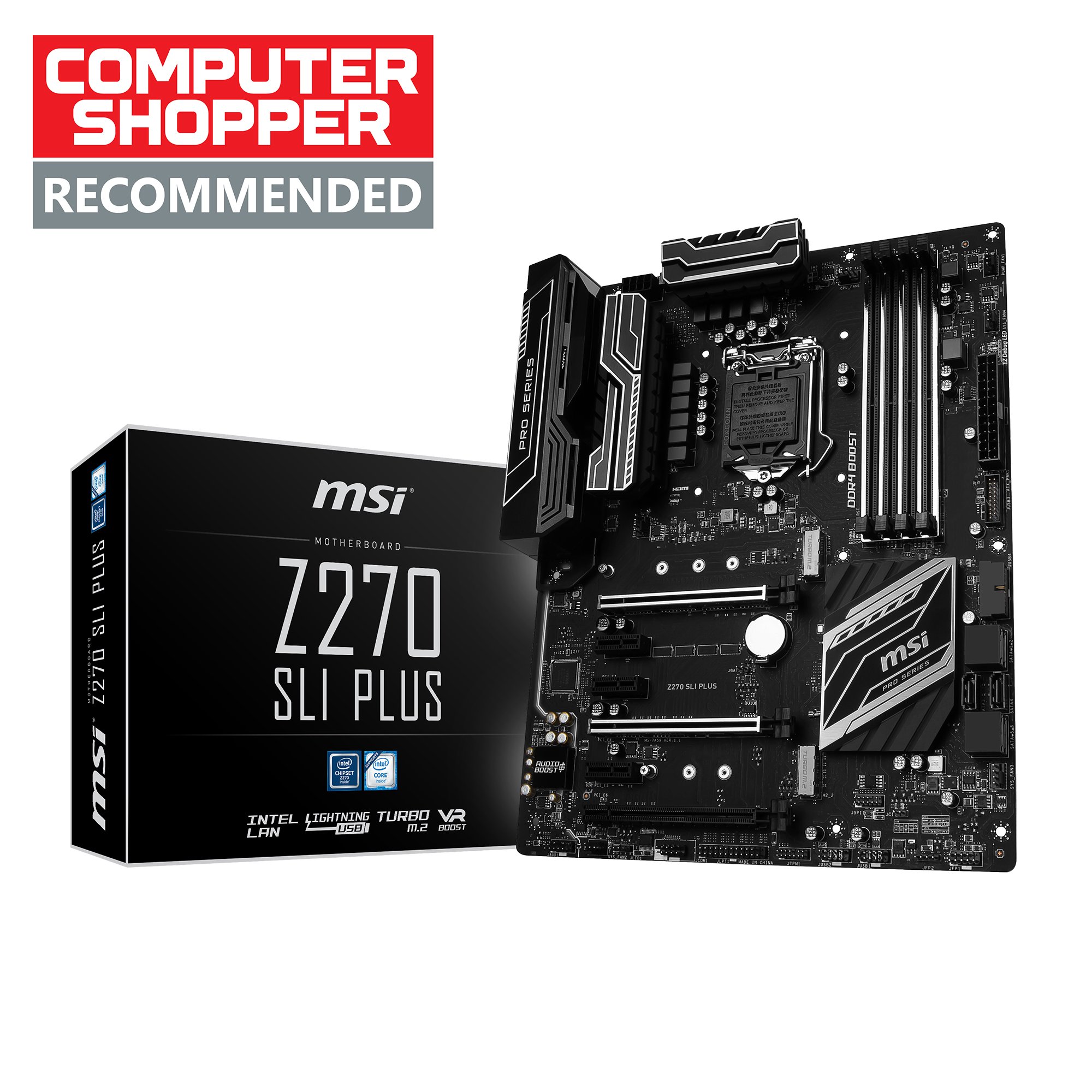

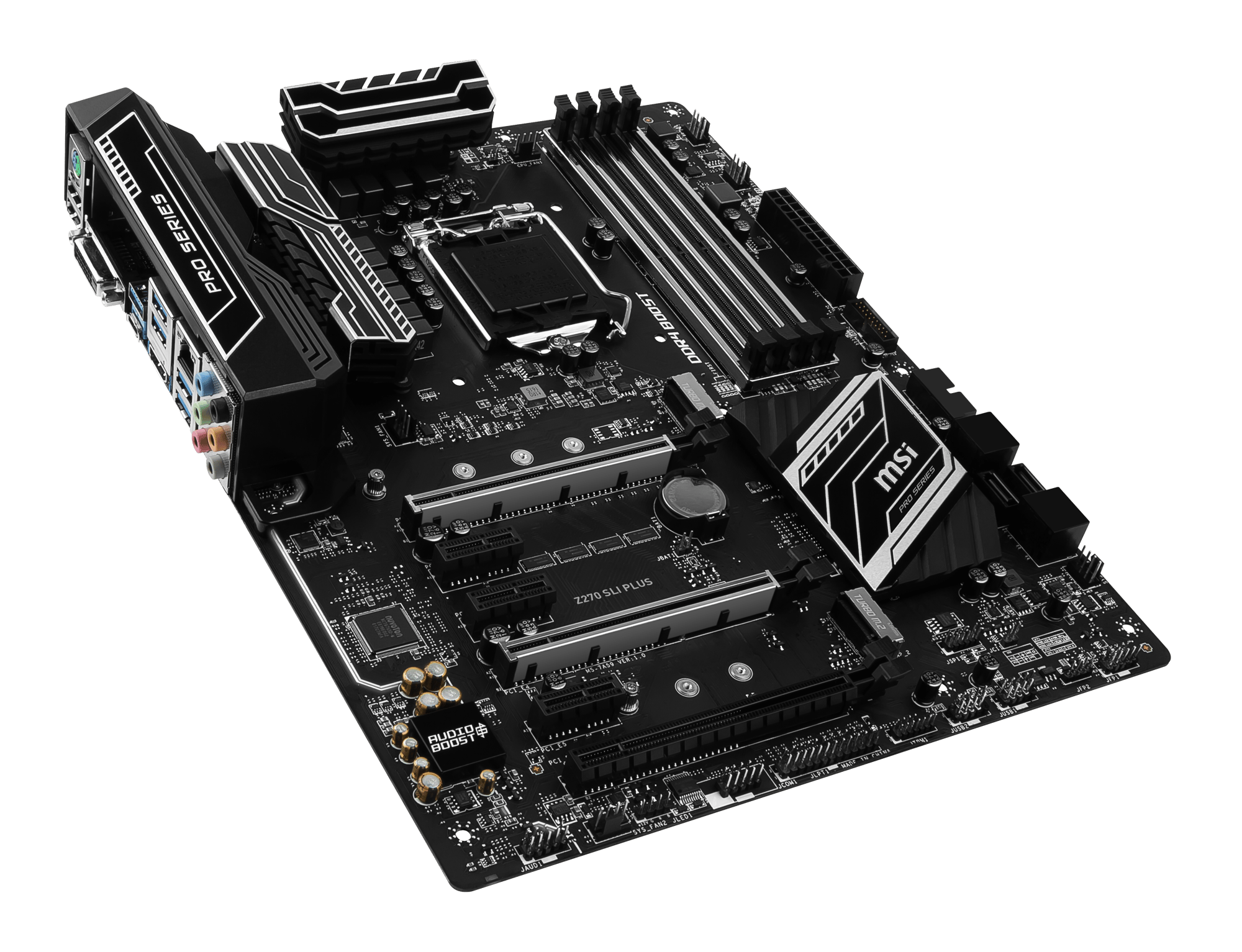

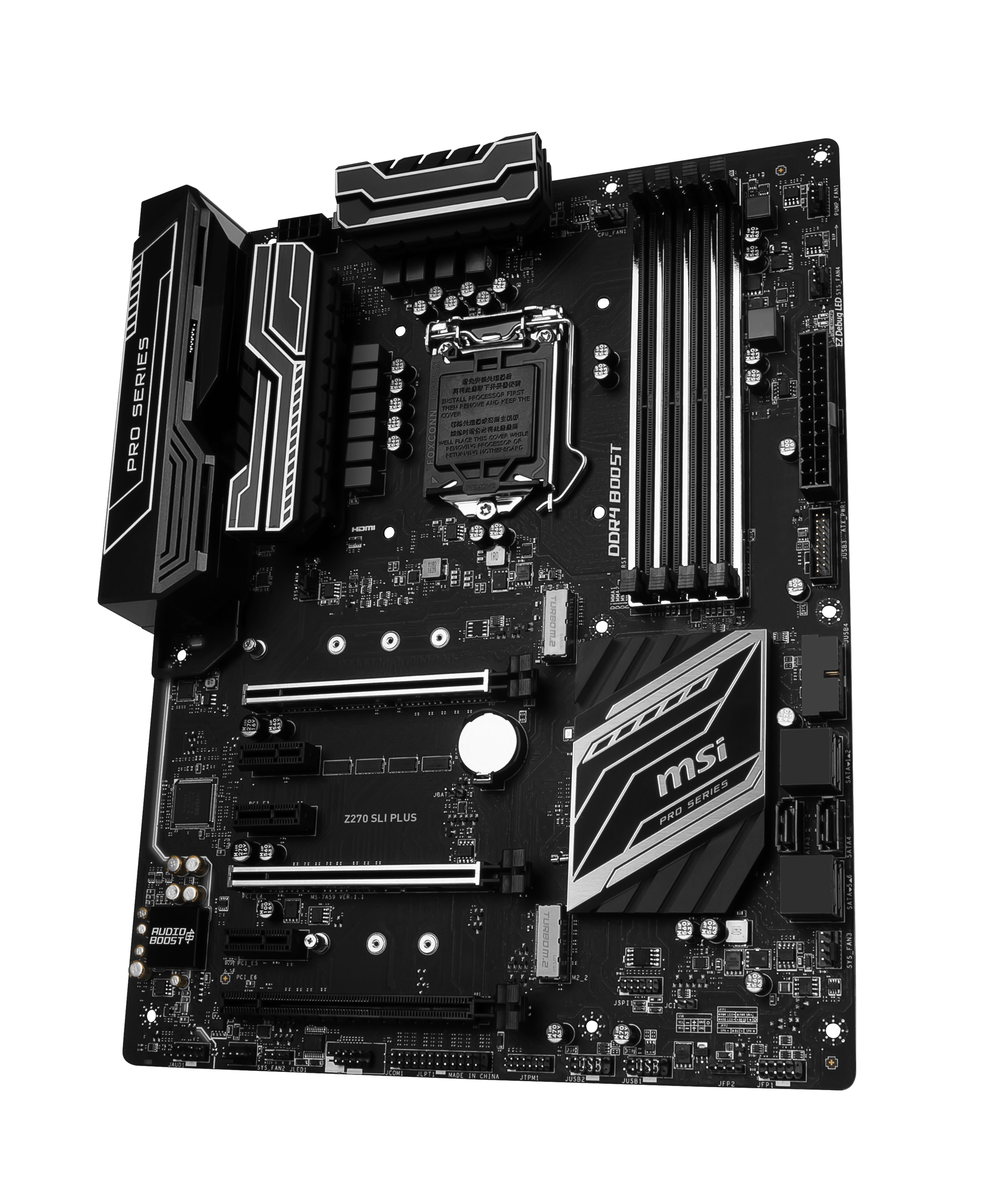

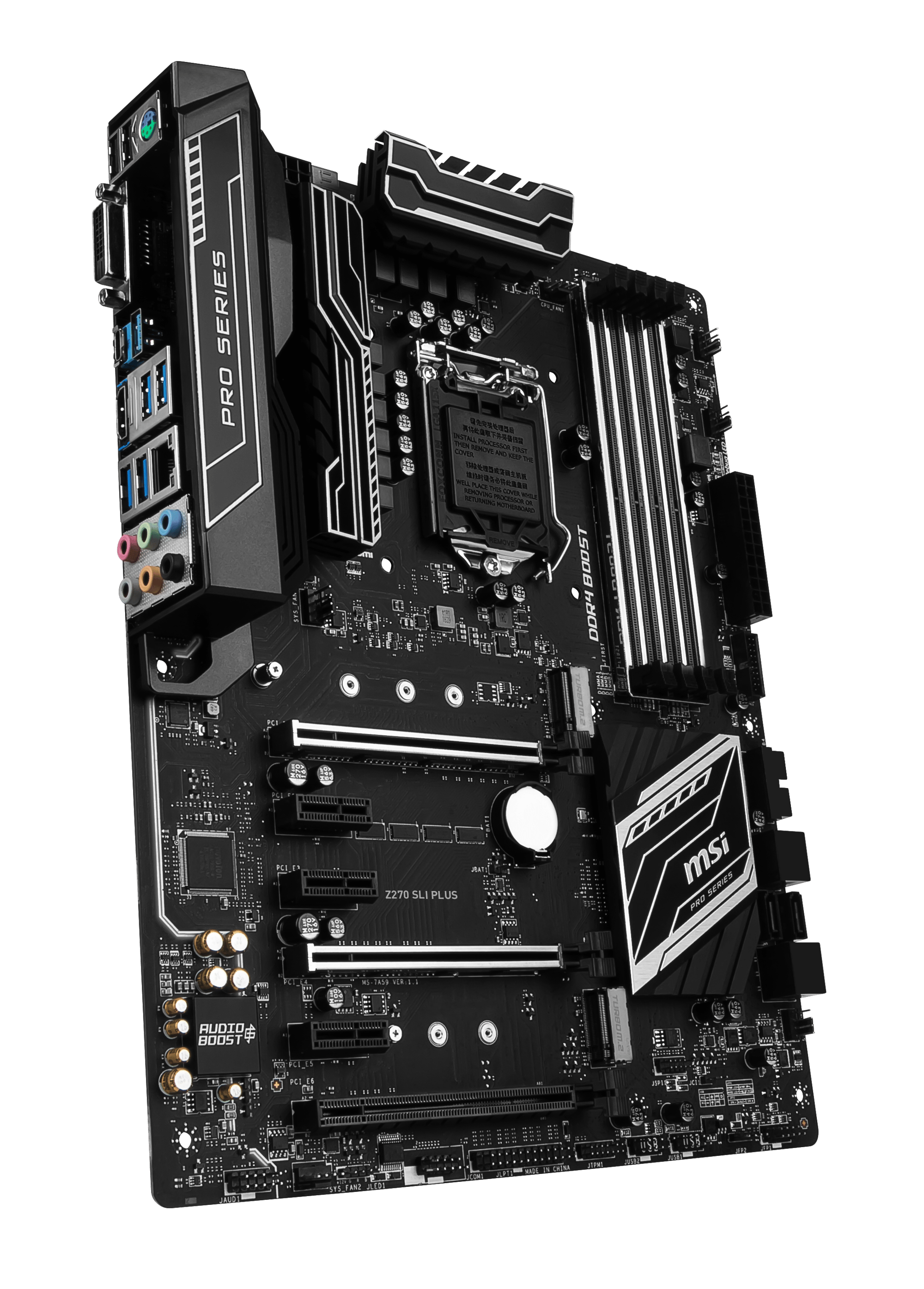

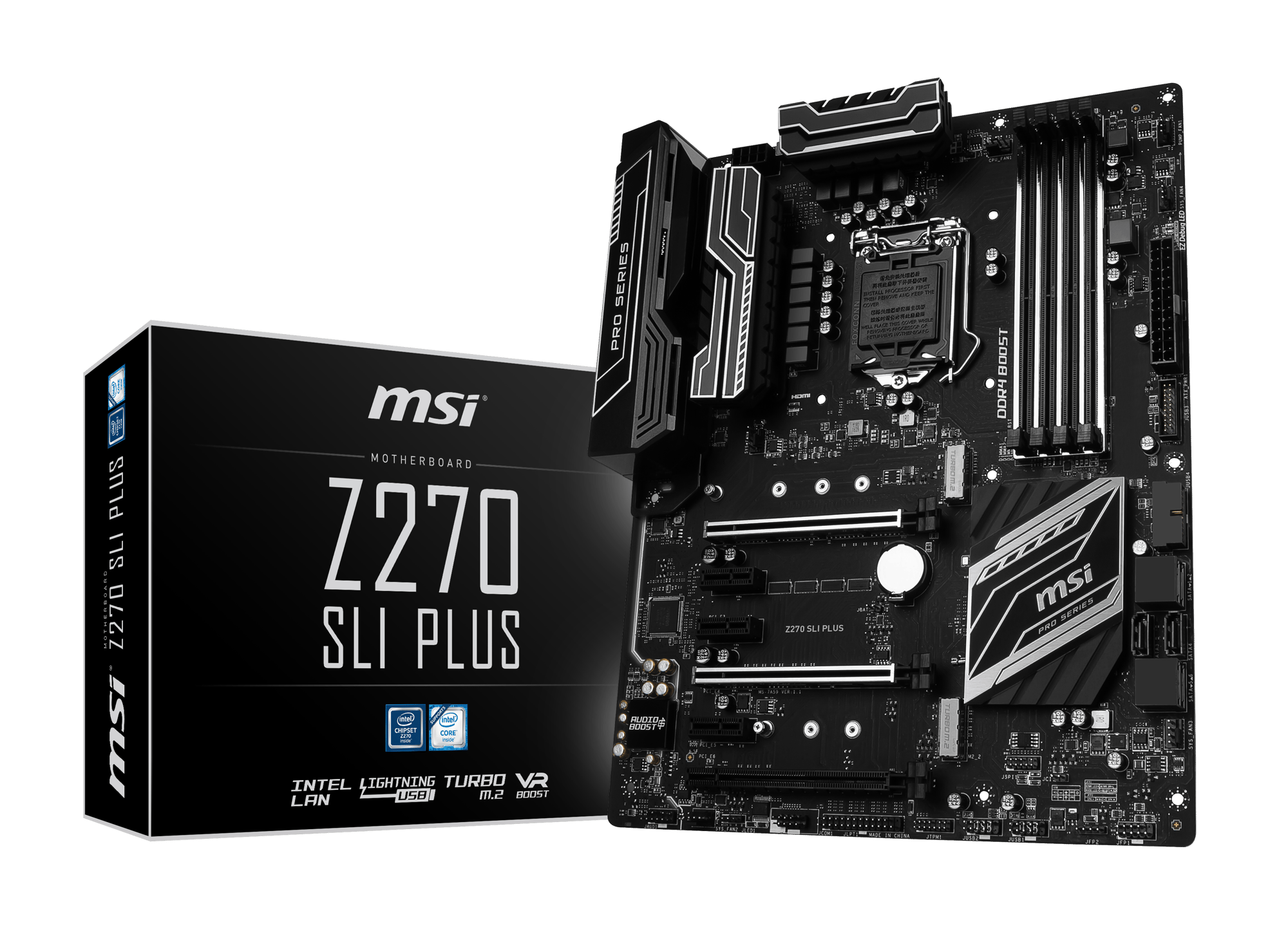

Name: MSI Z270 SLI PLUS ATX Motherboard for Intel LGA1151 CPUs
Brand: MSI
SKU: MBD1992
Price: 154.19 GBP
Availability: OutOfStock

MSI Z270 SLI PLUS ATX Motherboard for Intel LGA1151 CPUs

Compare

Key Features:

Socket 1151
Intel Z270 Chipset
6 x SATA & 8 x USB Ports
DDR4 (max 64GB, 4 slots)
HDMI and DVI
ATX Form Factor

CCL Code: MBD1992

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Overview

Main Features

Supports 7th / 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket
Supports DDR4-3800+(OC) Memory
DDR4 Boost with Steel Armor: Give your DDR4 memory a performance boost
VR Ready and VR Boost: Best virtual reality experience without latency, reduces motion sickness

Promotions

Get 5% off components when you buy 5 or more*

For a limited time, buy at least 5 different components from different qualifying categories and get 5% off those items at checkout.

*Terms & Conditions apply.

Promotional Period: From 2023-09-25 till stocks last.

Terms and conditions apply. Click here to view details.

Terms and Conditions

It can't be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to five or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. If will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the five or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 25th of September, 2023 till 9th of October, 2023.

Specifications

CPU

CPU Socket	Socket 1151
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	6th/ 7th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron
Socket	LGA1151

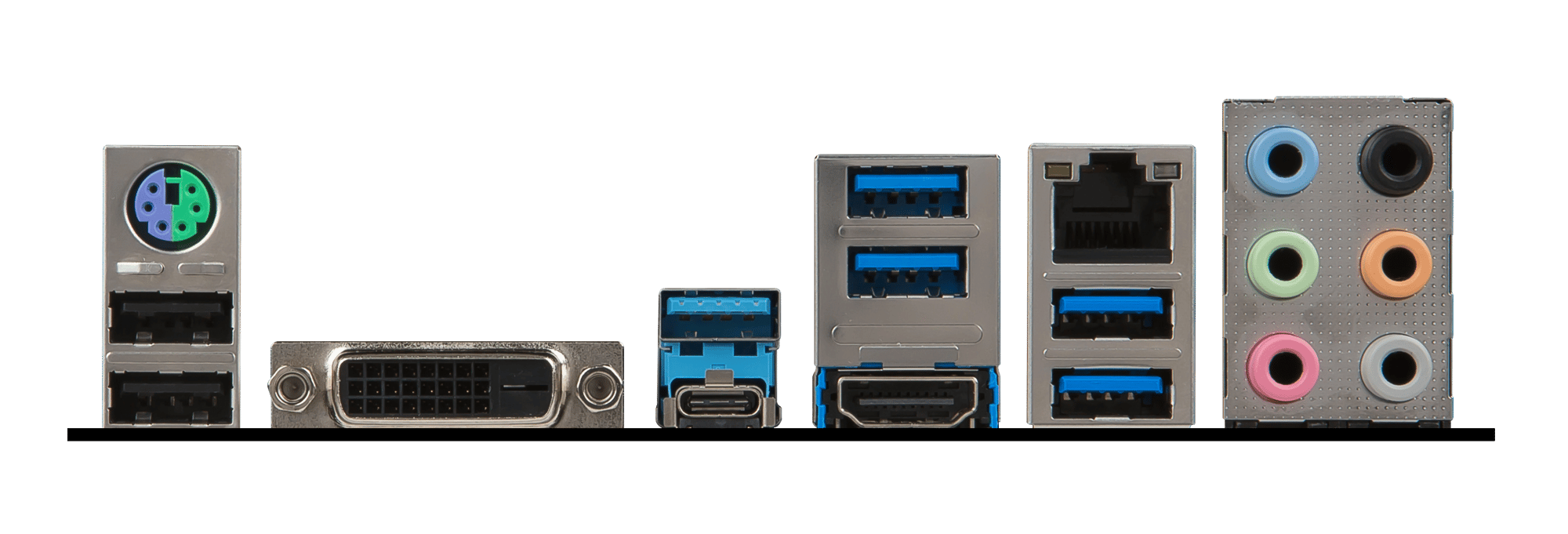

Rear Panel I/O Ports

USB Ports	1 x USB 3.1 Gen2 Type-C • 1 x USB 3.1 Gen2 Type-A • 4 x USB 3.1 Gen1 Type-A • 2 x USB 2.0
HDMI Port	1 x HDMI
Keyboard/Mouse Combo Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Digital Port	1 x DVI-D
Audio Line In Ports	6 x Audio Jack

Internal I/O Connectors

SATA Connectors	6 x SATA 6Gb/s
USB Connectors	2 x USB 2.0 Connectors (for 4 additional USB 2.0 ports) • 2 x USB 3.1 Gen1 Connectors (for 4 additional USB 3.1 Gen1 ports)
Front Panel Connectors	1 x Front Panel Audio Connector • 2 x Front Panel Connectors
Cooling Fan Support	1 x 4-pin CPU Fan • 4 x 4-pin System Fan • 1 x 4-pin Water Pump Fan
Parallel Connectors	1 x Parallel Port Connector
Serial Connectors	1 x Serial Port
Chassis Intrusion Connector	1 x Chassis Intrusion Connector
TPM Header	1 x TPM Header
Power Connector Port	1 x 24-pin ATX • 1 x 8-pin ATX 12V
Other Connectors	1 x RGB LED connector

Memory

Memory Bus Speed	2133/2400/2600(OC)/2800(OC)/3000(OC)/3200(OC)/3600(OC)/3800(OC) MHz
Memory Type	DDR4 (Unbuffered Non-ECC)
Maximum RAM	64 GB
Memory Bus Speed Minimum	2133 MHz
Memory Bus Speed Maximum	3800 (OC) MHz
Memory Bus Speeds Supported	2133/2400/2600(OC)/2800(OC)/3000(OC)/3200(OC)/3600(OC)/3800(OC) MHz
Memory Slot	4 x DDR4 Slots

Physical

Colour	Black
Form Factor	ATX

Motherboard

Chipset Manufacturer	Intel
Northbridge	Z270
RAID Supported	Yes
RAID Format	Chipset: RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots	6 slot(s)
PCI Express 3.0 Slot Type	3 x PCI Express 3.0 x16 • 3 x PCI Express 3.0 x1

Sound

Integrated Sound

Realtek ALC1220 Codec, 7.1-Channel High Definition Audio

Network

Integrated Network	Intel I219-V Gigabit LAN Controller
Network Speeds Supported	10/100/1000 Mbps

System

Jumpers	1 x Clear CMOS Jumper
SLi/Crossfire Features	Supports 2-Way NVIDIA SLI Technology, Supports 3-Way AMD CrossFire Technology

Wireless Communications

Bluetooth

Key Features

Firewire	No
Integrated Graphics Supported	Yes
Wireless Network	No
Motherboard Width	244 mm
Motherboard Height	305 mm
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	6 port(s)
Number of USB Ports	8 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	Both
VGA Connection	No
DVI Connection	Yes
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ATX
Motherboard Power Connectors	4 + 4-Pin
Motherboard Chipset	Intel Z270
Thunderbolt	No
Motherboard Model	MSI Z270 SLI PLUS Motherboard
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	None
Power Requirement (auto)	70 W
Create Your Own PC (CCL)	Yes

Graphics

Graphics Chipset

None

Warranty

1 Year

Item Details

Manufacturer	MSI
Manufacturer Code	Z270 SLI PLUS
EAN	4719072490065
UPC	824142138281
Condition	New

Warranty

Warranty Information

Warranty

1 Year

Manufacturer Information

Manufacturer	MSI
Manufacturer Code	Z270 SLI PLUS
