CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: AMD
• Supported Processors: AMD Ryzen 9000, 8000 and 7000 series processors
• 64-bit Support: Yes
• Socket: AM5

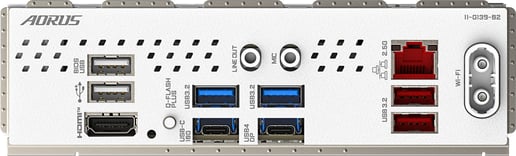

Rear Panel I/O Ports

• USB Ports: 1 x USB-C 4
• 1 x USB-C 3.1
• 2 x USB 3.1
• 2 x USB 3.0
• 2 x USB 2.0
• DisplayPorts: Yes via USB-C
• HDMI Port: 1 x HDMI 2.1

Internal I/O Connectors

• SATA Connectors: 2 x SATA III
• USB Connectors: 1 x USB-C 3.1 header (supports 1 port)
• 1 x USB 3.0 header (supports 2 ports)
• 2 x USB 2.0 headers (supports 2 ports)
• Speaker: 1 x Speaker header

Memory

• Memory Bus Speed: Up to 8400 MT/s
• Memory Type: DDR5

Motherboard

• Northbridge: AMD X870
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 5, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 1 x RJ-45
• Audio Line In Ports: 1 x 3.5mm Jack
• Audio Line Out Ports: 1 x 3.5mm Jack
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x CPU fan/Water Cooling pump header
• 1 x System fan header
• Chassis Intrusion Connector: 1 x Chassis Intrusion header
• Power Connector Port: 1 x 24-pin ATX
• 2 x 8-pin EPS
• Other Connectors: 1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen5)
• 1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4)
• 2 x 3-pin ARGB headers
• 1 x 4-pin RGB header

Expansion

• Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot

Memory

• Maximum RAM: 128 GB
• Memory Slot: 2 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek ALC4080

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Realtek
• Network Speeds Supported: Up to 2.5 Gbps
• Wireless LAN: Yes - Wi-Fi 7
• Bluetooth: Yes
• Bluetooth Version: 5.4

System Requirements

• Operating Systems Supported: Windows 11

System

• Jumpers: 1 x Clear CMOS
• Software Included: Yes
• Drivers: Yes

Physical

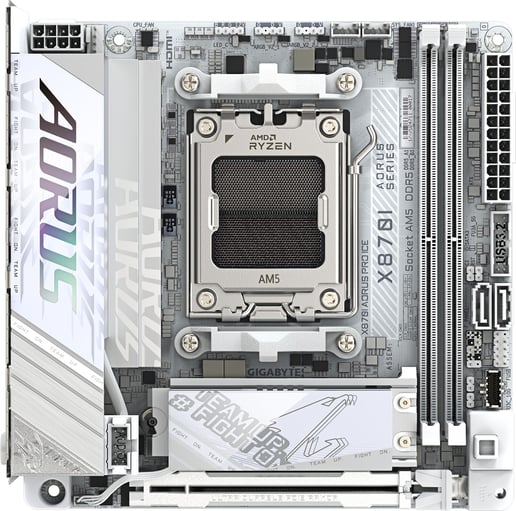

• Form Factor: Mini-ITX Motherboard
• Width: 170 mm
• Length: 170 mm

Identifiers

• Stock Code: MBD3724
• Mfg Code: X870I AORUS PRO ICE
