CPU

• Installed Processors (Max): 0 (1)
• Supported Processors: Processor Support
• AMD Socket AM5
• Supports the following processor series:
• AMD Ryzen 9000 Series processors
• AMD Ryzen 8000 Series processors
• AMD Ryzen 7000 Series processors
• Please visit the GIGABYTE website for the latest CPU support list
• Socket: AM5

Rear Panel I/O Ports

• DisplayPorts: 2x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
• *Support for DisplayPort v1.4 and HDR
• HDMI Port: - 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• *Support for HDMI v2.1, HDCP 2.3, HDR, and TMDS
• - 1x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
• *Support for HDMI v1.4

Internal I/O Connectors

• USB Connectors: CPU + ASMedia USB4 controller:
• - 2 x USB4© USB Type-C ports on the back panel
• CPU:
• - 1 x USB Type-C port on the back panel with USB 3.2 Gen 2 support
• Chipset + USB 3.2 Gen 1 Hub:
• - 4 x USB 3.2 Gen 1 ports available through the internal USB headers
• Chipset:
• - 1 x USB Type-C port with USB 3.2 Gen 2x2 support available through the internal USB header (supports up to 65W PD 3.0 / QC 4+ fast charging)
• * For precautions regarding the fast charging function, refer to "USB Type-C Header" in Chapter 2-7, "Internal Connectors."
• - 1 x USB Type-C port on the back panel with USB 3.2 Gen 2 support
• - 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• - 3 x USB 3.2 Gen 1 ports on the back panel
• - 4 x USB 2.0/1.1 ports available through the internal USB headers

Memory

• Memory Bus Speed: Support for DDR5 9000(O.C.) / 8800(O.C.) / 8600(O.C.) / 8400(O.C.) / 8200(O.C.) / 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5600(O.C.) / 5200 / 4800 MT/s memory modules
• Memory Type: 4 x DDR5 DIMM sockets supporting up to 256GB (64GB per DIMM) of system memory
• Dual channel memory architecture
• Support for non-ECC unbuffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
• (CPU and memory configuration may affect supported memory types, data rates (speeds), and number of DRAM modules. Please refer to the "Memory Support List" on GIGABYTE's website for more information.)

Electrical

• Power Requirements: ATX

Physical

• Colour: White

Motherboard

• Northbridge: AMD X870E
• RAID Supported: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• * RAID 5 is only available with AMD Ryzen 9000 Series processors
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Internal I/O Connectors

• Cooling Fan Support: 1x CPU fan header
• 1x CPU fan/water cooling pump header
• 4x system fan headers
• 2x system fan/water cooling pump headers
• 3x addressable RGB Gen2 LED strip headers
• 1x RGB LED strip header
• Power Connector Port: 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 1x PCIe power connector
• Other Connectors: Internal I/O Connectors:
• 4 x SATA 6Gb/s connectors
• 4 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x HDMI port (Note: Actual support may vary by CPU)
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
• 2 x temperature sensor headers
• 1 x reset jumper
• 1 x Clear CMOS jumper

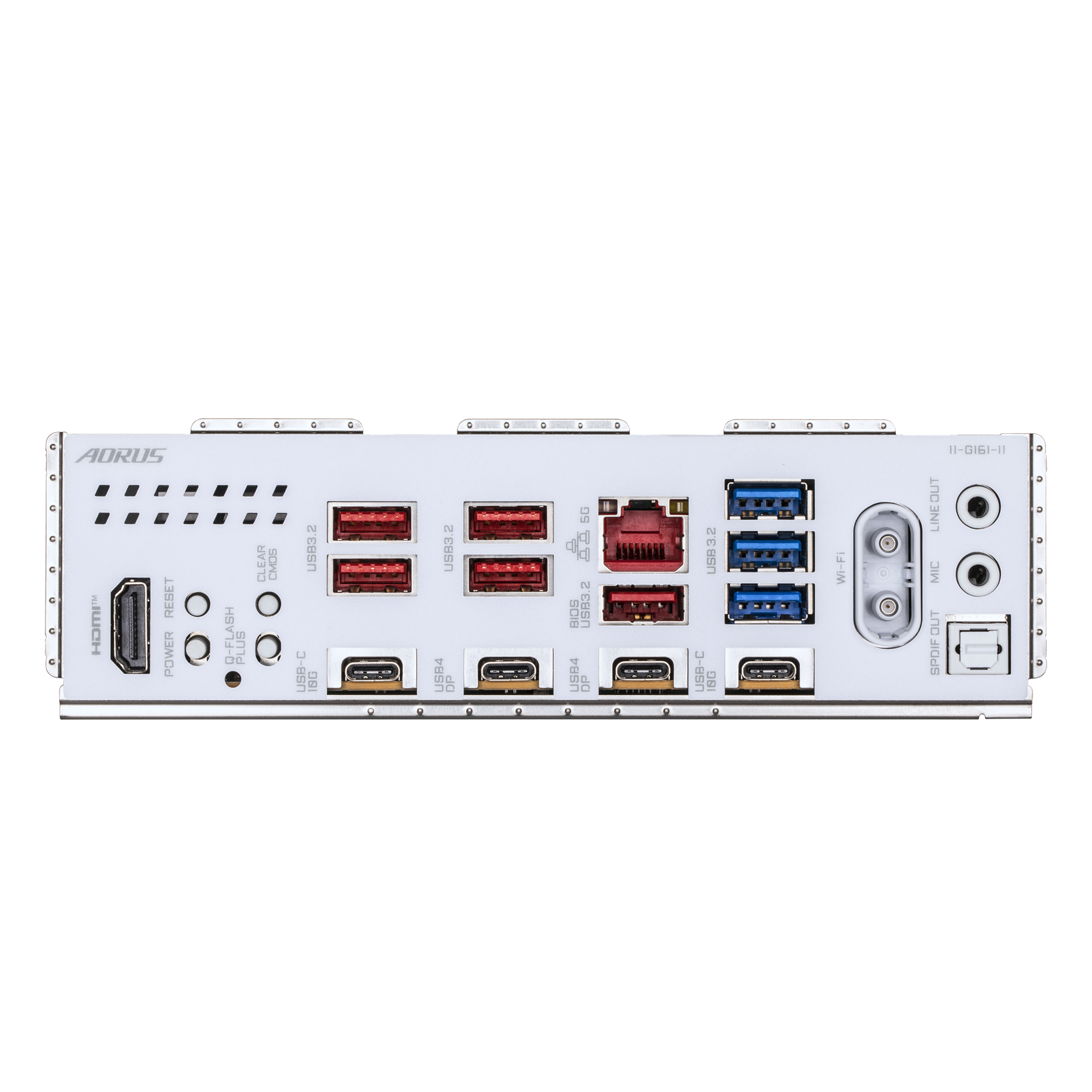

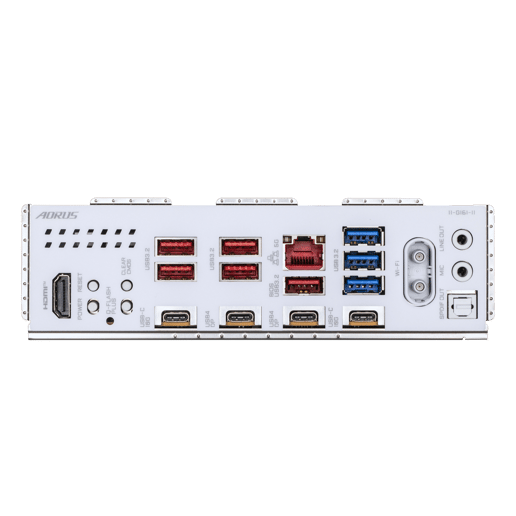

• Back Panel Connectors
• 1 x HDMI port (Note: Actual support may vary by CPU)
• 1 x reset button
• 1 x power button
• 1 x Clear CMOS button
• 1 x Q-Flash Plus button
• 5 x USB 3.2 Gen 2 Type-A ports (red)
• 2 x USB Type-C ports, with USB 3.2 Gen 2 support
• 2 x USB4 USB Type-C ports (DisplayPort (Note: Actual support may vary by CPU))
• 1 x RJ-45 port
• 3 x USB 3.2 Gen 1 ports
• 2 x antenna connectors (2T2R)
• 2 x audio jacks
• 1 x optical S/PDIF Out connector

Expansion

• PCI Express X16 Slots: 3x
• PCI Express Slot Type: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• AMD Ryzen 9000 / 7000 Series processors support PCIe 5.0 x16 mode
• AMD Ryzen 8000 Series - Phoenix 1 processors support PCIe 4.0 x8 mode
• AMD Ryzen 8000 Series - Phoenix 2 processors support PCIe 4.0 x4 mode
• The PCIEX16 slot supports either a graphics card or an NVMe SSD. If installing only one graphics card, ensure it is installed in the PCIEX16 slot.
• Chipset:
• 1 x PCI Express x16 slot supporting PCIe 4.0 and running at x4 (PCIEX4)
• 1 x PCI Express x16 slot supporting PCIe 3.0 and running at x2 (PCIEX2)

Memory

• Memory Slot: 4x

Storage

• Embedded Storage Capacity: M.2 Connectors integrated in the CPU:
• 1 x M.2 connector (M2A_CPU), Socket 3, M key, type 25110/22110/2580/2280 SSDs.
• 1 x M.2 connector (M2B_CPU), Socket 3, M key, type 22110/2280 SSDs.
• M.2 Connectors integrated in the Chipset:
• 2 x M.2 connectors (M2C_SB, M2D_SB), Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs.
• SATA: 4 x SATA 6Gb/s connectors.

Graphics Device

• Integrated Graphics Supported: Integrated Graphics Processor with AMD Radeon Graphics support + ASMedia USB4 Controller:
• 2 x USB4 USB Type-C ports supporting USB4 and DisplayPort video output with a maximum resolution of 3840x2160 @ 240 Hz
• Supports DisplayPort 1.4 and HDR
• Integrated Graphics Processor with AMD Radeon Graphics support:
• 1 x HDMI port supporting a maximum resolution of 4096x2160 @ 60 Hz
• Supports HDMI 2.1, HDCP 2.3, and HDR
• ** Supports native HDMI 2.1 TMDS-compatible ports
• 1 x front HDMI port supporting a maximum resolution of 1920x1080 @ 30 Hz
• Supports HDMI 1.4
• (Graphics specifications may vary depending on CPU support)

Sound

• Integrated Sound: Audio
• Realtek ALC1220 CODEC
• The back panel line-out jack supports DSD audio
• High Definition Audio
• 2 / 4 / 5.1 / 7.1-channel support
• The functionality of the audio jack can be configured using the audio software. To enable 7.1-channel audio, access the audio software settings
• Support for S/PDIF Out

Network

• Integrated Network: LAN:
• Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication modules:
• Wireless Networking
• Chipset: Qualcomm Wi-Fi 7 QCNCM865
• Standards: 802.11a / b / g / n / ac / ax / be; supports 2.4GHz, 5GHz, and 6GHz frequency bands, including the 11be 320MHz standard
• Bluetooth: Version 5.4 (may change with future updates)
• Operating System Requirement: Requires Windows 11 SV3; no driver support for Windows 10
• Regulatory Note: Availability of the 6GHz band for Wi-Fi 7 depends on individual country regulations
• Bluetooth Version: 5.4

System Requirements

• Operating Systems Supported: Windows 11 64-bit

System

• BIOS: 1 x 512 Mbit flash
• Licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
• Special Features: Support for GIGABYTE Control Center (GCC)
• Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup
• Software Included: Norton Internet Security (OEM version)
• I/O Controller and Monitoring
• iTE I/O Controller Chip
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• Noise detection

Physical

• Form Factor: ATX
• Width: 305 mm
• Length: 244 mm

Identifiers

• Stock Code: MBD3996
• Mfg Code: X870E A PRO X ICE
