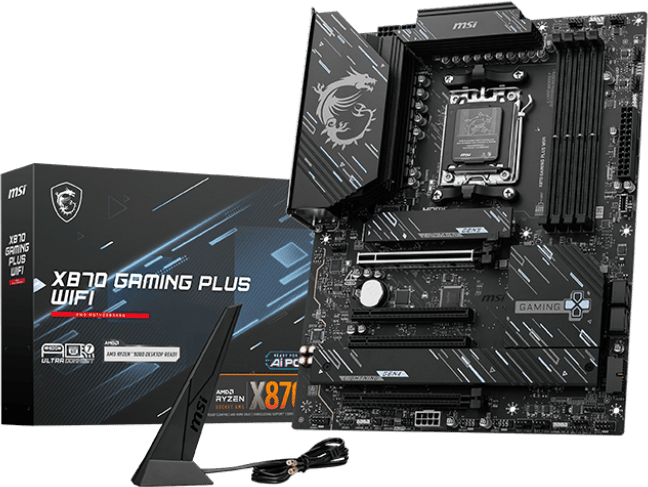

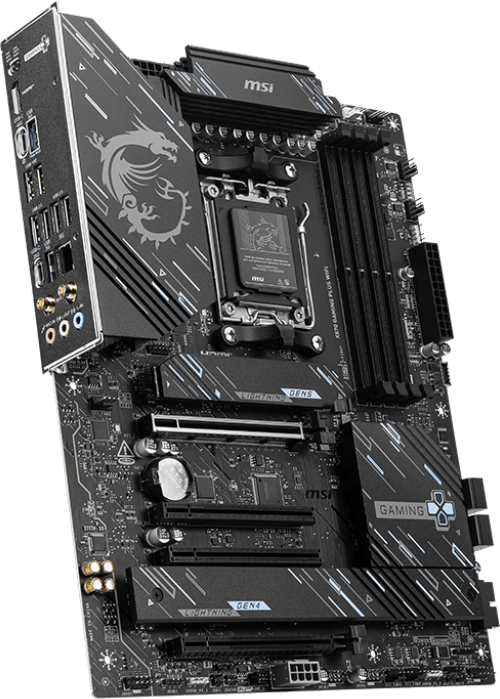

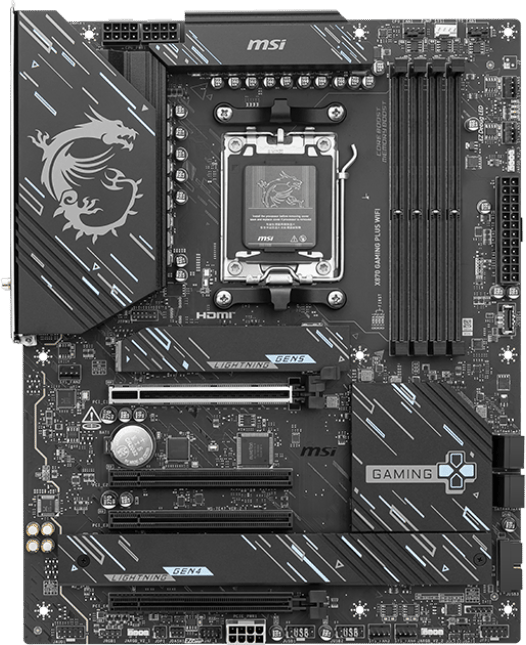

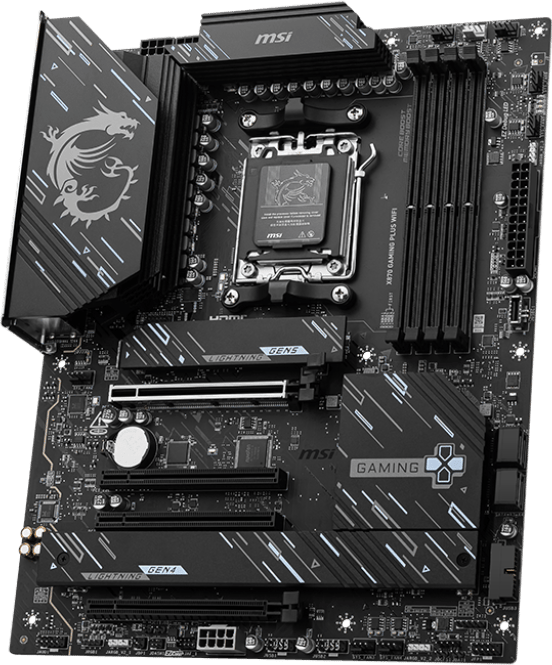

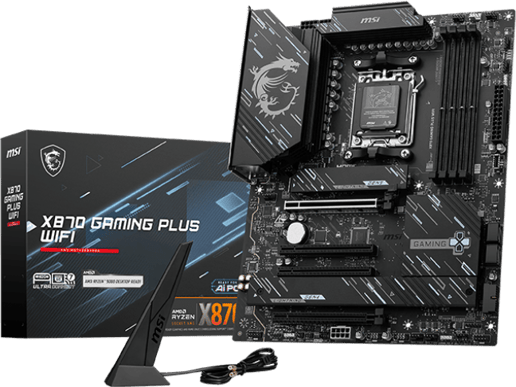

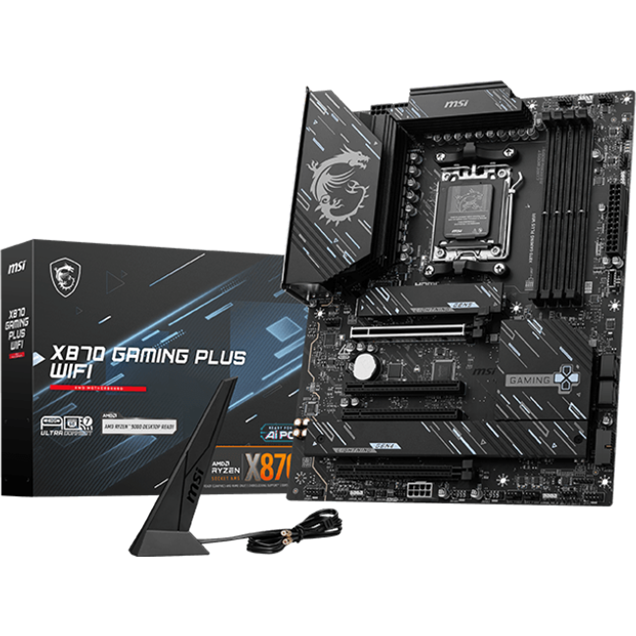

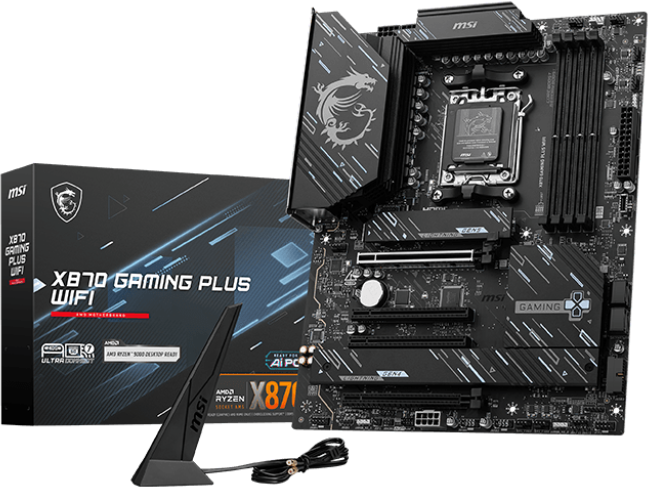

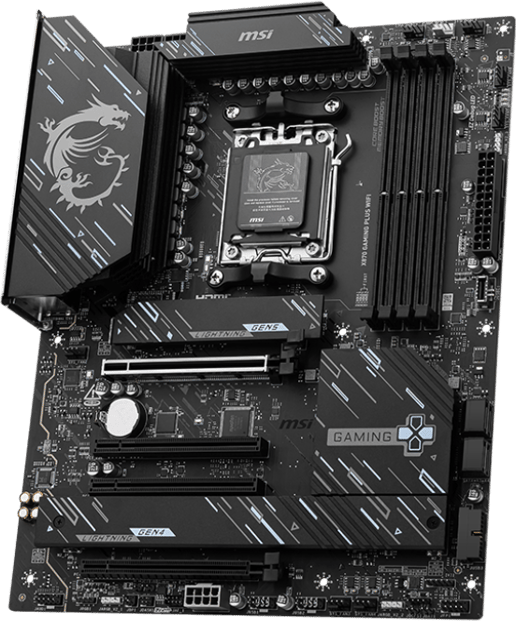

MSI X870 GAMING PLUS WIFI ATX Motherboard for AMD Socket AM5 CPUs
Available for delivery from Tomorrow
Click & Collect from Today
Hurry, only 1 left!
Order within
You have 0 of these in your basket
Please note that this is a C Grade clearance item. C Grade items may have missing accessories or show signs of cosmetic wear. See below for details of this specific item. The price has been reduced to reflect this.
All C Grade items are working and have been fully tested.
This item is supplied with a Warranty: 3 Years warranty.
X870 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: Ryzen 9000/ 8000/ 7000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM5
Rear Panel I/O Ports
- USB Ports: 1 x USB-C 4
- 1 x USB-C 3.2
- 2 x USB 3.1
- 2 x USB 3.0
- 4 x USB 2.0
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.1 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 8200 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: AMD X870
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x Combo fan header
- 6 x System fan headers
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
- 2 x 8-pin EPS
1 x 8-pin PCIe - Other Connectors: 1 x M.2 slot, Type 2260/2280 (PCIe Gen5)
- 1 x M.2 slot, Type 2280/22110 (PCIe Gen4)
- 1 x M.2 slot, Type 2260/2280 (PCIe Gen4 x2)
- 3 x 3-pin ARGB headers
- 1 x 4-pin RGB header
Expansion
- Number of PCI Express Slots: 2 x PCI Express 4.0 x16 slots (@ x16/x4)
- 2 x PCI Express 3.0 x16 slots (@ x1/x1)
Memory
- Maximum RAM: 256 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC897
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek 8126VB
- Network Speeds Supported: Up to 5 Gbps
- Wireless LAN: Yes - Wi-Fi 7
- Wireless Network Speed: Up to 5.8 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.4
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard
- In The Box: Motherboard
- Quick Installation Guide
- EU Regulatory Notice
- Shout-Out Flyer
- 2 x SATA Cables
- EZ M.2 Clip II
- EZ M.2 Clip II Remover
- Cable Sticker
- EZ Wi-Fi Antenna
- 1 to 2 EZ Conn-Cable (V1)
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3883XC1
- Mfg Code: X870 GAMING PLUS WIFI
Warranty
- Warranty: 3 Years
