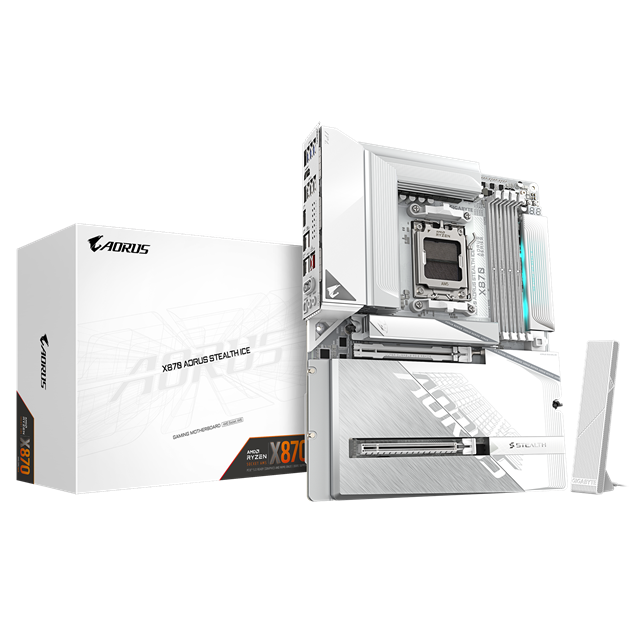

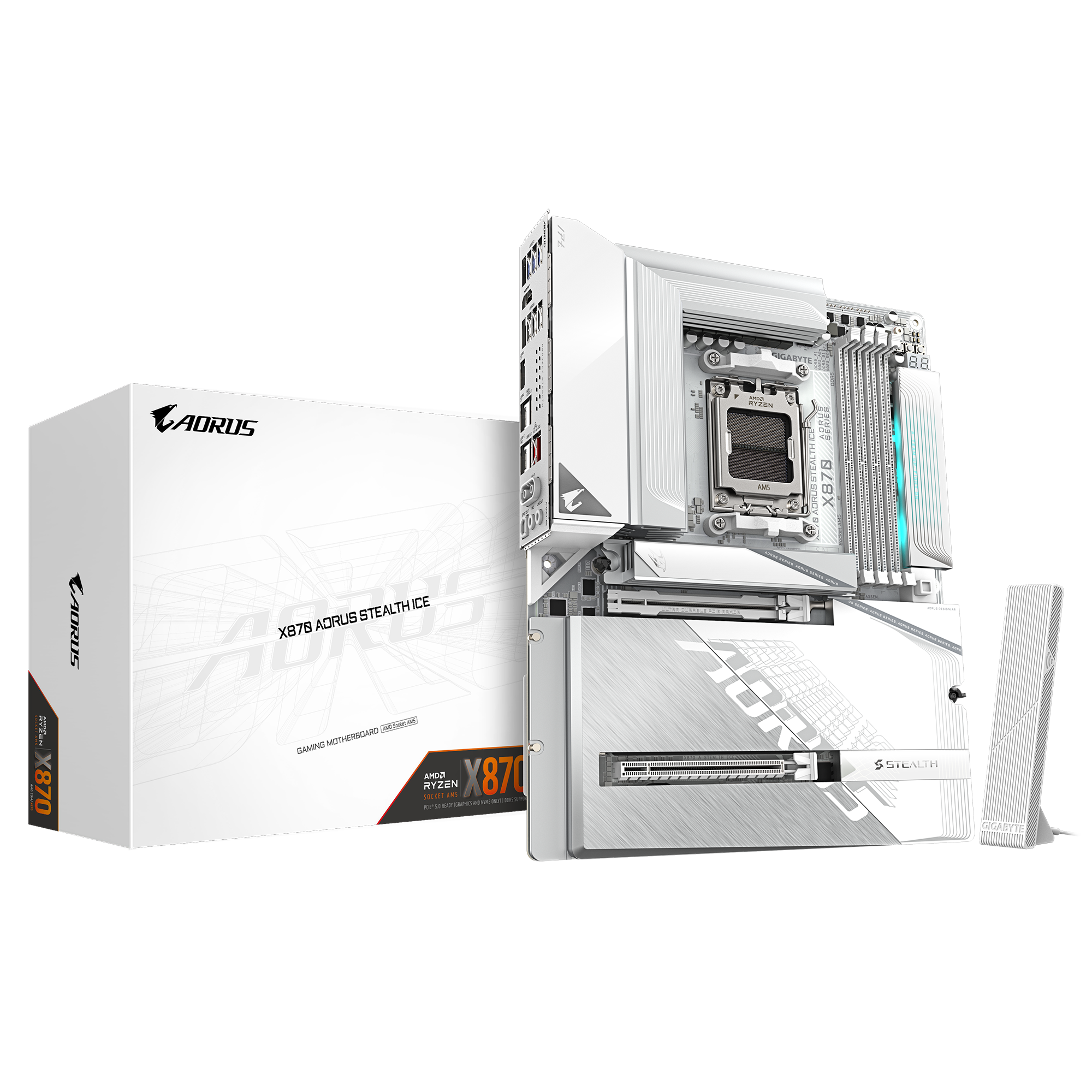

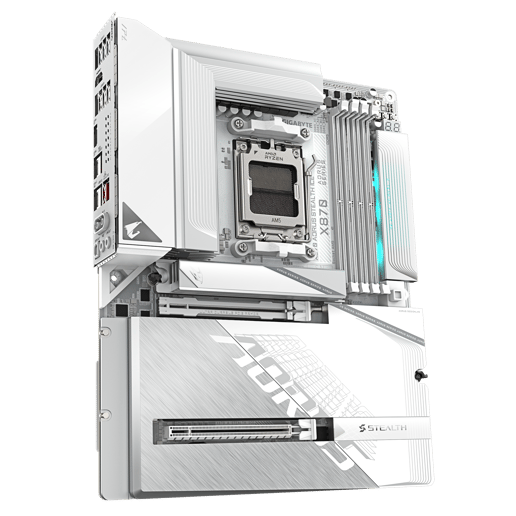

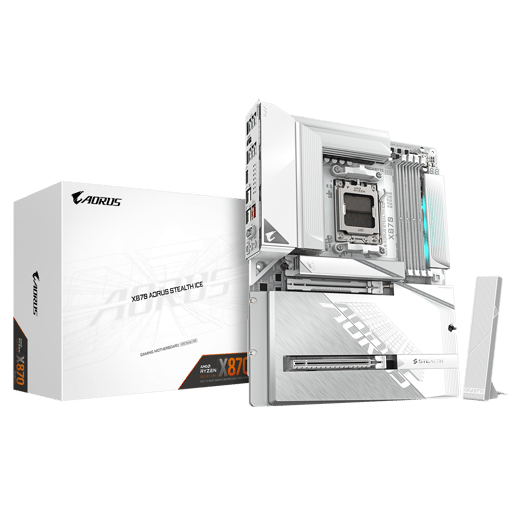

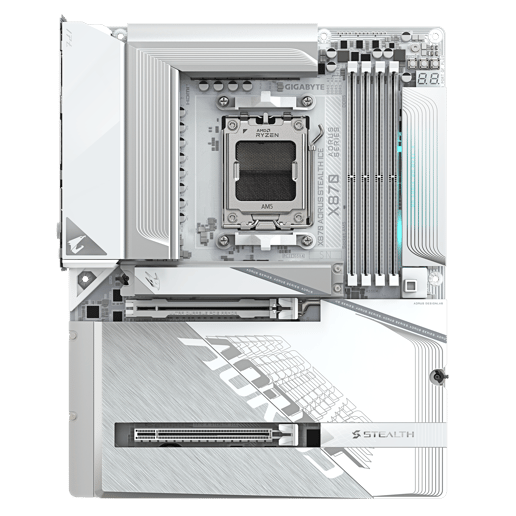

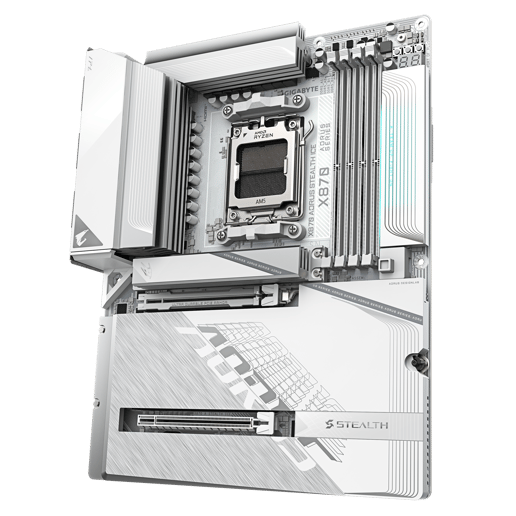

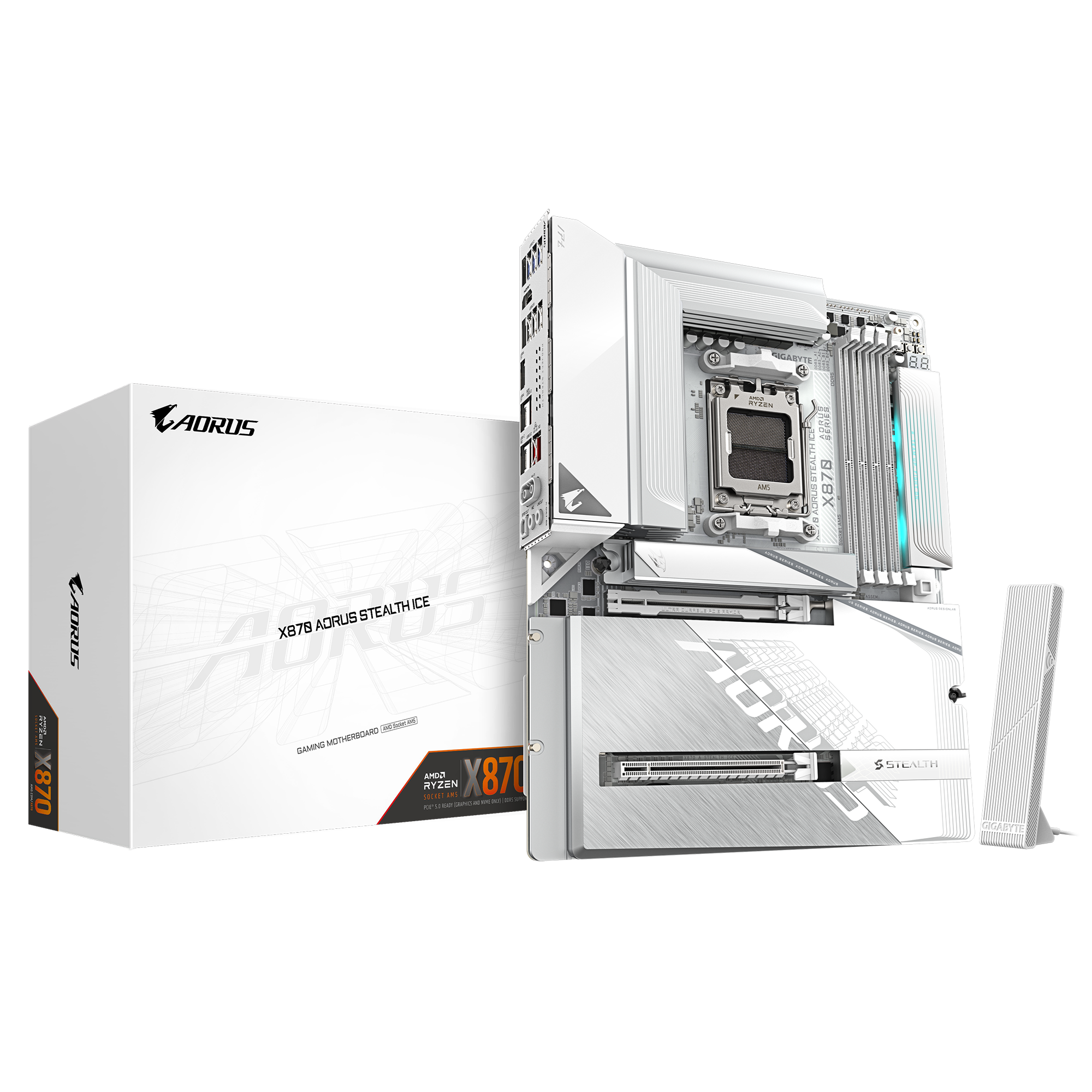

Gigabyte X870 AORUS STEALTH ICE ATX Motherboard for AMD AM5 CPUs
Available for delivery from Tomorrow
Click & Collect from Today
Low stock - don't miss out
Order within
You have 0 of these in your basket

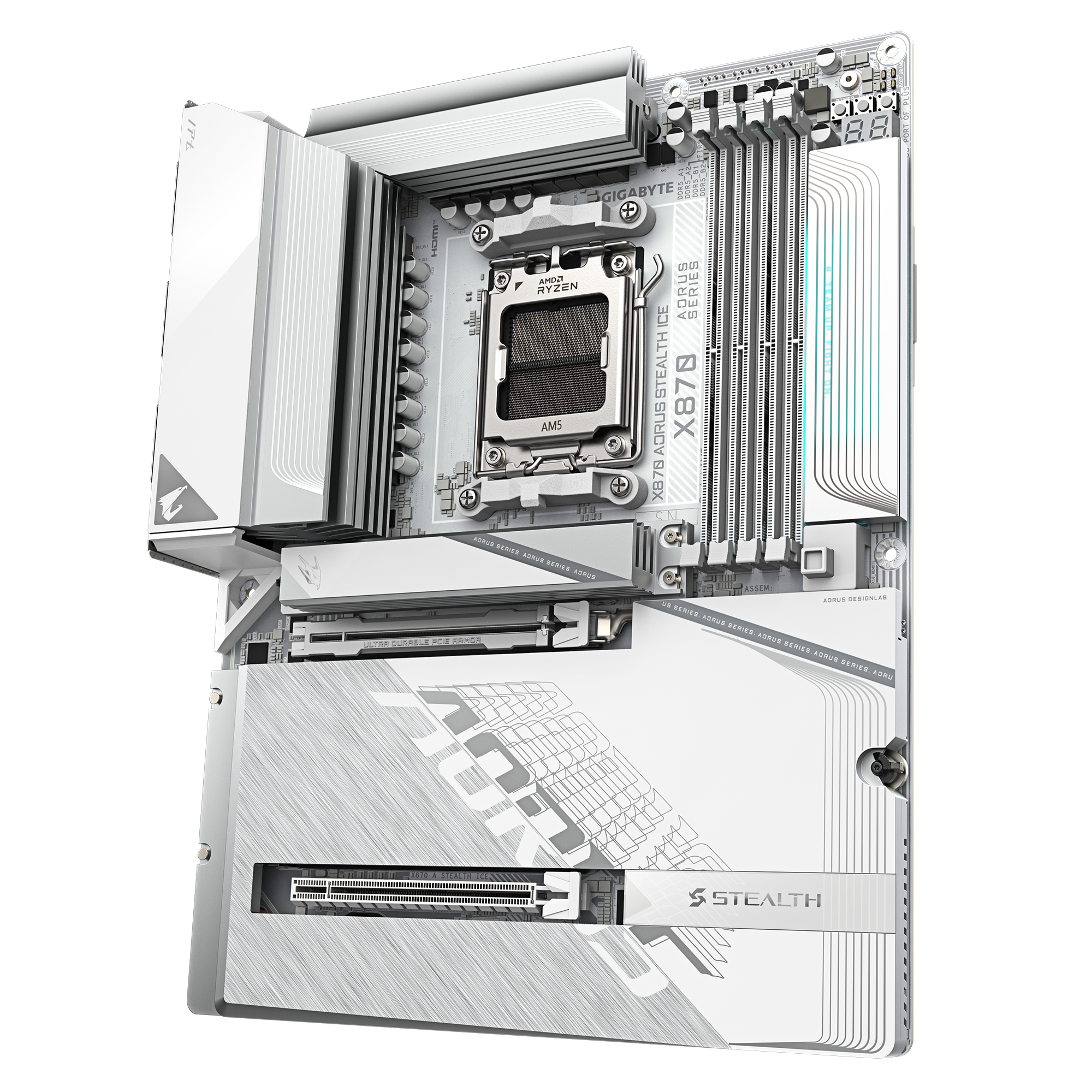

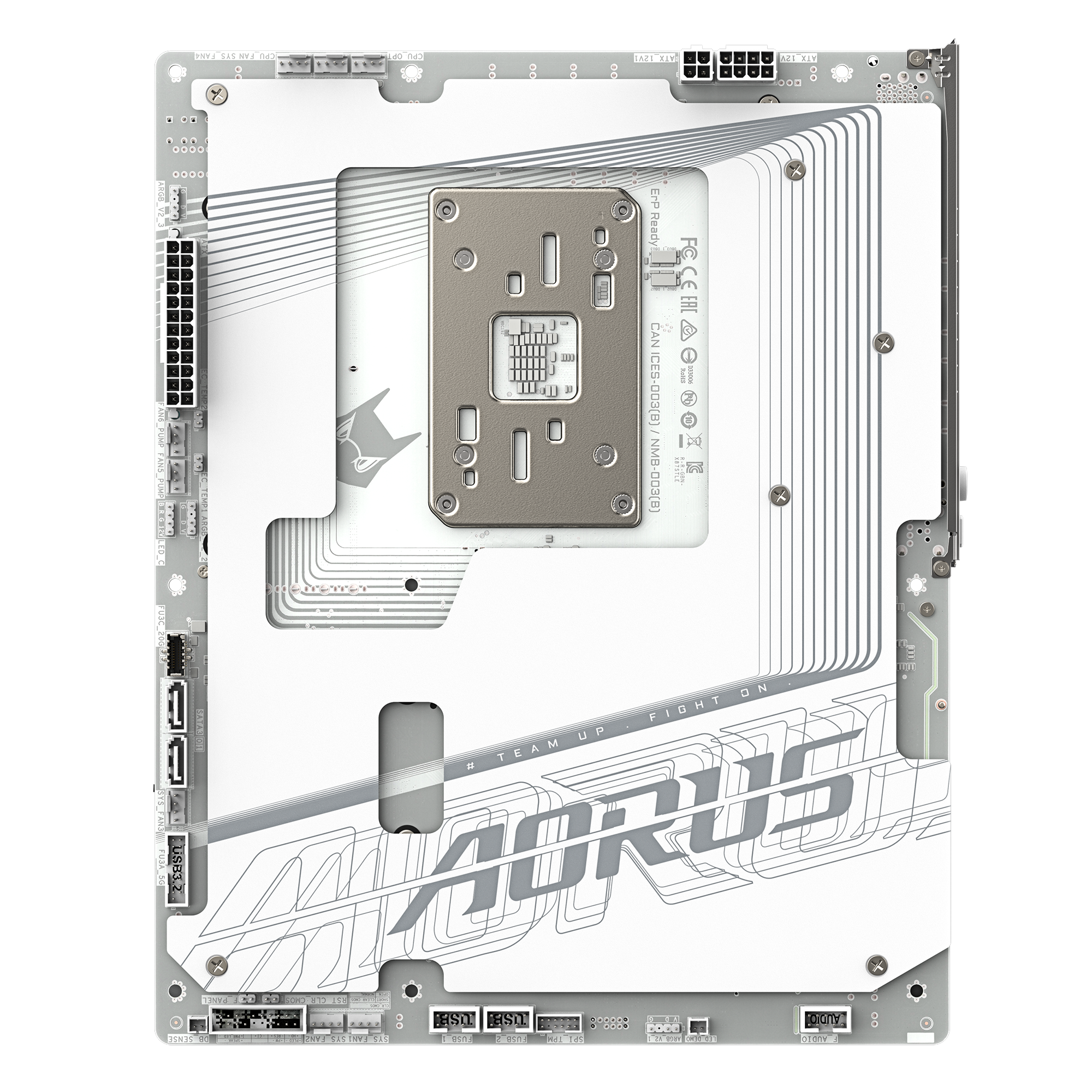

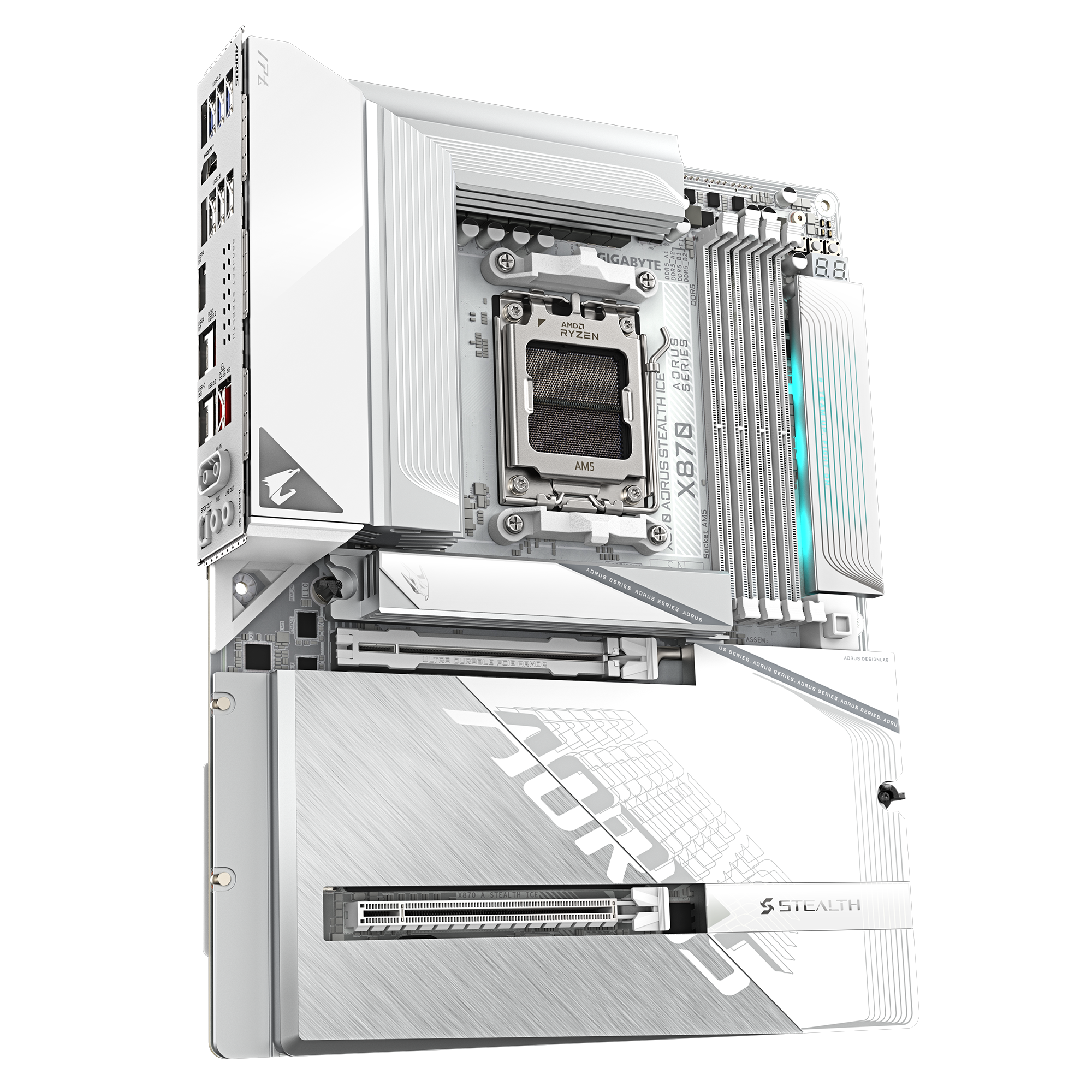

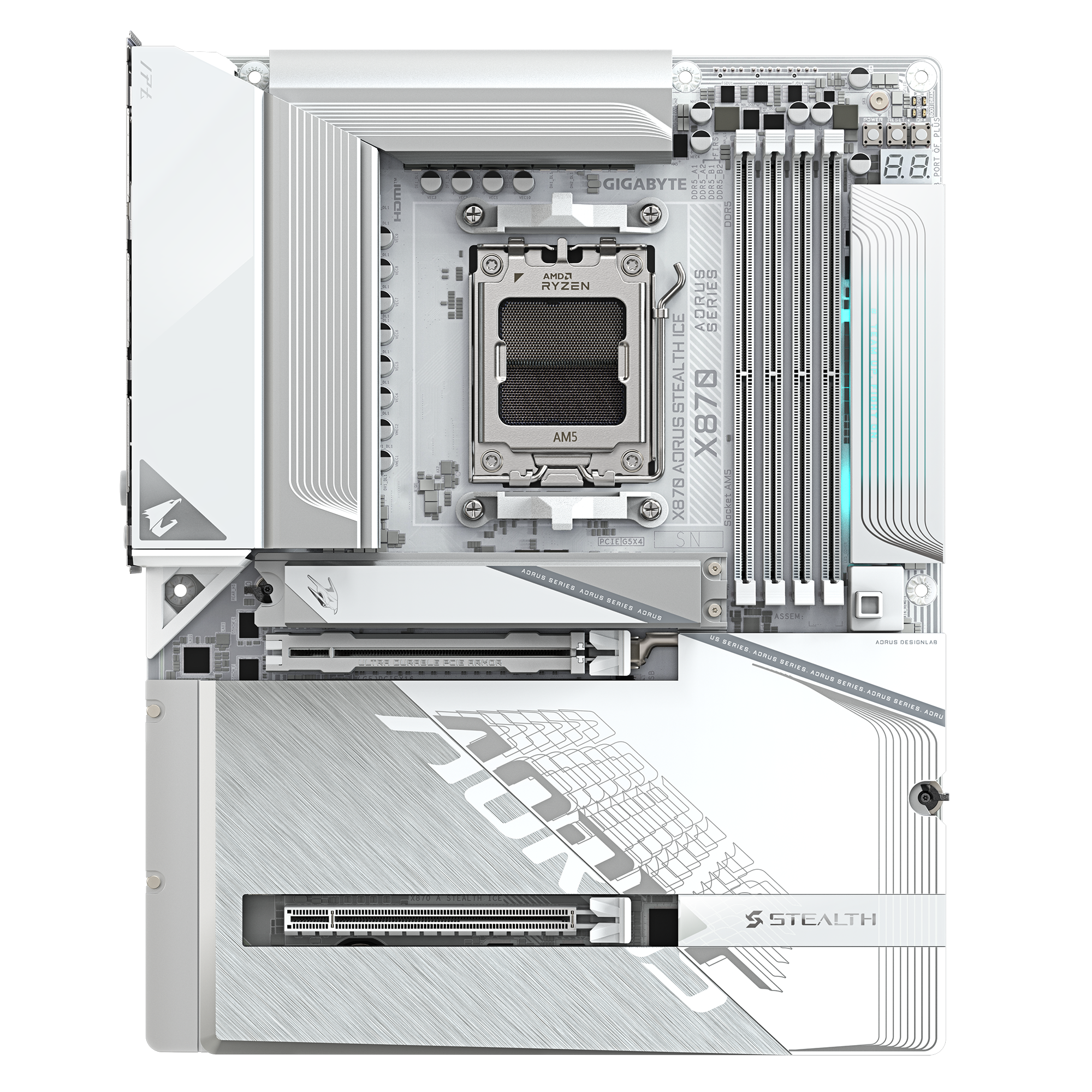

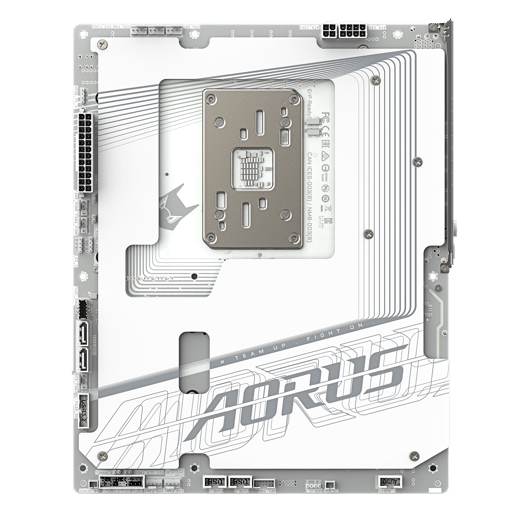

The Gigabyte X870 AORUS STEALTH ICE motherboard represents the pinnacle of high-performance computing, specifically engineered for the latest AMD Ryzen™ Series Processors. It's a statement piece for the discerning builder, combining cutting-edge technology with an immaculate, all-white aesthetic. The innovative STEALTH design is the cornerstone of its appeal, discreetly relocating all major power, fan, and data connectors to the back of the PCB. This ingenious approach eliminates cable clutter and results in a stunningly clean front profile, turning any PC into a work of art.
Underneath its pristine exterior, the X870 AORUS STEALTH ICE is a powerhouse of engineering. Built on a robust 6-layer PCB with 2X Copper, it ensures optimal signal integrity and thermal performance. The motherboard boasts a formidable 16+2+2 Twin Digital VRM power delivery system, providing the unwavering stability required for high-core-count CPUs and demanding workloads. It is fully equipped to support dual-channel DDR5 memory, with four DIMM slots ready to handle the next generation of RAM speeds. Storage is plentiful and blisteringly fast, thanks to four M.2 slots, including two supporting PCIe 5.0 and two supporting PCIe 4.0. For connectivity, it offers two USB4 Type-C® ports, 5 GbE LAN, and cutting-edge Wi-Fi 7, guaranteeing a seamless and rapid experience both online and off.
This motherboard also incorporates a suite of intelligent features to simplify and enhance the user experience. Technologies like X3D Turbo Mode offer a one-click performance boost for gaming, while D5 Bionic Corsa and HyperTune BIOS leverage artificial intelligence to optimise DDR5 memory overclocking and overall system efficiency. The comprehensive thermal solution, including VRM Thermal Armour Advanced, a Superior Heatpipe, and M.2 Thermal Guard L, ensures the board remains cool even under the most intense loads. Furthermore, the design is exceptionally DIY-friendly, with features like PCIe EZ-Latch Plus and M.2 EZ-Latch for easy, tool-free component installation. The DriverBIOS pre-installs the Wi-Fi driver, and Q-FLASH PLUS allows for convenient BIOS updates without the need for a CPU, RAM, or graphics card. Ultimately, the Gigabyte X870 AORUS STEALTH ICE is the ideal foundation for a high-performance system that is as beautifully organised as it is powerful.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 9000 / 8000 / 7000 Series Processors
- 64-bit Support: Yes
- Socket: AM5

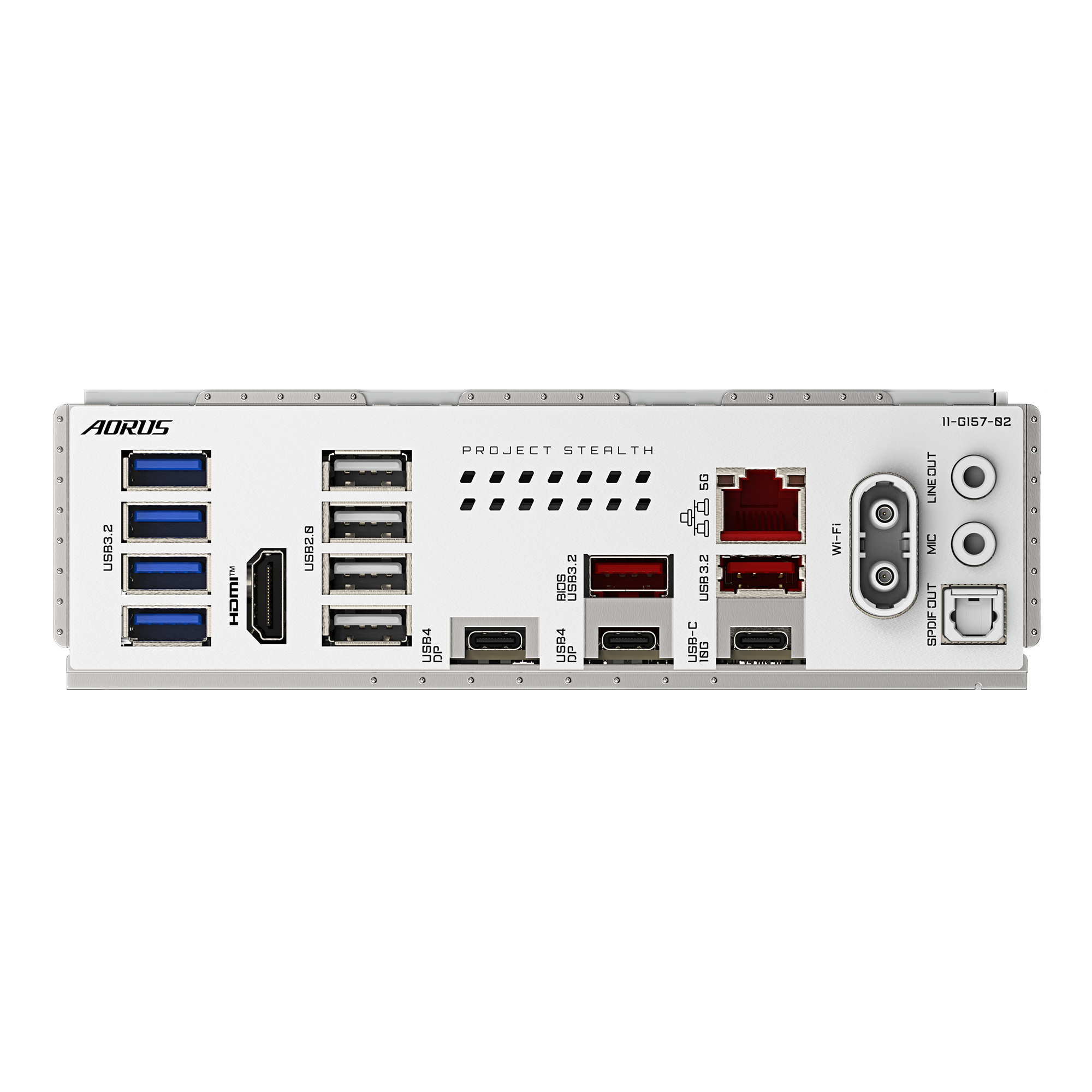

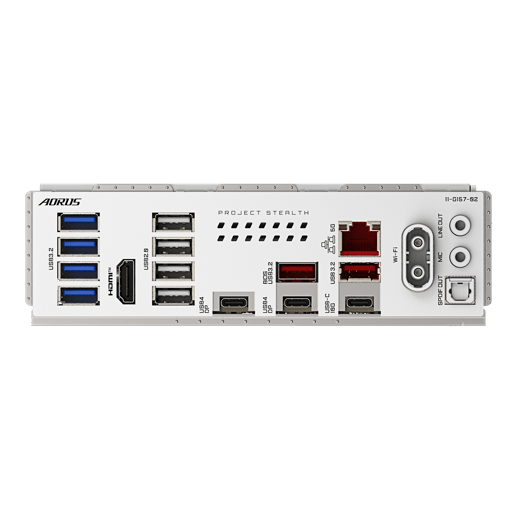

Rear Panel I/O Ports
- USB Ports: 2 x USB-C 4
- 2 x USB 3.1
- 4 x USB 3.0
- 4 x USB 2.0
- DisplayPorts: Yes via USB-C
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 2 x SATA
- USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 8200 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: AMD X870
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- S/PDIF Port: 1 x S/PDIF Optical Out

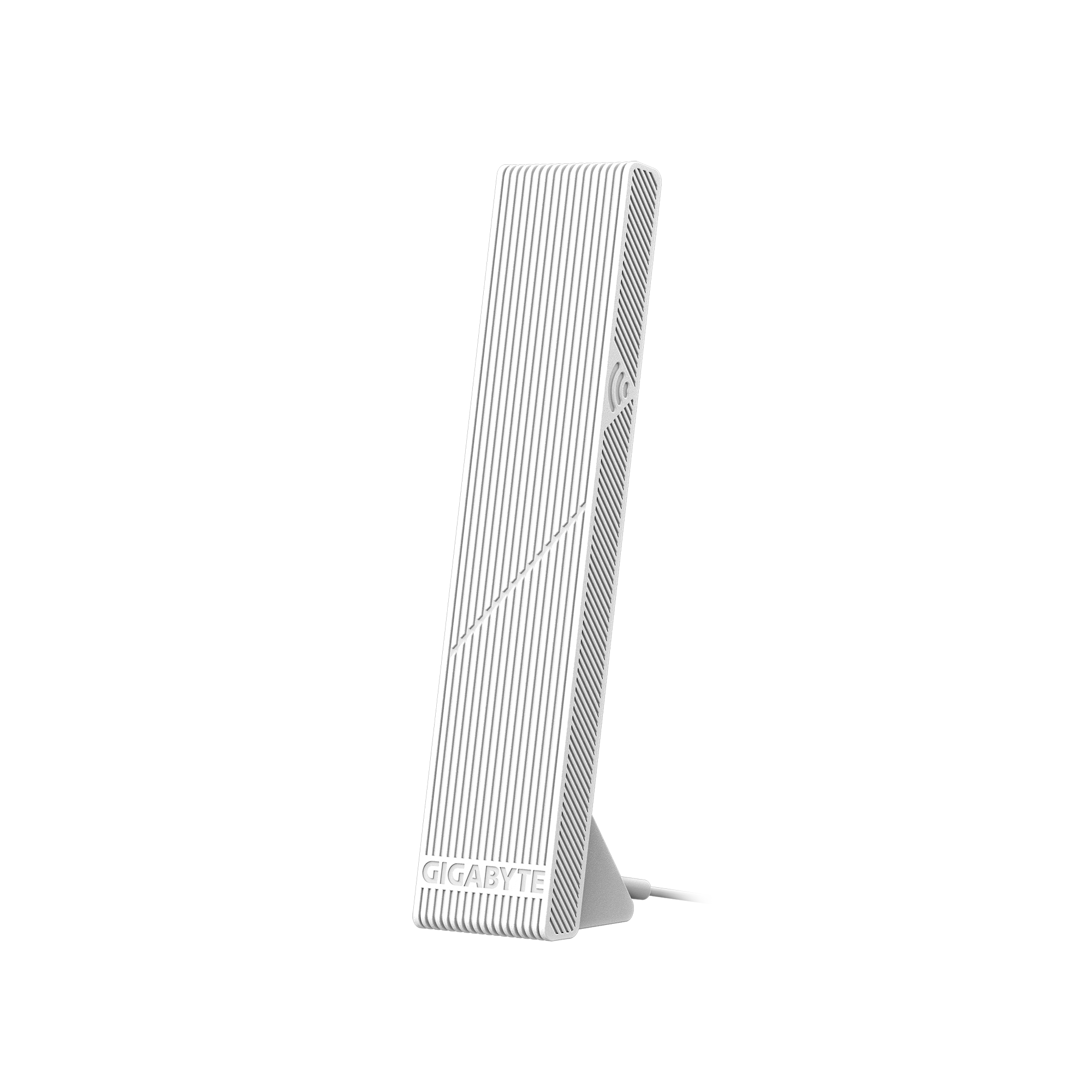

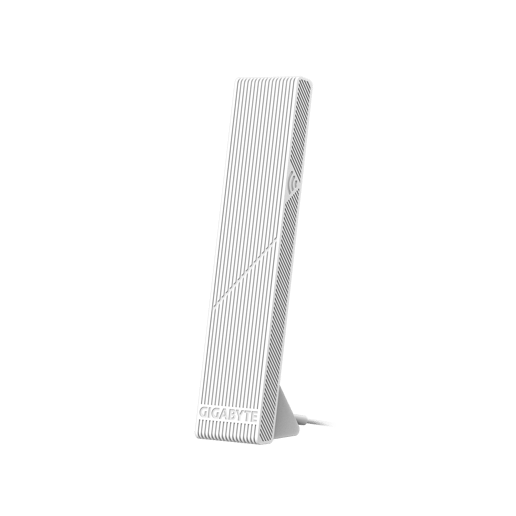

- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x CPU fan/Water Cooling pump header
- 4 x System fan headers
2 x System fan/Water Cooling pump headers - TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- 1 x 4-pin EPS
- Other Connectors: 1 x M.2 slot, Socket 3, M Key, Type 25110/22110/2580/2280 (PCIe Gen5)
- 1 x M.2 slot, Socket 3, M Key, Type 22110/2280 (PCIe Gen5)
- 2 x M.2 slots, Socket 3, M Key, Type 22110/2280 (PCIe Gen4)
- 3 x 3-pin ARGB headers
- 1 x 4-pin RGB header
- 1 x Noise Detection header
- 2 x Temperature Sensor headers
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 1 x PCI Express 4.0 x16 slot (@ x4)
Memory
- Maximum RAM: 256 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC1220
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek
- Network Speeds Supported: Up to 5 Gbps
- Wireless LAN: Yes - Wi-Fi 7
- Bluetooth: Yes
- Bluetooth Version: 5.4
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3952
- Mfg Code: X870 A STEALTH ICE
Warranty
- Warranty: 3 Years
