CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: AMD
• Supported Processors: Ryzen 7000 / Ryzen 8000 Series Processors
• 64-bit Support: Yes
• Socket: AM5

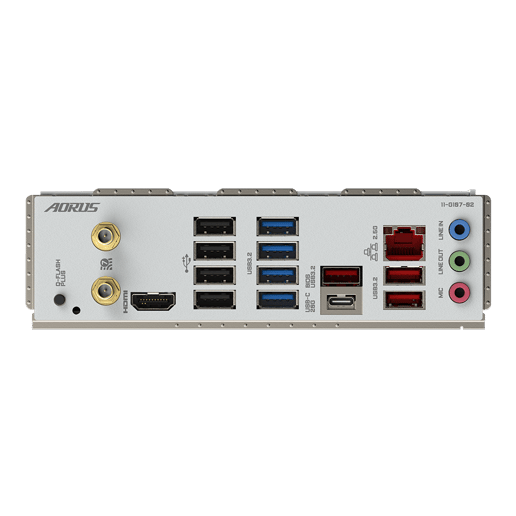

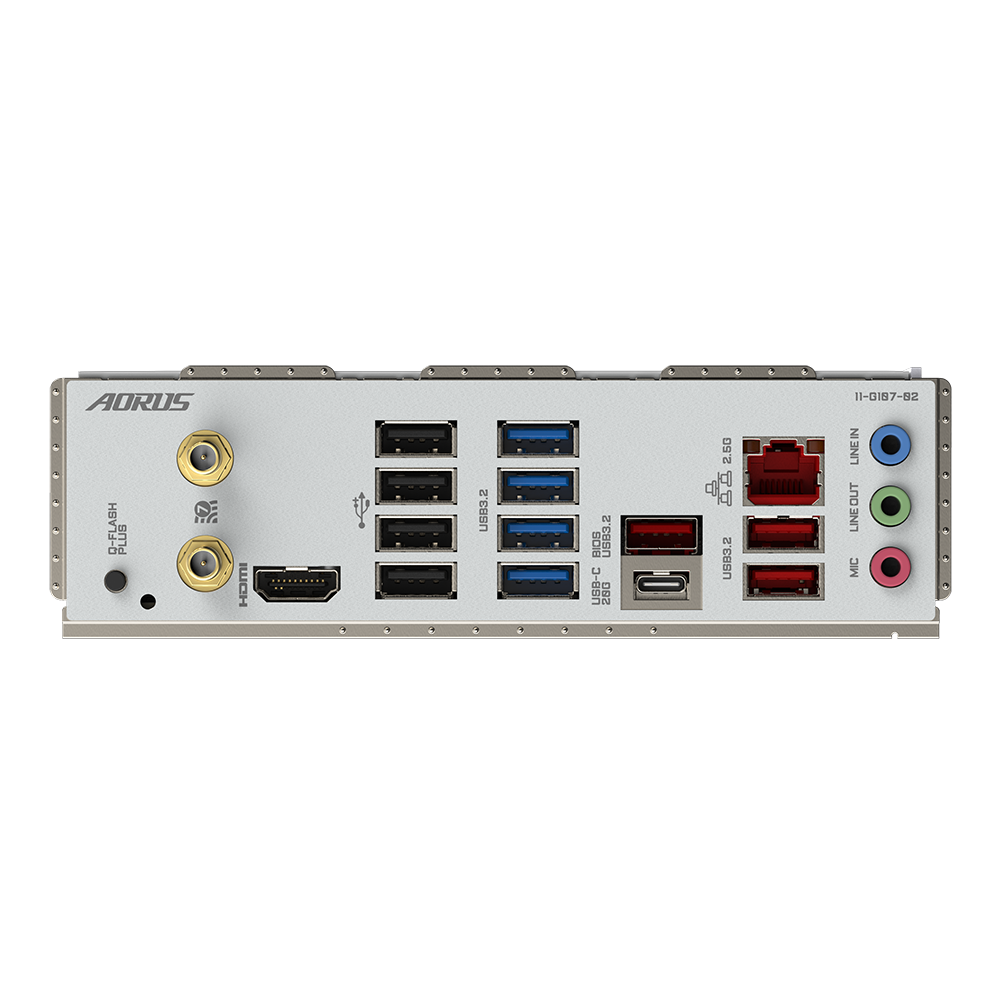

Rear Panel I/O Ports

• USB Ports: 1 x USB-C 3.2
  3 x USB 3.1
• 4 x USB 3.0
• 4 x USB 2.0
• HDMI Port: 1 x HDMI 1.4

Internal I/O Connectors

• SATA Connectors: 4 x SATA III
• USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
  2 x USB 3.0 headers (supports 4 ports)
• 2 x USB 2.0 headers (supports 4 ports)

Memory

• Memory Bus Speed: Up to 8000 MHz
• Memory Type: DDR5

Motherboard

• Northbridge: AMD X670E
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 1 x RJ-45
• Audio Line In Ports: 1 x 3.5mm Jack
• Audio Line Out Ports: 1 x 3.5mm Jack
• Microphone In Port: 1 x 3.5mm Jack
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x CPU/Water Cooling Pump fan header
• 2 x System/Water Cooling Pump fan headers
• Thunderbolt Port(s): 1 x THB_U4 add-in card connector
• TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• Power Connector Port: 1 x 24-pin ATX
• 2 x 8-pin EPS
• Other Connectors: 1 x M.2 slot, Socket 3, M Key, Type 2580/25110 (PCIe Gen5)
• 1 x M.2 slot, Socket 3, M Key, Type 2280/22110 (PCIe Gen5)
• 2 x M.2 slots, Socket 3, M Key, Type 2280/22110 (PCIe Gen4)
• 3 x 3-pin ARGB LED headers
• 1 x 4-pin RGB LED header

Expansion

• Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
• 2 x PCI Express 3.0 x16 slots (@ x4/x2)

Memory

• Maximum RAM: 192 GB
• Memory Slot: 4 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek

Warranty

• Warranty: 6 Month

Network

• Integrated Network: Intel
• Network Speeds Supported: Up to 2.5 Gbps
• Wireless LAN: Yes - Wi-Fi 7
• Wireless Network Speed: Up to 5.8 Gbps
• Bluetooth: Yes
• Bluetooth Version: 5.3

System Requirements

• Operating Systems Supported: Microsoft Windows 11 Home

System

• Jumpers: 1 x Clear CMOS
• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: ATX Motherboard
• Width: 244 mm
• Length: 305 mm

Identifiers

• Stock Code: MBD3646XC1
• Mfg Code: X670E AORUS PRO X
