CCL Ryzen 5 7600 Motherboard Bundle
Please note:
Any motherboard bundle that includes a CPU cooler does not come with the cooler installed. This is to make it easier for you to install your bundle into your system, after which the cooler can be mounted. Full instructions on how to mount the cooler will be included.
Our Custom Motherboard Bundles are the same great quality as our other pre-built bundles, having undergone rigorous checks to ensure their performance and stability. It is covered by the standard three year warranty to give you peace of mind.

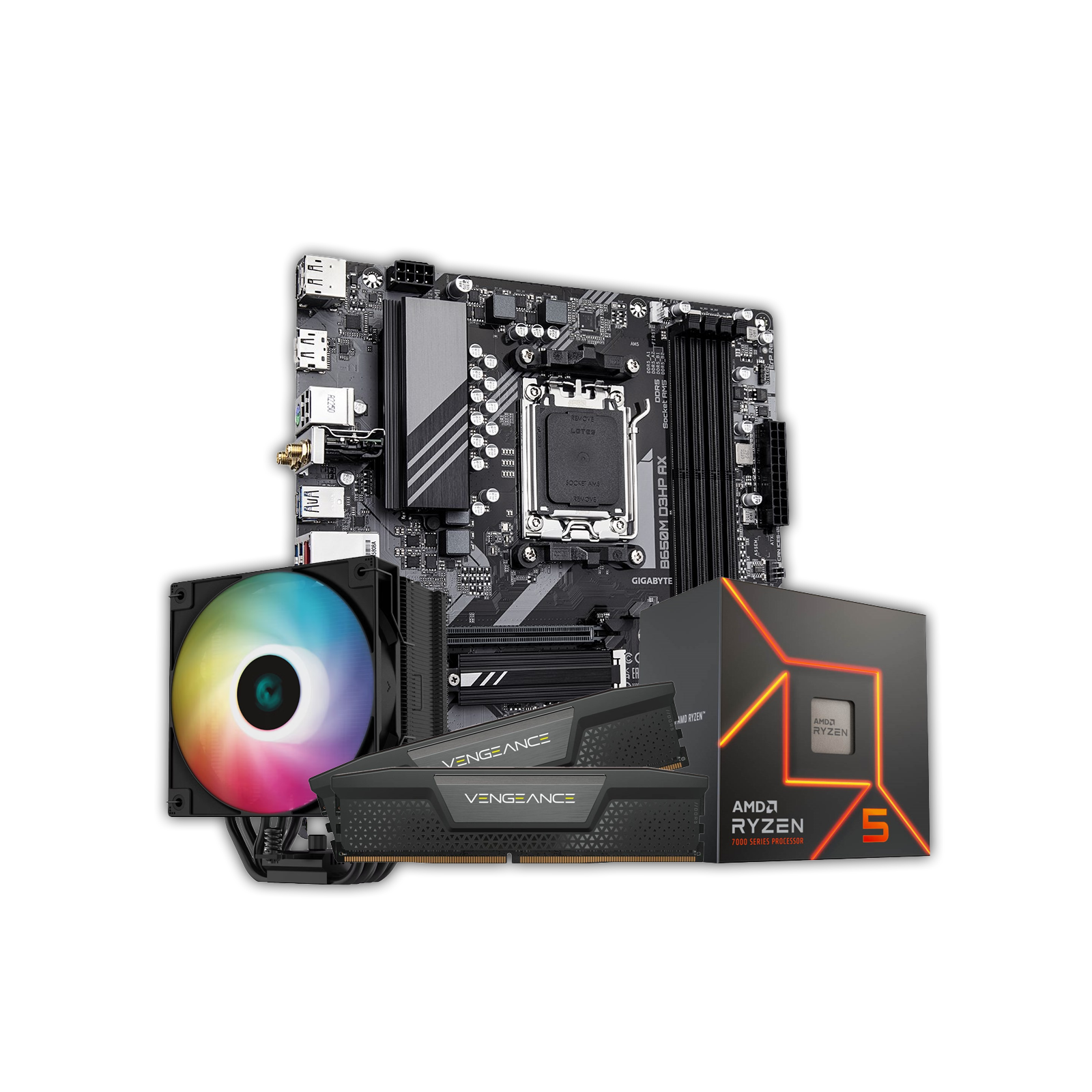

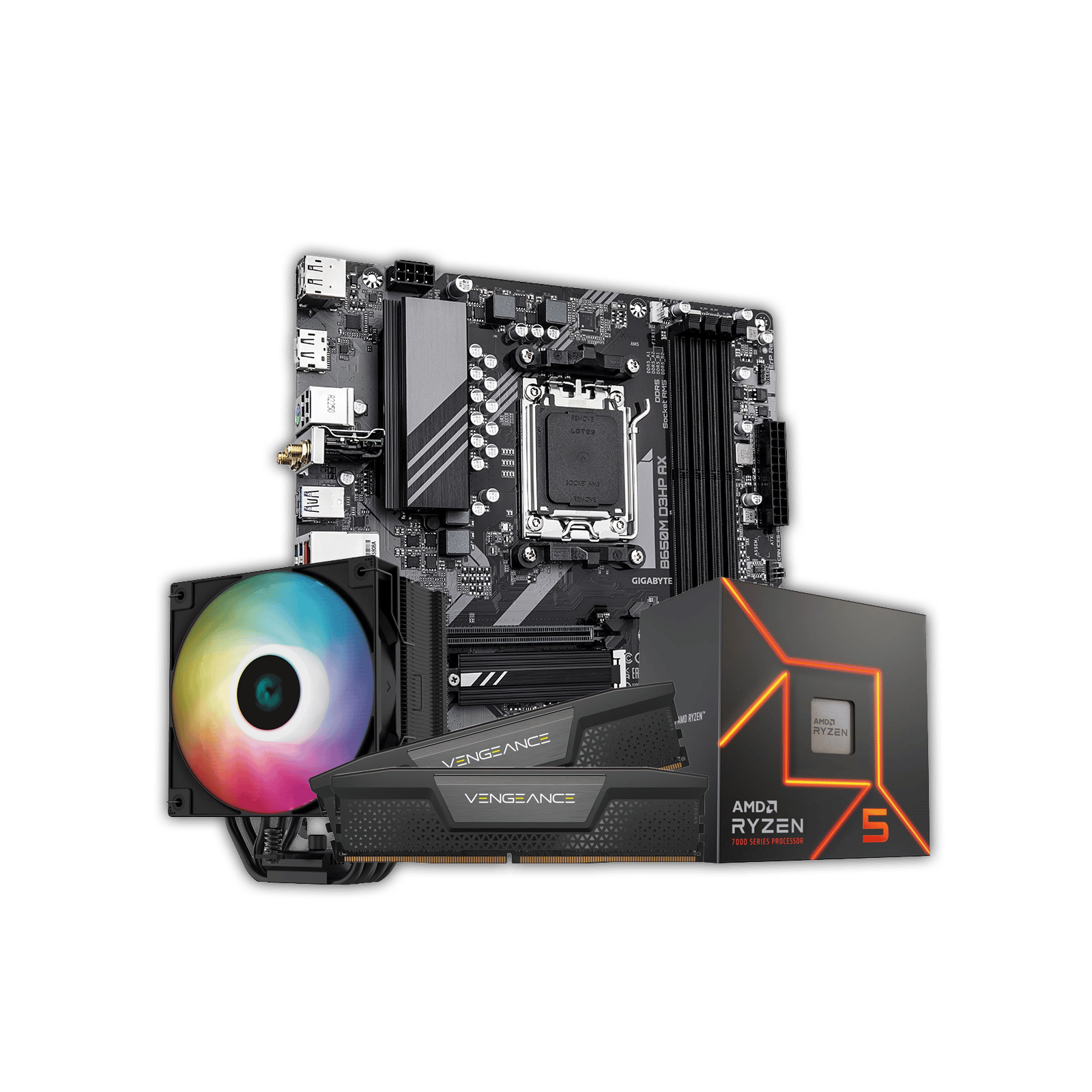

Grab this custom built motherboard bundle from CCL! This bundle features a 6-core AMD Ryzen 5 7600 CPU, cooled by a DeepCool AG500 tower cooler and paired with 32GB of DDR5 RAM. With a Gigabyte B650 mATX motherboard acting as the foundation, this bundle serves as a great base for a potential gaming rig when paired with a discrete graphics card.
Specifications

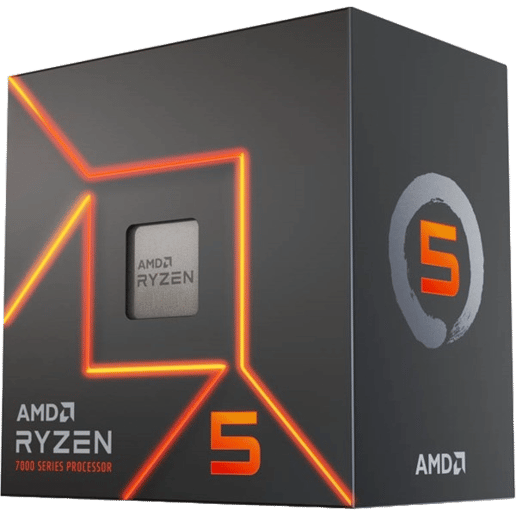

- AMD Ryzen 5 7600 6-core CPU
- DeepCool AG500 BK ARGB tower CPU cooler
- 32GB (2x 16GB) 6000MT/s Corsair Vengeance DDR5 memory
- Gigabyte B650M D3HP AX mATX motherboard
- 3 Year Warranty
CPU
- CPU Family: AMD Ryzen 5
- Processor Number: 7600
- CPU Speed: 3.8 GHz
- L3 Cache: 32 MB
- Socket: AM5
- Architecture: Zen 4
- Technology: TSMC 5nm FinFET
- Number of Cores: 6 cores
- Number of Threads: 12 threads
Memory
- Description: Corsair Vengeance
- Memory Size (Total): 32768 MB
- Memory Type: DDR5
- Memory Speed: 6000 MT/s
- Number of Modules: 2 modules
- Error Correction: No
- Voltage: 1.4 V
- Pin Configuration: 288 pin
Motherboard
- Integrated Sound: Realtek
- Integrated Network: Realtek
- Network Speeds Supported: Up to 2.5 Gbps
- Form Factor: mATX Motherboard
- SATA Connectors: 4 x SATA III
- USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
- Cooling Fan Support: 1 x CPU fan header
- 2 x System fan headers
- TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Socket 3, M Key, Type 2580 (PCIe Gen4)
- 1 x M.2 slot, Socket 3, M Key, Type 2280/22110 (PCIe Gen4)
- 2 x 3-pin ARGB LED headers
- 1 x 4-pin RGB LED headers
- Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
- 1 x PCI Express 3.0 x1 slot
- Maximum RAM: 192 GB
- Memory Bus Speed: Up to 7600 MHz
- Memory Type: DDR5
- Memory Slot: 4 x DIMM
- BIOS: 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Warranty
- Warranty: 3 Years
- Parts: 3 Years
- Labour: 3 Years
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- USB Ports: 1 x USB-C 3.0
- 3 x USB 3.0
- 2 x USB 2.0
- VGA Port: No
- DVI Port: No
- HDMI Port: Yes
- DisplayPorts: Yes
- Ethernet Connectors (RJ-45): 1 x RJ-45
- Audio Line Out Ports: 1 x 3.5mm Jack
CPU Cooler

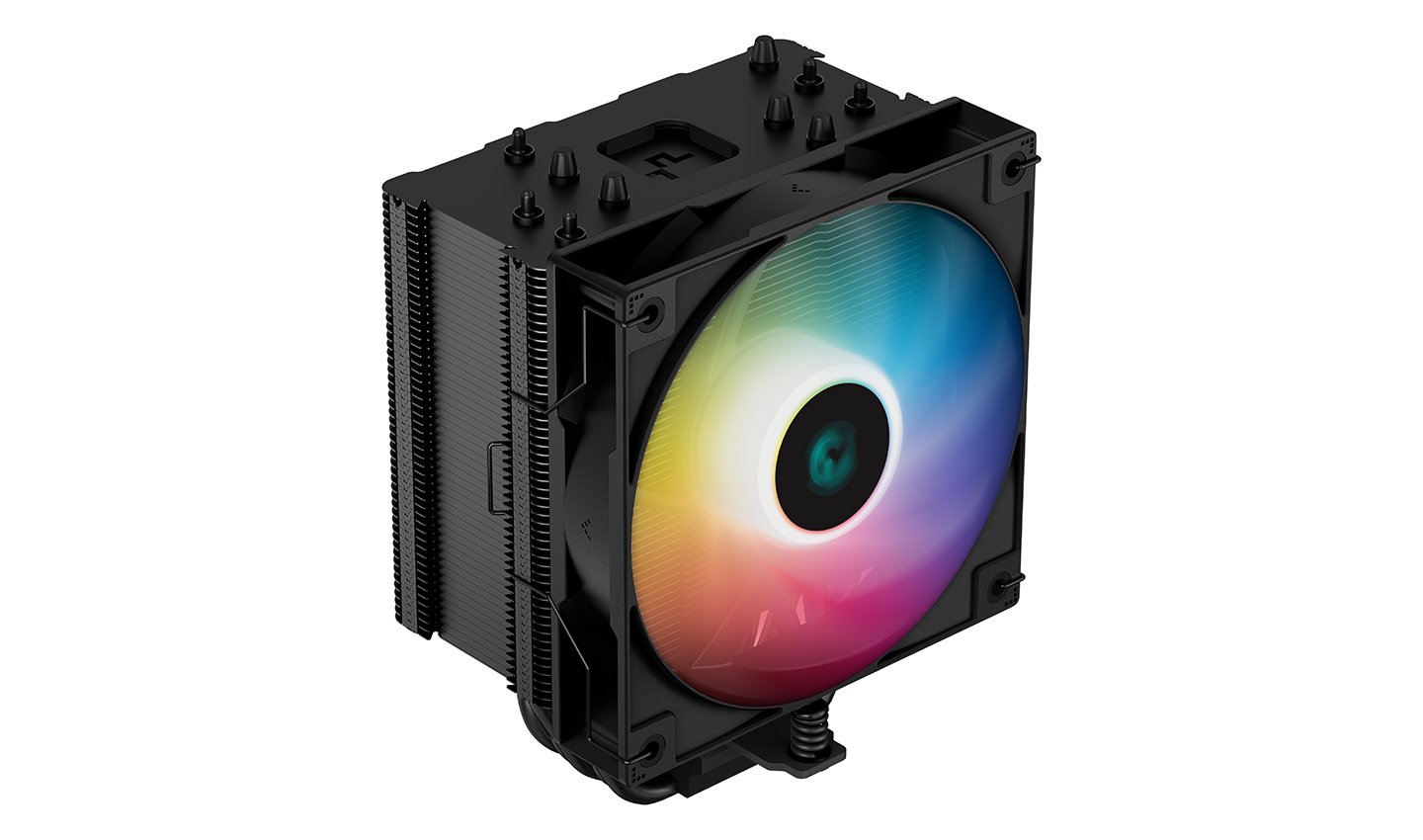

- Description: DeepCool AG500 BK ARGB Performance CPU Cooler
- Fan Bearing Type: Hydro
- Fan Speed: 300 ~ 1850 RPM
- Fan Noise Level: <= 29.4 dB(A)
- Airflow: 67.88 CFM
- Width: 95 mm
- Depth: 125 mm
- Height: 155 mm
Identifiers
- Stock Code: WO-137851
Warranty
- Warranty: 3 Years
- Parts: 3 Years
- Labour: 3 Years
