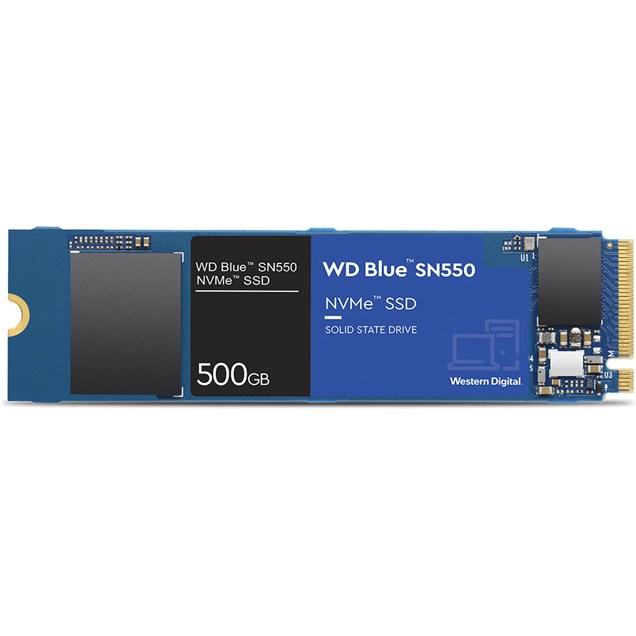

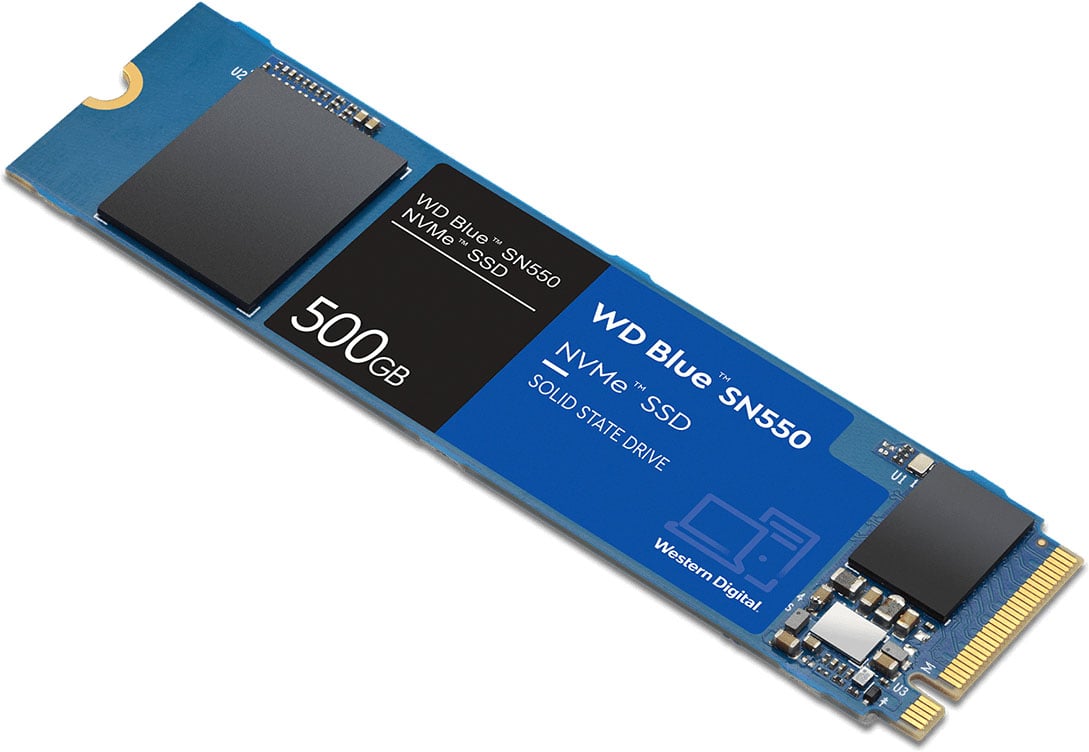

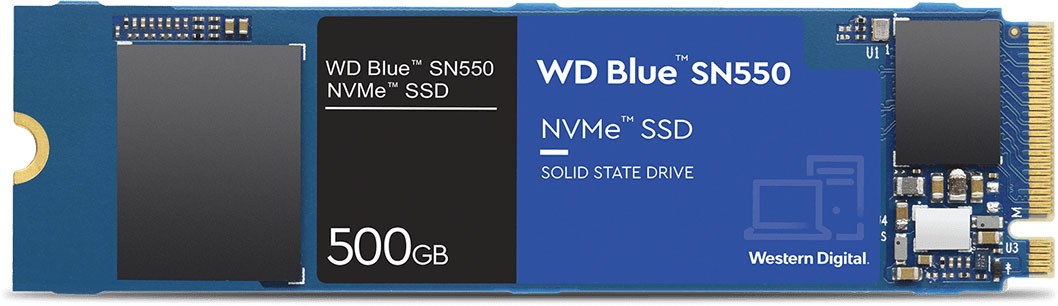

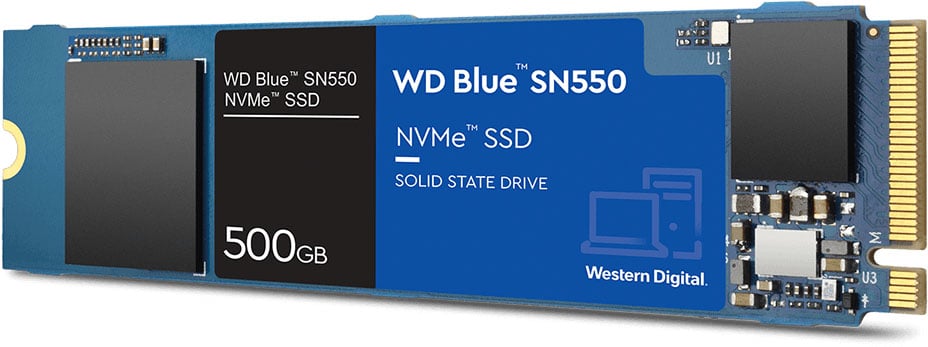

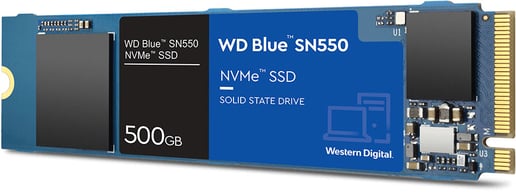

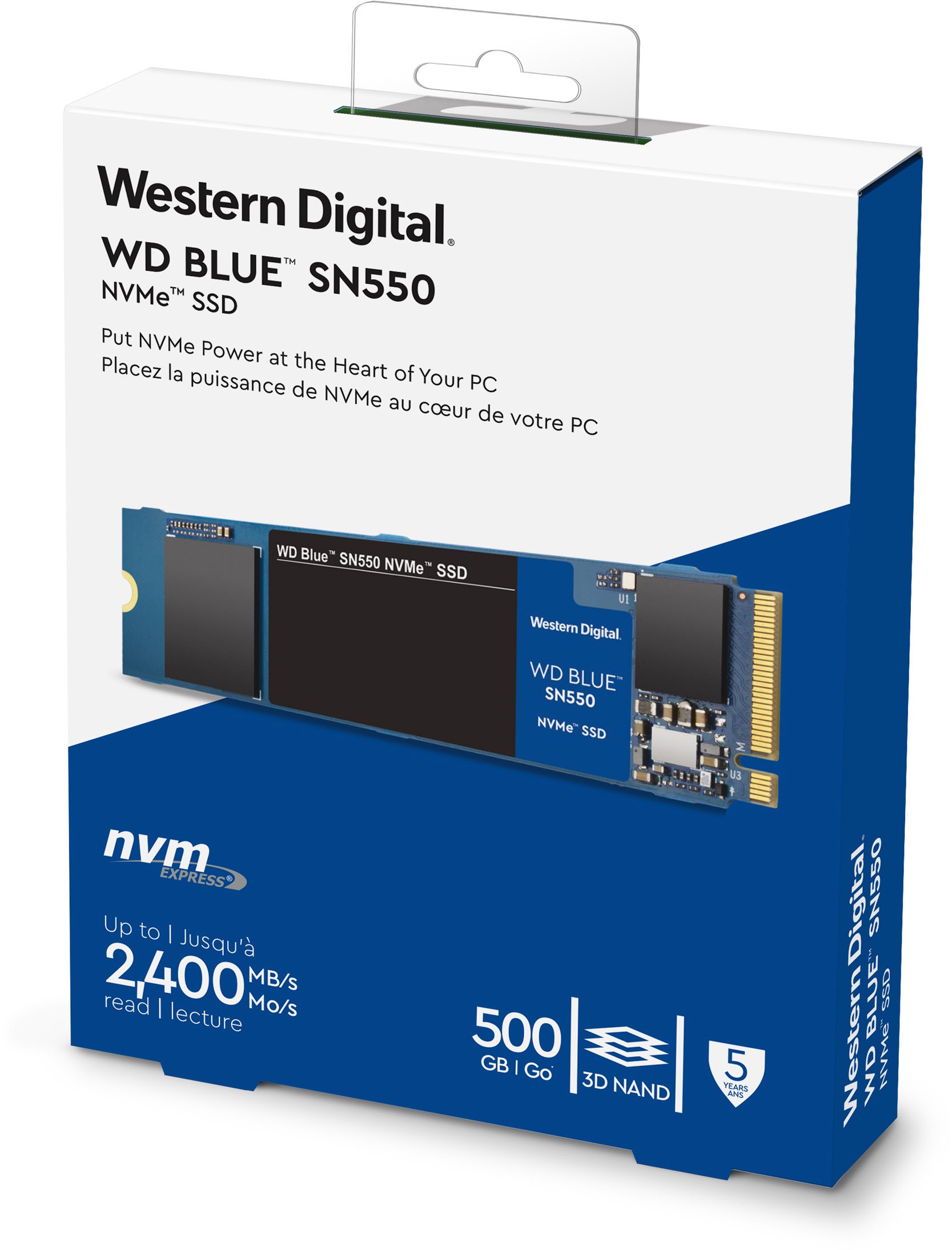

Western Digital Blue SN550 500GB M.2-2280 SSD

CCL Code: SSD1123
|
Manufacturer Code: WDS500G2B0C
| Manufacturer: Western Digital
|

Put NVMe™ Power at the Heart of Your PC

Key Features:

  • PCI Express 3.0 x4 NVMe
  • M.2 2280 Form Factor
  • Up to 2400MB/s Read, 1750MB/s Write
  • 4K IOPS Read: 300000
  • 4K IOPS Write: 240000
  • 5 Year Warranty

Was £53.14

SAVE 10%

Now only

£47.91

inc VAT

10 In Stock Now

Buying in bulk or need help? Email our Business Team.

Delivery Options (from £1.99)

Tomorrow via DPD Saturday

Wednesday 25th May via Royal Mail Tracked

Order within

Collection Options

Monday 23rd May from Local Collection Point

Capacity:

Overview

Put NVMe™ power at the heart of your PC for lightning-fast, ultra-responsive performance. The WD Blue™ SN550 NVMe™ SSD can deliver over 4 times the speed of our best SATA SSDs. Whether you’re working, creating, casually gaming, or processing large amounts of data, take advantage of this powerful internal drive’s high speeds to do more, faster. Available in capacities up to 1TB* in an affordable M.2 2280 form factor, there’s no time like now to make the change to NVMe.

The Right Storage for Your Next PC

NVMe™ goes mainstream with a powerful, cost-effective storage solution that adds to the reliability of an SSD.

Boost Your Performance

Get breakneck sequential read speeds up to 2,400 MB/s** to improve your productivity no matter what you’re doing or creating.

Think Small

Build powerful small-form factor PCs with a slim single-sided M.2 2280 PCIe® Gen3 x4 NVMe™ SSD.

Do More With Less

Scalable NVMe™ hardware, accelerated architecture for high performance and low power draw.

Do More, Faster

Western Digital®-designed controller and firmware paired with our latest 3D NAND for optimized, consistent performance.

Continuing the Legacy

Thousands of hours of hardware, firmware and validation testing combine to advance the award-winning WD Blue™ heritage of quality and reliability

Main Features

  • Boost your system's performance with next-gen NVMe™ SSDs.
  • Over 4 times faster than our SATA SSDs.
  • Slimline M.2 2280 form factor.
  • Western Digital®-designed controller and firmware for optimized performance.
  • Western Digital® SSD Dashboard constantly monitors the health of your SSD.
Specifications

Storage

Solid State Capacity 500 GB
Drive Size M.2 2280
Memory Type SSD
Memory Size 500 GB

Performance

Read Speed Up to 2,400 MB/s
Write Speed Up to 1,750 MB/s
4K Random Read (AS SSD) Up to 300,000 IOPS
4K Random Write (AS SSD) Up to 240,000 IOPS
Data Storage Life 300 TBW
Mean Time Between Failure (MTBF) 1,700,000 hours

Interfaces/Ports

Interface Type PCIe Gen3 x4 NVMe

Compliance

Certifications BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco, RCM, TUV, UL, VCCI

Electrical

Electrical Power Consumption 3.9 W
Electrical Power Consumption Standby 5 mW

Environmental

Operating Temperature 0 ~ 70 °C
Storage Temperature -55 ~ +85 °C
Vibration (Operating) 5.0gRMS, 10~2,000Hz
Vibration (Non-Operating) 4.9gRMS, 7~800Hz
Shock (Operating) 1,500G @ 0.5ms

Physical

Form Factor Solid State Drive
Enclosure type Internal
Width 22 mm
Depth 80 mm
Height 2.38 mm
Weight 6.5 g

Warranty

Warranty 5 Years

Key Features

Disk Capacity 500 GB
Solid State Drive Yes
Disk Form Factor M.2 2280
Read IOPS (4K) 300000
Write IOPS (4K) 240000

Item Details

Manufacturer Western Digital
Manufacturer Code WDS500G2B0C
EAN 0718037868752
UPC 718037868752
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Western Digital
Manufacturer Code WDS500G2B0C
