Display

• Screen Size: 34"
• Viewable screen size: 34" (diagonal)
• Display Area: 797.22 ž 333.72 mm
• Screen Width: 797.22 mm
• Screen Height: 333.72 mm
• Screen technology: VA (Vertical Alignment)

Physical

• Form Factor: 21:9 Ultrawide Curved

Display

• Screen Technology: VA LCD
• Screen Construction: 1500R Curved Panel
• Colours: 16.7 million (8-bit, sRGB ~104%)
• Pixel Pitch: 0.23175 mm
• Brightness: 250 cd/m
• View Angle (Horizontal - Max): 178ø
• View Angle (Vertical - Max): 178ø
• Anti-Glare / Anti-Static: Anti-glare coating
• Pixel Clock Speed: 533.25 MHz (approx., for 3440ž1440 @180Hz DP)
• Contrast Ratio: 4000:1 (typical)
• Contrast Ratio - Dynamic: 80,000,000:1 (dynamic)
• Resolution (Native): 3440 ž 1440 (UWQHD)
• Resolution Type (Native): UWQHD
• Response time: 1 ms (MPRT)
• Response Time: 4 ms (GtG typical)
• Video Bandwidth: DisplayPort 1.4 / HDMI 2.0
• Lifetime: 30,000 hours
• Swivel: ñ15ø
• Resolution (Maximum): 3440 ž 1440
• Resolution Type (Maximum): UWQHD
• Pixels Per Inch (PPI): ~110 PPI
• Backlight: LED
• Supported Resolutions: 3440ž1440, 2560ž1440, 1920ž1080, 1280ž720 (scaled)
• Vertical Frequ: 48-180 Hz (DP), up to 100-144 Hz (HDMI depending on mode)
• Colour Gamut: 104% sRGB (typical)
• HD Support: HDR10
• Aspect Ratio: 21:9
• 3D Glasses Included: No
• Pivot: No
• 3D Display: No
• Horizontal Frequency - Low (Digital): 30 kHz
• Horizontal Frequency - High (Digital): 230 kHz
• Vertical Frequency - Low (Digital): 48 Hz
• Vertical Frequency - High (Digital): 180 Hz
• Vertical Frequency - Low: 48 Hz
• Vertical Frequency - High: 180 Hz
• Horizontal Frequency: 30-230 kHz
• Vertical Frequency: 48-180 Hz

Interfaces/Ports

• Microphone In Port: No
• Audio Line Out Ports: 1 x 3.5 mm

Physical

• Display Type: LED-backlit LCD

Mount

• Wall Mountable: Yes
• Wall Mount: 100 ž 100 mm VESA

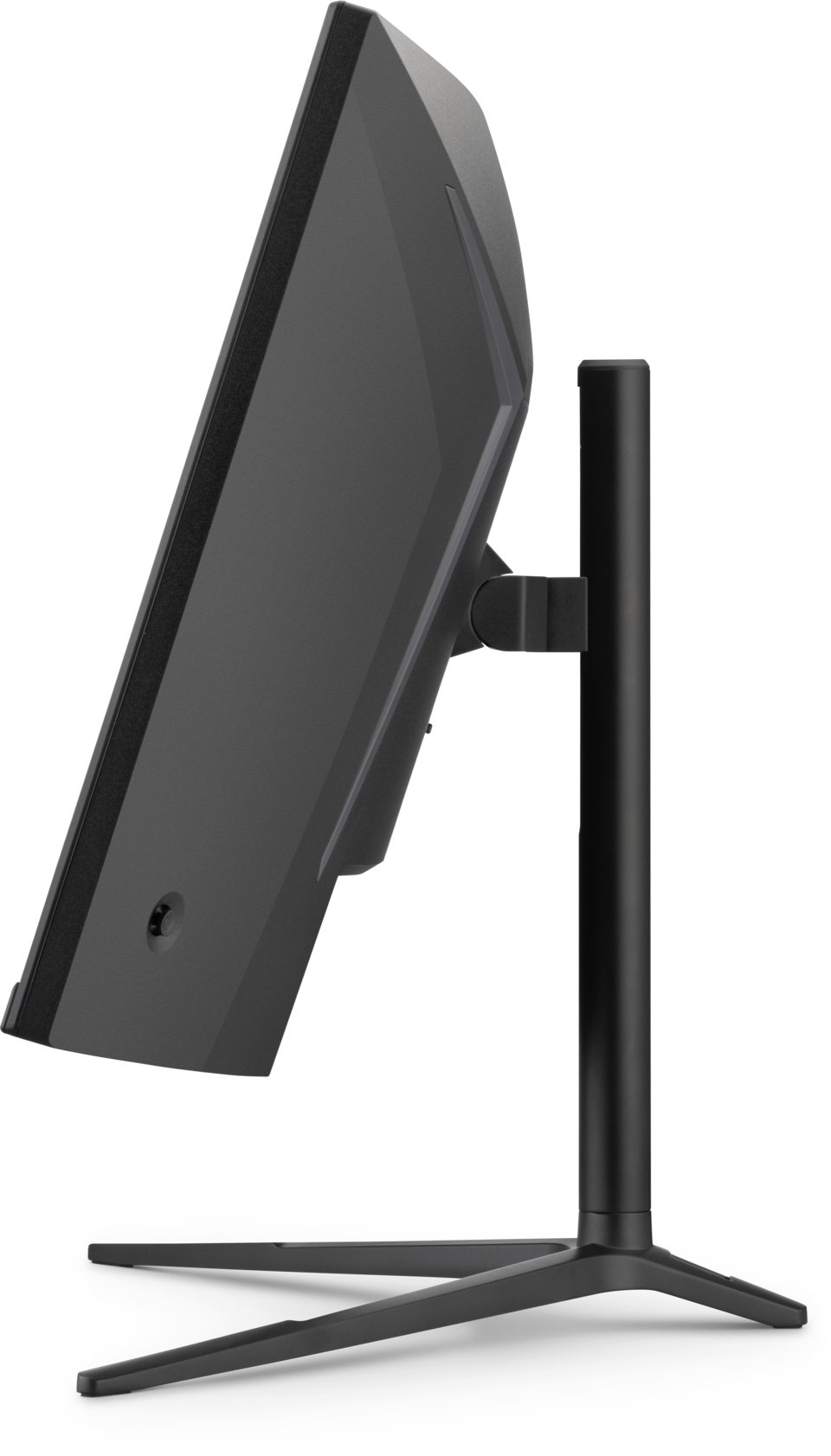

• Tilt (Forward/Backward): -5ø / +20ø
• Tilt Range: 25ø
• Swivel (Left/Right): ñ15ø
• Swivel Range: 30ø
• Height Adjustable: Yes
• Maximum Height: 120 mm
• Side Bezel Width: ~10 mm (typical, thin bezel design)

Resolution

• 640 x 350 Graphic Mode: Supported
• 640 x 480 Graphic Mode: Supported
• 720 x 400 Text Graphic Mode: Supported
• 800 x 600 Graphic Mode: Supported
• 832 x 624 Mac Graphic Mode: Supported
• 1024 x 768 Graphic Mode: Supported
• 1152 x 864 Mac Graphic Mode: Supported
• 1152 x 870 Graphic Mode: Supported
• 1152 x 900 Graphic Mode: Supported
• 1280 x 768 Graphic Mode: Supported
• 1280 x 960 Graphic Mode: Supported
• 1280 x 1024 Graphic Mode: Supported
• 1600 x 1200 Graphic Mode: Supported
• 1920 x 1080 Graphic Mode: Supported
• 1920 x 1200 Graphic Mode: Supported
• 1920 x 1440 Graphic Mode: Supported
• 1680 x 1050 Graphic Mode: Supported
• 1400 x 900 Graphic Mode: Supported
• 1400 x 1050 Graphic Mode: Supported
• 1440 x 900 Graphic Mode: Supported
• 1280 x 720 Graphic Mode: Supported
• 640 x 400 Graphic Mode: Supported
• 1152 x 720 Graphic Mode: Supported
• 1280 x 900 Graphic Mode: Supported
• 1600 x 1000 Graphic Mode: Supported
• 2048 x 1080 Graphic Mode: Supported
• 2048 x 1200 Graphic Mode: Supported
• 2560 x 1440 Graphic Mode: Supported

Camera

• Webcam: No

Input

• Keyboard: No
• Pointing Device: No
• Fingerprint Reader: No
• User Controls: On-screen display (OSD) joystick + buttons

Remote

• Motion Sensing Technology: No
• Control Buttons: Power, Menu/Select, Up, Down
• Button Functions: Input select, brightness/contrast, color mode, game mode, volume, OSD navigation
• Scroll Wheel: No
• Remote Control: No

Media Adaptor

• Micro Drive: No
• Removable Flash Memory Media: No
• Number of Card Slots: 0
• Compact Flash: No
• Smart Media: No
• MultiMedia Card: No
• Sony Memory Stick: No
• Secure Digital: No
• xD-Picture Card: No

Sound

• Audio Capabilities: Stereo speakers, audio out
• Speakers: 2 ž 5 W built-in
• Audio Features: Audio line-out (3.5 mm), volume control via OSD

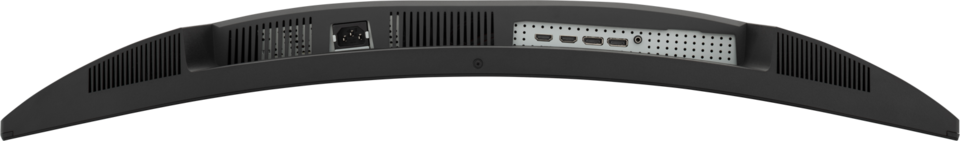

Interfaces/Ports

• Audio Line Out Ports: 1 ž 3.5 mm
• VGA In: No
• SCART Ports: No
• Audio/Visual Port: No
• BNC Port: No
• Digital In: 2 ž DisplayPort 1.4, 2 ž HDMI 2.0
• Synch Input: Separate sync via DP/HDMI
• S-Video in: No
• Video Composite In: No
• USB Ports: No
• Microphone In Port: No
• Audio Line In Ports: No
• Headphone Ports: 1 ž 3.5 mm shared line-out/headphone jack
• Serial Ports: No
• AC Power: Yes (internal power supply)
• DC Power: No
• Video Component In: No
• Multi-media Player Input: No
• Video Component Out: No
• Video Composite Out: No
• HDMI Ports: 2 ž HDMI 2.0
• DisplayPort In: 2 ž DisplayPort 1.4
• Firewire Ports: No
• Digital Audio Optical Out: No
• Digital Out: No
• RJ-45 Ports: No
• Thunderbolt Port(s): No
• Infrared Port: No
• DisplayPort Out: No

Network (Wired)

• Network Card: No

Network (Wireless)

• Bluetooth: No
• Wireless System: No

System

• User Programmable Modes: Yes (ViewMode presets: Game, Movie, Web, Text, Mono, Mac)
• Factory Presets: Yes (Standard factory display presets)
• Language Selection: Multi-language OSD (English, French, Spanish, German, Italian, Russian, Chinese, Japanese, etc.)
• Plug and Play: Yes (VESA DDC2B)
• Monitor Management: OSD with ViewMode presets, Game Mode, brightness/contrast, color temperature, input select
• Software Included: ViewSonic vDisplay Manager (optional download)

System Requirements

• Operating Systems Supported: Windows, macOS, Linux (with standard drivers)
• System Requirements: PC or console with HDMI 2.0 / DisplayPort 1.4

Electrical

• Electrical Power Consumption: ~47 W (typical), ~51 W (max)
• Electrical Power Consumption Standby: <0.5 W
• Electrical Power Consumption Saving: Yes (Eco Mode)

Compliance

• Certifications: CE, FCC, cTUVus, Energy Star, RoHS, WEEE, REACH

Electrical

• Voltage: 100-240 V AC
• Electrical Frequency: 50 / 60 Hz
• Power Adaptor Type: Internal power supply
• Power Management Features: Energy Star, Eco Mode, automatic standby
• Battery: No
• Power Supply: Internal power supply (100-240 V AC, 50/60 Hz)
• Energy Rating: Energy Star Certified

Environmental

• Operating Temperature: 0øC - 40øC (32øF - 104øF)
• Operating Humidity: 20% - 90% (non-condensing)

Physical

• Form Factor: 34" Curved Ultrawide Monitor
• Case Colour: Black
• Pack Quantity: 1
• Security Locking Mechanics: Kensington Security Slot
• In The Box: Monitor, Stand (base + neck), Power cable, HDMI cable, Quick start guide
• Width: 809 mm (31.85")
• Depth: 240 mm (9.45") with stand
• Height: 432-552 mm (17.01"-21.73") with stand
• Weight: 12.1 kg (26.7 lbs) with stand
• Country of Origin: China

Shipping

• Shipping Carton Quantity: 1
• Shipping Carton Product Quantity: 1
• SC Width: 930 mm (36.6")
• SC Depth: 200 mm (7.9")
• SC Height: 500 mm (19.7")
• SC Weight: ~14.5 kg (31.9 lbs)
• Trade Carton: Yes
• Trade Carton Product Quantity: 1
• TC Width: 930 mm (36.6")
• TC Depth: 200 mm (7.9")
• TC Height: 500 mm (19.7")
• TC Weight: ~14.5 kg (31.9 lbs)
• Shipping Pallet Quantity: Varies (depends on pallet config, typically 20-30 units per pallet)
• Pallet Product Quantity: Varies (typically 20-30 units per pallet)
• SP Width: Standard Euro/Industrial Pallet sizes (e.g. 1200 mm or 48")
• SP Depth: Standard pallet depth ~1200 mm (47.2")
• SP Height: Standard pallet height (varies by stacking, ~1500-1700 mm when loaded)
• SP Weight: Varies by pallet load (typically ~300-400 kg full load)

Attributes

• PCMCIA Slots: No

Identifiers

• Stock Code: MON9702
• Mfg Code: VX3418C-2K
