Display

• Screen Size: 27"
• Viewable screen size: 27"
• Display Area: 597.89 mm (H) x 336.31 mm (V) (from panel specs for 27" QHD IPS)
• Screen Width: 597.89 mm
• Screen Height: 336.31 mm
• Screen technology: IPS (In-Plane Switching)

Physical

• Form Factor: Flat Panel Monitor (16:9)

Display

• Screen Technology: LED-backlit LCD (IPS)
• Screen Construction: Flat
• Colours: 1.07 Billion (10-bit, 8-bit + FRC)
• Pixel Pitch: 0.233 mm (H) x 0.233 mm (V)
• Brightness: 300 cd/m
• View Angle (Horizontal - Max): 178ø
• View Angle (Vertical - Max): 178ø
• Anti-Glare / Anti-Static: Anti-Glare, Hard Coating (3H)
• Pixel Clock Speed: HDMI 2.0: 600 MHz, DisplayPort 1.4: 810 MHz (typical for QHD 180Hz)
• Contrast Ratio: 1,000:1 (typical)
• Contrast Ratio - Dynamic: 80,000,000:1
• Resolution (Native): 2560 ž 1440
• Resolution Type (Native): QHD (Quad HD)
• Response time: 1ms (MPRT)
• Video Bandwidth: HDMI 2.0: 18 Gbps, DisplayPort 1.4: 32.4 Gbps
• Lifetime: 30,000 hours (min, backlight life)
• Swivel: None
• Resolution (Maximum): 2560 x 1440
• Resolution Type (Maximum): QHD
• Pixels Per Inch (PPI): ~109 PPI
• Backlight: LED
• Supported Resolutions: 2560x1440, 1920x1080, 1680x1050, 1600x900, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768, 800x600, 640x480
• Vertical Frequ: HDMI: 48-144 Hz, DisplayPort: 48-180 Hz
• Colour Gamut: NTSC: 78% (typ) / sRGB: 110% (typ)
• HD Support: QHD 2560x1440 (supports 720p, 1080p, 1440p)
• Aspect Ratio: 16:9
• 3D Glasses Included: No
• Pivot: None
• Horizontal Frequency - Low (Digital): HDMI: 32 kHz / DP: 30 kHz
• Horizontal Frequency - High (Digital): HDMI: 230 kHz / DP: 255 kHz
• Vertical Frequency - Low (Digital): HDMI: 48 Hz / DP: 48 Hz
• Vertical Frequency - High (Digital): HDMI: 144 Hz / DP: 180 Hz
• Vertical Frequency - Low: HDMI: 48 Hz / DP: 48 Hz
• Vertical Frequency - High: HDMI: 144 Hz / DP: 180 Hz
• Horizontal Frequency: HDMI: 32-230 kHz / DP: 30-255 kHz
• Vertical Frequency: HDMI: 48-144 Hz / DP: 48-180 Hz

Interfaces/Ports

• Microphone In Port: No
• Audio Line Out Ports: 1 x 3.5 mm audio out

Physical

• Display Type: LED-backlit LCD

Mount

• Wall Mountable: Yes

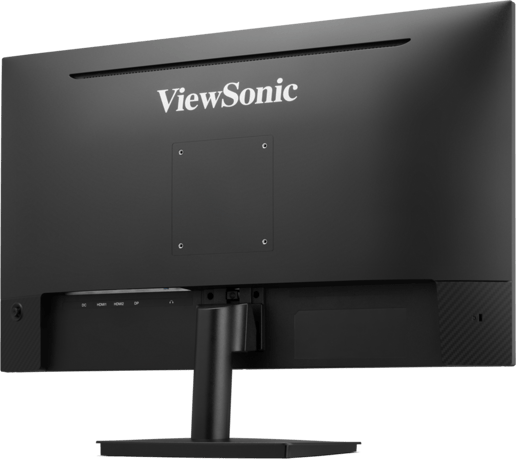

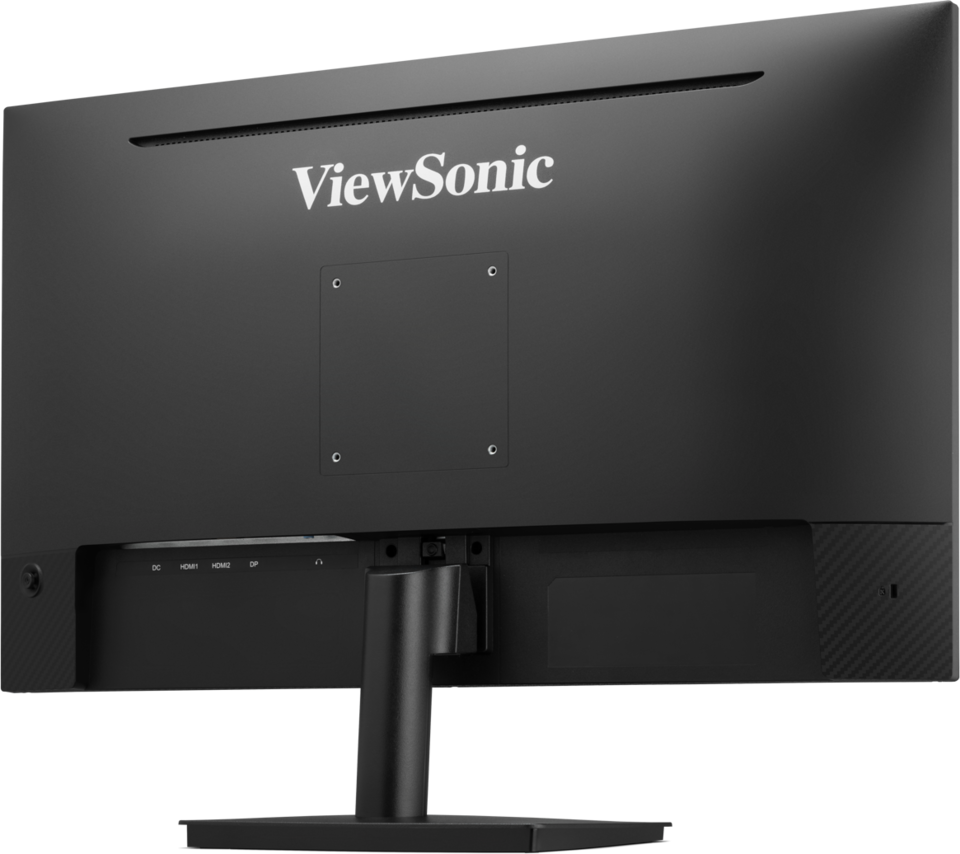

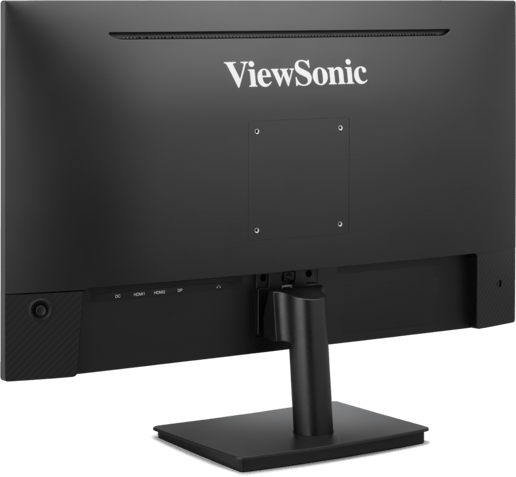

• Wall Mount: 100 x 100 mm VESA

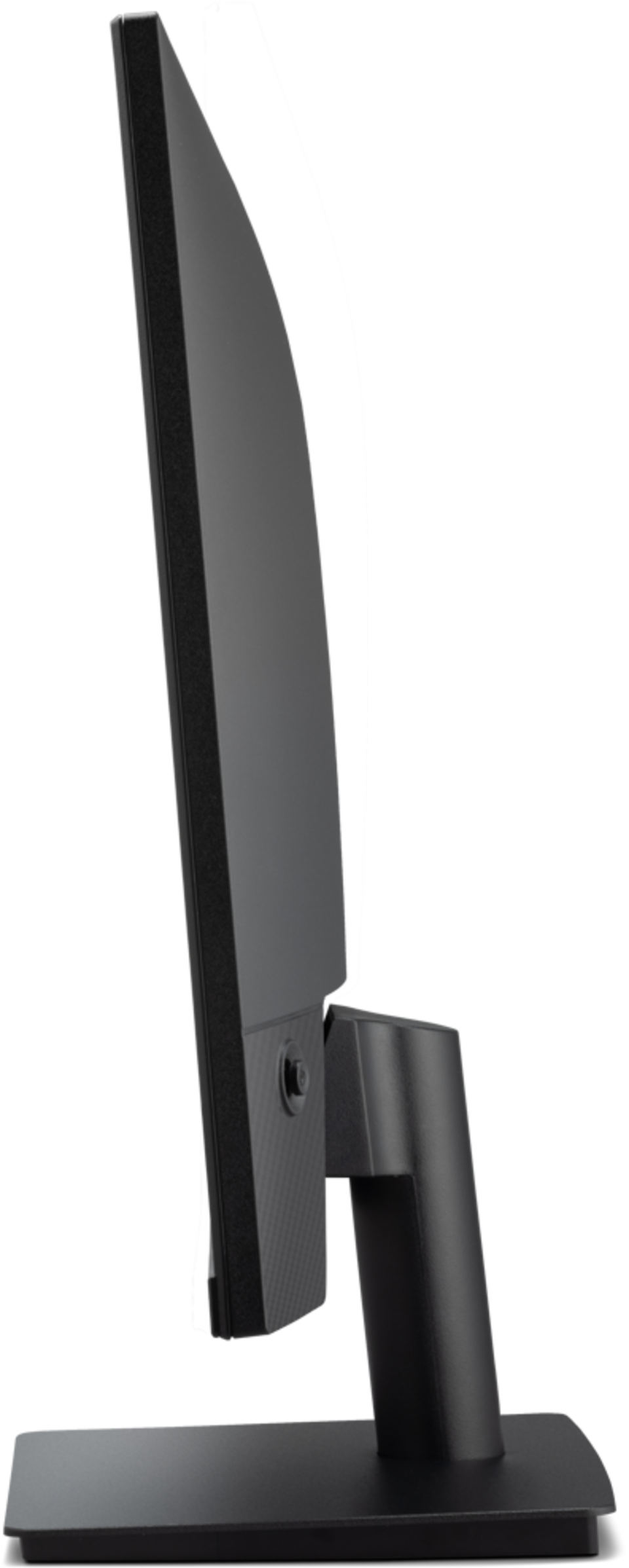

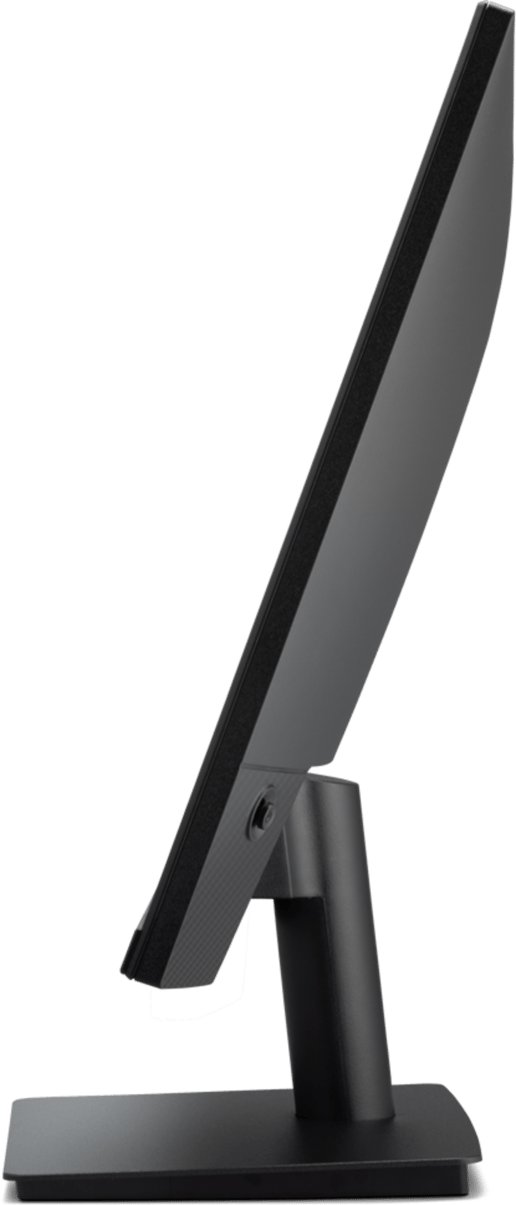

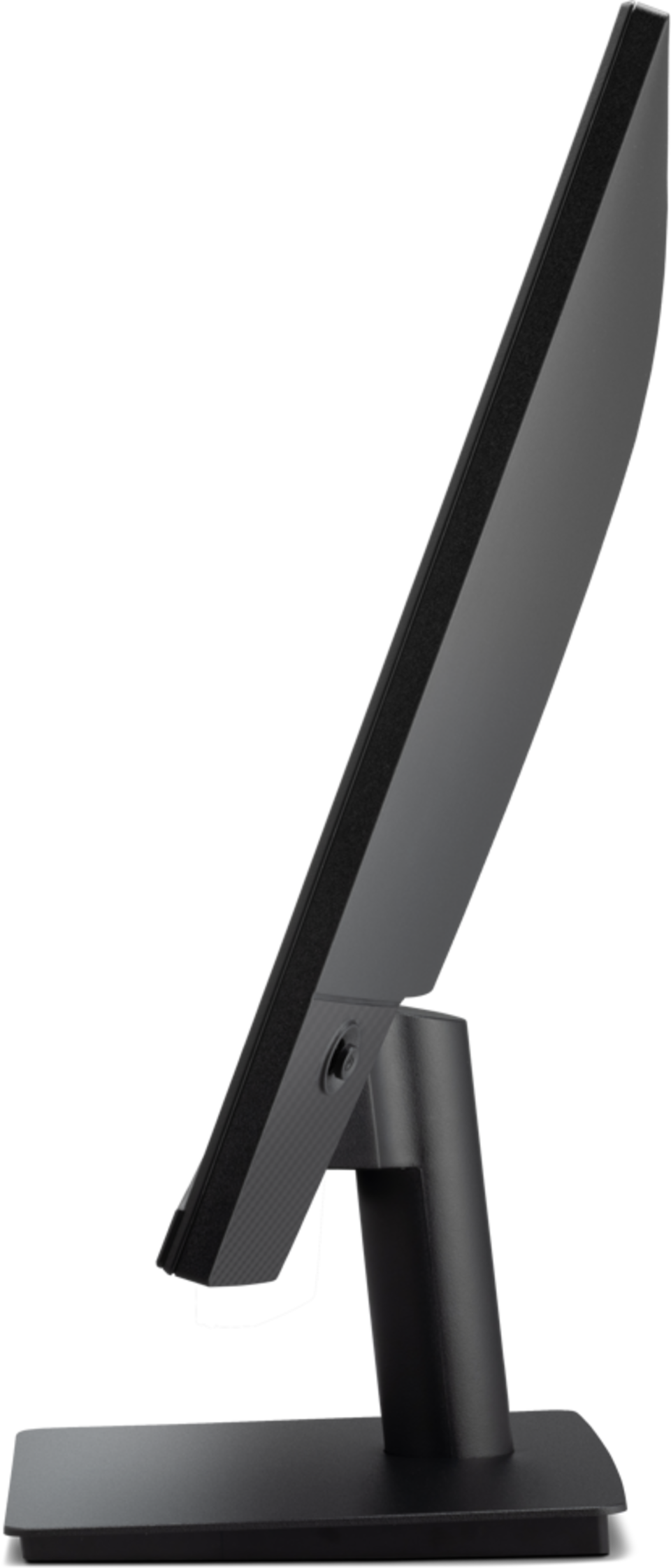

• Tilt (Forward/Backward): -5ø / +20ø
• Tilt Range: 25ø total
• Swivel (Left/Right): No
• Height Adjustable: No
• Pivot (Rotation): No
• Side Bezel Width: Ultra-thin bezel, ~2mm (top/sides), ~20mm (bottom)

Resolution

• 640 x 350 Graphic Mode: Supported
• 640 x 480 Graphic Mode: Supported
• 720 x 400 Text Graphic Mode: Supported
• 800 x 600 Graphic Mode: Supported
• 832 x 624 Mac Graphic Mode: Supported
• 1024 x 768 Graphic Mode: Supported
• 1152 x 864 Mac Graphic Mode: Supported
• 1152 x 870 Graphic Mode: Supported
• 1152 x 900 Graphic Mode: Supported
• 1280 x 768 Graphic Mode: Supported
• 1280 x 960 Graphic Mode: Supported
• 1280 x 1024 Graphic Mode: Supported
• 1600 x 1200 Graphic Mode: Supported
• 1920 x 1080 Graphic Mode: Supported (Full HD)
• 1920 x 1200 Graphic Mode: Supported
• 1920 x 1440 Graphic Mode: Supported
• 1680 x 1050 Graphic Mode: Supported
• 1400 x 900 Graphic Mode: Supported
• 1400 x 1050 Graphic Mode: Supported
• 1440 x 900 Graphic Mode: Supported
• 1280 x 720 Graphic Mode: Supported
• 640 x 400 Graphic Mode: Supported
• 1152 x 720 Graphic Mode: Supported
• 1280 x 900 Graphic Mode: Supported
• 1600 x 1000 Graphic Mode: Supported
• 2048 x 1080 Graphic Mode: Supported
• 2048 x 1200 Graphic Mode: Supported
• 2560 x 1440 Graphic Mode: Supported (native resolution, QHD)

Camera

• Webcam: No

Input

• Input Impedance: Not specified (standard digital inputs)
• Keyboard: No
• Pointing Device: No
• Fingerprint Reader: No
• User Controls: Up, Down, Left, Right, Power

Remote

• Motion Sensing Technology: No
• Control Buttons: 5 physical buttons
• Button Functions: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu, Power
• Scroll Wheel: No
• Remote Control: No

Media Adaptor

• Micro Drive: No
• Removable Flash Memory Media: No
• Number of Card Slots: 0
• Compact Flash: No
• Smart Media: No
• MultiMedia Card: No
• Sony Memory Stick: No
• Secure Digital: No
• xD-Picture Card: No

Memory

• Designation: Monitor only - no internal CPU or RAM

Storage

• Number of Hard Disks: 0

Sound

• Audio Capabilities: 3.5 mm audio out (headphone/line out)
• Speakers: No
• Audio Features: External audio out only, no built-in speakers

Interfaces/Ports

• Audio Line Out Ports: 1 x 3.5 mm
• VGA In: No
• SCART Ports: No
• Audio/Visual Port: No
• BNC Port: No

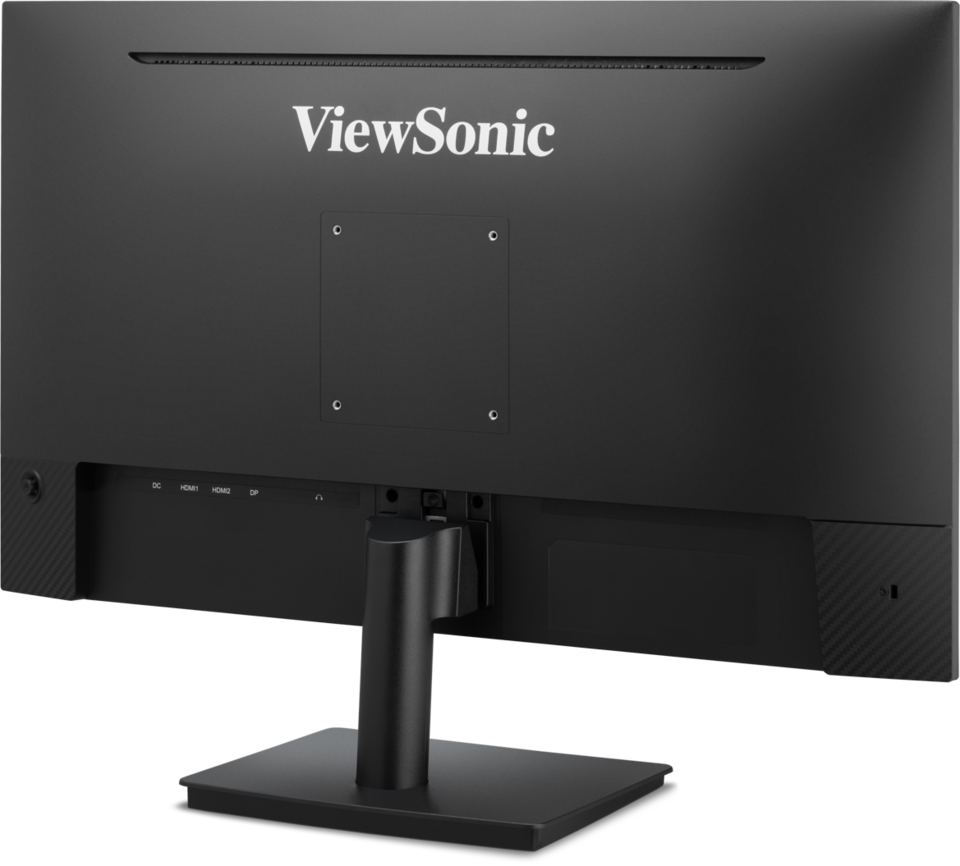

• Digital In: 2 x HDMI 2.0, 1 x DisplayPort 1.4
• Synch Input: Yes (via DisplayPort, TMDS over HDMI)
• S-Video in: No
• Video Composite In: No
• USB Ports: No
• Microphone In Port: No
• Audio Line In Ports: No
• Headphone Ports: 1 x 3.5 mm
• Serial Ports: No
• AC Power: Yes (AC 100-240V, 50/60Hz via external adaptor)
• DC Power: Yes (DC socket, center positive, via adaptor)
• Video Component In: No
• Multi-media Player Input: No
• Video Component Out: No
• Video Composite Out: No
• HDMI Ports: 2 x HDMI 2.0 (HDCP 2.2)
• DisplayPort In: 1 x DisplayPort 1.4
• Firewire Ports: No
• Digital Audio Optical Out: No
• Digital Out: No
• RJ-45 Ports: No
• Thunderbolt Port(s): No
• Infrared Port: No
• DisplayPort Out: No

Network (Wired)

• Network Card: No

Network (Wireless)

• Bluetooth: No
• Wireless System: No

System

• User Programmable Modes: Yes (ViewMode presets: Game, Movie, Web, Text, Mono, Mac)
• Factory Presets: Yes
• Language Selection: Multi-language OSD (English, French, German, Spanish, Italian, Portuguese, Chinese, Japanese, etc.)
• Plug and Play: Yes
• Monitor Management: OSD menu with ViewMode presets and manual adjustments
• Software Included: Quick Start Guide (no bundled software)

System Requirements

• Operating Systems Supported: Windows 10/11 certified, macOS tested
• System Requirements: PC or Mac with HDMI/DisplayPort output

Electrical

• Electrical Power Consumption: Typical: 33W / Max: 36W
• Electrical Power Consumption Standby: 0.3W
• Electrical Power Consumption Saving: 22W (Eco Mode)

Compliance

• Certifications: CE, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO

Electrical

• Voltage: AC 100-240V
• Electrical Frequency: 50/60 Hz
• Power Adaptor Type: External power adaptor
• Power Adaptor Output Voltage: DC (center positive, adaptor spec varies by region)
• Power Management Features: Eco Mode (Optimized / Conserve), Energy-saving features
• Battery: No
• Power Supply: External power adaptor
• Energy Rating: EU Energy Class F

Environmental

• Operating Temperature: 0øC to 40øC (32øF to 104øF)
• Operating Humidity: 20% - 90% (non-condensing)

Physical

• Form Factor: Flat panel
• Case Colour: Black
• Pack Quantity: 1
• Security Locking Mechanics: Kensington Lock Slot

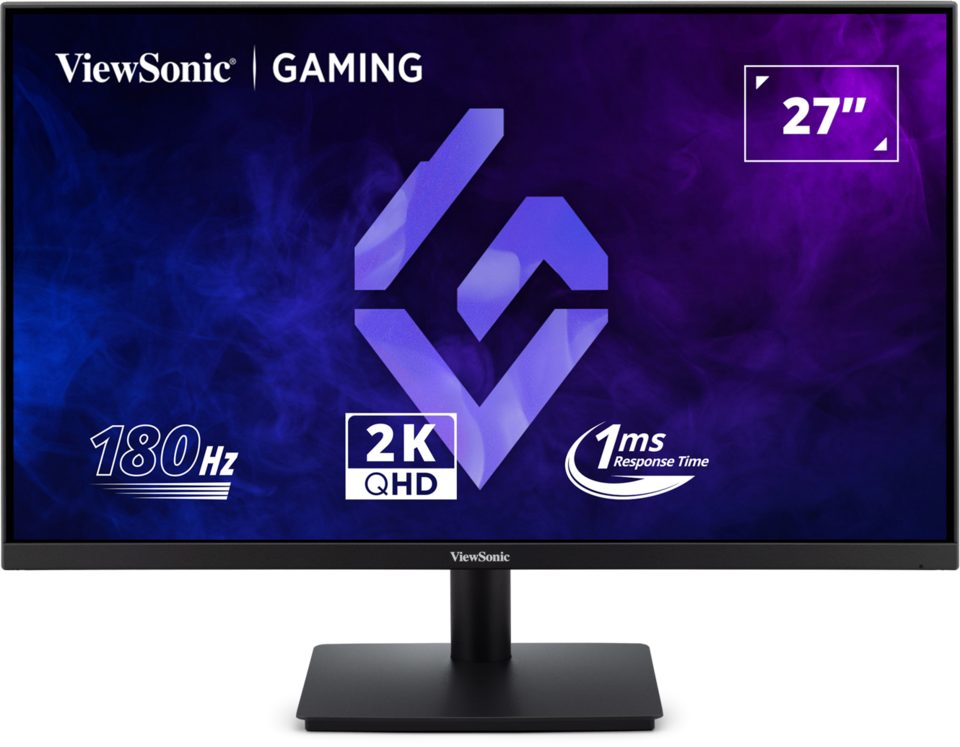

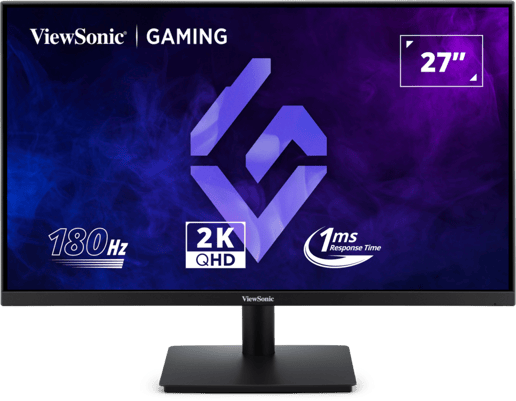

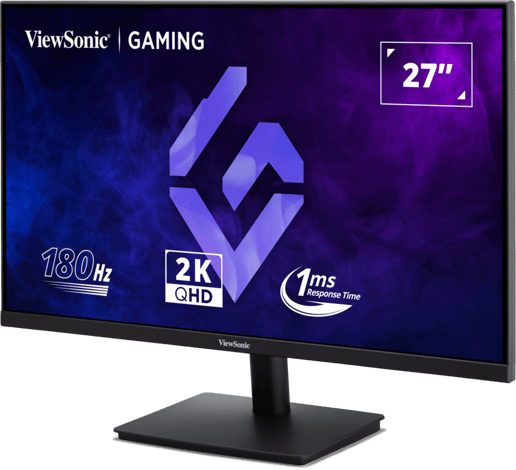

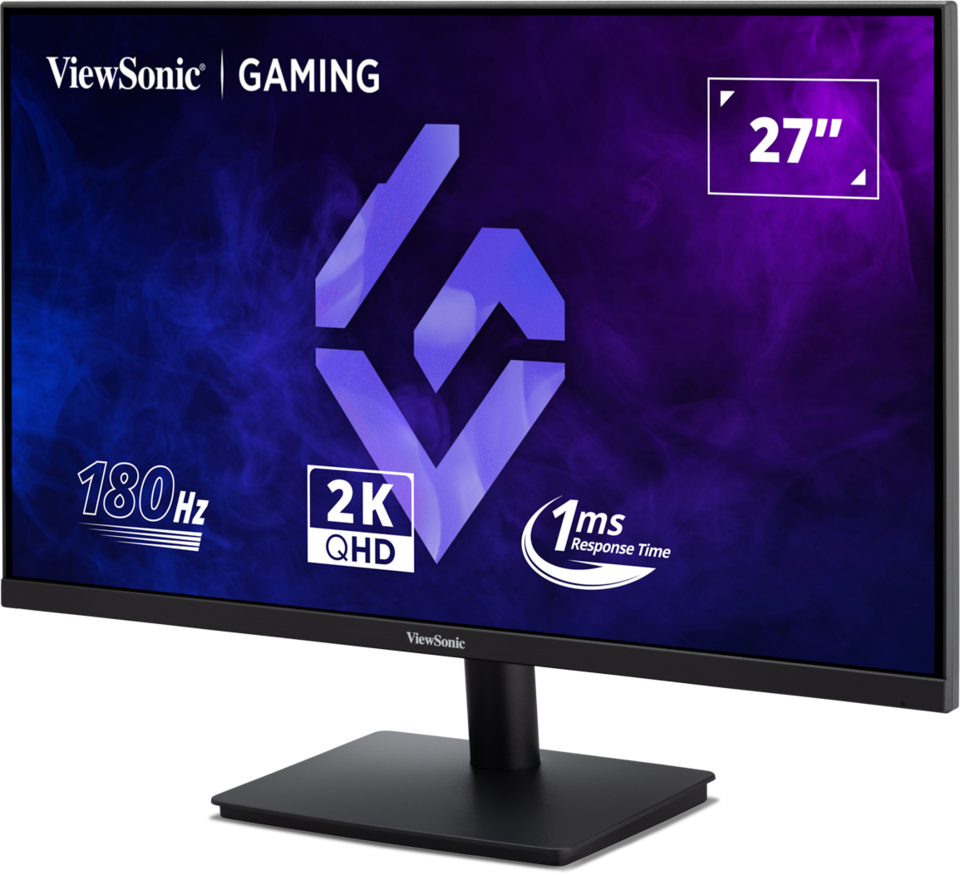

• In The Box: VX27G1-2K Monitor, DisplayPort Cable (v1.4), AC/DC Power Adapter, Power Cable (varies by region), Quick Start Guide
• Width: 615.07 mm (24.22 in)
• Depth: 188.73 mm (7.43 in) with stand / 47.96 mm (1.89 in) without stand
• Height: 455.65 mm (17.94 in) with stand / 364.1 mm (14.33 in) without stand
• Weight: 3.6 kg (7.9 lbs) with stand / 3.1 kg (6.8 lbs) without stand / Gross: 5 kg (11 lbs)
• Country of Origin: China

Shipping

• Shipping Carton Quantity: 1
• Shipping Carton Product Quantity: 1
• SC Width: 680 mm (26.8 in)
• SC Depth: 120 mm (4.7 in)
• SC Height: 460 mm (18.1 in)
• SC Weight: 5 kg (11 lbs)
• Trade Carton: 1
• Trade Carton Product Quantity: 1
• TC Width: 680 mm (26.8 in)
• TC Depth: 120 mm (4.7 in)
• TC Height: 460 mm (18.1 in)
• TC Weight: 5 kg (11 lbs)
• Shipping Pallet Quantity: Varies by distributor (not officially listed)
• Pallet Product Quantity: Varies by distributor (not officially listed)

Identifiers

• Stock Code: MON9701
• Mfg Code: VX27G1-2K
